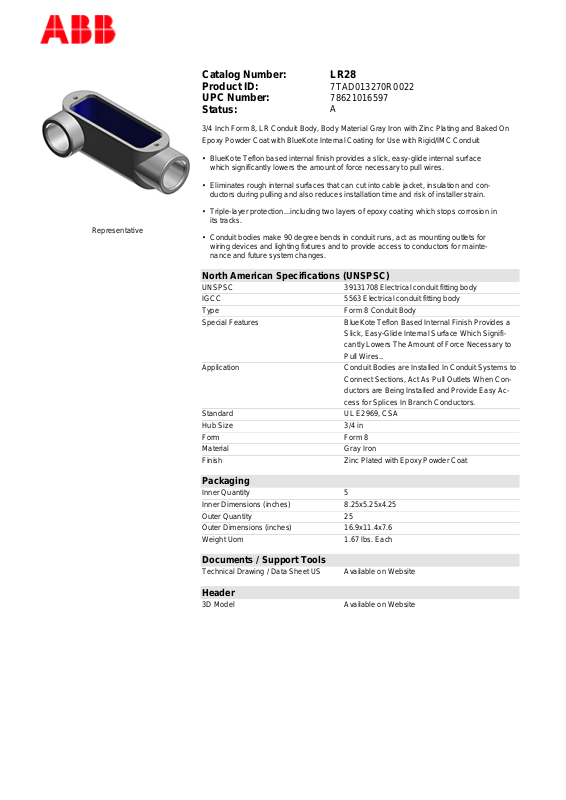

Thomas & Betts LR28 Data Sheet
Representative
Catalog Number: LR28
Product ID:
UPC Number:
Status:
3/4 Inch Form 8, LR Conduit Body, Body Material Gray Iron with Zinc Plating and Baked On
Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC Conduit
• BlueKote Teflon based internal finish provides a slick, easy-glide internal surface
which significantly lowers the amount of force necessary to pull wires.
• Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain.
• Triple-layer protection...including two layers of epoxy coating which stops corrosion in
its tracks.
• Conduit bodies make 90 degree bends in conduit runs, act as mounting outlets for
wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes.
North American Specifications (UNSPSC)
UNSPSC 39131708 Electrical conduit fitting body
IGCC 5563 Electrical conduit fitting body
Type Form 8 Conduit Body
Special Features BlueKote Teflon Based Internal Finish Provides a
Application Conduit Bodies are Installed In Conduit Systems to
Standard UL E2969, CSA
Hub Size 3/4 in
Form Form 8
Material Gray Iron
Finish Zinc Plated with Epoxy Powder Coat
7TAD013270R0022
78621016597
A
Slick, Easy-Glide Internal Surface Which Significantly Lowers The Amount of Force Necessary to
Pull Wires..
Connect Sections, Act As Pull Outlets When Conductors are Being Installed and Provide Easy Access for Splices In Branch Conductors.
Packaging
Inner Quantity 5
Inner Dimensions (inches) 8.25x5.25x4.25
Outer Quantity 25
Outer Dimensions (inches) 16.9x11.4x7.6
Weight Uom 1.67 lbs. Each
Documents / Support Tools
Technical Drawing / Data Sheet US Available on Website
Header
3D Model Available on Website
