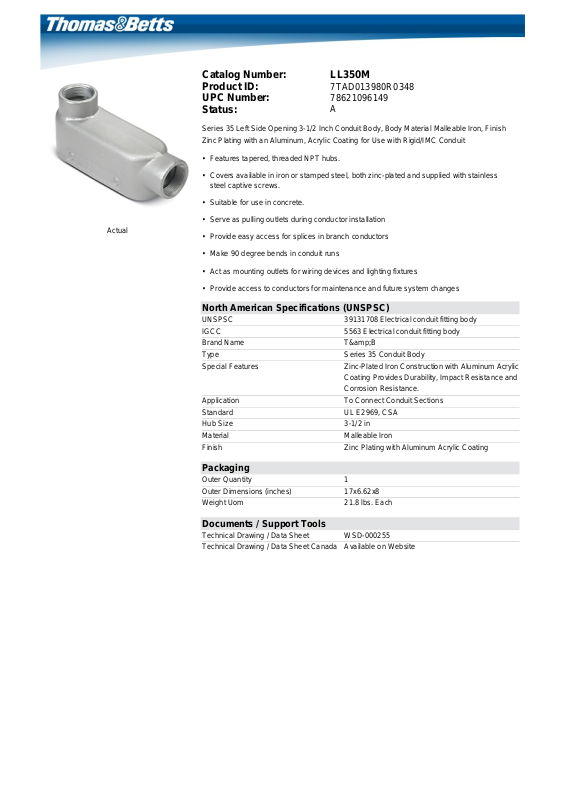

Thomas & Betts LL350M Data Sheet

Actual

Catalog Number: LL350M
Product ID:
UPC Number:
Status:

Series 35 Left Side Opening 3-1/2 Inch Conduit Body, Body Material Malleable Iron, Finish
Zinc Plating with an Aluminum, Acrylic Coating for Use with Rigid/IMC Conduit

• Features tapered, threaded NPT hubs.

• Covers available in iron or stamped steel, both zinc-plated and supplied with stainless
steel captive screws.

• Suitable for use in concrete.

• Serve as pulling outlets during conductor installation

• Provide easy access for splices in branch conductors

• Make 90 degree bends in conduit runs

• Act as mounting outlets for wiring devices and lighting fixtures

• Provide access to conductors for maintenance and future system changes

North American Specifications (UNSPSC)

UNSPSC 39131708 Electrical conduit fitting body
IGCC 5563 Electrical conduit fitting body
Brand Name T&B
Type Series 35 Conduit Body
Special Features Zinc-Plated Iron Construction with Aluminum Acrylic

Application To Connect Conduit Sections
Standard UL E2969, CSA
Hub Size 3-1/2 in
Material Malleable Iron
Finish Zinc Plating with Aluminum Acrylic Coating

7TAD013980R0348
78621096149
A

Coating Provides Durability, Impact Resistance and
Corrosion Resistance.

Packaging

Outer Quantity 1
Outer Dimensions (inches) 17x6.62x8
Weight Uom 21.8 lbs. Each

Documents / Support Tools

Technical Drawing / Data Sheet WSD-000255
Technical Drawing / Data Sheet Canada Available on Website
