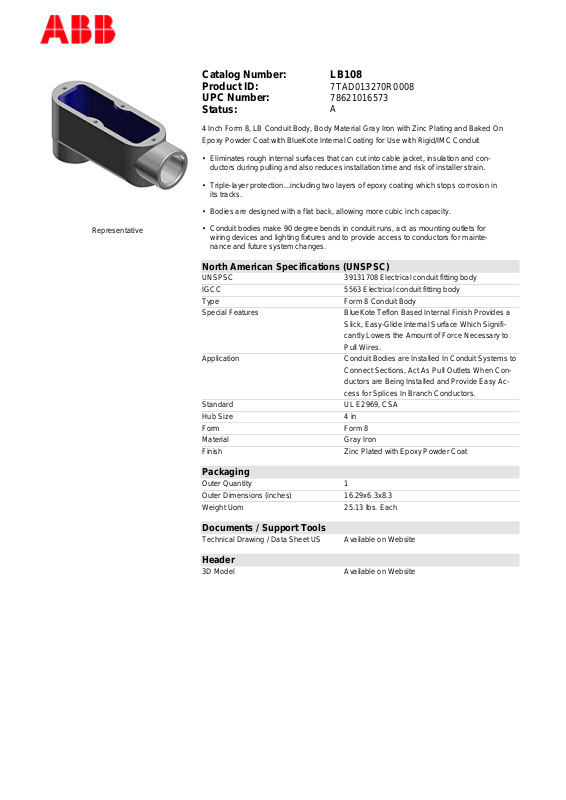

Thomas & Betts LB108 Data Sheet

Catalog Number: LB108 Product ID: UPC Number: Status:

4 Inch Form 8, LB Conduit Body, Body Material Gray Iron with Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC Conduit

• Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain.

• Triple-layer protection...including two layers of epoxy coating which stops corrosion in its tracks.

• Bodies are designed with a flat back, allowing more cubic inch capacity.

7TAD013270R0008 78621016573 A

Representative

• Conduit bodies make 90 degree bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes.

North American Specifications (UNSPSC)

UNSPSC 39131708 Electrical conduit fitting body IGCC 5563 Electrical conduit fitting body Type Form 8 Conduit Body Special Features BlueKote Teflon Based Internal Finish Provides a

Slick, Easy-Glide Internal Surface Which Significantly Lowers the Amount of Force Necessary to Pull Wires.

Application Conduit Bodies are Installed In Conduit Systems to

Connect Sections, Act As Pull Outlets When Conductors are Being Installed and Provide Easy Ac-

cess for Splices In Branch Conductors. Standard UL E2969, CSA Hub Size 4 in Form Form 8 Material Gray Iron Finish Zinc Plated with Epoxy Powder Coat

Packaging

Outer Quantity 1 Outer Dimensions (inches) 16.29x6.3x8.3 Weight Uom 25.13 lbs. Each

Documents / Support Tools

Technical Drawing / Data Sheet US Available on Website

Header

3D Model Available on Website
