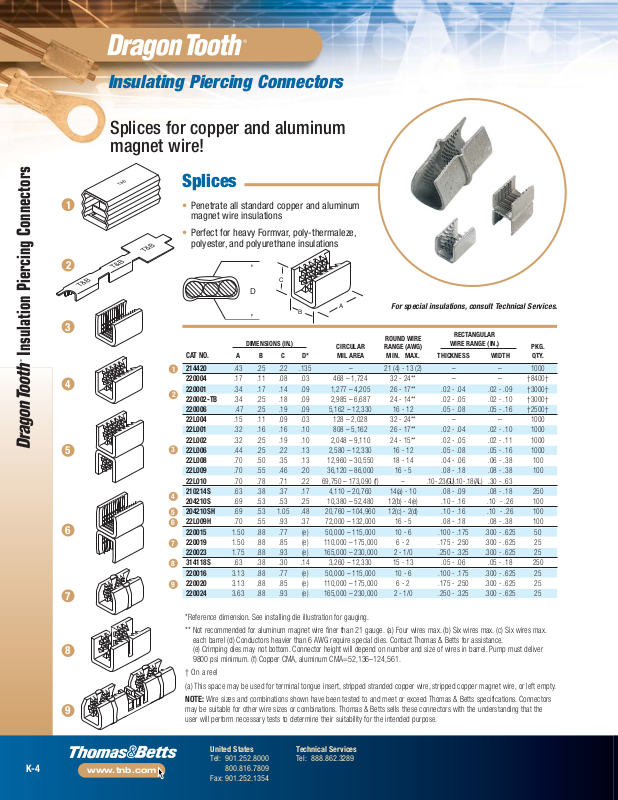

Thomas & Betts Insulating Piercing Connectors Catalog
Insulating Piercing Connectors
B
C
A
Splices for copper and aluminum
magnet wire!
Splices
1
• Penetrate all standard copper and aluminum
magnet wire insulations
• Perfect for heavy Formvar, poly-thermaleze,
polyester, and polyurethane insulations
2
3
Insulation Piercing Connectors
4
5
6
7
CAT NO.
214420 .43 .25 .22 .135 – 21 (4) - 13 (2) – – 1000
1
220004 .17 .11 .08 .03 468 – 1,724 32 - 24** – – †8400†
220001 .34 .17 .14 .09 1,277 – 4,205 26 - 17** .02 - .04 .02 - .09 †3000†
2
220002-TB .34 .25 .18 .09 2,985 – 6,687 24 - 14** .02 - .05 .02 - .10 †3000†
220006 .47 .25 .19 .09 5,162 – 12,330 16 - 12 .05 - .08 .05 - .16 †2500†
22L004 .15 .11 .09 .03 128 – 2,028 32 - 24** – – 1000
22L001 .32 .16 .16 .10 808 – 5,162 26 - 17** .02 - .04 .02 - .10 1000
22L002 .32 .25 .19 .10 2,048 – 9,110 24 - 15** .02 - .05 .02 - .11 1000
3
22L006 .44 .25 .22 .13 2,580 – 12,330 16 - 12 .05 - .08 .05 - .16 1000
22L008 .70 .50 .35 .13 12,960 – 30,550 18 - 14 .04 - .06 .06 - .38 100
22L009 .70 .55 .46 .20 36,120 – 86,000 16 - 5 .08 - .18 .08 - .38 100
22L010 .70 .78 .71 .22 69,750 – 173,090 (f) – .10 - .23 (GU) .10 - .18 (AL) .30 - .63
210214S .63 .38 .37 .17 4,110 – 20,760 14(a) - 10 .08 - .09 .08 - .18 250
4
204210S .69 .53 .53 .25 10,380 – 52,480 12(b) - 4(e) .10 - .16 .10 - .26 100
204210SH .69 .53 1.05 .48 20,760 – 104,960 12(c) - 2(d) .10 - .16 .10 - .26 100
5
22L009H .70 .55 .93 .37 72,000 – 132,000 16 - 5 .08 - .18 .08 - .38 100
6
220015 1.50 .88 .77 (e) 50,000 – 115,000 10 - 6 .100 - .175 .300 - .625 50
220019 1.50 .88 .85 (e) 110,000 – 175,000 6 - 2 .175 - .250 .300 - .625 25
7
220023 1.75 .88 .93 (e) 165,000 – 230,000 2 - 1/0 .250 - .325 .300 - .625 25
314118S .63 .38 .30 .14 3,260 – 12,330 15 - 13 .05 - .06 .05 - .18 250
8
220016 3.13 .88 .77 (e) 50,000 – 115,000 10 - 6 .100 - .175 .300 - .625 25
220020 3.13 .88 .85 (e) 110,000 – 175,000 6 - 2 .175 - .250 .300 - .625 25
9
220024 3.63 .88 .93 (e) 165,000 – 230,000 2 - 1/0 .250 - .325 .300 - .625 25
A B C D* MIL AREA MIN. MAX. THICKNESS WIDTH QTY.
D
DIMENSIONS (IN.)
For special insulations, consult Technical Services.
ROUND WIRE
CIRCULAR RANGE (AWG)
RECTANGULAR
WIRE RANGE (IN.)
PKG.
*Reference dimension. See installing die illustration for gauging.
** Not recommended for aluminum magnet wire finer than 21 gauge. (a) Four wires max. (b) Six wires max. (c) Six wires max.
each barrel (d) Conductors heavier than 6 AWG require special dies. Contact Thomas & Betts for assistance.
8
9
K-4
www.tnb.com
(e) Crimping dies may not bottom. Connector height will depend on number and size of wires in barrel. Pump must deliver
9800 psi minimum. (f) Copper CMA, aluminum CMA=52,136–124,561.
† On a reel
(a) This space may be used for terminal tongue insert, stripped stranded copper wire, stripped copper magnet wire, or left empty.
NOTE: Wire sizes and combinations shown have been tested to and meet or exceed Thomas & Betts specifications. Connectors
may be suitable for other wire sizes or combinations. Thomas & Betts sells these connectors with the understanding that the
user will perform necessary tests to determine their suitability for the intended purpose.
United States
Tel: 901.252.8000
800.816.7809
Fax: 901.252.1354
Technical Services
Tel: 888.862.3289
B
E
C
A
B
D
E
C
A
Splices (continued)
Insulating Piercing Connectors
Insulation Piercing Connectors
10
11
See note (a).
CAT. NO.
210214MT – .63 .63 .75 .25 .19 20,000 – 105,000 5 - 13 250
10
STUD
SIZE A B C D E MIL AREA (AWG) THICKNESS WIDTH QTY.
DIMENSIONS (IN.)
CIRCULAR RANGE
ROUND WIRE
210MT14 1/4 1.00 1.44 .81 – .08 5 - 13 25
210MT38 3/8 1.00 1.44 .81 – .08 5 - 13 25
11
204210MT – .69 .94 1.03 .25 .25 90,000 – 215,000 3 - 10 100
10
204MT14 1/4 1.00 1.44 .91 – .10 3 - 10 25
11
204MT38 3/8 1.00 1.44 .91 – .10 3 - 10 25
RECTANGULAR
WIRE RANGE (IN.)
Lower Half
.08 - .15 .08 - .49
Upper Half
.25 max .75 max.
For Conn
210214MT
Lower Half
.10 - .25 .10 - .92
Upper Half
.25 max 1.03 max.
For Conn
204210MT
(a) This space may be used for terminal tongue insert, stripped stranded copper wire, stripped copper magnet wire, or left empty.
NOTE: Wire sizes and combinations shown have been tested to and meet or exceed Thomas & Betts specifications.
Connectors may be suitable for other wire sizes or combinations. Thomas & Betts sells these connectors with the
understanding that the user will perform necessary tests to determine their suitability for the intended purpose.
PKG.
United States
Tel: 901.252.8000
800.816.7809
Fax: 901.252.1354
Technical Services
Tel: 888.862.3289
www.tnb.com
K-5
