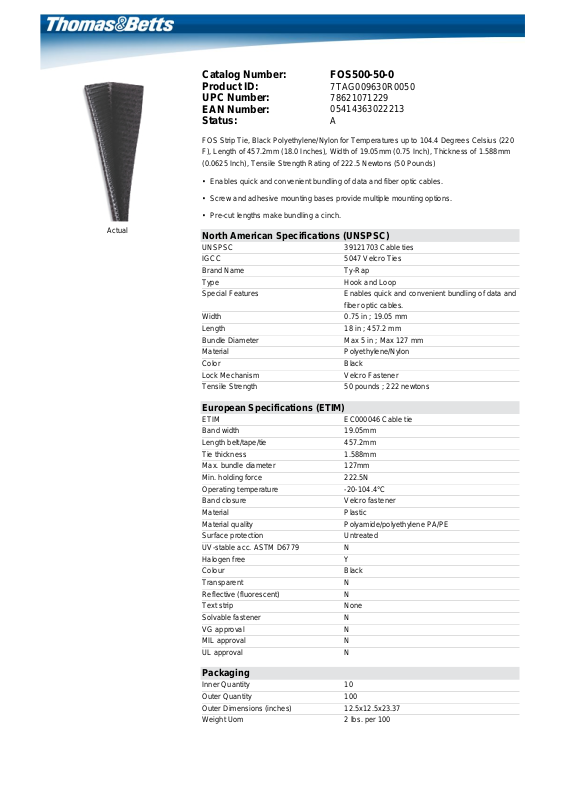

Thomas & Betts FOS500-50-0 Data Sheet

Actual

Catalog Number: FOS500-50-0
Product ID:
UPC Number:
EAN Number:
Status:

FOS Strip Tie, Black Polyethylene/Nylon for Temperatures up to 104.4 Degrees Celsius (220
F), Length of 457.2mm (18.0 Inches), Width of 19.05mm (0.75 Inch), Thickness of 1.588mm
(0.0625 Inch), Tensile Strength Rating of 222.5 Newtons (50 Pounds)

• Enables quick and convenient bundling of data and fiber optic cables.

• Screw and adhesive mounting bases provide multiple mounting options.

• Pre-cut lengths make bundling a cinch.

North American Specifications (UNSPSC)

UNSPSC 39121703 Cable ties
IGCC 5047 Velcro Ties
Brand Name Ty-Rap
Type Hook and Loop
Special Features Enables quick and convenient bundling of data and

Width 0.75 in ; 19.05 mm
Length 18 in ; 457.2 mm
Bundle Diameter Max 5 in ; Max 127 mm
Material Polyethylene/Nylon
Color Black
Lock Mechanism Velcro Fastener
Tensile Strength 50 pounds ; 222 newtons

7TAG009630R0050
78621071229
05414363022213
A

fiber optic cables.

European Specifications (ETIM)

ETIM EC000046 Cable tie
Band width 19.05mm
Length belt/tape/tie 457.2mm
Tie thickness 1.588mm
Max. bundle diameter 127mm
Min. holding force 222.5N
Operating temperature -20-104.4°C
Band closure Velcro fastener
Material Plastic
Material quality Polyamide/polyethylene PA/PE
Surface protection Untreated
UV-stable acc. ASTM D6779 N
Halogen free Y
Colour Black
Transparent N
Reflective (fluorescent) N
Text strip None
Solvable fastener N
VG approval N
MIL approval N
UL approval N

Packaging

Inner Quantity 10
Outer Quantity 100
Outer Dimensions (inches) 12.5x12.5x23.37
Weight Uom 2 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet WSD-000067
Technical Drawing / Data Sheet Canada Available on Website
