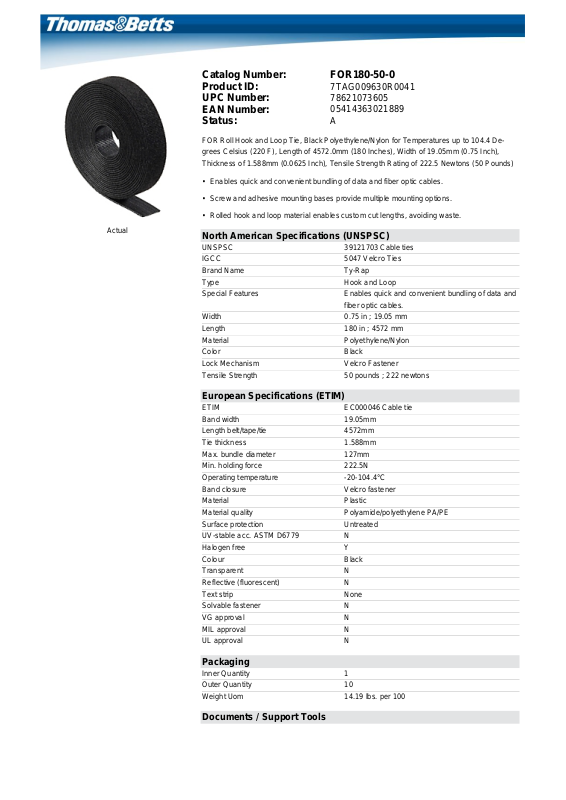

Thomas & Betts FOR180-50-0 Data Sheet

Actual

Catalog Number: FOR180-50-0
Product ID:
UPC Number:
EAN Number:
Status:

FOR Roll Hook and Loop Tie, Black Polyethylene/Nylon for Temperatures up to 104.4 De­grees Celsius (220 F), Length of 4572.0mm (180 Inches), Width of 19.05mm (0.75 Inch),
Thickness of 1.588mm (0.0625 Inch), Tensile Strength Rating of 222.5 Newtons (50 Pounds)

• Enables quick and convenient bundling of data and fiber optic cables.

• Screw and adhesive mounting bases provide multiple mounting options.

• Rolled hook and loop material enables custom cut lengths, avoiding waste.

North American Specifications (UNSPSC)

UNSPSC 39121703 Cable ties
IGCC 5047 Velcro Ties
Brand Name Ty-Rap
Type Hook and Loop
Special Features Enables quick and convenient bundling of data and

Width 0.75 in ; 19.05 mm
Length 180 in ; 4572 mm
Material Polyethylene/Nylon
Color Black
Lock Mechanism Velcro Fastener
Tensile Strength 50 pounds ; 222 newtons

7TAG009630R0041
78621073605
05414363021889
A

fiber optic cables.

European Specifications (ETIM)

ETIM EC000046 Cable tie
Band width 19.05mm
Length belt/tape/tie 4572mm
Tie thickness 1.588mm
Max. bundle diameter 127mm
Min. holding force 222.5N
Operating temperature -20-104.4°C
Band closure Velcro fastener
Material Plastic
Material quality Polyamide/polyethylene PA/PE
Surface protection Untreated
UV-stable acc. ASTM D6779 N
Halogen free Y
Colour Black
Transparent N
Reflective (fluorescent) N
Text strip None
Solvable fastener N
VG approval N
MIL approval N
UL approval N

Packaging

Inner Quantity 1
Outer Quantity 10
Weight Uom 14.19 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet WSD-000067
