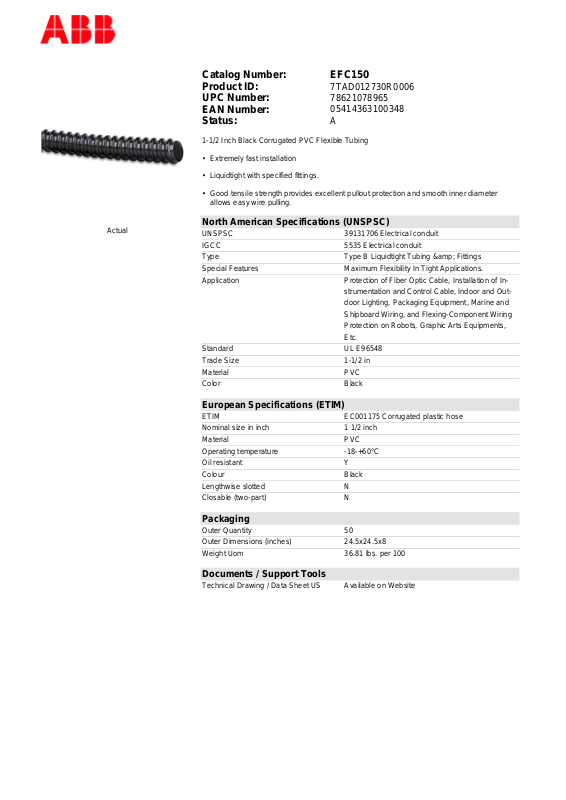

Thomas & Betts EFC150 Data Sheet

Catalog Number: EFC150
Product ID:
UPC Number:
EAN Number:
Status:

1-1/2 Inch Black Corrugated PVC Flexible Tubing

• Extremely fast installation

• Liquidtight with specified fittings.

• Good tensile strength provides excellent pullout protection and smooth inner diameter
allows easy wire pulling.

7TAD012730R0006
78621078965
05414363100348
A

Actual

North American Specifications (UNSPSC)

UNSPSC 39131706 Electrical conduit
IGCC 5535 Electrical conduit
Type Type B Liquidtight Tubing & Fittings
Special Features Maximum Flexibility In Tight Applications.
Application Protection of Fiber Optic Cable, Installation of In-

strumentation and Control Cable, Indoor and Out­door Lighting, Packaging Equipment, Marine and
Shipboard Wiring, and Flexing-Component Wiring
Protection on Robots, Graphic Arts Equipments,

Etc.
Standard UL E96548
Trade Size 1-1/2 in
Material PVC
Color Black

European Specifications (ETIM)

ETIM EC001175 Corrugated plastic hose
Nominal size in inch 1 1/2 inch
Material PVC
Operating temperature -18-+60°C
Oil resistant Y
Colour Black
Lengthwise slotted N
Closable (two-part) N

Packaging

Outer Quantity 50
Outer Dimensions (inches) 24.5x24.5x8
Weight Uom 36.81 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet US Available on Website
