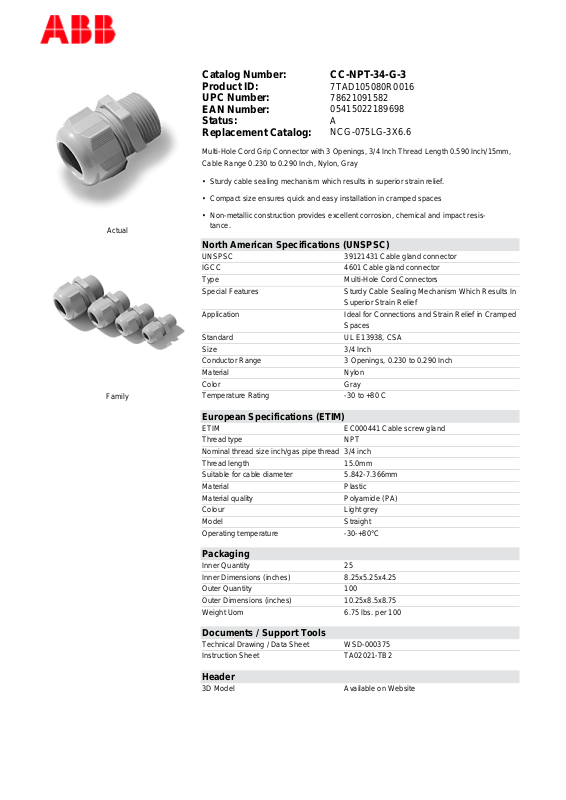

Thomas & Betts CC-NPT-34-G-3 Data Sheet

Actual

Family

Catalog Number: CC-NPT-34-G-3
Product ID:
UPC Number:
EAN Number:
Status:
Replacement Catalog:

Multi-Hole Cord Grip Connector with 3 Openings, 3/4 Inch Thread Length 0.590 Inch/15mm,
Cable Range 0.230 to 0.290 Inch, Nylon, Gray

• Sturdy cable sealing mechanism which results in superior strain relief.

• Compact size ensures quick and easy installation in cramped spaces

• Non-metallic construction provides excellent corrosion, chemical and impact resis­tance.

North American Specifications (UNSPSC)

UNSPSC 39121431 Cable gland connector
IGCC 4601 Cable gland connector
Type Multi-Hole Cord Connectors
Special Features Sturdy Cable Sealing Mechanism Which Results In

Application Ideal for Connections and Strain Relief in Cramped

Standard UL E13938, CSA
Size 3/4 Inch
Conductor Range 3 Openings, 0.230 to 0.290 Inch
Material Nylon
Color Gray
Temperature Rating -30 to +80 C

7TAD105080R0016
78621091582
05415022189698
A
NCG-075LG-3X6.6

Superior Strain Relief

Spaces

European Specifications (ETIM)

ETIM EC000441 Cable screw gland
Thread type NPT
Nominal thread size inch/gas pipe thread 3/4 inch
Thread length 15.0mm
Suitable for cable diameter 5.842-7.366mm
Material Plastic
Material quality Polyamide (PA)
Colour Light grey
Model Straight
Operating temperature -30-+80°C

Packaging

Inner Quantity 25
Inner Dimensions (inches) 8.25x5.25x4.25
Outer Quantity 100
Outer Dimensions (inches) 10.25x8.5x8.75
Weight Uom 6.75 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet WSD-000375
Instruction Sheet TA02021-TB2

Header

3D Model Available on Website
