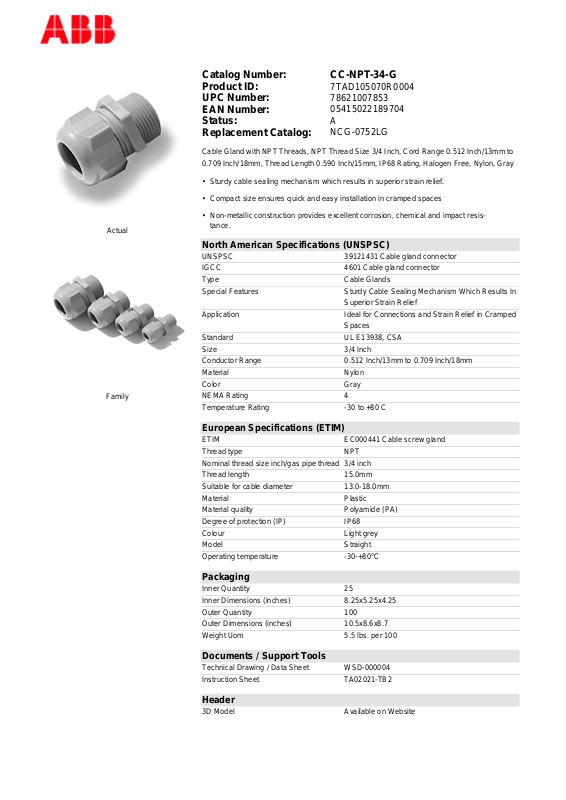

Thomas & Betts CC-NPT-34-G Data Sheet
Actual
Family
Catalog Number: CC-NPT-34-G
Product ID:
UPC Number:
EAN Number:
Status:
Replacement Catalog:
Cable Gland with NPT Threads, NPT Thread Size 3/4 Inch, Cord Range 0.512 Inch/13mm to
0.709 Inch/18mm, Thread Length 0.590 Inch/15mm, IP68 Rating, Halogen Free, Nylon, Gray
• Sturdy cable sealing mechanism which results in superior strain relief.
• Compact size ensures quick and easy installation in cramped spaces
• Non-metallic construction provides excellent corrosion, chemical and impact resistance.
North American Specifications (UNSPSC)
UNSPSC 39121431 Cable gland connector
IGCC 4601 Cable gland connector
Type Cable Glands
Special Features Sturdy Cable Sealing Mechanism Which Results In
Application Ideal for Connections and Strain Relief in Cramped
Standard UL E13938, CSA
Size 3/4 Inch
Conductor Range 0.512 Inch/13mm to 0.709 Inch/18mm
Material Nylon
Color Gray
NEMA Rating 4
Temperature Rating -30 to +80 C
7TAD105070R0004
78621007853
05415022189704
A
NCG-0752LG
Superior Strain Relief
Spaces
European Specifications (ETIM)
ETIM EC000441 Cable screw gland
Thread type NPT
Nominal thread size inch/gas pipe thread 3/4 inch
Thread length 15.0mm
Suitable for cable diameter 13.0-18.0mm
Material Plastic
Material quality Polyamide (PA)
Degree of protection (IP) IP68
Colour Light grey
Model Straight
Operating temperature -30-+80°C
Packaging
Inner Quantity 25
Inner Dimensions (inches) 8.25x5.25x4.25
Outer Quantity 100
Outer Dimensions (inches) 10.5x8.6x8.7
Weight Uom 5.5 lbs. per 100
Documents / Support Tools
Technical Drawing / Data Sheet WSD-000004
Instruction Sheet TA02021-TB2
Header
3D Model Available on Website
