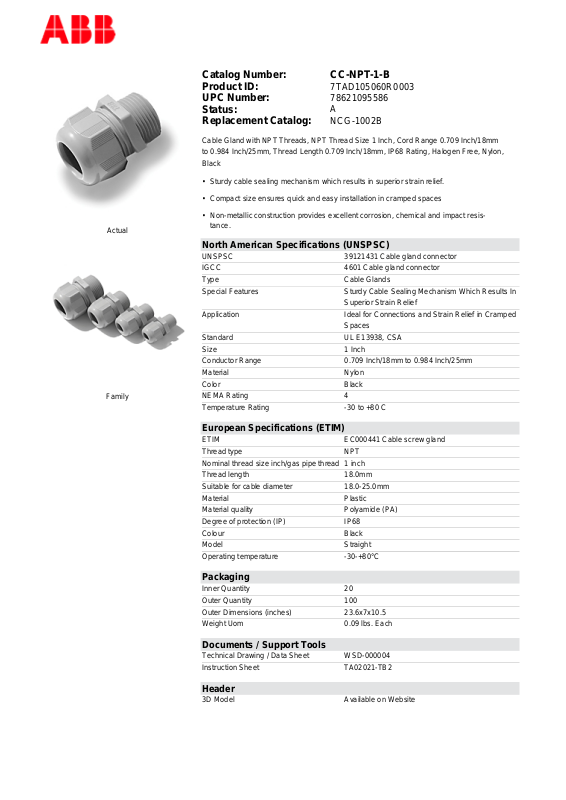

Thomas & Betts CC-NPT-1-B Data Sheet

Actual

Family

Catalog Number: CC-NPT-1-B
Product ID:
UPC Number:
Status:
Replacement Catalog:

Cable Gland with NPT Threads, NPT Thread Size 1 Inch, Cord Range 0.709 Inch/18mm
to 0.984 Inch/25mm, Thread Length 0.709 Inch/18mm, IP68 Rating, Halogen Free, Nylon,
Black

• Sturdy cable sealing mechanism which results in superior strain relief.

• Compact size ensures quick and easy installation in cramped spaces

• Non-metallic construction provides excellent corrosion, chemical and impact resis­tance.

North American Specifications (UNSPSC)

UNSPSC 39121431 Cable gland connector
IGCC 4601 Cable gland connector
Type Cable Glands
Special Features Sturdy Cable Sealing Mechanism Which Results In

Application Ideal for Connections and Strain Relief in Cramped

Standard UL E13938, CSA
Size 1 Inch
Conductor Range 0.709 Inch/18mm to 0.984 Inch/25mm
Material Nylon
Color Black
NEMA Rating 4
Temperature Rating -30 to +80 C

7TAD105060R0003
78621095586
A
NCG-1002B

Superior Strain Relief

Spaces

European Specifications (ETIM)

ETIM EC000441 Cable screw gland
Thread type NPT
Nominal thread size inch/gas pipe thread 1 inch
Thread length 18.0mm
Suitable for cable diameter 18.0-25.0mm
Material Plastic
Material quality Polyamide (PA)
Degree of protection (IP) IP68
Colour Black
Model Straight
Operating temperature -30-+80°C

Packaging

Inner Quantity 20
Outer Quantity 100
Outer Dimensions (inches) 23.6x7x10.5
Weight Uom 0.09 lbs. Each

Documents / Support Tools

Technical Drawing / Data Sheet WSD-000004
Instruction Sheet TA02021-TB2

Header

3D Model Available on Website
