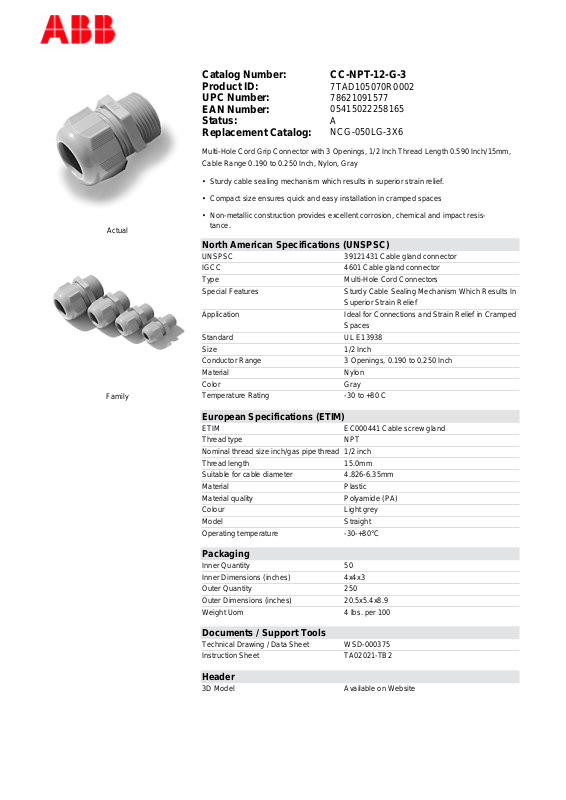

Thomas & Betts CC-NPT-12-G-3 Data Sheet

Actual

Family

Catalog Number: CC-NPT-12-G-3
Product ID:
UPC Number:
EAN Number:
Status:
Replacement Catalog:

Multi-Hole Cord Grip Connector with 3 Openings, 1/2 Inch Thread Length 0.590 Inch/15mm,
Cable Range 0.190 to 0.250 Inch, Nylon, Gray

• Sturdy cable sealing mechanism which results in superior strain relief.

• Compact size ensures quick and easy installation in cramped spaces

• Non-metallic construction provides excellent corrosion, chemical and impact resis­tance.

North American Specifications (UNSPSC)

UNSPSC 39121431 Cable gland connector
IGCC 4601 Cable gland connector
Type Multi-Hole Cord Connectors
Special Features Sturdy Cable Sealing Mechanism Which Results In

Application Ideal for Connections and Strain Relief in Cramped

Standard UL E13938
Size 1/2 Inch
Conductor Range 3 Openings, 0.190 to 0.250 Inch
Material Nylon
Color Gray
Temperature Rating -30 to +80 C

7TAD105070R0002
78621091577
05415022258165
A
NCG-050LG-3X6

Superior Strain Relief

Spaces

European Specifications (ETIM)

ETIM EC000441 Cable screw gland
Thread type NPT
Nominal thread size inch/gas pipe thread 1/2 inch
Thread length 15.0mm
Suitable for cable diameter 4.826-6.35mm
Material Plastic
Material quality Polyamide (PA)
Colour Light grey
Model Straight
Operating temperature -30-+80°C

Packaging

Inner Quantity 50
Inner Dimensions (inches) 4x4x3
Outer Quantity 250
Outer Dimensions (inches) 20.5x5.4x8.9
Weight Uom 4 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet WSD-000375
Instruction Sheet TA02021-TB2

Header

3D Model Available on Website
