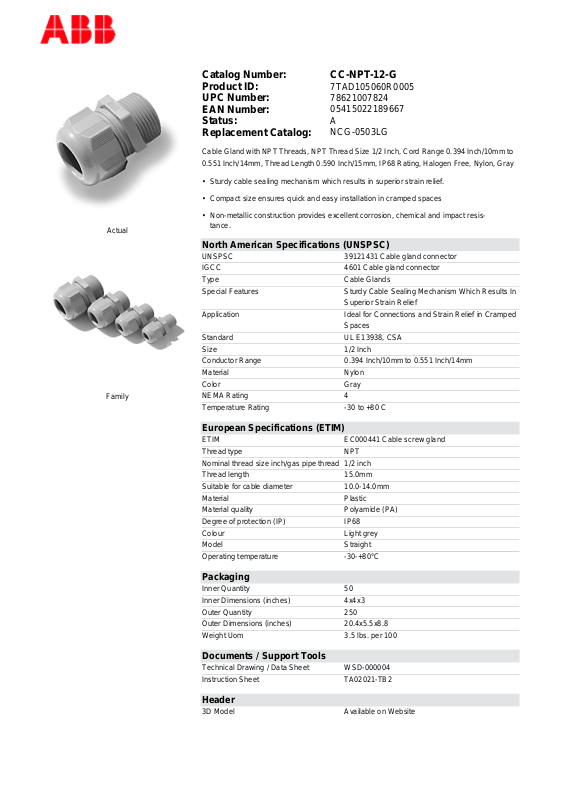

Thomas & Betts CC-NPT-12-G Data Sheet

Actual

Family

Catalog Number: CC-NPT-12-G
Product ID:
UPC Number:
EAN Number:
Status:
Replacement Catalog:

Cable Gland with NPT Threads, NPT Thread Size 1/2 Inch, Cord Range 0.394 Inch/10mm to

0.551 Inch/14mm, Thread Length 0.590 Inch/15mm, IP68 Rating, Halogen Free, Nylon, Gray

• Sturdy cable sealing mechanism which results in superior strain relief.

• Compact size ensures quick and easy installation in cramped spaces

• Non-metallic construction provides excellent corrosion, chemical and impact resis­tance.

North American Specifications (UNSPSC)

UNSPSC 39121431 Cable gland connector
IGCC 4601 Cable gland connector
Type Cable Glands
Special Features Sturdy Cable Sealing Mechanism Which Results In

Application Ideal for Connections and Strain Relief in Cramped

Standard UL E13938, CSA
Size 1/2 Inch
Conductor Range 0.394 Inch/10mm to 0.551 Inch/14mm
Material Nylon
Color Gray
NEMA Rating 4
Temperature Rating -30 to +80 C

7TAD105060R0005
78621007824
05415022189667
A
NCG-0503LG

Superior Strain Relief

Spaces

European Specifications (ETIM)

ETIM EC000441 Cable screw gland
Thread type NPT
Nominal thread size inch/gas pipe thread 1/2 inch
Thread length 15.0mm
Suitable for cable diameter 10.0-14.0mm
Material Plastic
Material quality Polyamide (PA)
Degree of protection (IP) IP68
Colour Light grey
Model Straight
Operating temperature -30-+80°C

Packaging

Inner Quantity 50
Inner Dimensions (inches) 4x4x3
Outer Quantity 250
Outer Dimensions (inches) 20.4x5.5x8.8
Weight Uom 3.5 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet WSD-000004
Instruction Sheet TA02021-TB2

Header

3D Model Available on Website
