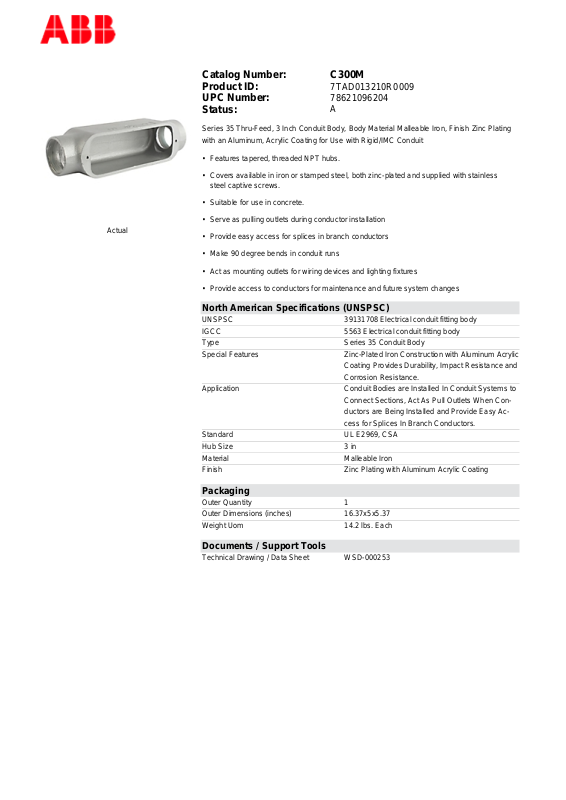

Thomas & Betts C300M Data Sheet

Actual

Catalog Number: C300M
Product ID:
UPC Number:
Status:

Series 35 Thru-Feed, 3 Inch Conduit Body, Body Material Malleable Iron, Finish Zinc Plating
with an Aluminum, Acrylic Coating for Use with Rigid/IMC Conduit

• Features tapered, threaded NPT hubs.

• Covers available in iron or stamped steel, both zinc-plated and supplied with stainless
steel captive screws.

• Suitable for use in concrete.

• Serve as pulling outlets during conductor installation

• Provide easy access for splices in branch conductors

• Make 90 degree bends in conduit runs

• Act as mounting outlets for wiring devices and lighting fixtures

• Provide access to conductors for maintenance and future system changes

North American Specifications (UNSPSC)

UNSPSC 39131708 Electrical conduit fitting body
IGCC 5563 Electrical conduit fitting body
Type Series 35 Conduit Body
Special Features Zinc-Plated Iron Construction with Aluminum Acrylic

Application Conduit Bodies are Installed In Conduit Systems to

Standard UL E2969, CSA
Hub Size 3 in
Material Malleable Iron
Finish Zinc Plating with Aluminum Acrylic Coating

7TAD013210R0009
78621096204
A

Coating Provides Durability, Impact Resistance and
Corrosion Resistance.

Connect Sections, Act As Pull Outlets When Con­ductors are Being Installed and Provide Easy Ac­cess for Splices In Branch Conductors.

Packaging

Outer Quantity 1
Outer Dimensions (inches) 16.37x5x5.37
Weight Uom 14.2 lbs. Each

Documents / Support Tools

Technical Drawing / Data Sheet WSD-000253
