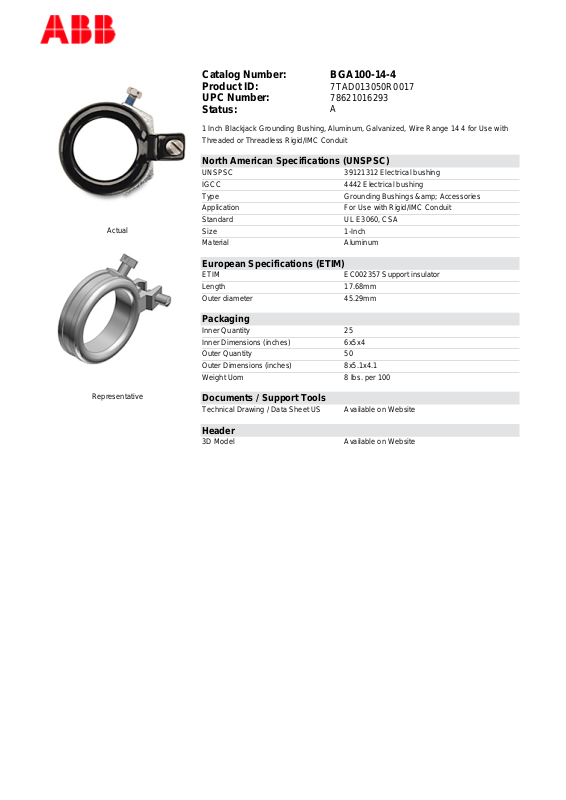

Thomas & Betts BGA100-14-4 Data Sheet

Actual

Catalog Number: BGA100-14-4
Product ID:
UPC Number:
Status:

1 Inch Blackjack Grounding Bushing, Aluminum, Galvanized, Wire Range 14 4 for Use with
Threaded or Threadless Rigid/IMC Conduit

North American Specifications (UNSPSC)

UNSPSC 39121312 Electrical bushing
IGCC 4442 Electrical bushing
Type Grounding Bushings & Accessories
Application For Use with Rigid/IMC Conduit
Standard UL E3060, CSA
Size 1-Inch
Material Aluminum

European Specifications (ETIM)

ETIM EC002357 Support insulator
Length 17.68mm
Outer diameter 45.29mm

Packaging

Inner Quantity 25
Inner Dimensions (inches) 6x5x4
Outer Quantity 50
Outer Dimensions (inches) 8x5.1x4.1
Weight Uom 8 lbs. per 100

7TAD013050R0017
78621016293
A

Representative

Documents / Support Tools

Technical Drawing / Data Sheet US Available on Website

Header

3D Model Available on Website
