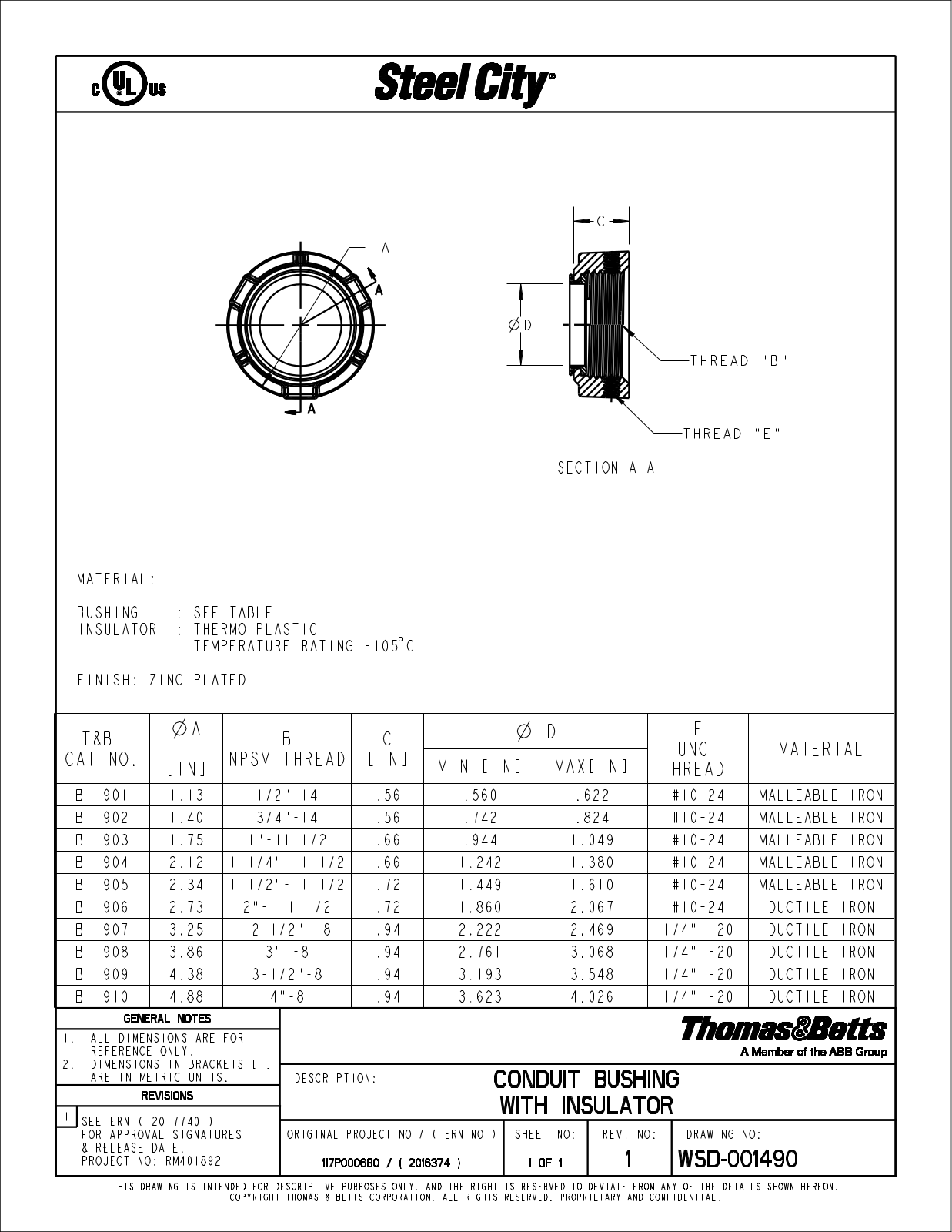

Thomas & Betts BG801L Reference Drawing

A

A

A

MATERIAL:

BUSHING : SEE TABLE
INSULATOR : THERMO PLASTIC
TEMPERATURE RATING -105$C

FINISH: ZINC PLATED

C

THREAD "B"

THREAD "E"

SECTION A-A

T&B

CAT NO.

[IN]

B

NPSM THREADC[IN]

MIN [IN] MAX[IN]

E

UNC

THREAD

MATERIAL

BI 901 1.13 1/2"-14 .56 .560 .622 #10-24 MALLEABLE IRON

BI 902 1.40 3/4"-14 .56 .742 .824 #10-24 MALLEABLE IRON

BI 903 1.75 1"-11 1/2 .66 .944 1.049 #10-24 MALLEABLE IRON

BI 904 2.12 1 1/4"-11 1/2 .66 1.242 1.380 #10-24 MALLEABLE IRON

BI 905 2.34 1 1/2"-11 1/2 .72 1.449 1.610 #10-24 MALLEABLE IRON

BI 906 2.73 2"- 11 1/2 .72 1.860 2.067 #10-24 DUCTILE IRON

BI 907 3.25 2-1/2" -8 .94 2.222 2.469 1/4" -20 DUCTILE IRON

BI 908 3.86 3" -8 .94 2.761 3.068 1/4" -20 DUCTILE IRON

BI 909 4.38 3-1/2"-8 .94 3.193 3.548 1/4" -20 DUCTILE IRON

BI 910 4.88 4"-8 .94 3.623 4.026 1/4" -20 DUCTILE IRON

GENERAL NOTES

1. ALL DIMENSIONS ARE FOR
REFERENCE ONLY.

2. DIMENSIONS IN BRACKETS [ ]
ARE IN METRIC UNITS.

REVISIONS

1

SEE ERN ( 2017740 )
FOR APPROVAL SIGNATURES
& RELEASE DATE.
PROJECT NO: RM401892

THIS DRAWING IS INTENDED FOR DESCRIPTIVE PURPOSES ONLY. AND THE RIGHT IS RESERVED TO DEVIATE FROM ANY OF THE DETAILS SHOWN HEREON.

COPYRIGHT THOMAS & BETTS CORPORATION. ALL RIGHTS RESERVED. PROPRIETARY AND CONFIDENTIAL.

DESCRIPTION:

CONDUIT BUSHING

WITH INSULATOR

ORIGINAL PROJECT NO / ( ERN NO )

117P000680 / ( 2016374 ) 1 OF 1 1 WSD-001490

SHEET NO: REV. NO: DRAWING NO:
