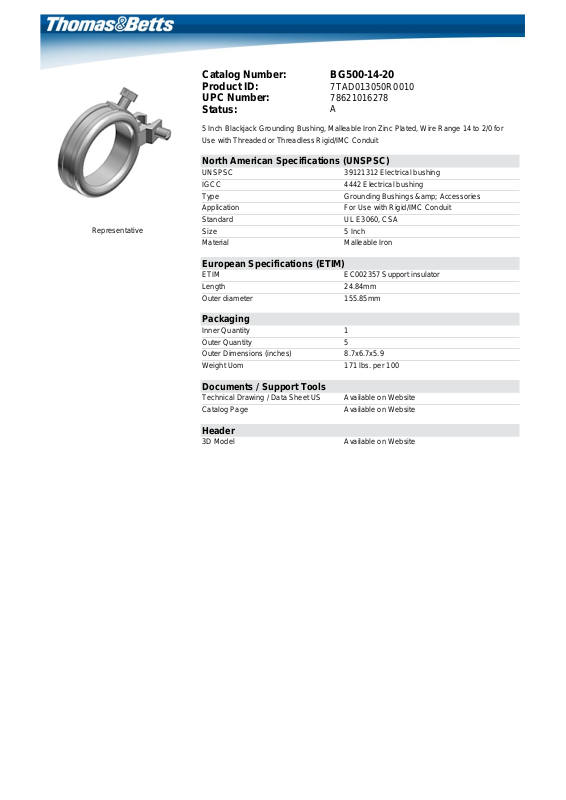

Thomas & Betts BG500-14-20 Data Sheet

Representative

Catalog Number: BG500-14-20
Product ID:
UPC Number:
Status:

5 Inch Blackjack Grounding Bushing, Malleable Iron Zinc Plated, Wire Range 14 to 2/0 for
Use with Threaded or Threadless Rigid/IMC Conduit

North American Specifications (UNSPSC)

UNSPSC 39121312 Electrical bushing
IGCC 4442 Electrical bushing
Type Grounding Bushings & Accessories
Application For Use with Rigid/IMC Conduit
Standard UL E3060, CSA
Size 5 Inch
Material Malleable Iron

European Specifications (ETIM)

ETIM EC002357 Support insulator
Length 24.84mm
Outer diameter 155.85mm

Packaging

Inner Quantity 1
Outer Quantity 5
Outer Dimensions (inches) 8.7x6.7x5.9
Weight Uom 171 lbs. per 100

7TAD013050R0010
78621016278
A

Documents / Support Tools

Technical Drawing / Data Sheet US Available on Website
Catalog Page Available on Website

Header

3D Model Available on Website
