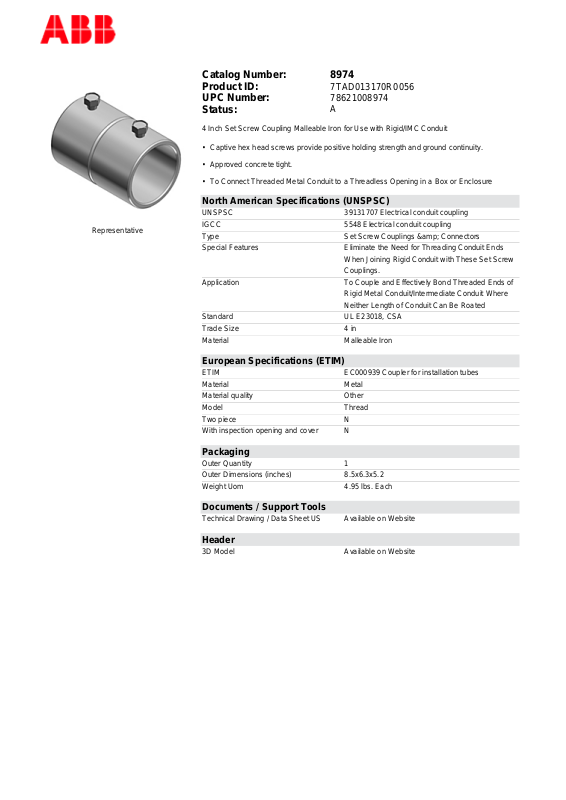

Representative
Catalog Number: 8974
Product ID:
UPC Number:
Status:
4 Inch Set Screw Coupling Malleable Iron for Use with Rigid/IMC Conduit
• Captive hex head screws provide positive holding strength and ground continuity.
• Approved concrete tight.
• To Connect Threaded Metal Conduit to a Threadless Opening in a Box or Enclosure
North American Specifications (UNSPSC)
UNSPSC 39131707 Electrical conduit coupling
IGCC 5548 Electrical conduit coupling
Type Set Screw Couplings & Connectors
Special Features Eliminate the Need for Threading Conduit Ends
Application To Couple and Effectively Bond Threaded Ends of
Standard UL E23018, CSA
Trade Size 4 in
Material Malleable Iron
7TAD013170R0056
78621008974
A
When Joining Rigid Conduit with These Set Screw
Couplings.
Rigid Metal Conduit/Intermediate Conduit Where
Neither Length of Conduit Can Be Roated
European Specifications (ETIM)
ETIM EC000939 Coupler for installation tubes
Material Metal
Material quality Other
Model Thread
Two piece N
With inspection opening and cover N
Packaging
Outer Quantity 1
Outer Dimensions (inches) 8.5x6.3x5.2
Weight Uom 4.95 lbs. Each
Documents / Support Tools
Technical Drawing / Data Sheet US Available on Website
Header
3D Model Available on Website
