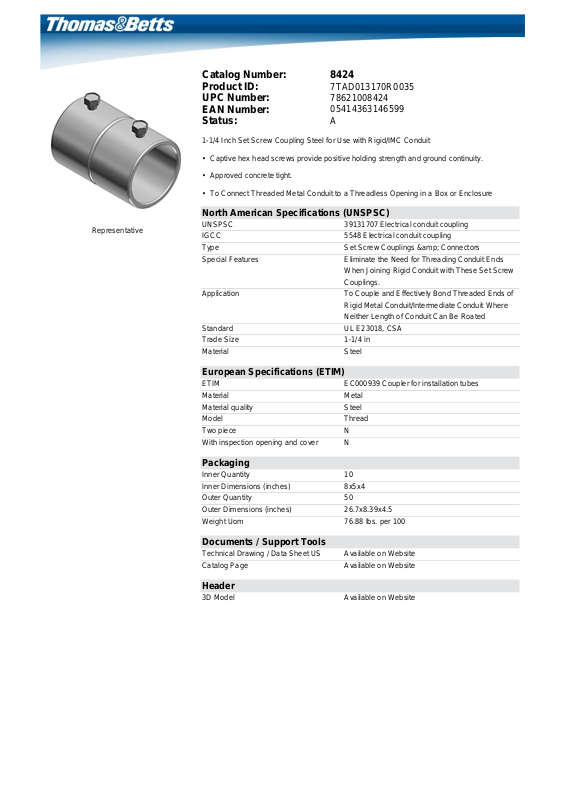

Thomas & Betts 8424 Data Sheet

Representative

Catalog Number: 8424
Product ID:
UPC Number:
EAN Number:
Status:

1-1/4 Inch Set Screw Coupling Steel for Use with Rigid/IMC Conduit

• Captive hex head screws provide positive holding strength and ground continuity.

• Approved concrete tight.

• To Connect Threaded Metal Conduit to a Threadless Opening in a Box or Enclosure

North American Specifications (UNSPSC)

UNSPSC 39131707 Electrical conduit coupling
IGCC 5548 Electrical conduit coupling
Type Set Screw Couplings & Connectors
Special Features Eliminate the Need for Threading Conduit Ends

Application To Couple and Effectively Bond Threaded Ends of

Standard UL E23018, CSA
Trade Size 1-1/4 in
Material Steel

7TAD013170R0035
78621008424
05414363146599
A

When Joining Rigid Conduit with These Set Screw
Couplings.

Rigid Metal Conduit/Intermediate Conduit Where
Neither Length of Conduit Can Be Roated

European Specifications (ETIM)

ETIM EC000939 Coupler for installation tubes
Material Metal
Material quality Steel
Model Thread
Two piece N
With inspection opening and cover N

Packaging

Inner Quantity 10
Inner Dimensions (inches) 8x5x4
Outer Quantity 50
Outer Dimensions (inches) 26.7x8.39x4.5
Weight Uom 76.88 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet US Available on Website
Catalog Page Available on Website

Header

3D Model Available on Website
