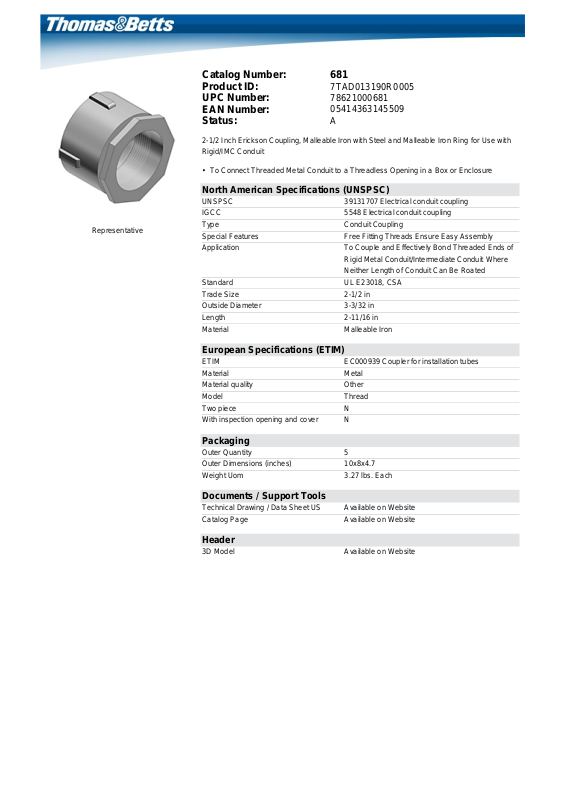

Thomas & Betts 681 Data Sheet

Representative

Catalog Number: 681
Product ID:
UPC Number:
EAN Number:
Status:

2-1/2 Inch Erickson Coupling, Malleable Iron with Steel and Malleable Iron Ring for Use with
Rigid/IMC Conduit

• To Connect Threaded Metal Conduit to a Threadless Opening in a Box or Enclosure

North American Specifications (UNSPSC)

UNSPSC 39131707 Electrical conduit coupling
IGCC 5548 Electrical conduit coupling
Type Conduit Coupling
Special Features Free Fitting Threads Ensure Easy Assembly
Application To Couple and Effectively Bond Threaded Ends of

Standard UL E23018, CSA
Trade Size 2-1/2 in
Outside Diameter 3-3/32 in
Length 2-11/16 in
Material Malleable Iron

European Specifications (ETIM)

ETIM EC000939 Coupler for installation tubes
Material Metal
Material quality Other
Model Thread
Two piece N
With inspection opening and cover N

7TAD013190R0005
78621000681
05414363145509
A

Rigid Metal Conduit/Intermediate Conduit Where
Neither Length of Conduit Can Be Roated

Packaging

Outer Quantity 5
Outer Dimensions (inches) 10x8x4.7
Weight Uom 3.27 lbs. Each

Documents / Support Tools

Technical Drawing / Data Sheet US Available on Website
Catalog Page Available on Website

Header

3D Model Available on Website
