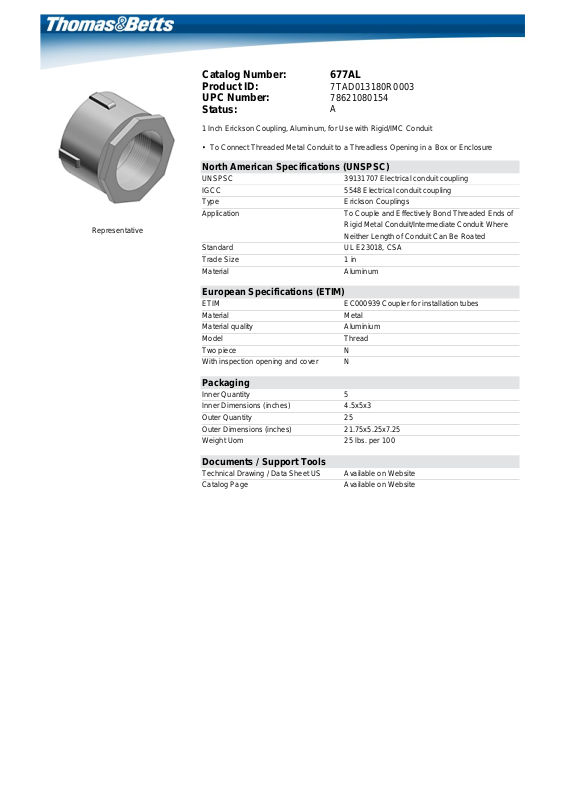

Thomas & Betts 677AL Data Sheet

Representative

Catalog Number: 677AL
Product ID:
UPC Number:
Status:

1 Inch Erickson Coupling, Aluminum, for Use with Rigid/IMC Conduit

• To Connect Threaded Metal Conduit to a Threadless Opening in a Box or Enclosure

North American Specifications (UNSPSC)

UNSPSC 39131707 Electrical conduit coupling
IGCC 5548 Electrical conduit coupling
Type Erickson Couplings
Application To Couple and Effectively Bond Threaded Ends of

Standard UL E23018, CSA
Trade Size 1 in
Material Aluminum

European Specifications (ETIM)

ETIM EC000939 Coupler for installation tubes
Material Metal
Material quality Aluminium
Model Thread
Two piece N
With inspection opening and cover N

7TAD013180R0003
78621080154
A

Rigid Metal Conduit/Intermediate Conduit Where
Neither Length of Conduit Can Be Roated

Packaging

Inner Quantity 5
Inner Dimensions (inches) 4.5x5x3
Outer Quantity 25
Outer Dimensions (inches) 21.75x5.25x7.25
Weight Uom 25 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet US Available on Website
Catalog Page Available on Website
