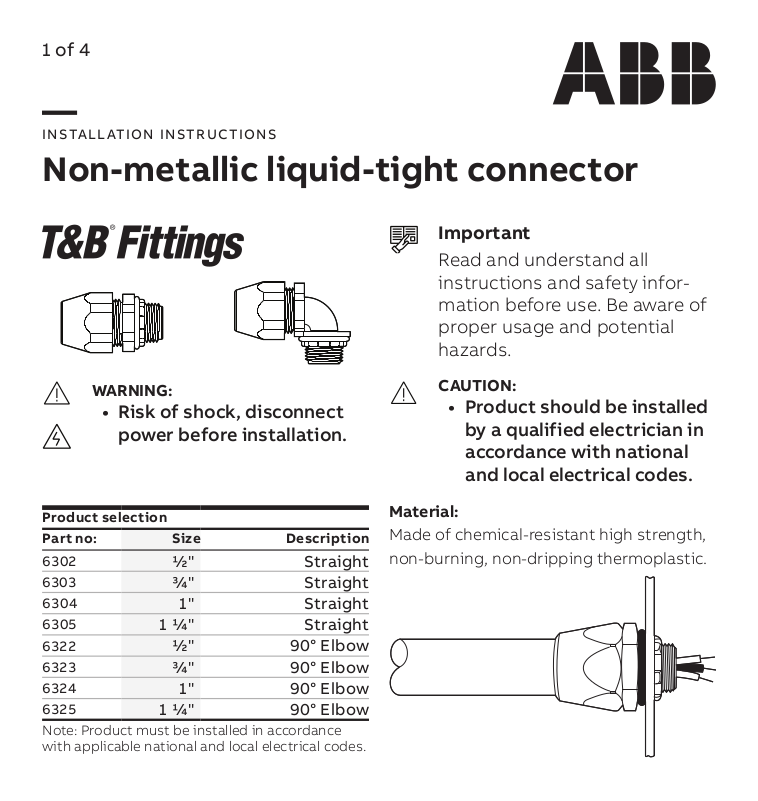

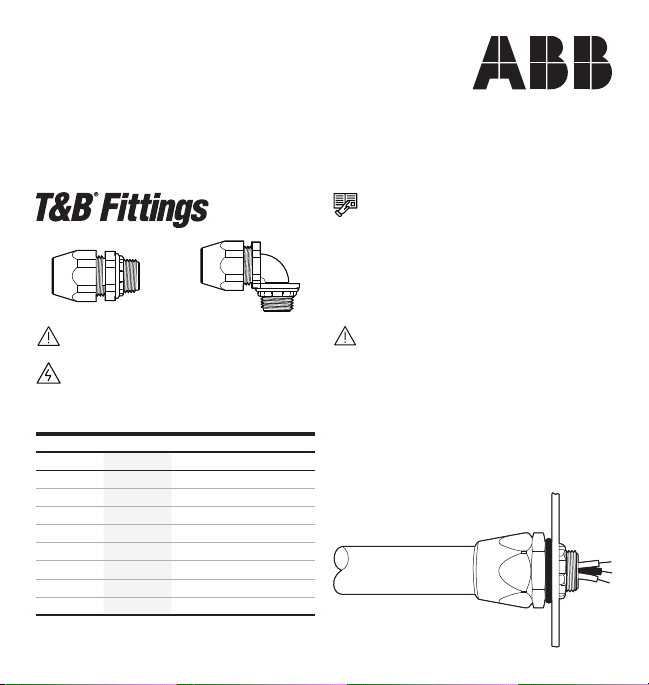

INSTALLATION INSTRUCTIONS
Non-metallic liquid-tight connector
Important
Read and understand all
instructions and safety information before use. Be aware of
proper usage and potential
hazards.
WARNING:
• Risk of shock, disconnect
power before installation.
Product selection
Part no: Size Description
6302
6303
6304
6305
6322
6323
6324
6325
Note: Product must be installed in accordance
with applicable national and local electrical codes.
½" Straight
¾" Straight
1" Straight
1 " Straight
½" 90° Elbow
¾" 90° Elbow
1" 90° Elbow
1 " 90° Elbow
CAUTION:
• Product should be installed
by a qualified electrician in
accordance with national
and local electrical codes.
Material:
Made of chemical-resistant high strength,
non-burning, non-dripping thermoplastic.
Page 2
Conduit
2 of 4

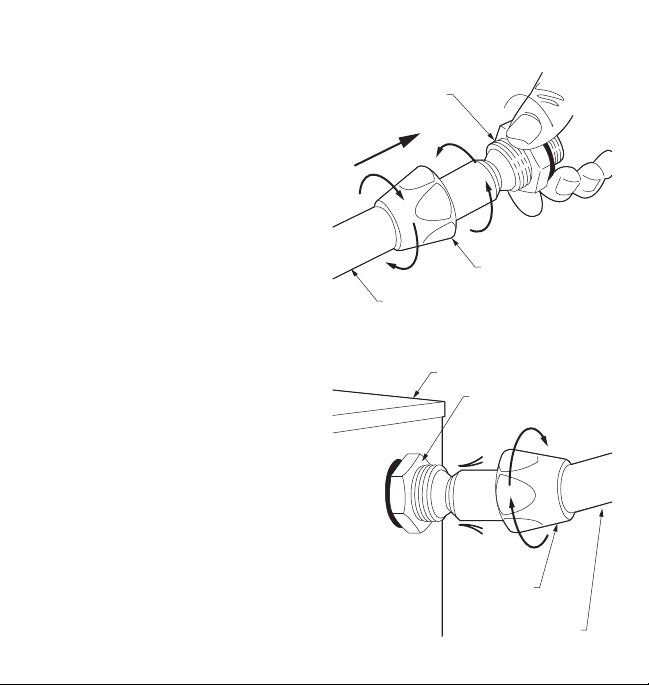

Installation instructions:
(Two equally effective methods)
1. By turning:
Fitting onto conduit
• Slip gland nut on conduit with wide
end towards connector body. Place
“Left Handed Conduit Gripping
Thread” into conduit and tighten
counter-clockwise until conduit
touches straight threaded shoulder
of the connector. DO NOT OVER-
TIGHTEN. Thread gland nut onto
fitting body and tighten clockwise
with wrench until the base of gland
nut is snug on the hex of the body.
DO NOT OVER-TIGHTEN.
2. By Flexing
When body is pre-mounted
• Pre-mount body to box. Slip gland
nut on conduit with wide end toward
connector body. Place conduit over
“Left Handed Conduit Gripping
Thread” and push on with a flexible
up and down and side to side
motion. Work on by flexing until
conduit touches straight threaded
shoulder of connector. DO NOT
OVER-TIGHTEN. Thread gland nut
onto fitting body and tighten
clockwise with wrench until the base
of gland nut is snug on the hex of the
body. DO NOT OVER-TIGHTEN.
Body
Conduit
Gland nut
(on conduit)
Box
Body
Pre-mounted to box
Gland nut
(on conduit)
Page 3

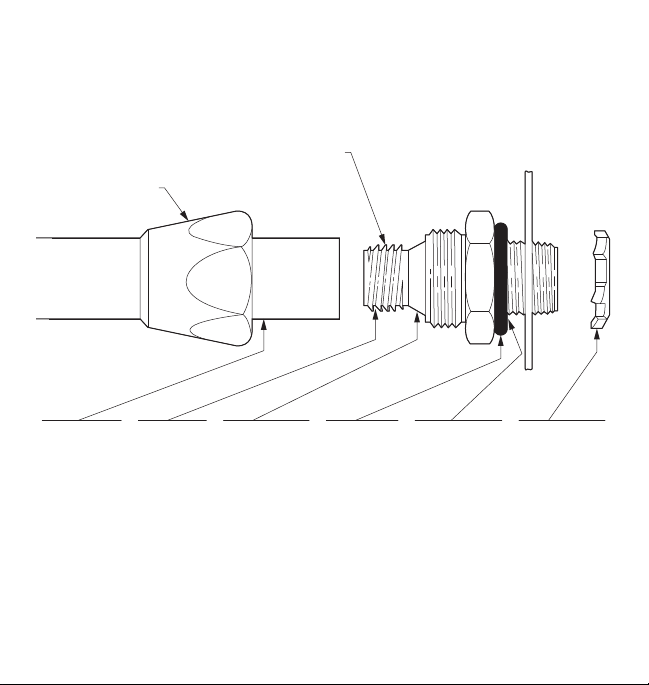

For Liquid Tight flexible, non-metallic conduit connections:
Left Handed Conduit Gripping Thread*
Gland Nut
3 of 4
Flexible
Conduit
with
square-cut
end
necessary
for effective
connection.
* Reduces number of parts for automatic disassembling of raceway from fitting.
One piece
insulated
connector
body with
unique
thread
design.
Unique
sizing-bevel
assures
liquid tight
connections.
BUNA-N
Sealing
“O” ring
for
watertight
seal.
Tapered
male thread
for liquid
tight
threaded
hub
connections.
Locknut for
knockout
applications.
Page 4
4 of 4
Features:
• Tapered threaded hub to seal in female thread.
• Captive visible “O” Ring to seal knockouts.
• High strength, chemical-resistant, non-burning, non-dripping thermoplastic.
• Liquid tight.
• High mechanical pull out strength.
• Smooth insulated body throughout for maximum dielectric strength.
• UL Listed 128B
—
tnb.abb.com (US/Latin America)
tnb.ca.abb.com (Canada)
abb.com
Warranty: tnb.abb.com/ecpwarranty
—
We reserve the right to make technical
changes or modify the contents of this document without prior notice. With regard to
purchase orders, the agreed particulars shall
prevail. ABB does not accept any responsibility whatsoever for potential errors or
possible lack of information in this
document.
We reserve all rights in this document and in
the subject matter and illustrations contained therein. Any reproduction – in whole or
in part – is forbidden without prior written
consent of ABB. © 2021 ABB Installation Products Inc. and/or its related companies. All
Rights Reserved.
Non-metallic liquid-tight connector | Installation Instructions | TA01782 C
