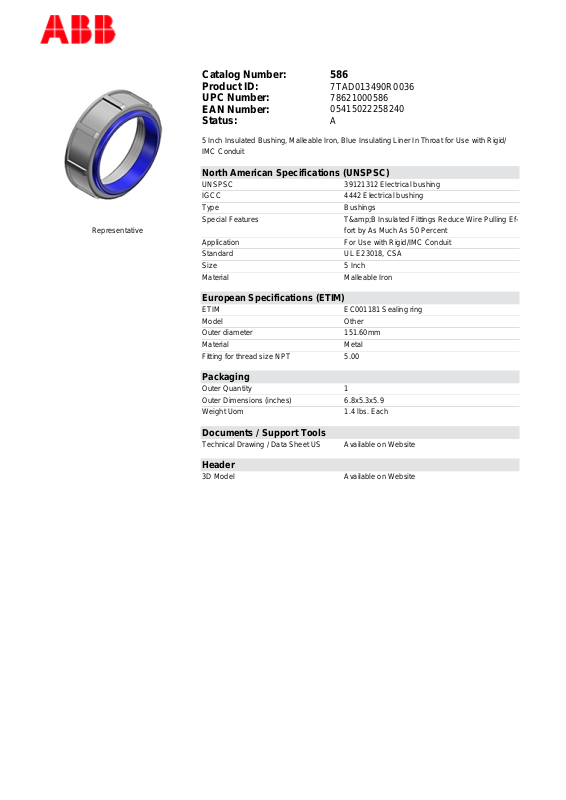

Page 1
Representative
Catalog Number: 586
Product ID:
UPC Number:
EAN Number:
Status:
5 Inch Insulated Bushing, Malleable Iron, Blue Insulating Liner In Throat for Use with Rigid/
IMC Conduit
North American Specifications (UNSPSC)
UNSPSC 39121312 Electrical bushing
IGCC 4442 Electrical bushing
Type Bushings
Special Features T&B Insulated Fittings Reduce Wire Pulling Ef-
Application For Use with Rigid/IMC Conduit
Standard UL E23018, CSA
Size 5 Inch
Material Malleable Iron
European Specifications (ETIM)
ETIM EC001181 Sealing ring
Model Other
Outer diameter 151.60mm
Material Metal
Fitting for thread size NPT 5.00
7TAD013490R0036
78621000586
05415022258240
A
fort by As Much As 50 Percent
Packaging
Outer Quantity 1
Outer Dimensions (inches) 6.8x5.3x5.9
Weight Uom 1.4 lbs. Each
Documents / Support Tools
Technical Drawing / Data Sheet US Available on Website
Header
3D Model Available on Website
