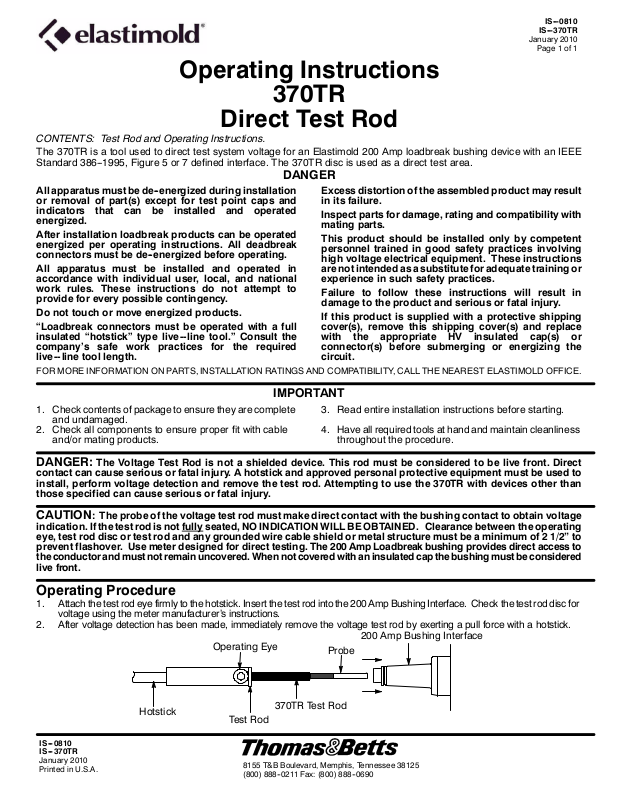

Operating Instructions
370TR
Direct Test Rod
CONTENTS: Test Rod and Operating Instructions.
The 370TR is a tool used to direct test system voltage for an Elastimold 200 Amp loadbreak bushing device with an IEEE
Standard 386--1995, Figure 5 or 7 defined interface. The 370TR disc is used as a direct test area.
DANGER
All apparatus must be de--energized during installation
or removal of part(s) except for test point caps and
indicators that can be installed and operated
energized.
After installation loadbreak products can be operated
energized per operating instructions. All deadbreak
connectors must be de--energized before operating.
All apparatus must be installed and operated in
accordance with individual user, local, and national
work rules. These instructions do not attempt to
provide for every possible contingency.
Do not touch or move energized products.
“Loadbreak connectors must be operated with a full
insulated “hotstick” type live--line tool.” Consult the
company’s safe work practices for the required
live--line tool length.
FOR MORE INFORMATION ON PARTS, INSTALLATION RATINGS AND COMPATIBILITY, CALL THE NEAREST ELASTIMOLD OFFICE.
Excess distortion of the assembled product may result
in its failure.
Inspect parts for damage, rating and compatibility with
mating parts.
This product should be installed only by competent
personnel trained in good safety practices involving
high voltage electrical equipment. These instructions
are not intended as a substitute for adequate training or
experience in such safety practices.
Failure to follow these instructions will result in
damage to the product and serious or fatal injury.
If this product is supplied with a protective shipping
cover(s), remove this shipping cover(s) and replace
with the appropriate HV insulated cap(s) or
connector(s) before submerging or energizing the
circuit.
IMPORTANT
1. Check contents of package to ensure they are complete
and undamaged.
2. Check all components to ensure proper fit with cable
and/or mating products.
3. Read entire installation instructions before starting.
4. Have all required tools at hand and maintain cleanliness
throughout the procedure.
DANGER: The Voltage Test Rod is not a shielded device. This rod must be considered to be live front. Direct
contact can cause serious or fatal injury. A hotstick and approved personal protective equipment must be used to
install, perform voltage detection and remove the test rod. Attempting to use the 370TR with devices other than
those specified can cause serious or fatal injury.
CAUTION: The probe of the voltage test rod must make direct contact with the bushing contact to obtain voltage
indication. If the test rod is not fully seated, NO INDICATION WILL BE OBTAINED. Clearance between the operating
eye, test rod disc or test rod and any grounded wire cable shield or metal structure must be a minimum of 2 1/2” to
prevent flashover. Use meter designed for direct testing. The 200 Amp Loadbreak bushing provides direct access to
the conductorand must not remainuncovered. When not covered with an insulated cap thebushing must beconsidered
live front.

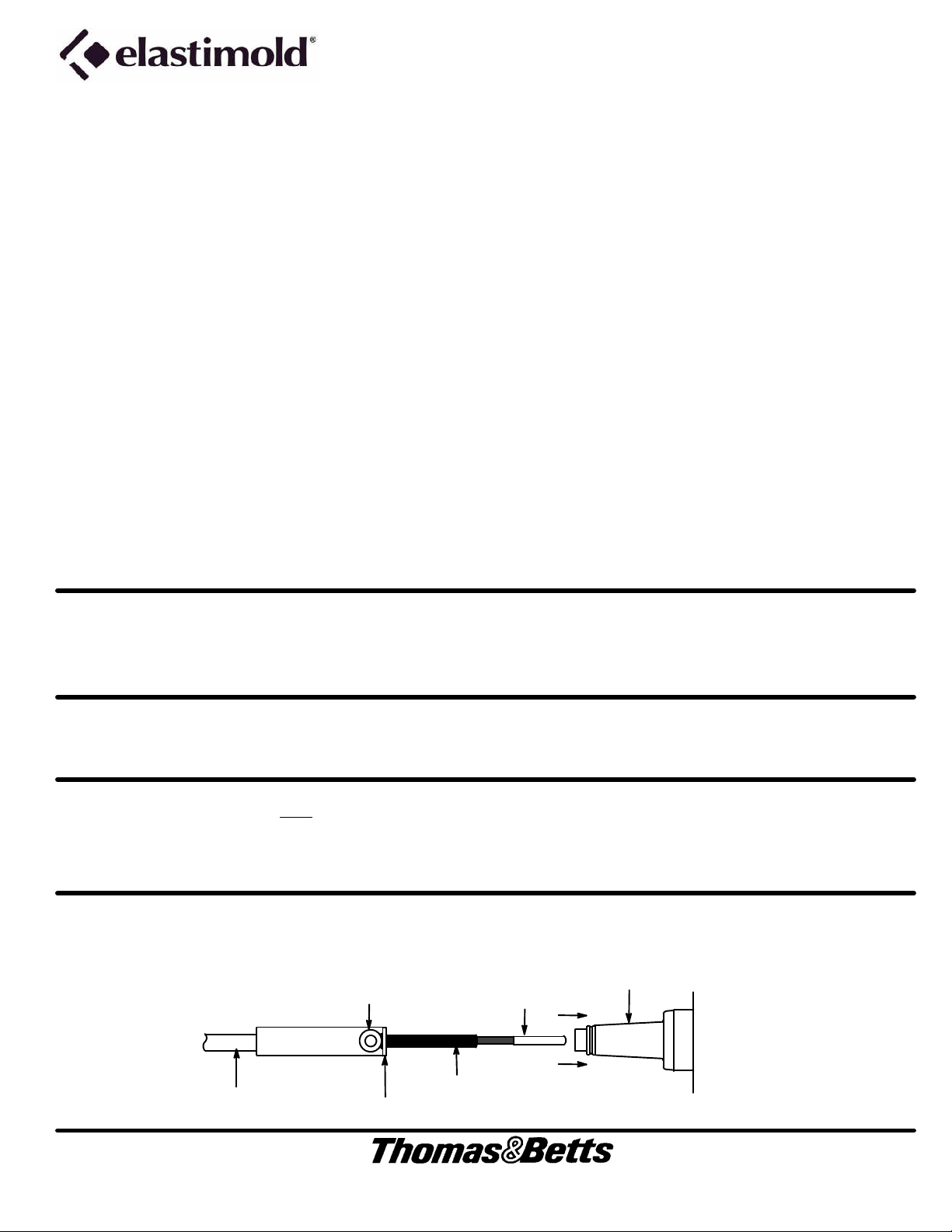

Operating Procedure
1. Attach the test rod eye firmly to the hotstick. Insert the test rod intothe 200 Amp Bushing Interface. Check the test rod disc for
voltage using the meter manufacturer’s instructions.
2. After voltage detection has been made, immediately remove the voltage test rod by exerting a pull force with a hotstick.
200 Amp Bushing Interface
Operating Eye
Probe
IS---0810
IS---370TR
January 2010
Printed in U.S.A.
Hotstick
370TR Test Rod
Test Rod
8155 T&B Boulevard, Memphis, Tennessee 38125
(800) 888--0211 Fax: (800) 888--0690
