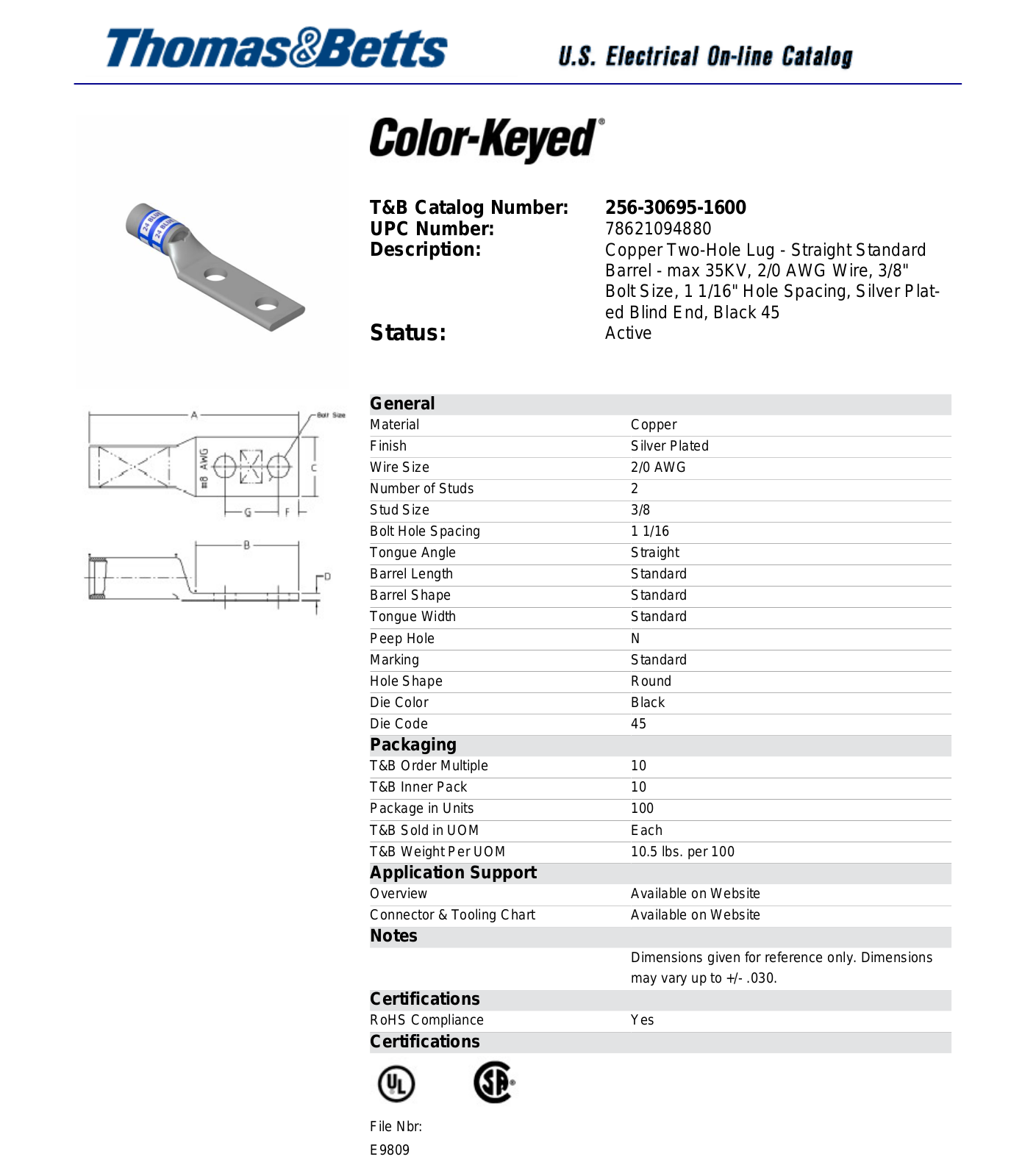

T&B Catalog Number: 256-30695-1600
UPC Number:
Description:
Status:
General
Material Copper
Finish Silver Plated
Wire Size 2/0 AWG
Number of Studs 2
Stud Size 3/8
Bolt Hole Spacing 1 1/16
Tongue Angle Straight
Barrel Length Standard
Barrel Shape Standard
Tongue Width Standard
Peep Hole N
Marking Standard
Hole Shape Round
Die Color Black
Die Code 45
Packaging
T&B Order Multiple 10
T&B Inner Pack 10
Package in Units 100
T&B Sold in UOM Each
T&B Weight Per UOM 10.5 lbs. per 100
Application Support
Overview Available on Website
Connector & Tooling Chart Available on Website
Notes
Certifications
RoHS Compliance Yes
Certifications
78621094880
Copper Two-Hole Lug - Straight Standard
Barrel - max 35KV, 2/0 AWG Wire, 3/8"
Bolt Size, 1 1/16" Hole Spacing, Silver Plated Blind End, Black 45
Active
Dimensions given for reference only. Dimensions
may vary up to +/- .030.
File Nbr:
E9809
