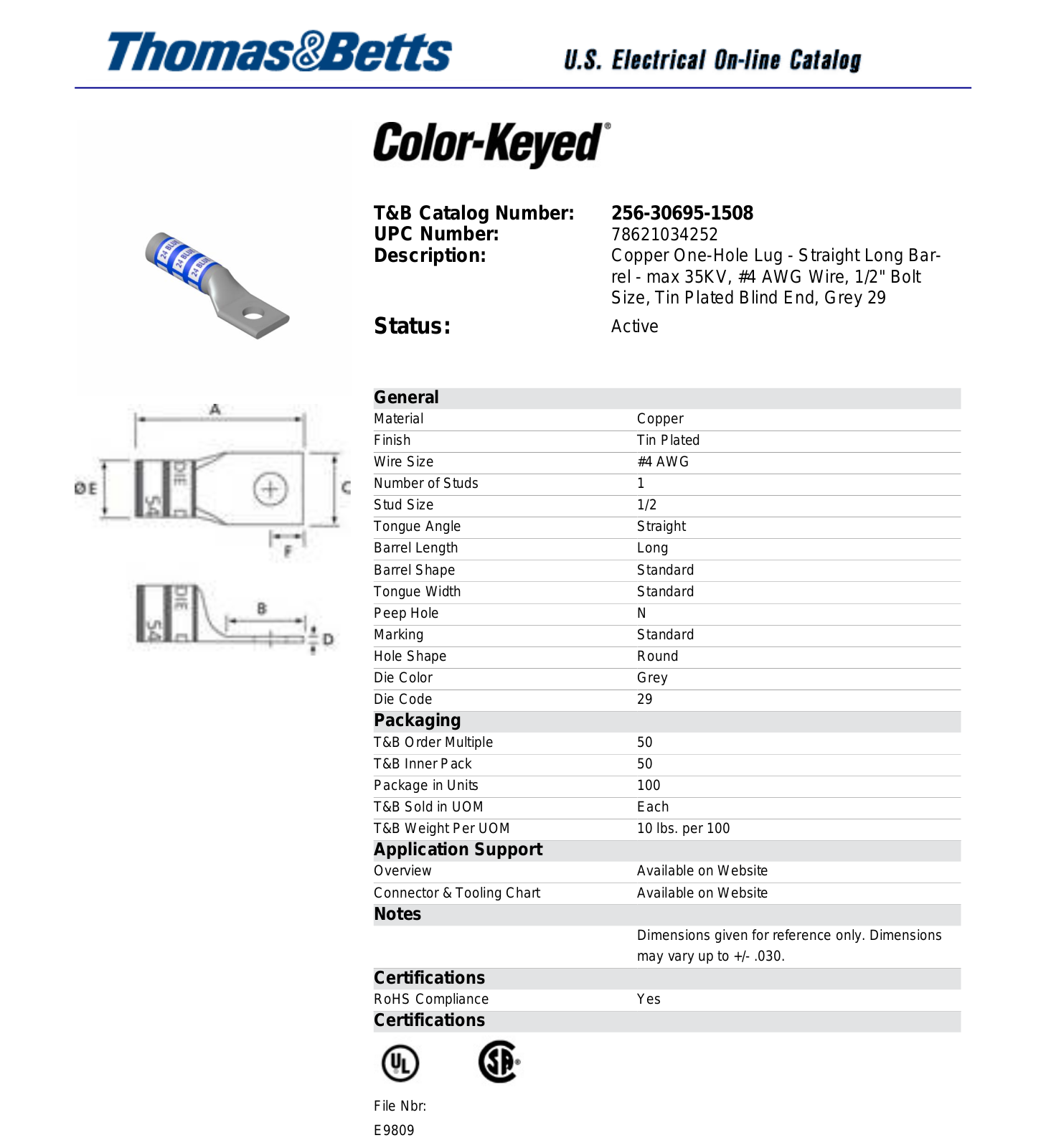

T&B Catalog Number: 256-30695-1508
UPC Number:
Description:
Status:
General
Material Copper
Finish Tin Plated
Wire Size #4 AWG
Number of Studs 1
Stud Size 1/2
Tongue Angle Straight
Barrel Length Long
Barrel Shape Standard
Tongue Width Standard
Peep Hole N
Marking Standard
Hole Shape Round
Die Color Grey
Die Code 29
Packaging
T&B Order Multiple 50
T&B Inner Pack 50
Package in Units 100
T&B Sold in UOM Each
T&B Weight Per UOM 10 lbs. per 100
Application Support
Overview Available on Website
Connector & Tooling Chart Available on Website
Notes
Certifications
RoHS Compliance Yes
Certifications
78621034252
Copper One-Hole Lug - Straight Long Barrel - max 35KV, #4 AWG Wire, 1/2" Bolt
Size, Tin Plated Blind End, Grey 29
Active
Dimensions given for reference only. Dimensions
may vary up to +/- .030.
File Nbr:
E9809
