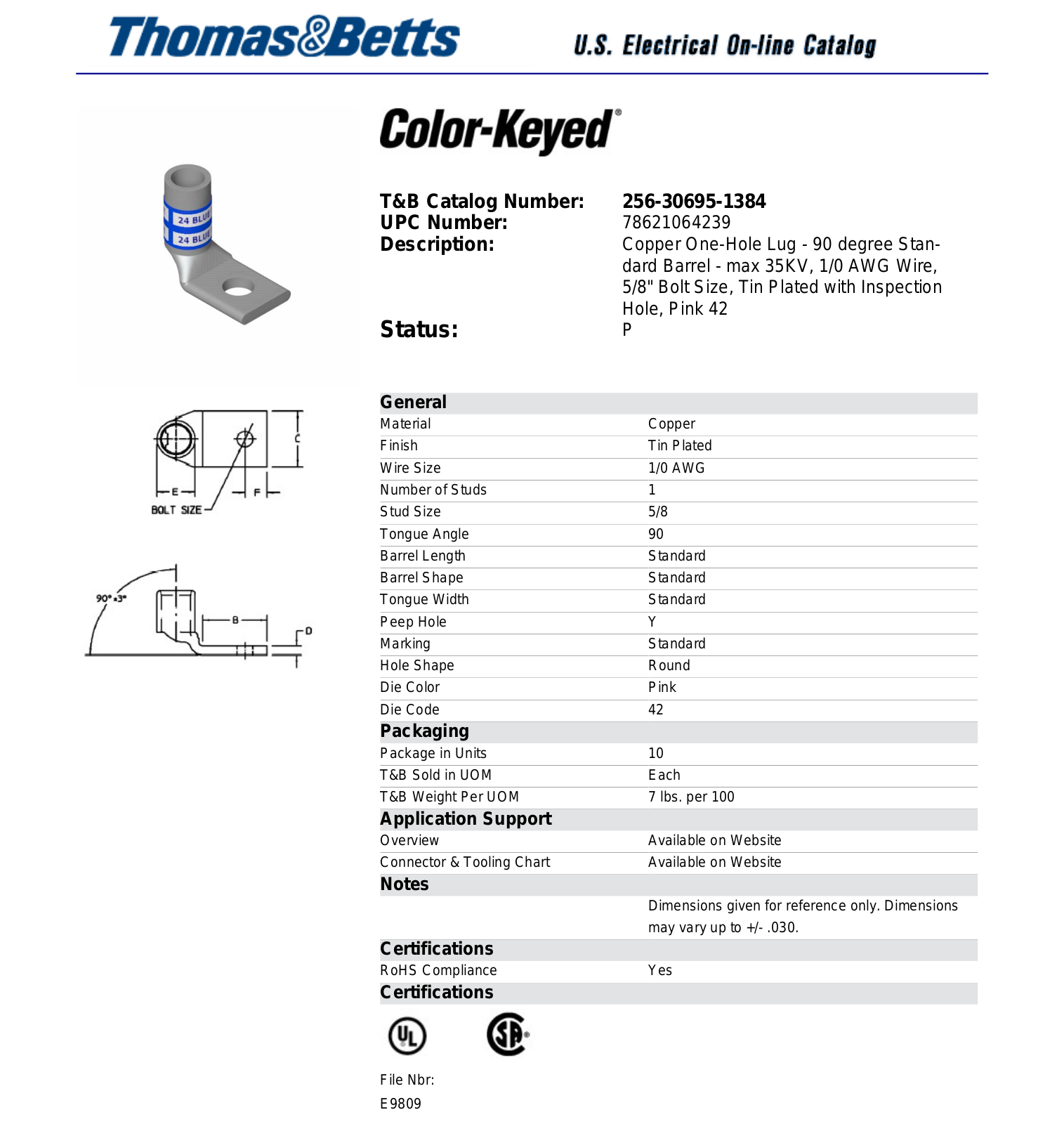

T&B Catalog Number: 256-30695-1384
UPC Number:
Description:
Status:
General
Material Copper
Finish Tin Plated
Wire Size 1/0 AWG
Number of Studs 1
Stud Size 5/8
Tongue Angle 90
Barrel Length Standard
Barrel Shape Standard
Tongue Width Standard
Peep Hole Y
Marking Standard
Hole Shape Round
Die Color Pink
Die Code 42
Packaging
Package in Units 10
T&B Sold in UOM Each
T&B Weight Per UOM 7 lbs. per 100
Application Support
Overview Available on Website
Connector & Tooling Chart Available on Website
Notes
Certifications
RoHS Compliance Yes
Certifications
78621064239
Copper One-Hole Lug - 90 degree Standard Barrel - max 35KV, 1/0 AWG Wire,
5/8" Bolt Size, Tin Plated with Inspection
Hole, Pink 42
P
Dimensions given for reference only. Dimensions
may vary up to +/- .030.
File Nbr:
E9809
