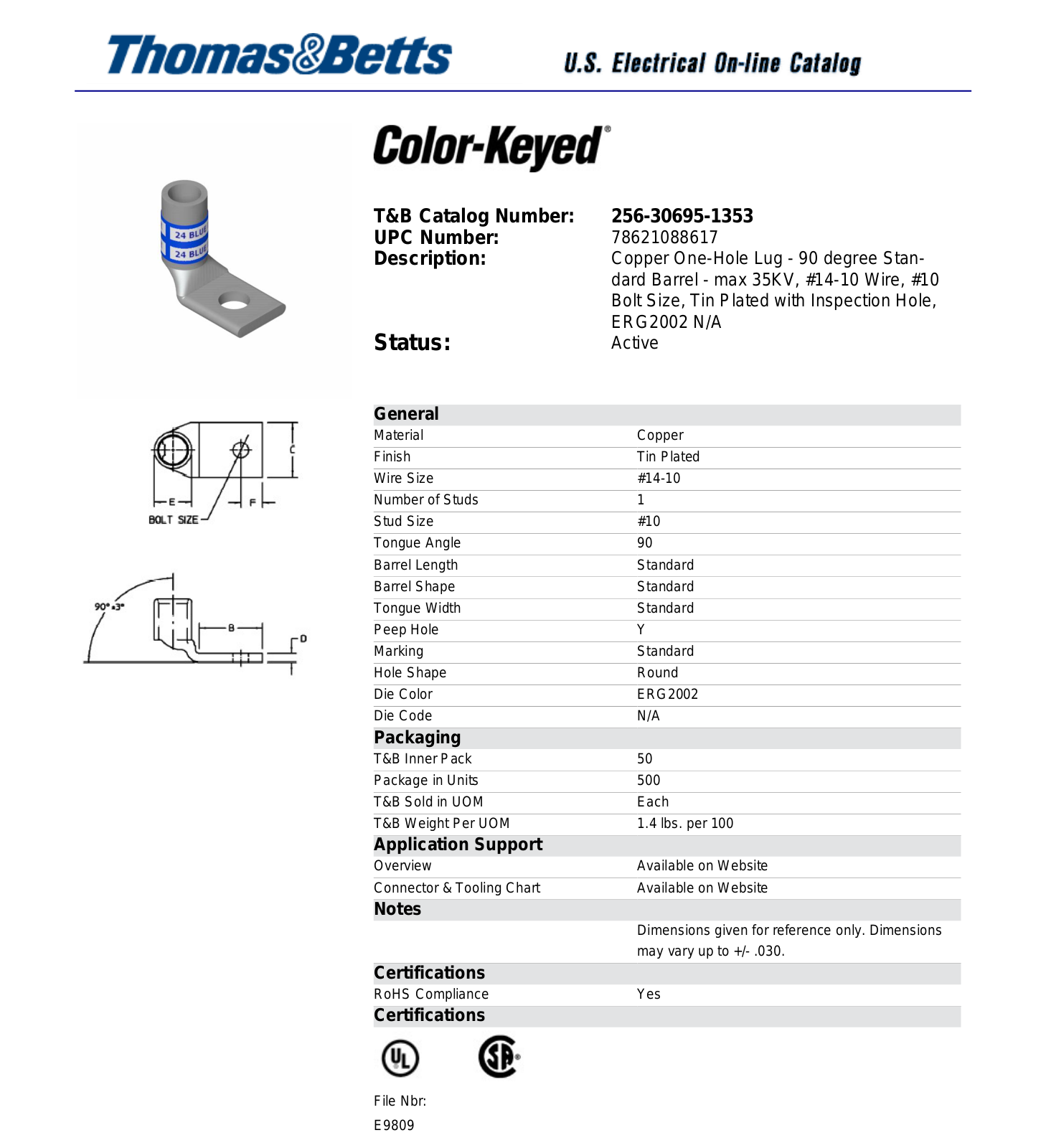

Thomas & Betts 256-30695-1353 Data Sheet
T&B Catalog Number: 256-30695-1353
UPC Number:
Description:
Status:
General
Material Copper
Finish Tin Plated
Wire Size #14-10
Number of Studs 1
Stud Size #10
Tongue Angle 90
Barrel Length Standard
Barrel Shape Standard
Tongue Width Standard
Peep Hole Y
Marking Standard
Hole Shape Round
Die Color ERG2002
Die Code N/A
Packaging
T&B Inner Pack 50
Package in Units 500
T&B Sold in UOM Each
T&B Weight Per UOM 1.4 lbs. per 100
Application Support
Overview Available on Website
Connector & Tooling Chart Available on Website
Notes
Certifications
RoHS Compliance Yes
Certifications
78621088617
Copper One-Hole Lug - 90 degree Standard Barrel - max 35KV, #14-10 Wire, #10
Bolt Size, Tin Plated with Inspection Hole,
ERG2002 N/A
Active
Dimensions given for reference only. Dimensions
may vary up to +/- .030.
File Nbr:
E9809
