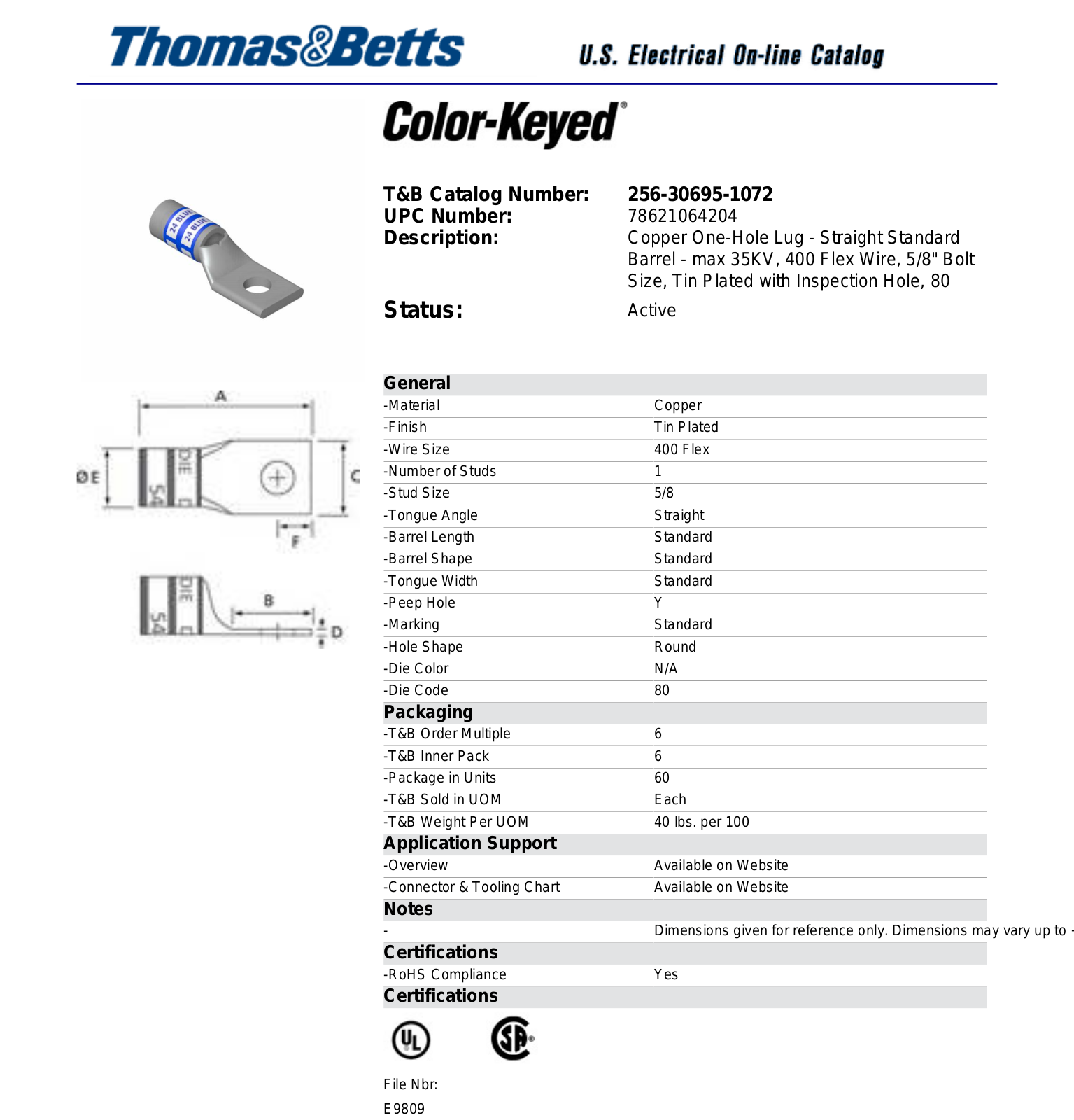

Thomas & Betts 256-30695-1072 Data Sheet

Page 1
T&B Catalog Number: 256-30695-1072 UPC Number: Description:
Status:
General
-Material Copper
-Finish Tin Plated
-Wire Size 400 Flex
-Number of Studs 1
-Stud Size 5/8
-Tongue Angle Straight
-Barrel Length Standard
-Barrel Shape Standard
-Tongue Width Standard
-Peep Hole Y
-Marking Standard
-Hole Shape Round
-Die Color N/A
-Die Code 80
Packaging
-T&B Order Multiple 6
-T&B Inner Pack 6
-Package in Units 60
-T&B Sold in UOM Each
-T&B Weight Per UOM 40 lbs. per 100
Application Support
-Overview Available on Website
-Connector & Tooling Chart Available on Website
Notes
- Dimensions given for reference only. Dimensions may vary up to +/- .030.
Certifications
-RoHS Compliance Yes
Certifications
78621064204 Copper One-Hole Lug - Straight Standard Barrel - max 35KV, 400 Flex Wire, 5/8" Bolt Size, Tin Plated with Inspection Hole, 80
File Nbr: E9809
