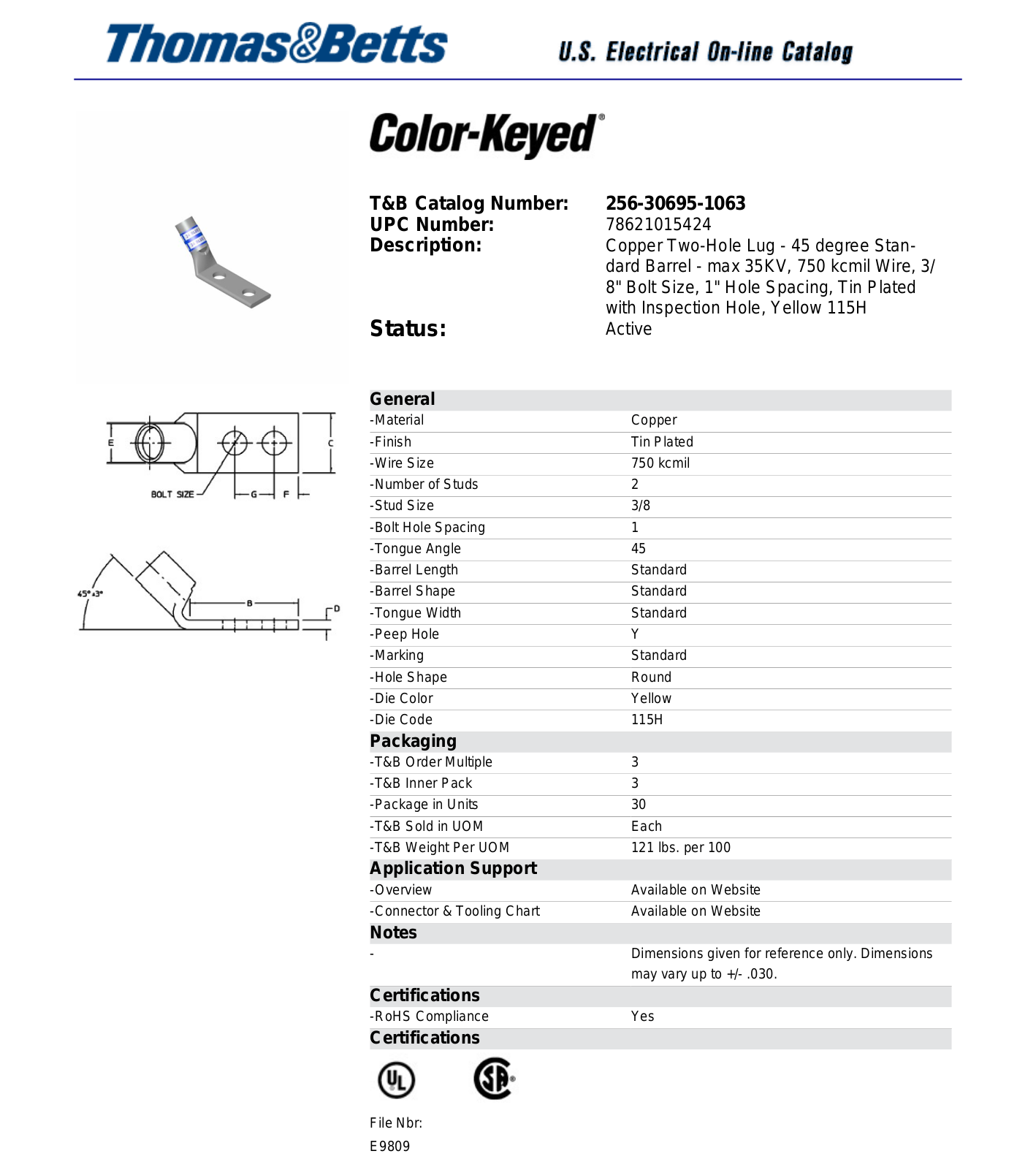

Thomas & Betts 256-30695-1063 Data Sheet

T&B Catalog Number: 256-30695-1063
UPC Number:
Description:

Status:

General

-Material Copper

-Finish Tin Plated

-Wire Size 750 kcmil

-Number of Studs 2

-Stud Size 3/8

-Bolt Hole Spacing 1

-Tongue Angle 45

-Barrel Length Standard

-Barrel Shape Standard

-Tongue Width Standard

-Peep Hole Y

-Marking Standard

-Hole Shape Round

-Die Color Yellow

-Die Code 115H

Packaging

-T&B Order Multiple 3

-T&B Inner Pack 3

-Package in Units 30

-T&B Sold in UOM Each

-T&B Weight Per UOM 121 lbs. per 100

Application Support

-Overview Available on Website

-Connector & Tooling Chart Available on Website

Notes

- Dimensions given for reference only. Dimensions

Certifications

-RoHS Compliance Yes

Certifications

78621015424
Copper Two-Hole Lug - 45 degree Stan­dard Barrel - max 35KV, 750 kcmil Wire, 3/
8" Bolt Size, 1" Hole Spacing, Tin Plated
with Inspection Hole, Yellow 115H
Active

may vary up to +/- .030.

File Nbr:
E9809
