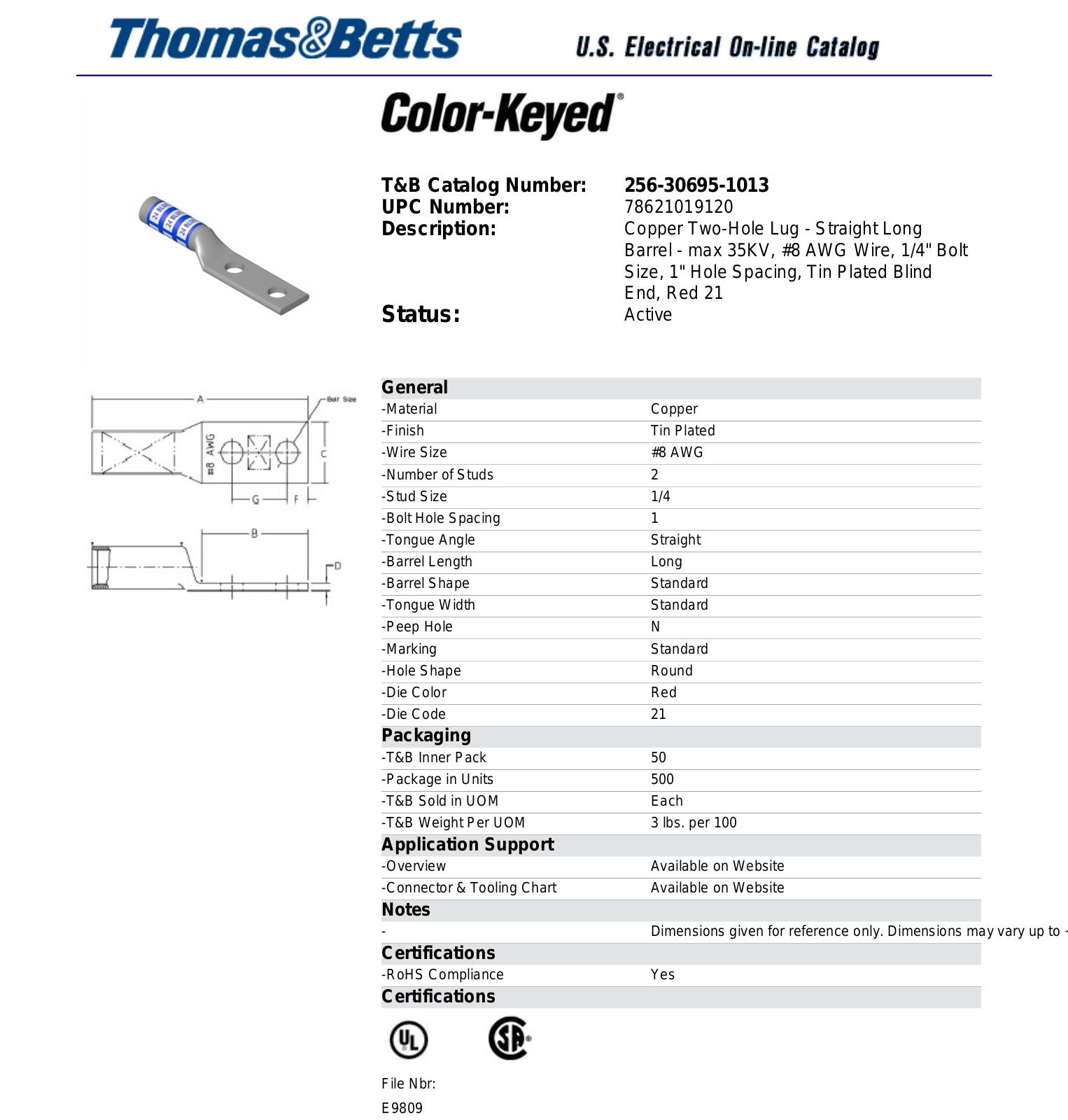

T&B Catalog Number: 256-30695-1013
UPC Number:
Description:
Status:
General
-Material Copper
-Finish Tin Plated
-Wire Size #8 AWG
-Number of Studs 2
-Stud Size 1/4
-Bolt Hole Spacing 1
-Tongue Angle Straight
-Barrel Length Long
-Barrel Shape Standard
-Tongue Width Standard
-Peep Hole N
-Marking Standard
-Hole Shape Round
-Die Color Red
-Die Code 21
Packaging
-T&B Inner Pack 50
-Package in Units 500
-T&B Sold in UOM Each
-T&B Weight Per UOM 3 lbs. per 100
Application Support
-Overview Available on Website
-Connector & Tooling Chart Available on Website
Notes
- Dimensions given for reference only. Dimensions may vary up to +/- .030.
Certifications
-RoHS Compliance Yes
Certifications
78621019120
Copper Two-Hole Lug - Straight Long
Barrel - max 35KV, #8 AWG Wire, 1/4" Bolt
Size, 1" Hole Spacing, Tin Plated Blind
End, Red 21
Active
File Nbr:
E9809
