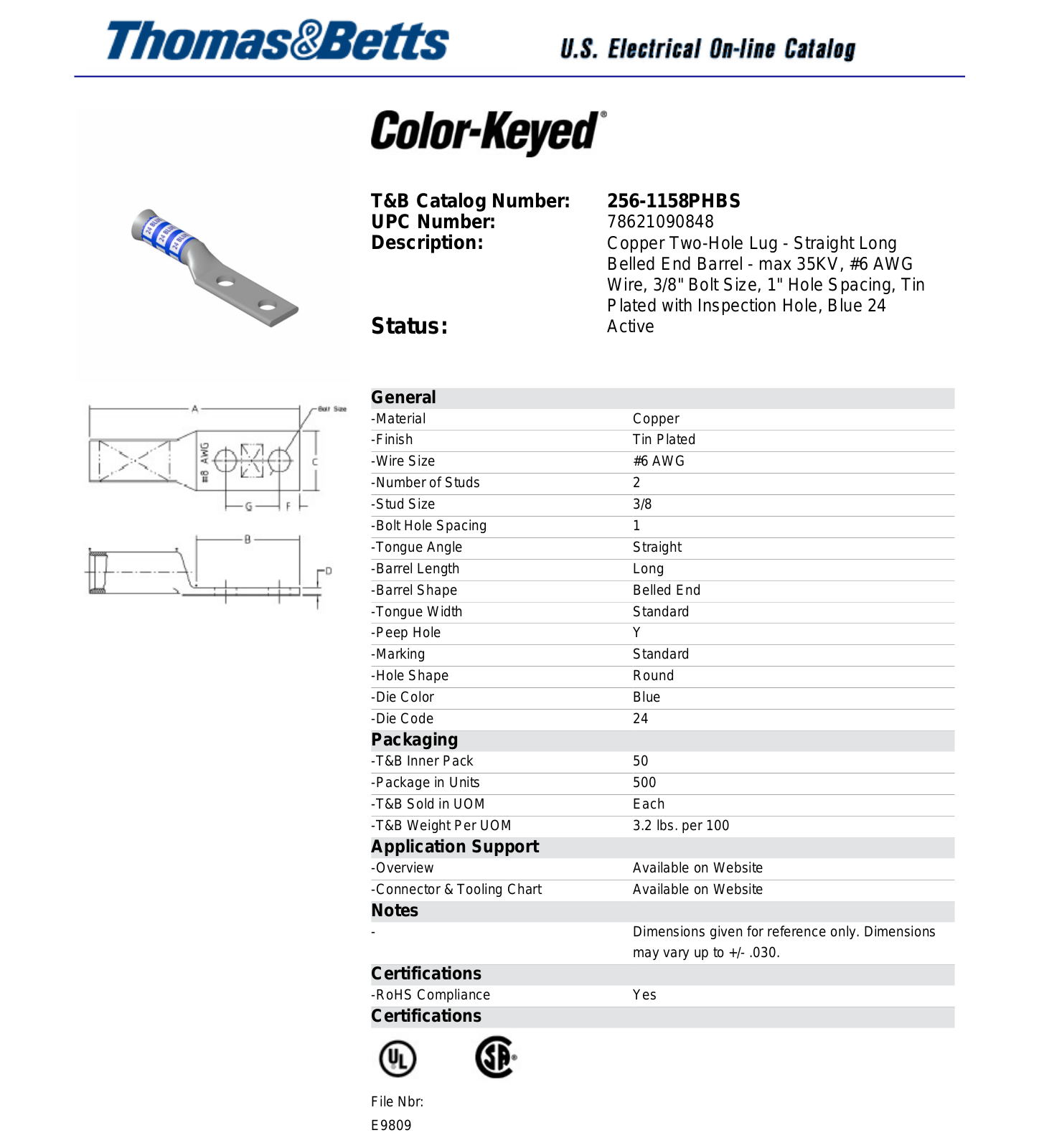

Thomas & Betts 256-1158PHBS Data Sheet

T&B Catalog Number: 256-1158PHBS
UPC Number:
Description:

Status:

General

-Material Copper

-Finish Tin Plated

-Wire Size #6 AWG

-Number of Studs 2

-Stud Size 3/8

-Bolt Hole Spacing 1

-Tongue Angle Straight

-Barrel Length Long

-Barrel Shape Belled End

-Tongue Width Standard

-Peep Hole Y

-Marking Standard

-Hole Shape Round

-Die Color Blue

-Die Code 24

Packaging

-T&B Inner Pack 50

-Package in Units 500

-T&B Sold in UOM Each

-T&B Weight Per UOM 3.2 lbs. per 100

Application Support

-Overview Available on Website

-Connector & Tooling Chart Available on Website

Notes

- Dimensions given for reference only. Dimensions

Certifications

-RoHS Compliance Yes

Certifications

78621090848
Copper Two-Hole Lug - Straight Long
Belled End Barrel - max 35KV, #6 AWG
Wire, 3/8" Bolt Size, 1" Hole Spacing, Tin
Plated with Inspection Hole, Blue 24
Active

may vary up to +/- .030.

File Nbr:
E9809
