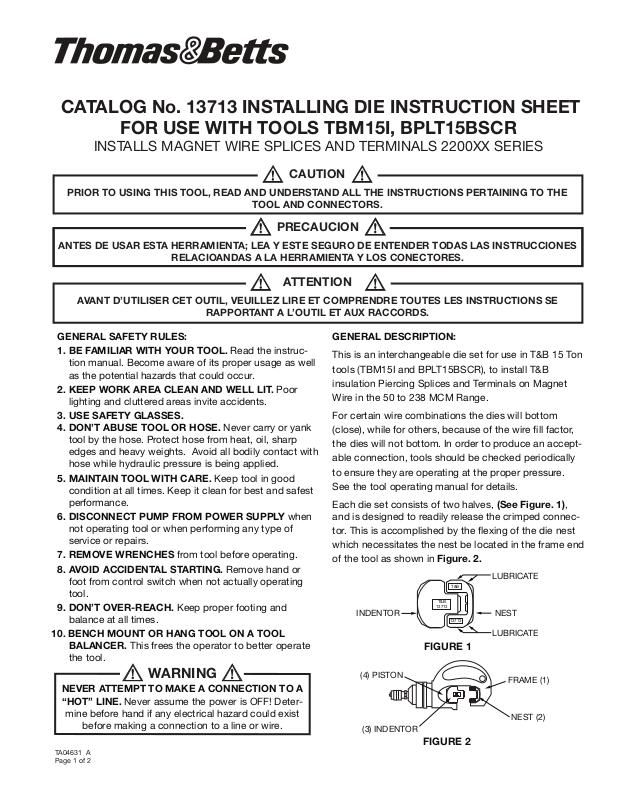

CATALOG No. 13713 INSTALLING DIE INSTRUCTION SHEET
FOR USE WITH TOOLS TBM15I, BPLT15BSCR
INSTALLS MAGNET WIRE SPLICES AND TERMINALS 2200XX SERIES
CAUTION
PRIOR TO USING THIS TOOL, READ AND UNDERSTAND ALL THE INSTRUCTIONS PERTAINING TO THE
TOOL AND CONNECTORS.
PRECAUCION
ANTES DE USAR ESTA HERRAMIENTA; LEA Y ESTE SEGURO DE ENTENDER TODAS LAS INSTRUCCIONES
RELACIOANDAS A LA HERRAMIENTA Y LOS CONECTORES.
ATTENTION
AVANT D’UTILISER CET OUTIL, VEUILLEZ LIRE ET COMPRENDRE TOUTES LES INSTRUCTIONS SE
RAPPORTANT A L’OUTIL ET AUX RACCORDS.
GENERAL SAFETY RULES:
1. BE FAMILIAR WITH YOUR TOOL. Read the instruc-
tion manual. Become aware of its proper usage as well
as the potential hazards that could occur.
2. KEEP WORK AREA CLEAN AND WELL LIT. Poor
lighting and cluttered areas invite accidents.
3. USE SAFETY GLASSES.
4. DON’T ABUSE TOOL OR HOSE. Never carry or yank
tool by the hose. Protect hose from heat, oil, sharp
edges and heavy weights. Avoid all bodily contact with
hose while hydraulic pressure is being applied.
5. MAINTAIN TOOL WITH CARE. Keep tool in good
condition at all times. Keep it clean for best and safest
performance.
6. DISCONNECT PUMP FROM POWER SUPPLY when
not operating tool or when performing any type of
service or repairs.
7. REMOVE WRENCHES from tool before operating.
8. AVOID ACCIDENTAL STARTING. Remove hand or
foot from control switch when not actually operating
tool.
9. DON’T OVER-REACH. Keep proper footing and
balance at all times.
10. BENCH MOUNT OR HANG TOOL ON A TOOL
BALANCER. This frees the operator to better operate
the tool.
WARNING
NEVER ATTEMPT TO MAKE A CONNECTION TO A
“HOT” LINE. Never assume the power is OFF! Deter-
mine before hand if any electrical hazard could exist
before making a connection to a line or wire.
TA04631 A
Page 1 of 2
GENERAL DESCRIPTION:
This is an interchangeable die set for use in T&B 15 Ton
tools (TBM15I and BPLT15BSCR), to install T&B
insulation Piercing Splices and Terminals on Magnet
Wire in the 50 to 238 MCM Range.
For certain wire combinations the dies will bottom
(close), while for others, because of the wire ll factor,
the dies will not bottom. In order to produce an acceptable connection, tools should be checked periodically
to ensure they are operating at the proper pressure.
See the tool operating manual for details.
Each die set consists of two halves, (See Figure. 1),
and is designed to readily release the crimped connec-
tor. This is accomplished by the exing of the die nest
which necessitates the nest be located in the frame end
of the tool as shown in Figure. 2.
LUBRICATE
NEST
LUBRICATE
INDENTOR
T&B
13713
T&B
13713
FIGURE 1
(4) PISTON
(3) INDENTOR
FRAME (1)
NEST (2)
FIGURE 2
Page 2
The die set is installed in the tool from either side, by
laterally sliding each die half into its respective cavity
until it locks in place.
a. Mount the nest (2) in the frame die cavity (1).
b. Mount the indentor (3) in the piston die cavity (4)
WARNING
FOLLOW INSTRUCTIONS CAREFULLY TO ENSURE
THAT THE DIE SET IS PROPERLY INSTALLED IN
TOOL. FAILURE TO FOLLOW INSTRUCTIONS MAY
CAUSE INJURY OR DAMAGE.
Refer to Instruction Sheets enclosed with the
connectors for information on wire sizes, number of
wires and proper connectors.
3. Crimp the connector by depressing the foot or hand
control switch. Refer to the tool and pump manuals
for instructions.
WARNING
KEEP HANDS CLEAR OF DIES WHEN OPERATING TOOL.
CRIMPING PROCEDURE:
1. Install die set in tool.
2. Select connector to be installed on wire(s). Insert
connector into die nest (2) with connector rib in the
die nest side wall grooves, and with the open end of
the connector facing outward as shown in Figure. 3.
FIGURE 3
CAUTION
NEVER OPERATE TOOL WITHOUT A SET OF DIES.
INSTALL ONLY T&B CONNECTORS WITH THIS DIE
SET. DO NOT CRIMP HARDENED OBJECTS WITH
THIS DIE SET. AVOID ALL BODILY CONTACT WITH
HOSE WHILE HYDRAULIC PRESSURE IS BEING
APPLIED.
PROPERLY MAINTAIN TOOLS AND DIES AT ALL
TIMES. In particular keep chips and other foreign
material out of the working areas of the tool and the
mating surfaces of the dies. Inspect periodically for
damage such as cracks, chips, excessive wear,
broken or damaged parts, etc, and replace or repair
as necessary.
WARRANTY: Thomas & Betts sells this product with the understanding that the user will perform all necessary tests to determine the suitability of this product for
the user's intended application. Thomas & Betts warrants that this product will be free from defects in materials and workmanship for a period of two (2) years
following the date of purchase. Upon prompt notication of any warranted defect, Thomas & Betts will, at its option, repair or replace the defective product or
refund the purchase price. Proof of purchase is required. Misuse or unauthorized modication of the product voids all warranties.
Limitations and Exclusions: THE ABOVE WARRANTY IS THE SOLE WARRANTY CONCERNING THIS PRODUCT, AND IS IN LIEU OF ALL OTHER
WARRANTIES EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, WHICH ARE SPECIFICALLY DISCLAIMED. LIABILITY FOR BREACH OF THE ABOVE WARRANTY IS LIMITED TO COST OF
REPAIR OR REPLACEMENT OF THE PRODUCT, AND UNDER NO CIRCUMSTANCES WILL THOMAS & BETTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Thomas & Betts Corporation, Memphis, Tennessee
In Canada, Thomas & Betts Ltd, I berville P.Q.
www.tnb.com
© 2010 Thomas & Betts. All Rights Reserved.
