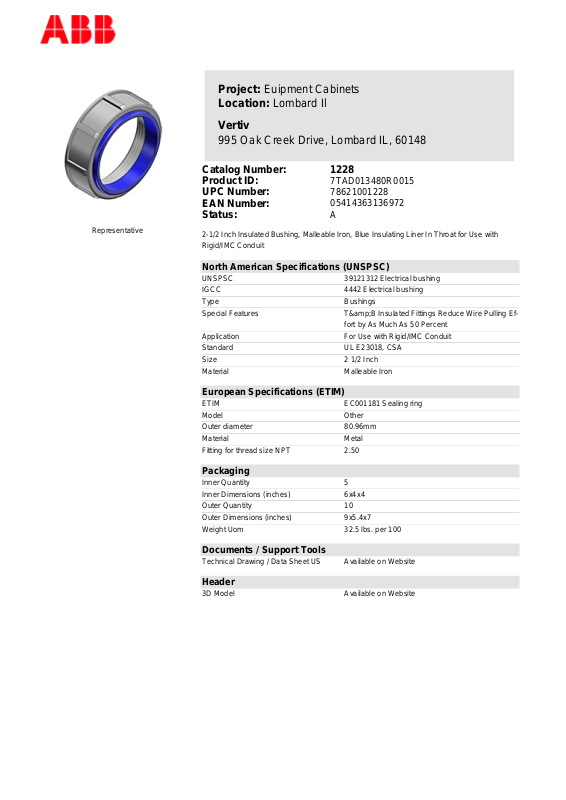

Thomas & Betts 1228 Data Sheet

Representative

Project: Euipment Cabinets
Location: Lombard Il

Vertiv

995 Oak Creek Drive, Lombard IL, 60148

Catalog Number: 1228
Product ID:
UPC Number:
EAN Number:
Status:

2-1/2 Inch Insulated Bushing, Malleable Iron, Blue Insulating Liner In Throat for Use with
Rigid/IMC Conduit

North American Specifications (UNSPSC)

UNSPSC 39121312 Electrical bushing
IGCC 4442 Electrical bushing
Type Bushings
Special Features T&B Insulated Fittings Reduce Wire Pulling Ef-

Application For Use with Rigid/IMC Conduit
Standard UL E23018, CSA
Size 2 1/2 Inch
Material Malleable Iron

7TAD013480R0015
78621001228
05414363136972
A

fort by As Much As 50 Percent

European Specifications (ETIM)

ETIM EC001181 Sealing ring
Model Other
Outer diameter 80.96mm
Material Metal
Fitting for thread size NPT 2.50

Packaging

Inner Quantity 5
Inner Dimensions (inches) 6x4x4
Outer Quantity 10
Outer Dimensions (inches) 9x5.4x7
Weight Uom 32.5 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet US Available on Website

Header

3D Model Available on Website
