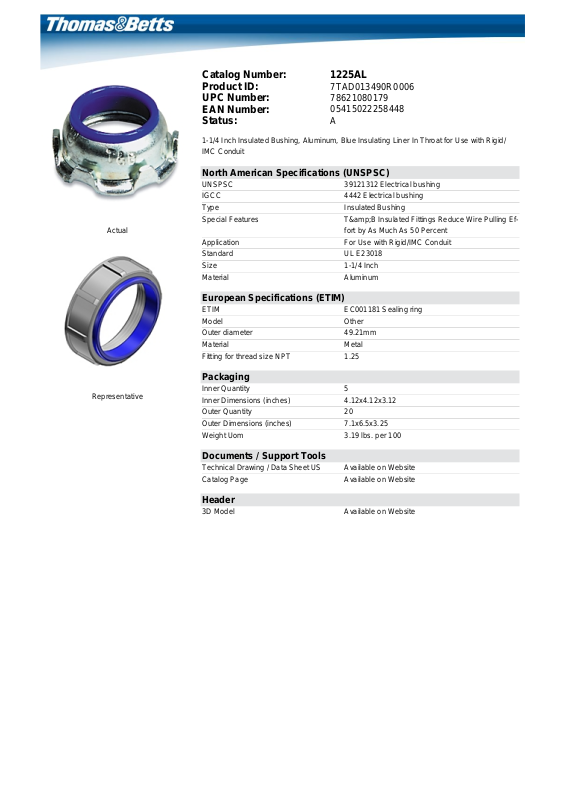

Thomas & Betts 1225AL Data Sheet

Actual

Catalog Number: 1225AL
Product ID:
UPC Number:
EAN Number:
Status:

1-1/4 Inch Insulated Bushing, Aluminum, Blue Insulating Liner In Throat for Use with Rigid/
IMC Conduit

North American Specifications (UNSPSC)

UNSPSC 39121312 Electrical bushing
IGCC 4442 Electrical bushing
Type Insulated Bushing
Special Features T&B Insulated Fittings Reduce Wire Pulling Ef-

Application For Use with Rigid/IMC Conduit
Standard UL E23018
Size 1-1/4 Inch
Material Aluminum

European Specifications (ETIM)

ETIM EC001181 Sealing ring
Model Other
Outer diameter 49.21mm
Material Metal
Fitting for thread size NPT 1.25

7TAD013490R0006
78621080179
05415022258448
A

fort by As Much As 50 Percent

Representative

Packaging

Inner Quantity 5
Inner Dimensions (inches) 4.12x4.12x3.12
Outer Quantity 20
Outer Dimensions (inches) 7.1x6.5x3.25
Weight Uom 3.19 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet US Available on Website
Catalog Page Available on Website

Header

3D Model Available on Website
