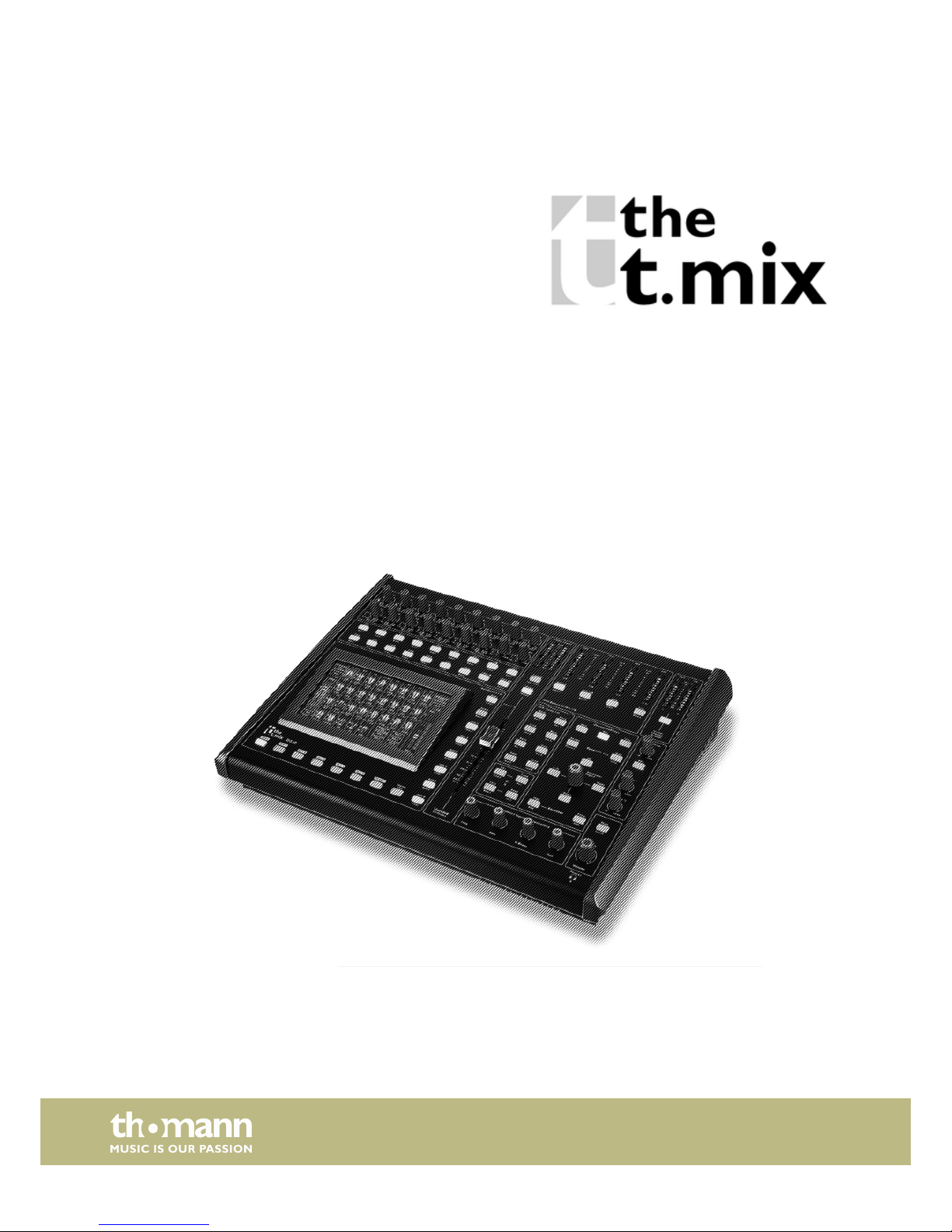

Page 1
20.12
mixer
user manual
Page 2
Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: +49 (0) 9546 9223-0
E-mail: info@thomann.de
Internet: www.thomann.de
07.09.2018, ID: 433540
Page 3
Table of contents
1 General notes............................................................................................................................ 4
1.1 Further information........................................................................................................ 4
1.2 Notational conventions................................................................................................. 4
1.3 Symbols and signal words........................................................................................... 5
2 Safety instructions................................................................................................................. 6
3 Features....................................................................................................................................... 8
4 Installation................................................................................................................................. 9
5 Connections and controls................................................................................................ 10
6 Operating................................................................................................................................. 16
6.1 Main menu...................................................................................................................... 16
6.2 Parametric Equalizer.................................................................................................... 18
6.3 Graphic Equalizer.......................................................................................................... 19
6.4 Compressor..................................................................................................................... 20
6.5 Noise Gate....................................................................................................................... 21
7 Technical specications.................................................................................................... 22

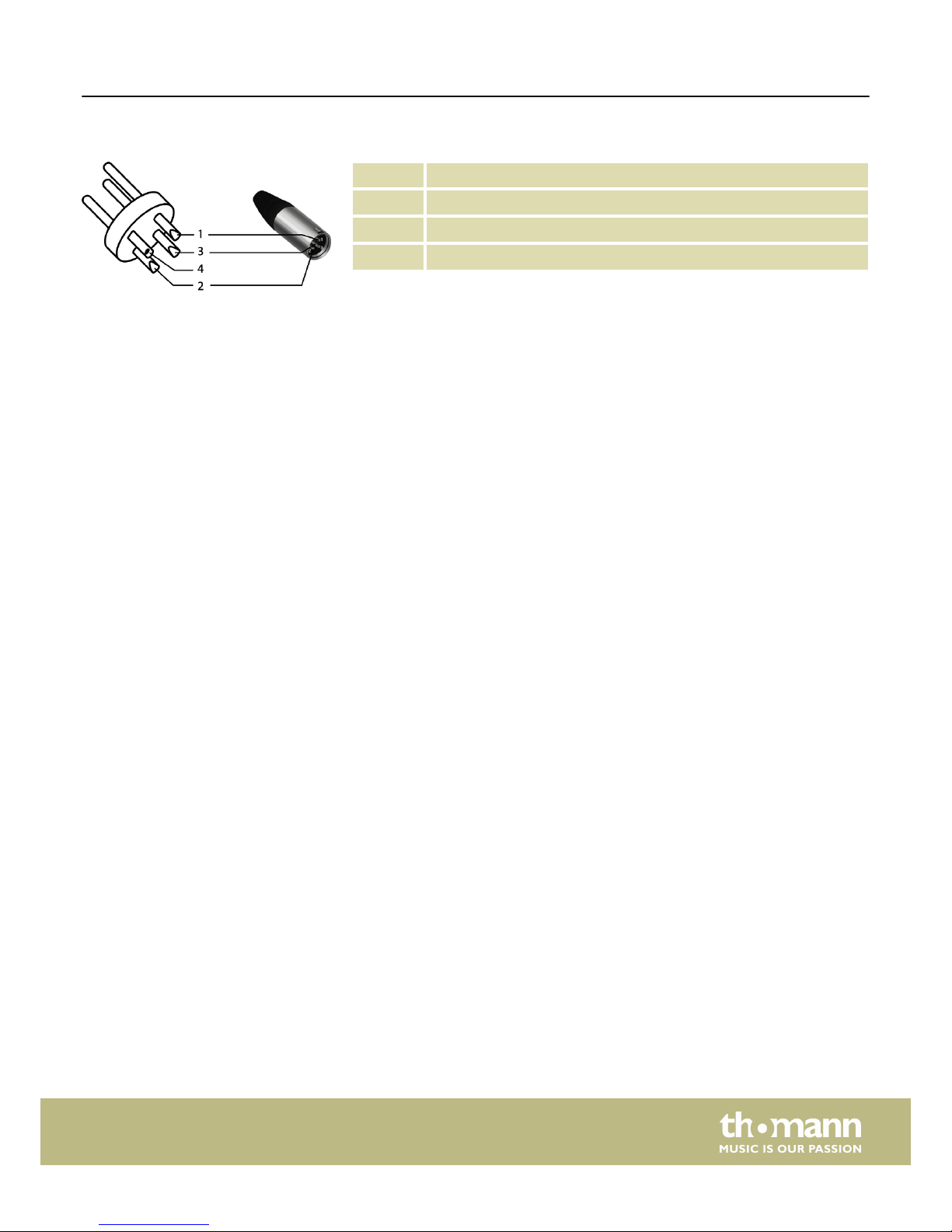

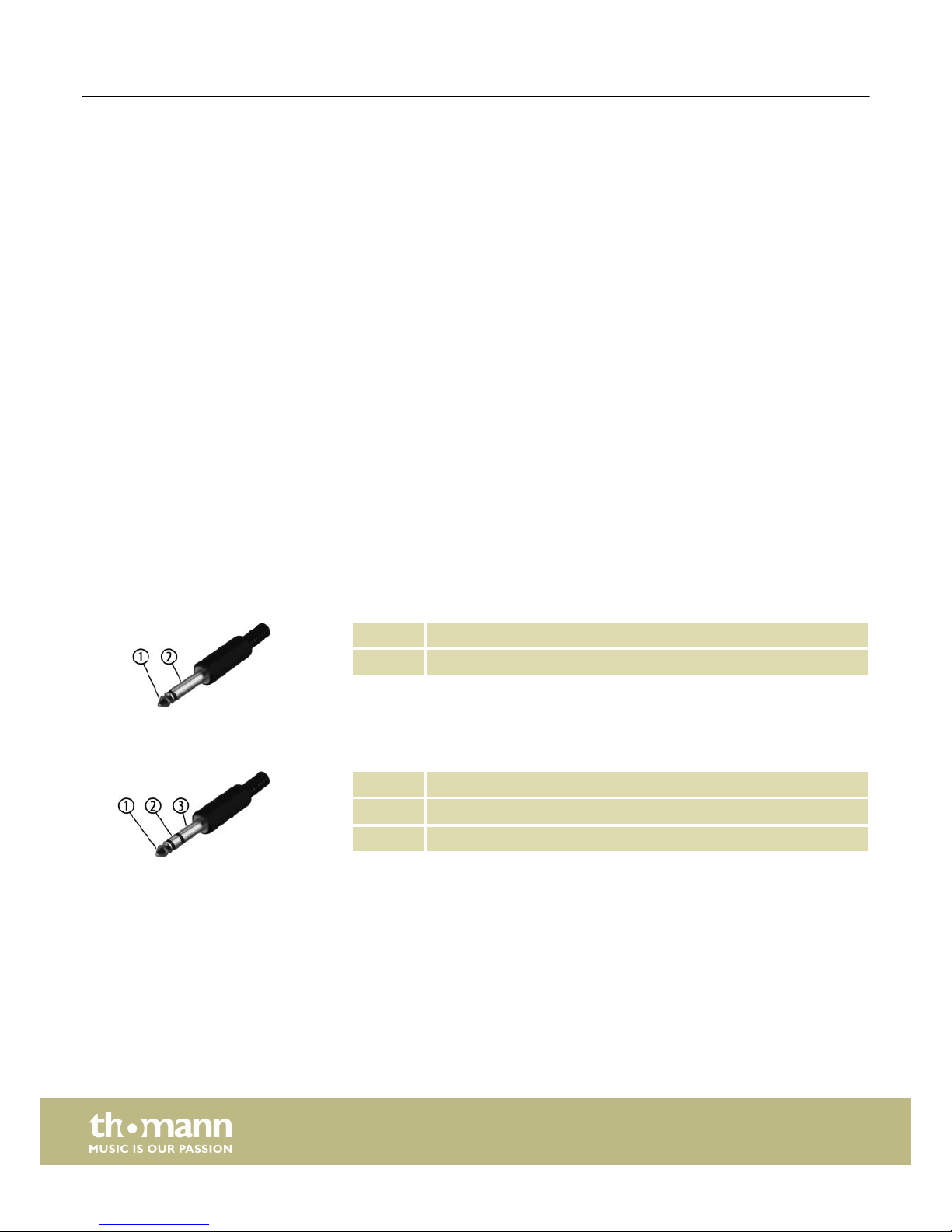

8 Plug and connection assignment................................................................................. 24
9 Cleaning.................................................................................................................................... 26

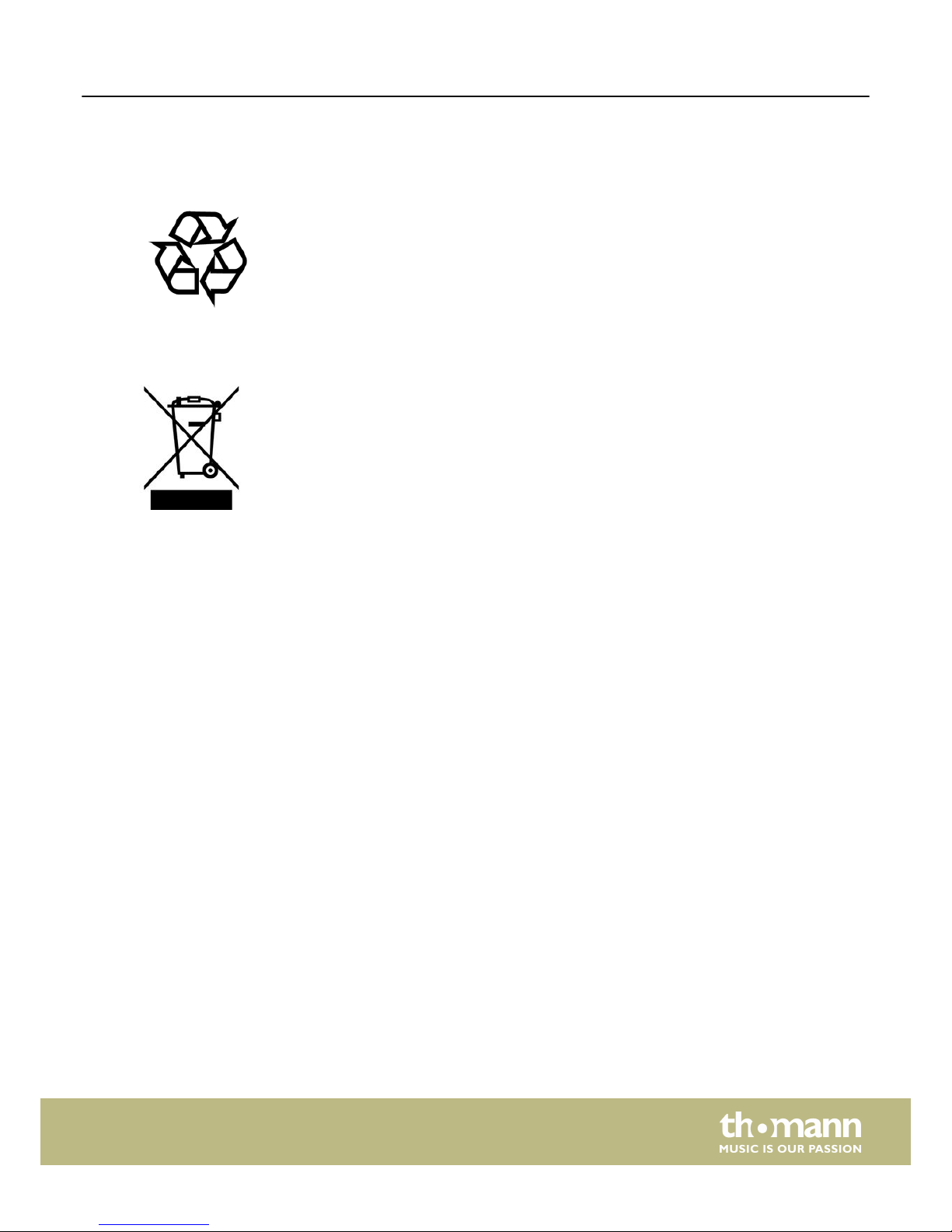

10 Protecting the environment........................................................................................... 27
Table of contents
20.12
3
Page 4
1 General notes
This manual contains important instructions for the safe operation of the unit. Read
and follow the safety instructions and all other instructions. Keep the manual for
future reference. Make sure that it is available to all those using the device. If you sell
the unit please make sure that the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are
subject to change.
1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and
details on the following points:
Download This manual is also available as PDF le for you to download.
Keyword search
Use the search function in the electronic version to nd the
topics of interest for you quickly.
Online guides
Our online guides provide detailed information on technical
basics and terms.
Personal
consultation
For personal consultation please contact our
technical hotline.
Service
If you have any problems with the device the
customer service will gladly assist you.
1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’, ‘OFF’.
References to other locations in this manual are identied by an arrow and the speci‐
ed page number. In the electronic version of the manual, you can click the crossreference to jump to the specied location.
Example: See Ä ‘Cross-references’ on page 4.
Letterings
Displays
Cross-references
General notes
mixer
4
Page 5

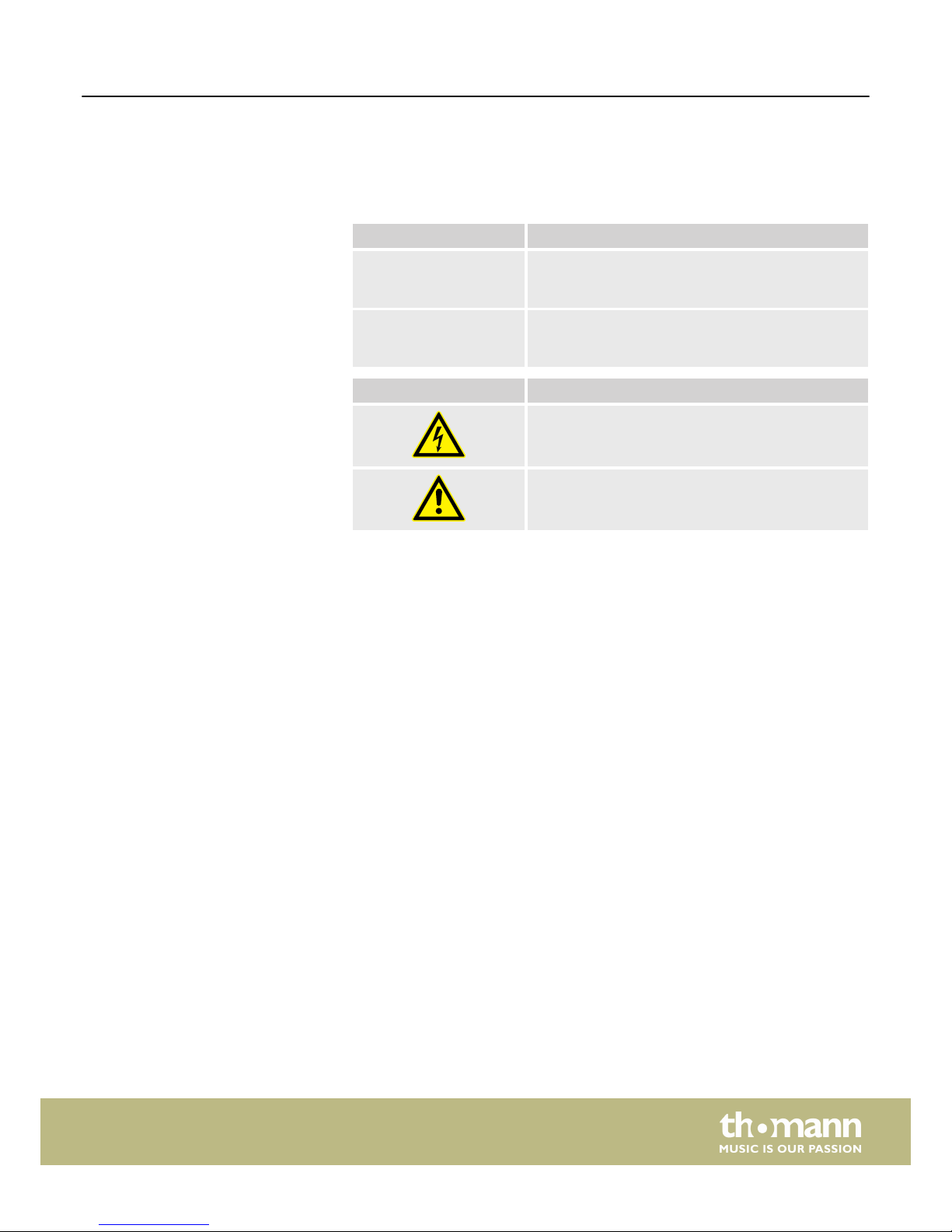

1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words
that are used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates
an immediate dangerous situation that will result in
death or serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates
a possible dangerous situation that can result in mate‐
rial and environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General notes
20.12
5
Page 6
2 Safety instructions
This device is intended to be used for amplication, mixing and playback of signals
from musical instruments and microphones. Use the device only as described in this
user manual. Any other use or use under other operating conditions is considered to
be improper and may result in personal injury or property damage. No liability will be
assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intel‐
lectual abilities and having corresponding knowledge and experience. Other persons
may use this device only if they are supervised or instructed by a person who is
responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and
are not within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the
like) from the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present.
Never remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are
missing or damaged.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord)
with a protective contact plug. Do not modify the mains cable or the
plug. Failure to do so could result in electric shock/death or re. If in
doubt, seek advice from a registered electrician.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any
direct heat source. Keep the device away from naked ames.
Intended use
Safety
Safety instructions
mixer
6
Page 7
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage,
never expose the device to any liquid or moisture. Avoid direct sunlight,
heavy dirt, and strong vibrations.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet)
matches the voltage rating of the device and that the AC outlet is pro‐
tected by a residual current circuit breaker. Failure to do so could result
in damage to the device and possibly injure the user.
Unplug the device before electrical storms occur and when it is unused
for long periods of time to reduce the risk of electric shock or re.
Safety instructions
20.12
7
Page 8
3 Features
n 20 × microphone and line inputs with separate volume and tone control, 16 of
them as XLR / 1/4" combo jack, 4 as 1/4" jack
n Stereo monitor output
n Master outputs, 2 of them as XLR sockets, 1/4" jacks for left and right channels.
n 2 × headphones outputs (stereo, as 1/4" jack)
n 8 × AUX outputs (1/4" jack)
n Control room outputs (stereo, as 1/4" jack)
n 7" touch screen
n 1 × motorized fader (100 mm)
n Phantom power switchable
n Digital signal processor with extensive setting options and internal eects
module
n 2 × USB ports for recording and playback, for software updates and for presets
import and export
n Operation via buttons and touch screen on the unit or via local area network
(LAN, external router required)
n Control via tablet possible (not included)
Features
mixer
8
Page 9
4 Installation
NOTICE!
Danger of short circuit
Switching on phantom power will damage the device if unbalanced XLR
cables are connected.
Only turn on phantom power when exclusively balanced XLR cables are
connected.
Unpack and carefully check that there is no transportation damage before using the
unit. Keep the equipment packaging. To fully protect the device against vibration,
dust and moisture during transportation or storage use the original packaging or
your own packaging material suitable for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality
cables for all connections. Take care when running the cables to prevent tripping
hazards.

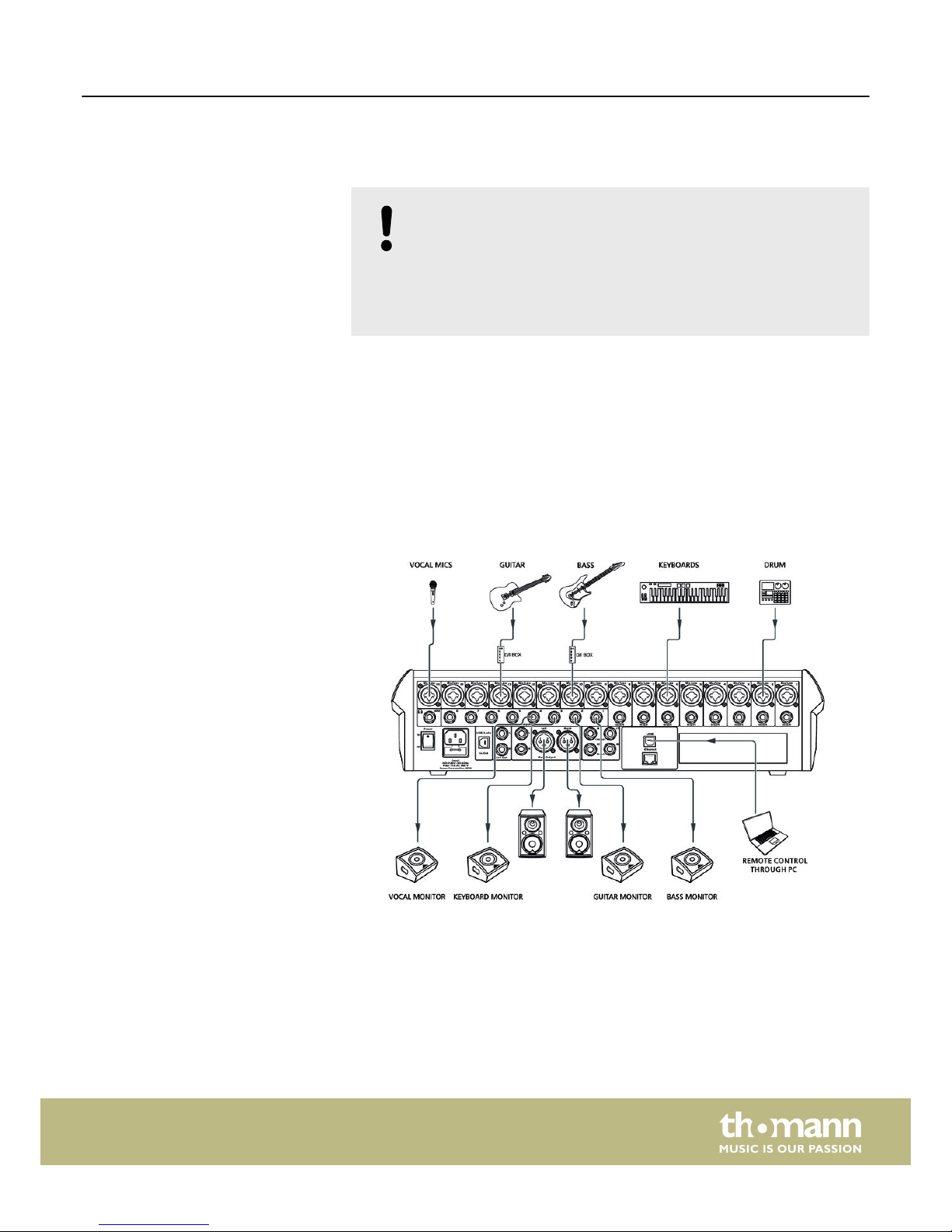

Connection options
Installation
20.12
9
Page 10

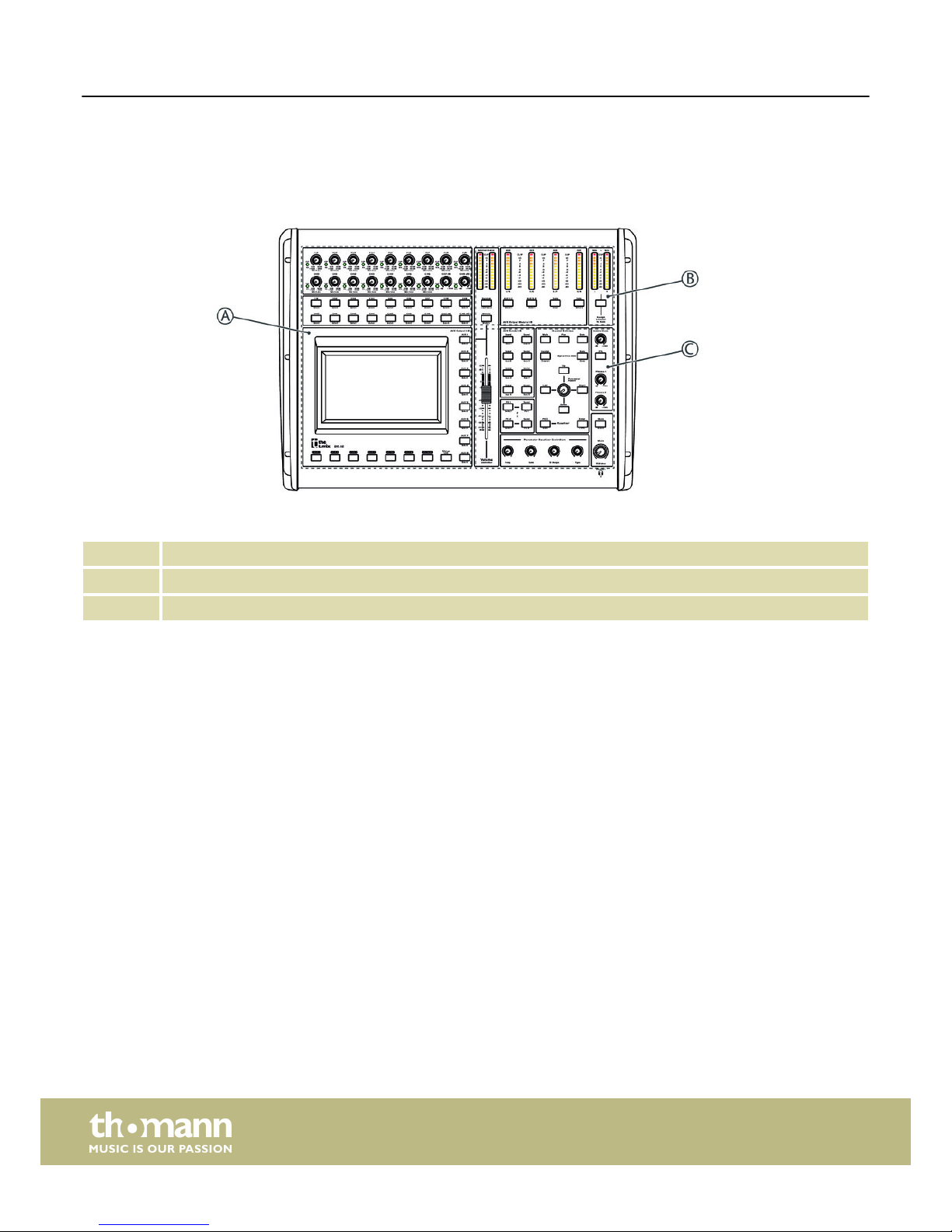

5 Connections and controls
A Settings for the inputs
B Settings for tone and signal processing
C Settings for the outputs
Overview
Connections and controls
mixer
10
Page 11

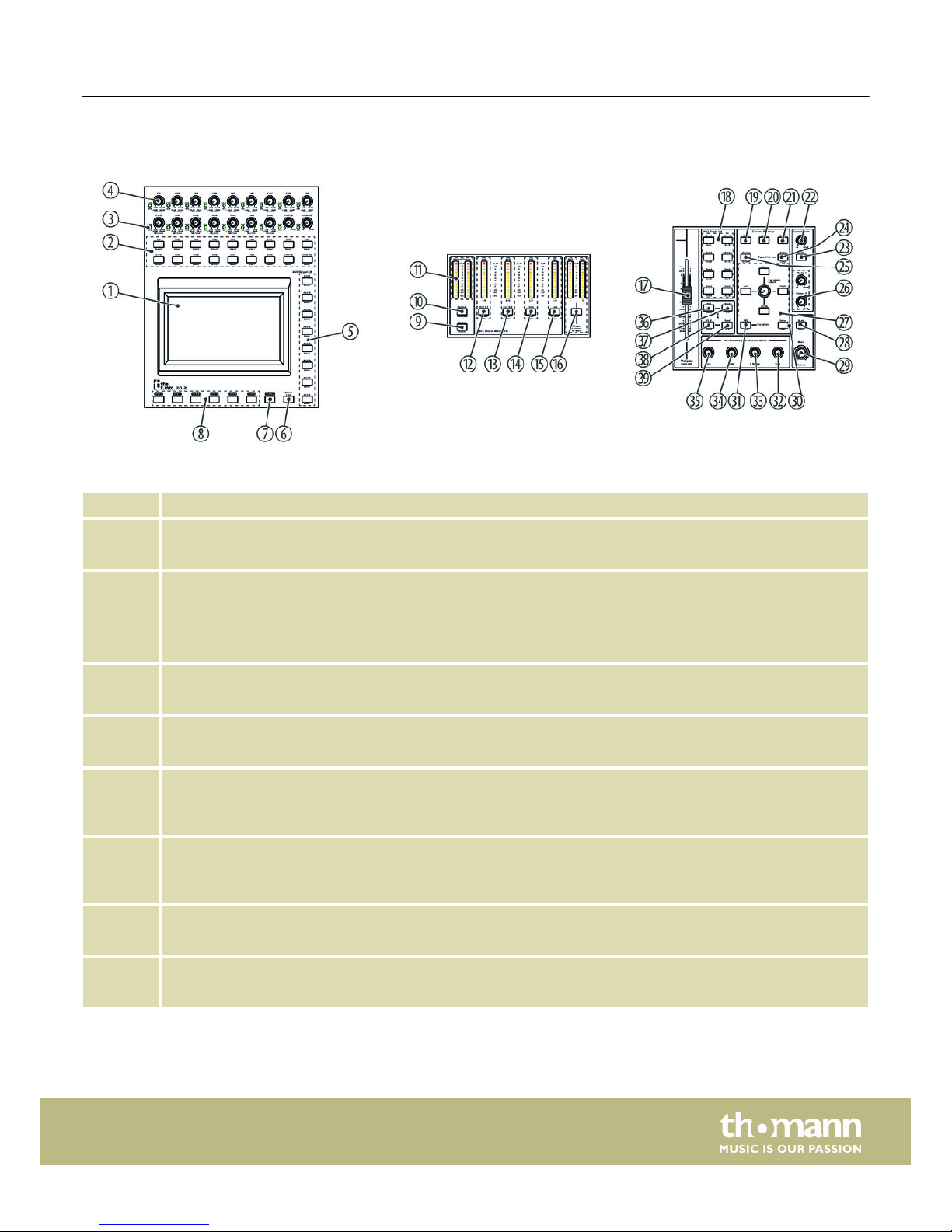

1 7" touch screen
2 [Select]
Selects the respective channel to perform tone control and assignment to outputs.
3 [Sig/Clip]
The LED lights up green when a signal is present at the respective input (level > -30 dB).
The LED lights up red when the signal level is too high and distortion due to clipping occur (level > +15 dB). In this
case, reduce the level with the [Mic/Line] control.
4 Controls [CH1]…[CH16] adjust the input signal to the working level of the unit.
Controls [CH17]…[CH20] adjust the input level.
5 [AUX Output 1 -8]
Selects the respective AUX bus to perform tone control and assignment to outputs.
6 [Stereo Link]
Input channels 1…16 and buses AUX1…AUX8 can each be paired as stereo channels. When pairing is on, the
button lights up blue.
7 [DCASet]
Conrmation button for setting up DCA groups that can control the volume of multiple channels with one fader
without mixing the signals into one signal.
8 [DCA 1]…[DCA 6]
Selection buttons for DCA groups
9 [Mixers / Meters]
Switches the display between the dierent display modes
Front panel
Connections and controls
20.12
11
Page 12
10 [System / Load Save]
Opens the system menu and the menus for loading or saving presets one by one
11 [Selected Channel]
Level meter for currently selected input channel.
12.13 [AUX / AUX 1-4 / Meters], [AUX / AUX 5-8 / Meters]
Level meters, switchable between the buses AUX1…AUX8 with the respective buttons.
14 [Solo / Clear]
Cancels the solo mode for all input channels and buses. The button lights when at least one channel or bus is oper‐
ating in solo mode.
15 [AUX / Solo / Meters]
Switches the level meter [Main – Solo] on the top right between Main and Solo.
16 [Assign Channel To Main]
Assigns the currently selected channel or bus to the Main output.
17 [Volume Controller]
Motor fader to adjust the volume of the currently selected channel, bus or DCA group.
18 [AUX Sends 1-8]
Allows the assignment to outputs (routing) for the respective bus.
19 [Mute]
Mutes or unmutes the respective channel.
20 [Pan]
When the pan function is switched on (button [Pan] lights up), use the rotary control [Parameter Adjust] to set the
position of the signal in the stereo panorama. When Pan is o, the rotary knob [Parameter Adjust] controls the
volume of the currently selected channel.
21 [Solo]
Assigns the currently selected input channel to the solo bus.
22 [Control Room]
Volume control for the control room output
23 [PFL]
Switches the Control Room output between the modes Pre Fader Listen (PFL) and After Fader Listen (AFL). This can
be used to monitor a signal either as it is present at the input or as it sounds aected by the tone and volume
controls.
24 [Gate / Comp]
Opens the ‘Gate’ page for Noise Gate settings or the ‘Comp’ page for compressor settings.
25 [Assign / Channel]
Opens the ‘Assign’ page for assigning input channels to buses or the ‘Channel’ page for a summary of the settings
of the currently selected channel, bus, or DCA group.
Connections and controls
mixer
12
Page 13
26 [Phones 1 / Phones 2]
Volume control for the headphones outputs
27 [Parameter Adjust]
Control to set the main parameter of the currently selected eect.
By pressing [Up], [Down], [Left] and [Right] you can navigate the display pages.
28 [Main / Select]
Selects the Main bus to perform tone control and assignment to outputs.
29 [Main / Volume]
Volume control for the Main output.
30 [Enter / (TAP)]
Conrms settings in the menu. On pages ‘FX1’ and ‘FX2’ you can use this button to enter the setting for the delay
function in time with the music.
31 [PEQ / GEQ]
Opens the ‘PEQ’ page for Parametric EQ settings or the ‘GEQ’ page for for Graphic EQ settings.
32 [Type]
Rotary control to directly select a lter type for the parametric equalizer
33 [Q Shape]
Rotary control to directly select the Q factor of the parametric equalizer
34 [Gain]
Rotary control to directly set the boost or cut of the parametric equalizer
35 [Freq]
Rotary control to directly set the centre frequency of the parametric equalizer
36 [FX 1 / Select]
Selects the eects bus FX1 to perform tone control and assignment to outputs.
37 [Send / FX1]
Allows the assignment to outputs (routing) for the eects bus FX1.
38 [FX 2 / Select]
Selects the eects bus FX2 to perform tone control and assignment to outputs.
39 [Send / FX2]
Allows the assignment to outputs (routing) for the eects bus FX2.
Connections and controls
20.12
13
Page 14
40 [Mic/Line 1]…[Mic/Line 16]
Inputs for microphone level signals and line level signals, designed as XLR / 1/4" combo jacks.
41 [HP2]
Monitor output for headphones, designed as 1/4" phone socket (stereo).
42 [Insert]
1/4" jacks for looping external eects into the signal path, available for input channels 1…8.
43 [Ethernet]
RJ45 socket for the integration of the device into a local area network (LAN) or for rmware updates.
44 [USB]
USB port for feeding in digital audio signals or for digital output of the sum signal, unaected by the master faders.
45 [Line inputs]
Inputs for line level signals, designed as 1/4" jack (mono, balanced).
46 [Main Output]
Master output for connecting an amplier or active speaker, designed as XLR sockets and 1/4" jacks (balanced) for
left and right channels.
47 [Ctrl Out L], [Ctrl Out R]
Control room output, designed with separate 1/4" jacks (balanced) for left and right channels.
48 [USB Audio]
Connection for recording or playback via a USB device

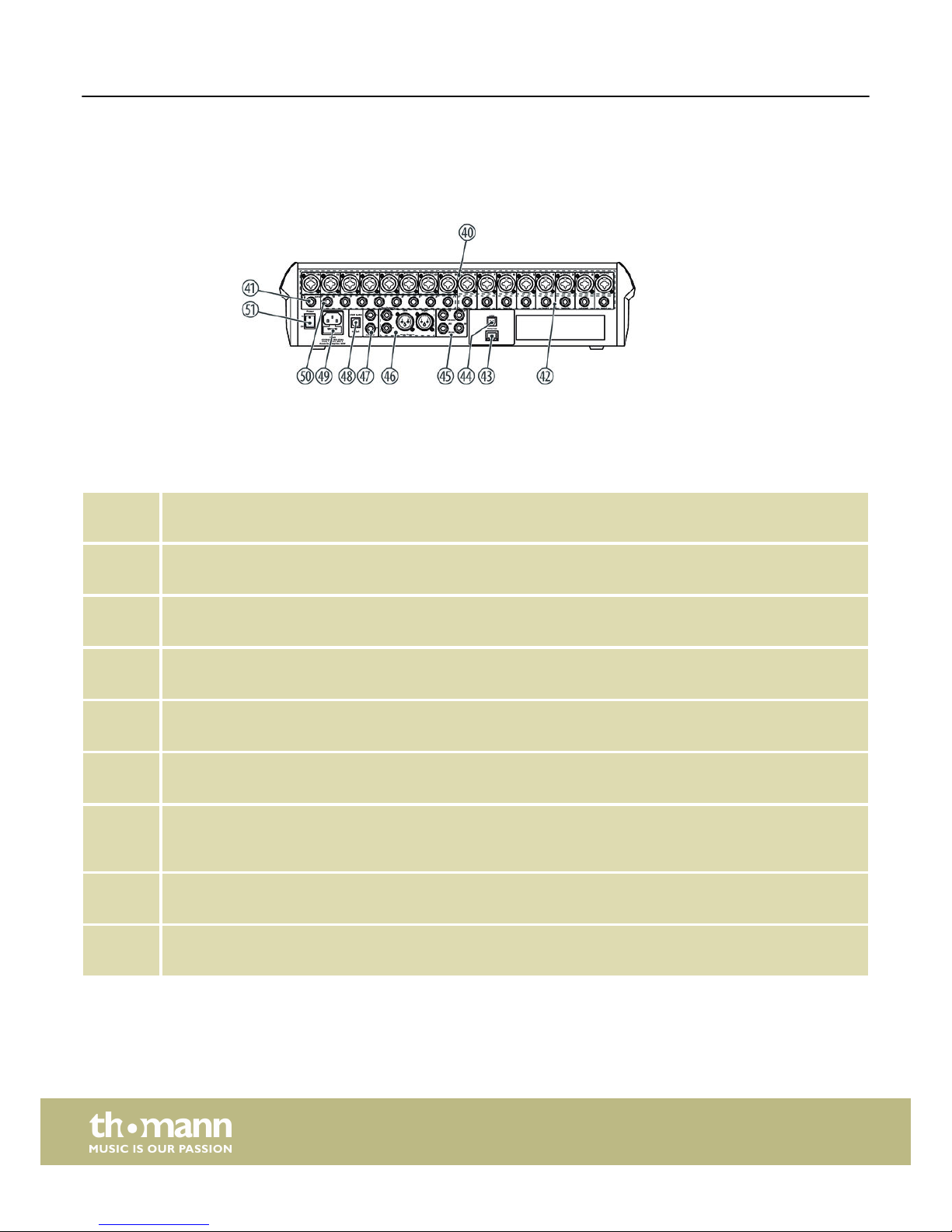

Rear panel
Connections and controls
mixer
14
Page 15
49 [Input]
IEC chassis plug for operating voltage supply with fuse holder.
Should the fuse have blown, disconnect the unit from the power supply and replace the fuse with a new fuse of
the same type.
50 [AUX Outputs]
AUX outputs 1…8, designed as 1/4" phone jack (mono, balanced)
51 [Power]
Main switch. Turns the device on and o.
Connections and controls
20.12
15
Page 16
6 Operating
6.1 Main menu
In the main menu, important settings are directly accessible.
1. Press [System / Load Save].
ð
The main menu appears on the display.
2. Use the display to select, set values, and navigate the menu.
The table below shows on overview of the available menus.
Menu item Meaning
‘Assign / C Strip’ Tapping the ‘Assign / C Strip’ button switches between ‘Assign’ and ‘C Strip’ function.
‘Assign’ Assigning input channels and FX to the possible buses.
‘Main’ Assigning the channel to the Main bus. When assigned, the button lights blue.
‘AUX1-4’ Displays the status of the respective channels ‘AUX1’, ‘AUX2’, ‘AUX3’, ‘AUX4’.
‘AUX5-8’ Displays the status of the respective channels ‘AUX5’, ‘AUX6’, ‘AUX7’, ‘AUX8’.
‘Sends’ Sends the selected channel on ‘AUX1’… ‘AUX4’ or ‘AUX5’… ‘AUX8’. Allows pre / post switching
of ‘AUX1’… ‘AUX4’ or ‘AUX5’… ‘AUX8’.
‘Phase / INV’ Phase inversion of the selected channel.
‘INV’ in ‘Assign’ view: Phase is inverted.
‘INV’ in ‘Phase’ view: Phase is not inverted.
‘Select Channel’ Selection of all available channels for editing.
‘Load’ Loads a conguration.
‘Copy’ Copies a conguration.
‘Save’ Saves a conguration.
‘C Strip’ Opens the settings for the input channels and for the output channels.
‘Gate / Comp’ Tapping the ‘Gate / Comp’ button switches between ‘Gate’ and ‘Comp’ function.
‘Gate’ Opens the settings for the channel-wise switchable noise gate.
‘Comp’ Opens the settings for the channel-wise switchable compressor.
‘PEQ / GEQ’ Tapping the ‘PEQ / GEQ’ button switches between ‘PEQ’ and ‘GEQ’ function.
‘PEQ’ Opens the settings for the parametric equalizer.
‘GEQ’ Opens the settings for the graphic equalizer.
‘FX 1 / FX 2’ Tapping the ‘FX 1 / FX 2’ button switches between ‘FX 1’ and ‘FX 2’ function.
‘FX 1’ Selecting and setting the eect type for the rst eects unit.
‘FX 2’ Selecting and setting the eect type for the second eects unit.
Operating
mixer
16
Page 17
Menu item Meaning
‘System / Routing’ Tapping the ‘System / Routing’ button switches between ‘System’ and ‘Routing’ function.
‘System’ Displays information about the hardware and software revision status and allows the device to
be reset to the factory defaults.
‘Routing’ Indicates which channels have been assigned to which buses via ‘Select Channel’.
‘DCA / Full Mix’ Tapping the ‘DCA / Full Mix’ button switches between ‘DCA’ and ‘Full Mix’ function.
‘DCA’ Assigning channels to DCAs (Digitally Controlled Amplier) to collectively change the level of
assigned channels.
‘Full Mix’ Displays all available channels for a complete overview of the entire mixer.
‘Meters / Mixer’ Tapping the ‘Meters / Mixer’ button switches between ‘Meters’ and ‘Mixer’ function.
‘Meters’ Overview of the level of all available channels.
‘Mixer’ The ‘Mixer’ windows displays 8 channels at the same time. Tapping the ‘Bank Left’ or ‘Bank
Right’ buttons calls up the previous or next 8 channels.
Operating
20.12
17
Page 18
6.2 Parametric Equalizer
For each input channel and each output channel, a parametric equalizer with four
frequency bands plus high-pass and low-pass lters can be switched on.
1. Tap the ‘PEQ / GEQ’ button to change to the ‘PEQ’ function.
2. Press one of the [CH] buttons for an input channel, one of the [AUX] buttons for
an output channel, or the buttons [FX 1] or [FX 2].
Alternatively: Tap on the ‘Select Channel’ button and select the desired input
channel or output channel on the display surface. Conrm the selection with
‘Enter’ .
ð
The button for the selected input channel or output channel lights up blue.
The desired input channel or output channel is shown in the display.
3. Tap on ‘EQ1’, ‘EQ2’, ‘EQ3’, ‘EQ4’ to select the frequency band.
ð
The selected frequency band lights up.
4. Adjust the desired values by moving the slider on the display.
5. Save the settings with ‘Save’.
You can save up to 48 individual settings.
Alternatively: Use the rotary controllers [Type], [Q Shape], [Gain] and [Freq] to
adjust the desired values for lter type, Q shape, boost / cut and the centre fre‐
quency.
The ‘Flat EQ’ button can be used to cancel the settings made. The frequency
response is then back in the initial state.
The ‘ON/OFF’ can be used to turn the EQ on of o. By default, the EQ is turned on.
Option Selection range Meaning
‘Frequency HPF’ 20.6 Hz – 20.0 kHz High-pass lter frequency
‘Type’ Bypass, BS6, BW12, BS12,
LR12, BW18, BS18, BW24,
BS24, LR24, BW30, BS30,
BW36, BS36, LR36, BW42,
BS42, BW48, BS48, LR48
Type and slope rate of the lter
‘Low-pass lter frequency’ 20.0 kHz – 20.6 Hz Low-pass lter frequency
‘Type’ Bypass, BS6, BW12, BS12,
LR12, BW18, BS18, BW24,
BS24, LR24, BW30, BS30,
BW36, BS36, LR36, BW42,
BS42, BW48, BS48, LR48
Type and slope rate of the lter
‘Frequency EQ 1–4’ 20.6 Hz – 20.0 kHz Frequency of EQ bands 1–4.
‘Type’ Bell, Hi-shelf, Lo-shelf Filter type
Operating
mixer
18
Page 19
Option Selection range Meaning
‘Q’ 0.4 – 24 Q shape of EQ band
‘Gain’ –24 – +24 dB Boost / cut
6.3 Graphic Equalizer
For the outputs MAIN and AUX, a 31-band equalizer can be switched on.
1. Tap the ‘PEQ / GEQ’ button to change to the ‘GEQ’ function.
2. Press one of the [AUX] buttons for an output channel.
Alternatively: Tap on the ‘Select Channel’ button and select the desired output
channel on the display surface. Conrm the selection with ‘Enter’.
ð
The button for the selected output channel lights up blue. The desired
output channel is shown in the display.
3. Use the arrow buttons ‘Left’ and ‘Right’ to select the band for which you want
to adjust the graphic EQ.
ð
A purple bar indicates the selected band.
4. Move the purple bar by tapping on it with your nger or using the arrow but‐
tons ‘Up’ and ‘Down’ to make the desired setting.
5. Save the settings with ‘Save’.
You can save up to 48 individual settings.
The ‘Flat EQ’ button can be used to cancel the settings made. The frequency
response is then back in the initial state (at).
The ‘ON/OFF’ button can be used to turn the EQ on or o. By default, the EQ is
turned on.
Operating
20.12
19
Page 20
6.4 Compressor
For each input channel and each output channel, a compressor can be switched on.
1. Tap the ‘Comp / Gate’ button to change to the ‘Comp’ function.
2. Press one of the [CH] buttons for an input channel, one of the [AUX] buttons for
an output channel, or the buttons [FX 1] or [FX 2].
Alternatively: Tap on the ‘Select Channel’ button and select the desired input
channel or output channel on the display surface. Conrm the selection with
‘Enter’ .
ð
The button for the selected input channel or output channel lights up blue.
The desired input channel or output channel is shown in the display.
3. Tap on ‘ON’ to activate the setting options.
4. Tap the buttons to select the options ‘Threshold’, ‘Attack’, ‘Release’, ‘Comp
Ratio’ , ‘Comp Gain’ .
5. Adjust the desired values by moving the slider on the display.
6. Save the settings with ‘Save’.
You can save up to 48 individual settings.
Option Selection range Meaning
‘Threshold’ –30 – +20 dB Threshold
‘Attack’ 10 – 150 ms Slew rate
‘Release’ 10 ms – 1 s Decay time
‘Comp Ratio’ 1:1 – LIMIT Ratio
‘Comp Gain’ 0 – 24 dB Gain
Operating
mixer
20
Page 21
6.5 Noise Gate
For each input channel a noise gate can be switched on.
1. Tap the ‘Comp / Gate’ button to change to the ‘Gate’ function.
2. Press one of the [CH] buttons for an input channel, one of the [AUX] buttons for
an output channel, or the buttons [FX 1] or [FX 2].
Alternatively: Tap on the ‘Select Channel’ button and select the desired input
channel or output channel on the display surface. Conrm the selection with
‘Enter’ .
ð
The button for the selected input, output, or FX channel lights up blue. The
desired input, output, or FX channel is shown in the display.
3. Tap on ‘ON’ to activate the setting options.
4. Tap the buttons to select the options ‘Threshold’, ‘Attack’, ‘Release’.
5. Adjust the desired values by moving the slider on the display.
6. Save the settings with ‘Save’.
You can save up to 48 individual settings.
Option Selection range Meaning
‘Threshold’ –84 – +20 dB Threshold
‘Attack’ 0.5 – 200 ms Slew rate
‘Release’ 10 ms – 1 s Decay time
Operating
20.12
21
Page 22
7 Technical specications
Input level (Mic / Line) XLR / 1/4" combo jacks (balanced): max. +22 dBu
Input impedance Mic/Line: 1.4 kΩ
Total harmonic distortion (THD) < 0.01 %1 kHz
Frequency range 20 Hz…20 kHz, 0 dBu ±1.5 dB
Signal-to-noise ratio 104 dB
Gain –∞…+10 dBu
Output level max. +20 dBu
Output impedance 120 Ω
Phantom power 48 V ±3 V
Noise Gate Threshold: –30…+20 dBu
Slew rate (Attack): 10 ms…1 ms
Decay time (Release): 10 ms…1 s
Compressor Threshold: –30…+20 dBu
Slew rate (Attack): 10 ms…150 ms
Decay time (Release): 10 ms…1 s
Compression: 1:1…24:1
Gain: 0 dBu…+24 dB
Equalizer Lows (low pass or low shelf) 21 Hz…19.2 kHz, ±24 dB
Low mids: 21 Hz…19.2 kHz, ±24 dB
High mids: 21 Hz…19.2 kHz, ±24 dB
Treble (high pass or high shelf): 21 Hz…19.2 kHz, ±24 dB
Digital signal processing Analogue / digital converter 114 dB, resolution: 24 bit
Digital / analogue converter 114 dB, resolution: 24 bit
Internal processor: 32 bit, oating point
Operating supply voltage
100 – 240 V 50/60 Hz
Fuse 5 mm × 20 mm, 1.6 A, 250 V, slow-blow
Dimensions (W × H × D) 480 mm × 130 mm × 350 mm
Weight 7.68 kg
Technical specications
mixer
22
Page 23

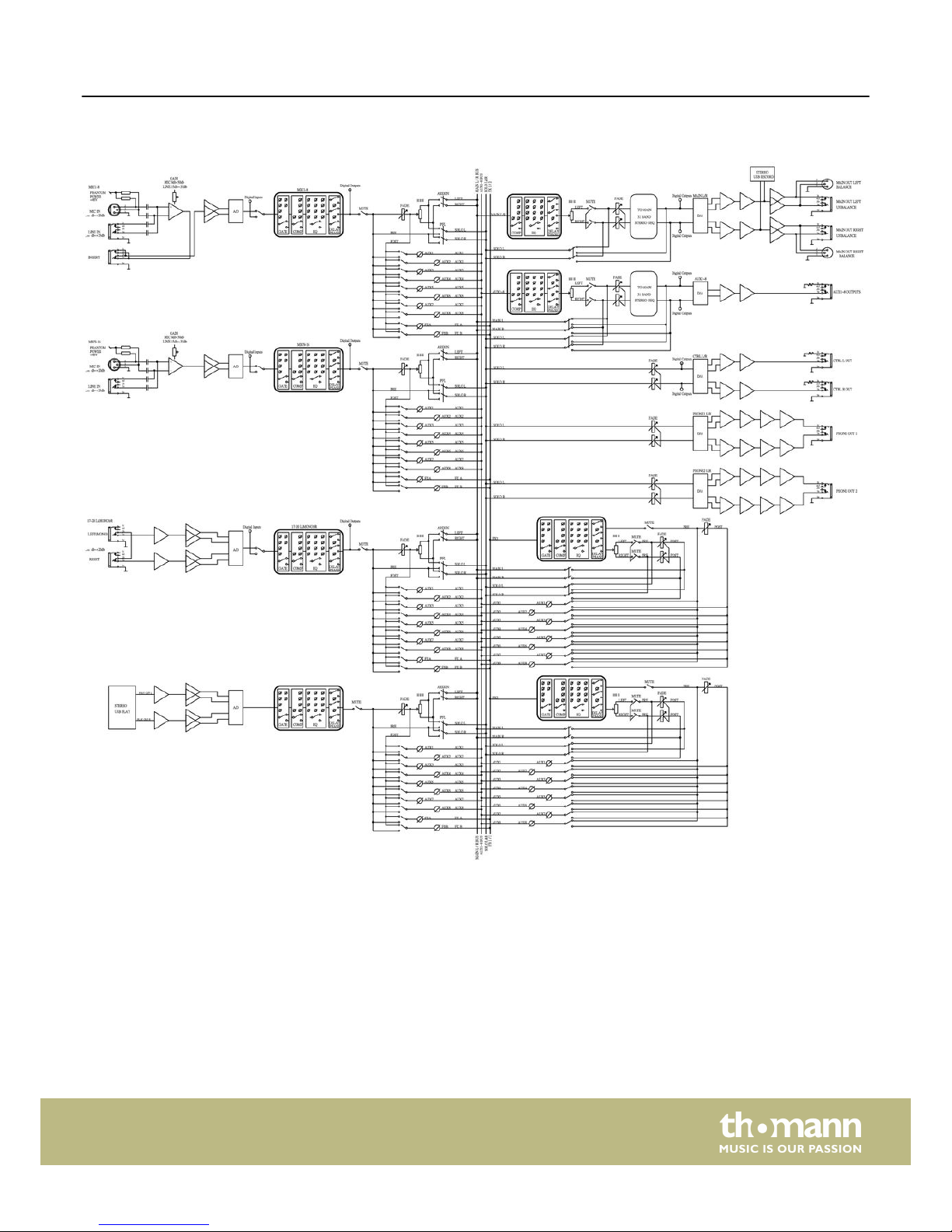

Block diagram
Technical specications
20.12
23
Page 24
8 Plug and connection assignment
This chapter will help you select the right cables and plugs to connect your valuable
equipment in such a way that a perfect sound experience is ensured.
Please note these advices, because especially in ‘Sound & Light’ caution is indicated:
Even if a plug ts into the socket, an incorrect connection may result in a destroyed
power amp, a short circuit or ‘just’ in poor transmission quality!
Unbalanced transmission is mainly used in semi-professional environment and in hi
use. Instrument cables with two conductors (one core plus shielding) are typical rep‐
resentatives of the unbalanced transmission. One conductor is ground and shielding
while the signal is transmitted through the core.
Unbalanced transmission is susceptible to electromagnetic interference, especially at
low levels, such as microphone signals and when using long cables.
In a professional environment, therefore, the balanced transmission is preferred,
because this enables an undisturbed transmission of signals over long distances. In
addition to the conductors ‘Ground’ and ‘Signal’, in a balanced transmission a second
core is added. This also transfers the signal, but phase-shifted by 180°.
Since the interference aects both cores equally, by subtracting the phase-shifted
signals, the interfering signal is completely neutralized. The result is a pure signal
without any noise interference.
1 Signal
2 Ground, shielding
1 Signal (in phase, +)
2 Signal (out of phase, –)
3 Ground
Introduction
Balanced and unbalanced transmis‐
sion
1/4" TS phone plug (mono, unbal‐
anced)
1/4" TRS phone plug (mono, bal‐
anced)
Plug and connection assignment
mixer
24
Page 25
1 Ground, shielding
2 Signal (in phase, +)
3 Signal (out of phase, –)
4 Shielding on plug housing (option)
XLR plug (balanced)
Plug and connection assignment
20.12
25
Page 26
9 Cleaning
The fan grids of the device must be cleaned on a regular basis to remove dust and
dirt. Before cleaning, switch o the device and disconnect AC-powered devices from
the mains. Use a lint-free damp cloth for cleaning. Never use solvents or alcohol for
cleaning.
Fan grids
Cleaning
mixer
26
Page 27
10 Protecting the environment
For the transport and protective packaging, environmentally friendly materials have
been chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make
sure that they are collected for recycling. Please follow the notes and markings on
the packaging.
This product is subject to the European Waste Electrical and Electronic Equipment
Directive (WEEE) in its currently valid version. Do not dispose with your normal
household waste.
Dispose of this device through an approved waste disposal rm or through your local
waste facility. When discarding the device, comply with the rules and regulations
that apply in your country. If in doubt, consult your local waste disposal facility.
Disposal of the packaging material
Disposal of your old device
Protecting the environment
20.12
27
Page 28
Notes
mixer
28
Page 29
Notes
20.12
29
Page 30
Notes
mixer
30
Page 31
Page 32
Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de
Loading...
