Page 1
Speech 100 M
conference system
user manual
Page 2
Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: +49 (0) 9546 9223-0
E-mail: info@thomann.de
Internet: www.thomann.de
20.11.2018, ID: 438815
Page 3
Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 7
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 14
4 Installation.................................................................................................................................................. 16
5 Connections and controls................................................................................................................... 20
6 Operating.................................................................................................................................................... 25
7 Technical specications....................................................................................................................... 32
8 Plug and connection assignment.................................................................................................... 36
9 Cleaning....................................................................................................................................................... 39
10 Protecting the environment.............................................................................................................. 40
Table of contents
Speech 100 M
3
Page 4
1 General information
This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to
change.
General information
conference system
4
Page 5
1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search
Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides
Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service
If you have any problems with the device the customer service will
gladly assist you.
General information
Speech 100 M
5
Page 6
1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’.
Text inputs that are carried out on the device are indicated by typewriter font.
Example: 2323
Letterings
Displays
Text input
General information
conference system
6
Page 7
The individual steps of an instruction are numbered consecutively. The result of a step is
indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ð
Automatic operation is started.
3. Switch o the device.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Instructions
General information
Speech 100 M
7
Page 8
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General information
conference system
8
Page 9
2 Safety instructions
This device is intended for use as a digital conference system. The device is designed for pro‐
fessional use only and is not suitable for use in households. This device is meant for indoor use
only.
Use the device only as described in this user manual. Any other use or use under other oper‐
ating conditions is considered to be improper and may result in personal injury or property
damage. No liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Intended use
Safety instructions
Speech 100 M
9
Page 10
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
Safety
Safety instructions
conference system
10
Page 11
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a pro‐
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or re. If in doubt, seek advice from a regis‐
tered electrician.
CAUTION!
Possible hearing damage
The use of headphones or earphones at high volume and for an extended period
of time may result in permanent hearing impairment.
Set the volume of your audio device to a medium value and do not use the head‐
phones or earphones for more than about an hour a day.
Safety instructions
Speech 100 M
11
Page 12
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked ames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Safety instructions
conference system
12
Page 13
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or re.
Safety instructions
Speech 100 M
13
Page 14
3 Features
the t.bone Speech 100 is a digital conference system. It consists of the control centre the
t.bone Speech 100 M (438815), the presidential station the t.bone Speech 100 C (438819) as
well as the delegate station the t.bone Speech 100 D (438820). Optionally, a control software
and an Android app is available for the conference system that makes it easy to control the
conference from a PC or smartphone / tablet.
The control centre is characterized by the following features:
n 2 groups each for up to 16 call stations
n Feedback suppression
n USB interface for recording and playback
n optional: Conguration via PC or App
n 4 discussion modes (3, 6, 9 or all microphones can be activated at the same time)
n Voting mode
n 2 × stereo rec out (RCA)
n 1 × stereo out for PA (RCA)
n 1 × stereo in (RCA)
n 1 × mic in (XLR with phantom power)
Features
conference system
14
Page 15
n 1 × LAN
n 1 × RS485
n suitable for 19" rack mounting (2 RU)
Features
Speech 100 M
15
Page 16
4 Installation
NOTICE!
Danger of short circuit
Switching on phantom power will damage the device if unbalanced XLR cables
are connected.
Only turn on phantom power when exclusively balanced XLR cables are con‐
nected.
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
Installation
conference system
16
Page 17
The conference system is a plug-and-play system designed for use in small and medium-sized
conferences and events. The call stations are connected to each other as well as to the control
centre via system cables. The system cables handle the transmission of the digital voice and
status information as well as the power supply of the call stations. The control centre has a
built-in power supply that can power up to 32 call stations.
Installation
Speech 100 M
17
Page 18
2 lines with each up to 16 call stations can be connected to the control centre.
If control via (optionally available) software is desired, the connection to a PC is made via the
PC connection over an Ethernet switch.
Connection options
Installation
conference system
18
Page 19
The device has been designed for rack mounting in a standard 19-inch rack; it occupies two
rack units.
Rack mounting
Installation
Speech 100 M
19
Page 20
5 Connections and controls
Front panel
Connections and controls
conference system
20
Page 21
Front panel
1 USB port Saving conference recordings to a USB storage device.
Play back conference recordings or background music from a USB storage device.
2 [Discuss Mode / Voting] Setting voting mode or discussion mode.
3 [Feedback Killer] Enabling and disabling feedback suppression.
4 LCD display Default setting: Information about volume, recording and discussion mode.
Automatic return to default setting after about 20 seconds of inactivity.
5 [Play / Pause] Starting / pausing a recording.
Pressing [Play / Pause] bypasses all EQ high and low pass lters.
Pressing [Play / Pause] again reactivates the set EQ settings.
6 [Stop] Ends the recording of a conference and rewinds to the beginning.
7
[Repeat q]
Plays a recording repeatedly.
8
[Next p]
Starts playback of the next recording.
Connections and controls
Speech 100 M
21
Page 22
9 [REC / Exit] Starts recording a conference.
Pressing [REC / Exit] again stops the recording.
10 [PRE / EQ] Keystroke for approx. 3 seconds: Calls up the EQ settings.
Short keystroke: Starts playback of the previously made recording.
11 [Speaker]
Rotary control for volume con‐
trol of the speakers
In default setting: Controls the output volume in the control unit and in the inter‐
face for the recording settings.
When [PRE EQ] is enabled: Triggering the submenus in the EQ settings.
12 [Monitor]
Rotary control for volume con‐
trol of the call station units
In default setting: Controls the volume of the attenders stations.
Controls the headphones volume in the control unit and in the interface for the
recording settings.
When [PRE EQ] is enabled: Column-wise navigation in the EQ settings.
Connections and controls
conference system
22
Page 23
Rear panel
Connections and controls
Speech 100 M
23
Page 24

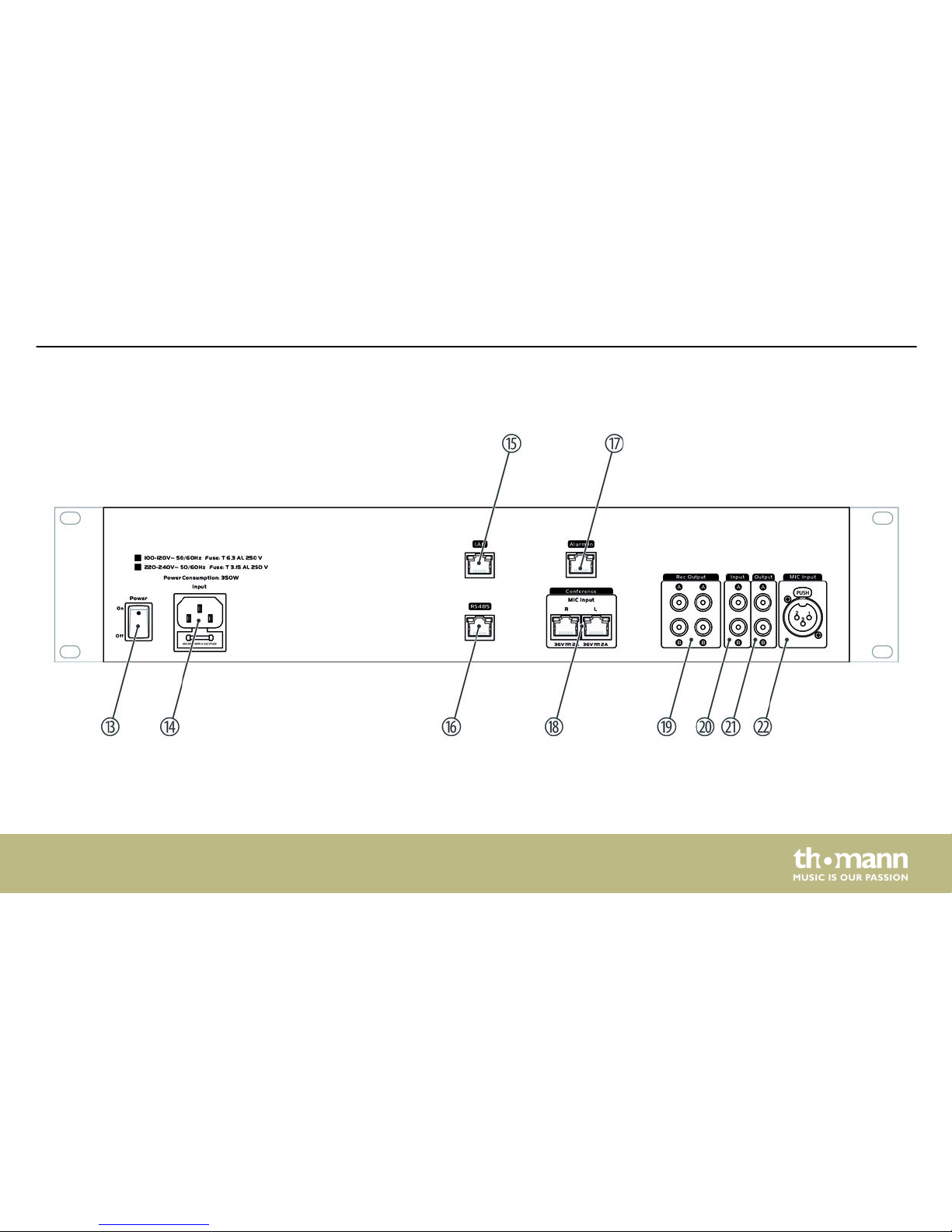

Rear panel
13 [POWER ON / OFF] Mains switch
14 Connection socket for IEC connector
15 Connection socket for LAN network cable
16 RS485: Camera tracking interface
17 Connection for external alarm system
18 Socket for connecting call station units
19 [Rec Output] Audio output for connecting external recording devices
20 [Input] Input for connecting external input devices with line level
21 [Output] Main Out for connecting ampliers or active speakers
22 Microphone input, XLR panel socket for microphone connection with phantom power
Connections and controls
conference system
24
Page 25
6 Operating
You can lock the control centre of the conference system with a password. To unlock the
system, press any button on the control panel. Then enter the password.
1. Press [Monitor] for about 3 seconds.
ð
The password setting is called up.
2. Turn [Speaker] right or left to select the desired number for the rst digit eld.
3. Turn [Monitor] to the right to move to the next digit eld.
4. Repeat steps 2 and 3 until you have entered the desired 4-digit password.
5. Press [Speaker] to conrm the password.
ð
Your desired password is now set. The display returns to the starting position.
1. Press [PRE / EQ] for about 3 seconds.
ð
The EQ settings table is called up.
2. With [Monitor] you move to the right or left within the table.
Setting a password
Setting the EQ
Operating
Speech 100 M
25
Page 26
3. With [Speaker], you can call up various EQ settings in a table eld.
4.
With [Next p] , you move up within the table.
5.
With [Repeat q] , you move down within the table.
You can make the following settings in the table:
Type Freq Q Gain dB Bypass
LPF Bypass
19.7 20160
null null null
But6 null null null
Bes6 null null null
But12 null null null
Bes12 null null null
Lin12 null null null
But18 null null null
Operating
conference system
26
Page 27
Type Freq Q Gain dB Bypass
Bes18 null null null
But24 null null null
Bes24 null null null
Lin24 null null null
But30 null null null
Bes30 null null null
But36 null null null
Bes36 null null null
Lin36 null null null
But42 null null null
HPF Bypass
19.7 20160
null null null
But6 null null null
Bes6 null null null
Operating
Speech 100 M
27
Page 28
Type Freq Q Gain dB Bypass
But12 null null null
Bes12 null null null
Lin12 null null null
But18 null null null
Bes18 null null null
But24 null null null
Bes24 null null null
Lin24 null null null
But30 null null null
Bes30 null null null
But36 null null null
Bes36 null null null
Lin36 null null null
Operating
conference system
28
Page 29
Type Freq Q Gain dB Bypass
But42 null null null
EQ1…EQ8 Peak
19.7 20160 0.4 128 -12 dB +12 dB
ON / OFF
LSF ON / OFF
HSF ON / OFF
You can set 5 dierent discussion modes. 1, 3, 6, 9 or all call station microphones can be acti‐
vated at the same time.
1. Press [Discuss Mode / Voting] briey.
ð
The discussion mode is called up.
2. Briey press [Discuss Mode / Voting] repeatedly in succession.
ð
The various discussion modes are activated.
An icon represents each call station in the control centre display. For participants with acti‐
vated microphone the icon is red. The display shows the call station number.
Setting discussion mode
Operating
Speech 100 M
29
Page 30
You can request all connected participants to vote.
1. Press [Discuss Mode / Voting] for about 3 seconds.
ð
The voting mode is called up.
2. The display shows ‘Voting Ready! Press play to start voting!’ Press [Play].
ð
Voting begins. You can see the elapsed time in the lower right corner of the display.
The voting decisions of the participants are displayed under " " (Yes), ‘—’ (absten‐
tion), ‘X’ (No).
3. To nish the vote press [Stop].
ð
The voting result is shown on the control centre display and on the displays of the
call stations.
4. To exit the voting mode, press [REC / Exit].
The feedback suppression prevents possible noise (whistling) through the microphone.
1. Press [Feedback Killer] to engage the feedback suppression.
ð
[Feedback Killer] lights up blue. ‘FBC’ is displayed in the upper right corner of the dis‐
play.
Performing a vote
Enabling or disabling feedback
suppression
Operating
conference system
30
Page 31
2. To disable the feedback suppression, press [Feedback Killer] again.
At the connection [Alarm in ] on the back of the device, an external alarm system can be con‐
nected via network cable. If this port receives a continuous alarm signal from the external
alarm system, the control centre automatically mutes all microphone inputs and turns on the
alarm transmission input. The alarm system then emits the alarm at maximum volume. The dis‐
play shows ‘Alarm input’ . When the continuous alarm signal is interrupted, the conference
system returns to the normal operating state.
Connecting an external alarm
system
Operating
Speech 100 M
31
Page 32
7 Technical specications
Microphone input balanced
Frequency response
200 Hz 6 kHz at 0 dBu ±1.5 dB
optimized for speech
Frequency range extension possible by software update
Total harmonic distortion (THD) < 0.01 % at 0 dBu 1 kHz
Signal-to-noise ratio 97 dB
Maximum input level -20 dBu
Phantom power +48 V
Line input unbalanced
Frequency response
200 Hz 6 kHz at 0 dBu ±1.5 dB
optimized for speech
Frequency range extension possible by software update
Technical specications
conference system
32
Page 33
Total harmonic distortion (THD) < 0.01 % at 0 dBu 1 kHz
Max. input level (gain at 0 dBu +10 dBu
MP3 input balanced
Frequency response
200 Hz 6 kHz at 0 dBu ±1.5 dB
optimized for speech
Frequency range extension possible by software update
Total harmonic distortion (THD) < 0.01 % at 0 dBu 1 kHz
Maximum input level +10 dBu
Output A / B
Max. output level +10 dBu
RCA output A / B
Max. output level +10 dBu
MP3 playback
Max. output level -3 dBu
Technical specications
Speech 100 M
33
Page 34
Equalizer Lows (low pass or low shelf) 21 Hz…19.2 kHz, ±24 dB
Low mids: 21 Hz…19.2 kHz, ±24 dB
Treble (high pass or high shelf): 21 Hz…19.2 kHz, ±24 dB
Treble (high pass or high shelf): 21 Hz…19.2 kHz, ±24 dB
Internal processor 32 bit, oating point
Bit depth, AD / DA converter 32 bit
Operating supply voltage
100 – 240 V 50/60 Hz
Fuse at 110 V: 5 mm × 20 mm, 6.3 A, 250 V, slow-blow
at 230 V: 5 mm × 20 mm, 3.15 A, 250 V, slow-blow
Power consumption 350 W
Dimensions (W × H × D) 58.3 × 41.9 × 69.2 cm
Weight 5.5 kg
Technical specications
conference system
34
Page 35

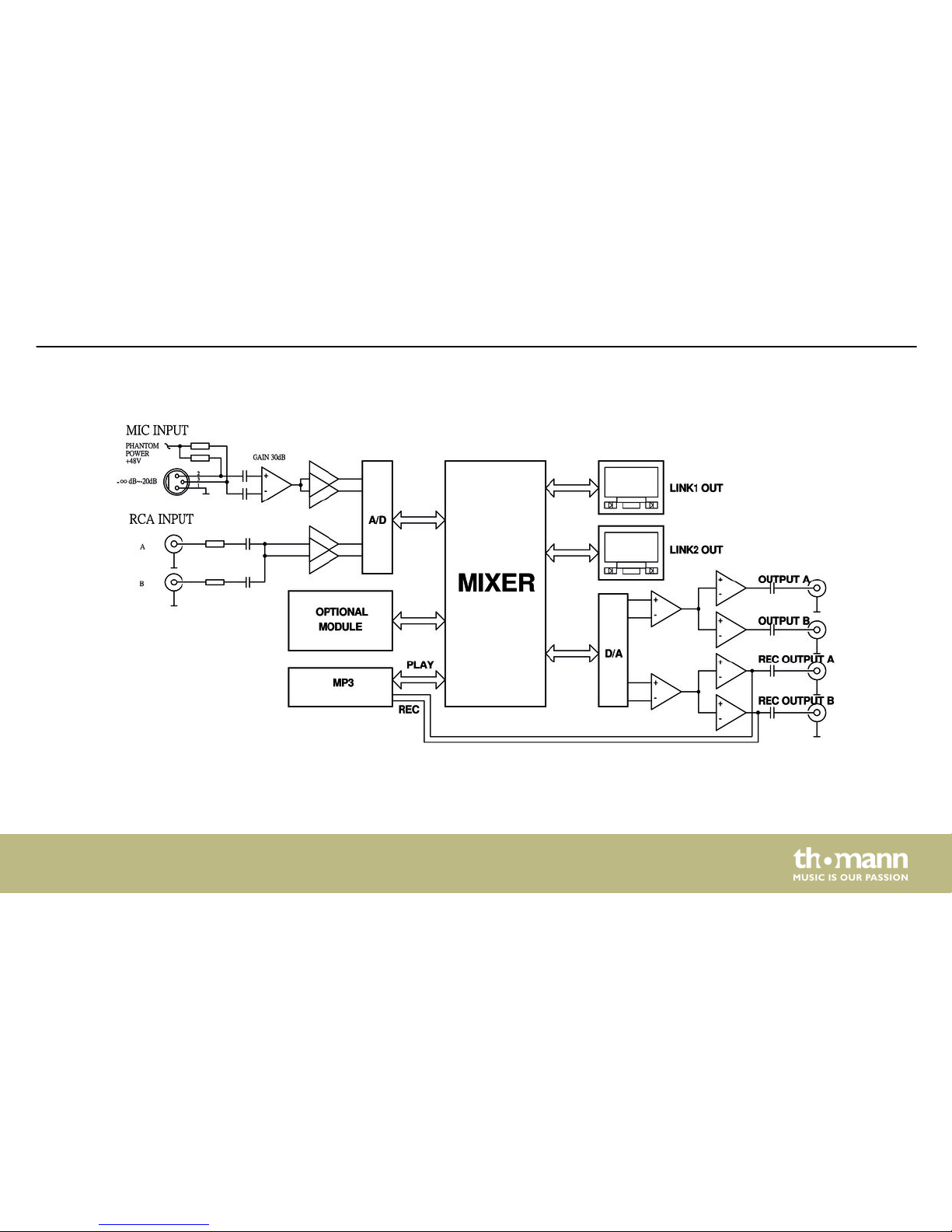

Block diagram
Technical specications
Speech 100 M
35
Page 36
8 Plug and connection assignment
This chapter will help you select the right cables and plugs to connect your valuable equip‐
ment in such a way that a perfect sound experience is ensured.
Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a
plug ts into the socket, an incorrect connection may result in a destroyed power amp, a short
circuit or ‘just’ in poor transmission quality!
Unbalanced transmission is mainly used in semi-professional environment and in hi use.
Instrument cables with two conductors (one core plus shielding) are typical representatives of
the unbalanced transmission. One conductor is ground and shielding while the signal is trans‐
mitted through the core.
Unbalanced transmission is susceptible to electromagnetic interference, especially at low
levels, such as microphone signals and when using long cables.
In a professional environment, therefore, the balanced transmission is preferred, because this
enables an undisturbed transmission of signals over long distances. In addition to the conduc‐
tors ‘Ground’ and ‘Signal’, in a balanced transmission a second core is added. This also transfers
the signal, but phase-shifted by 180°.
Introduction
Balanced and unbalanced trans‐
mission
Plug and connection assignment
conference system
36
Page 37
Since the interference aects both cores equally, by subtracting the phase-shifted signals, the
interfering signal is completely neutralized. The result is a pure signal without any noise inter‐
ference.
1 Signal
2 Ground, shielding
1 Signal (in phase, +)
2 Signal (out of phase, –)
3 Ground
1/4" TS phone plug (mono,
unbalanced)
1/4" TRS phone plug (mono, bal‐
anced)
Plug and connection assignment
Speech 100 M
37
Page 38
1 Ground, shielding
2 Signal (in phase, +)
3 Signal (out of phase, –)
4 Shielding on plug housing (option)
XLR plug (balanced)
Plug and connection assignment
conference system
38
Page 39
9 Cleaning
The fan grids of the device must be cleaned on a regular basis to remove dust and dirt. Before
cleaning, switch o the device and disconnect AC-powered devices from the mains. Use a lintfree damp cloth for cleaning. Never use solvents or alcohol for cleaning.
Fan grids
Cleaning
Speech 100 M
39
Page 40
10 Protecting the environment
For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that
they are collected for recycling. Please follow the notes and markings on the packaging.
This product is subject to the European Waste Electrical and Electronic Equipment Directive
(WEEE) in its currently valid version. Do not dispose with your normal household waste.
Dispose of this device through an approved waste disposal rm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.
Disposal of the packaging mate‐
rial
Disposal of your old device
Protecting the environment
conference system
40
Page 41
Notes
Speech 100 M
41
Page 42
Notes
conference system
42
Page 43
Page 44
Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de
Loading...
