TL 63

3

General information

1 General information

This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.

Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.

passive column speaker

4

1.1 Further information

General information

On our website (www.thomann.de) you will nd lots of further information and details on the
following points:

Download This manual is also available as PDF le for you to download.

Keyword search

Online guides

Personal consultation For personal consultation please contact our technical hotline.

Service

Use the search function in the electronic version to nd the topics of
interest for you quickly.

Our online guides provide detailed information on technical basics
and terms.

If you have any problems with the device the customer service will
gladly assist you.

TL 63

5

General information

1.2 Notational conventions

This manual uses the following notational conventions:

Letterings

The letterings for connectors and controls are marked by square brackets and italics.

Examples: [VOLUME] control, [Mono] button.

1.3 Symbols and signal words

In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.

6

passive column speaker

General information

Signal word Meaning

DANGER! This combination of symbol and signal word indicates an

immediate dangerous situation that will result in death or
serious injury if it is not avoided.

CAUTION! This combination of symbol and signal word indicates a pos‐

sible dangerous situation that can result in minor injury if it
is not avoided.

NOTICE! This combination of symbol and signal word indicates a pos‐

sible dangerous situation that can result in material and
environmental damage if it is not avoided.

Warning signs Type of danger

Warning – danger zone.

TL 63

7

Safety instructions

2 Safety instructions

Intended use

Safety

8

This device is designed for sound reinforcement. Use the device only as described in this user
manual. Any other use or use under other operating conditions is considered to be improper
and may result in personal injury or property damage. No liability will be assumed for damages
resulting from improper use.

This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.

DANGER!
Danger for children

Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!

Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!

Never let children unattended use electrical devices.

passive column speaker

Safety instructions

CAUTION!
Possible hearing damage

The device can produce volume levels that may cause temporary or permanent
hearing impairment. Over an extended period of time, even levels that seem to
be uncritical can cause hearing damage.

Decrease the volume level immediately if you experience ringing in your ears or
hearing impairment. If this is not possible, keep a greater distance or use su‐
cient ear protectors.

TL 63

9

Safety instructions

NOTICE!
Operating conditions

This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.

Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctua‐
tions and do not switch the device on immediately after it was exposed to tem‐
perature uctuations (for example after transport at low outside temperatures).

Dust and dirt inside can damage the unit. When operated in harmful ambient
conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other
malfunction.

10

passive column speaker

3 Features

Features

Special characteristics:

n Passive column speaker with 6 × 2.75” midrange driver / tweeter
n Speaker ange 25 mm
n Connection of top units and bass possible via TL click system

TL 63

11

Installation

4 Installation

Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.

Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.

NOTICE!
Possible property damage by magnetic elds

Loudspeakers produce a static magnetic eld. Therefore, maintain an appropriate
distance to devices that can be adversely aected or damaged by an external
magnetic eld.

12

passive column speaker

Installation

NOTICE!
Use of stands

When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.

TL 63

13

Installation

4.1 Mounting variants

The box pro TL system consists of the subwoofer the box pro TL 110 (item number 452287),
the column speaker the box pro TL 63 (item number 452285), and the speaker pole the box
pro TL Pole (item number 452289). The individual elements can be connected to each other
with the TL click system. The following mounting variants are possible:

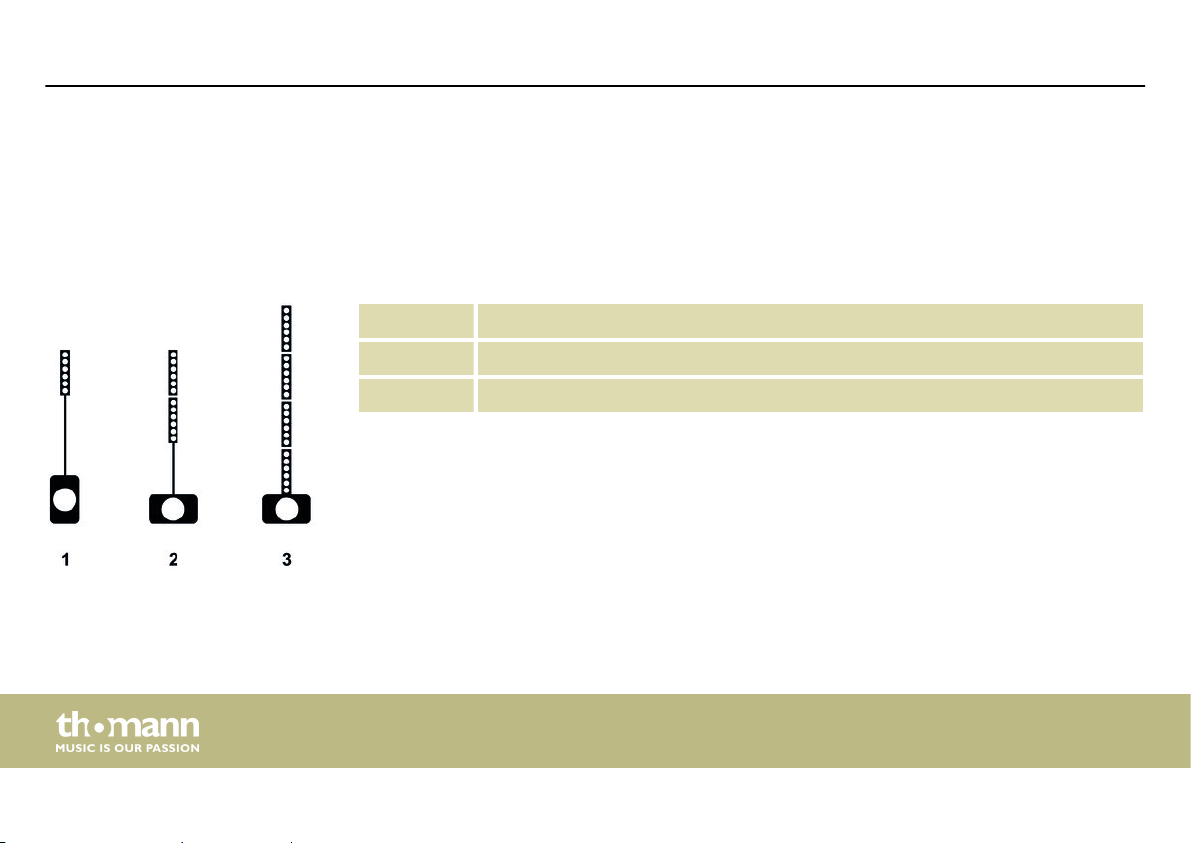

1 1 × the box pro TL 110, 1 × the box pro TL 63, 1 × the box pro TL Pole

2 1 × the box pro TL 110, 2 × the box pro TL 63, 1 × the box pro TL Pole

3 1 × the box pro TL 110, 4 × the box pro TL 63

14

passive column speaker

Connecting the subwoofer
directly to the column speaker

Installation

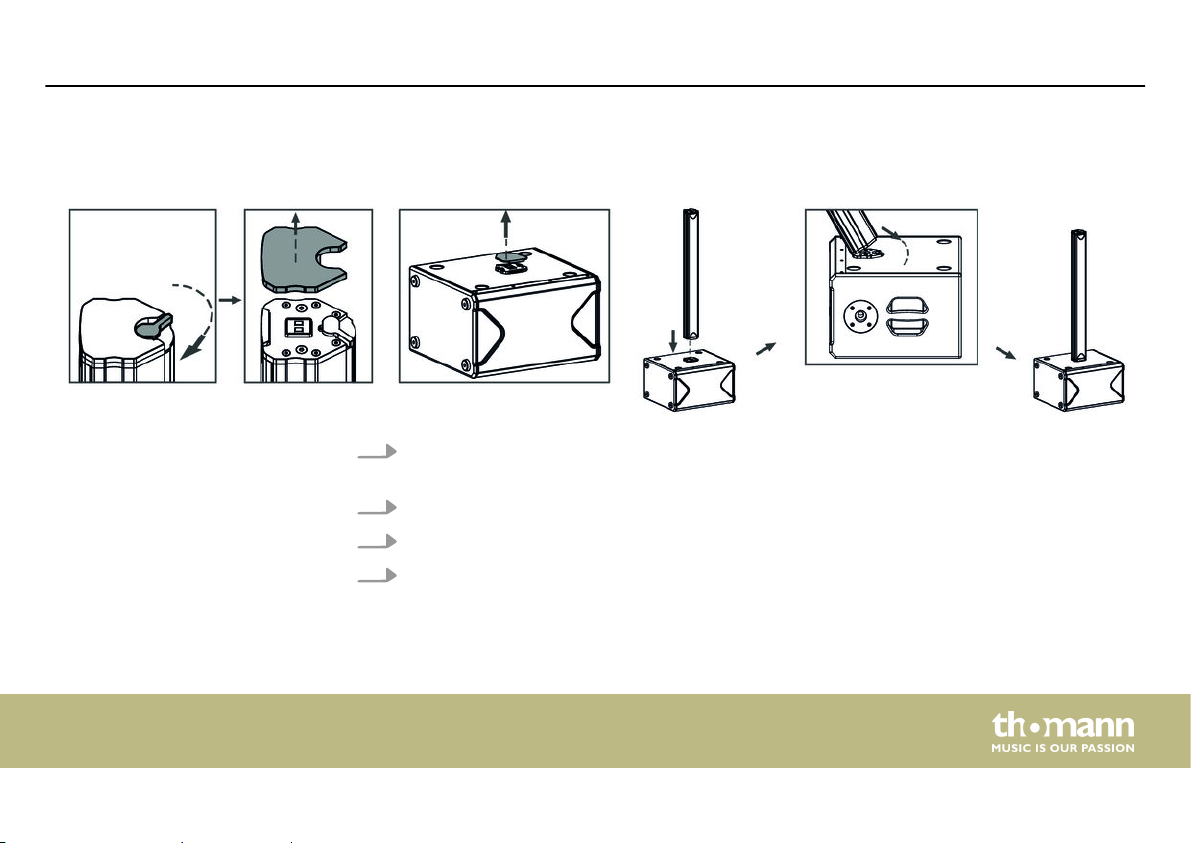

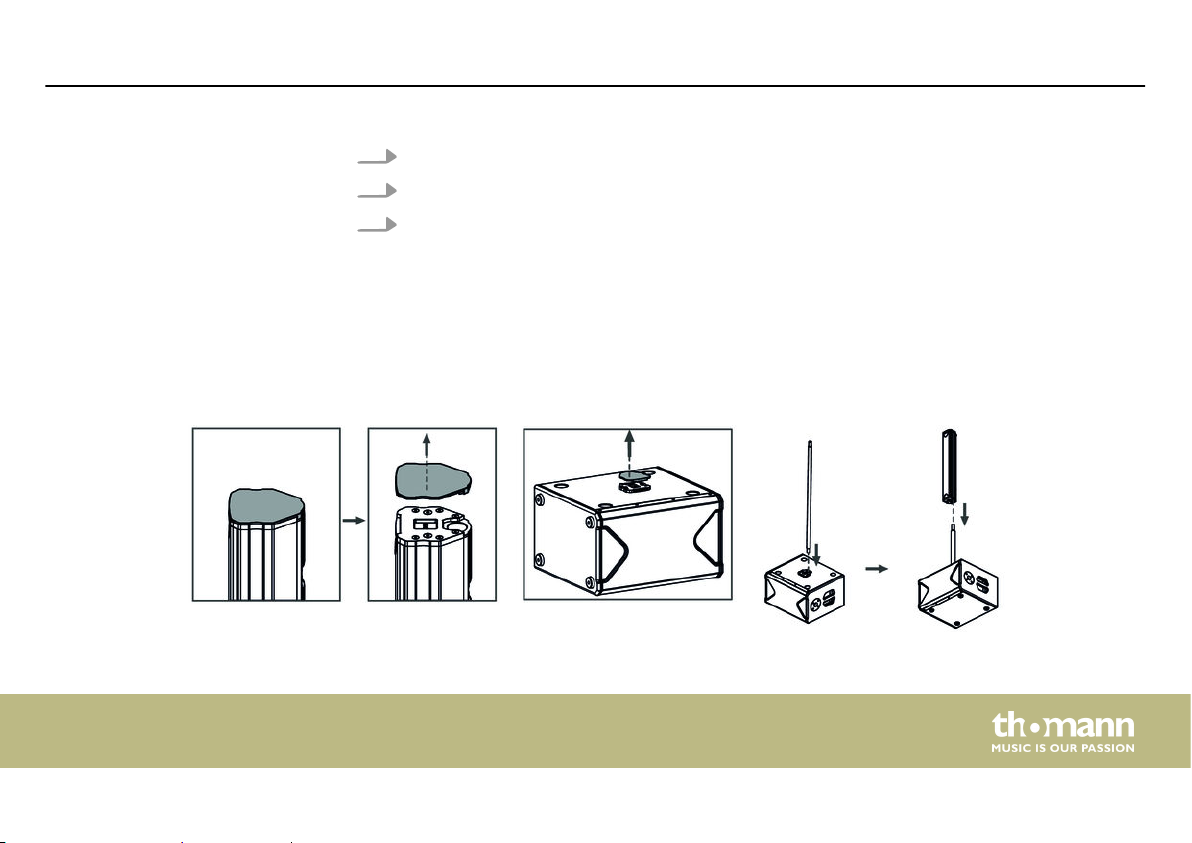

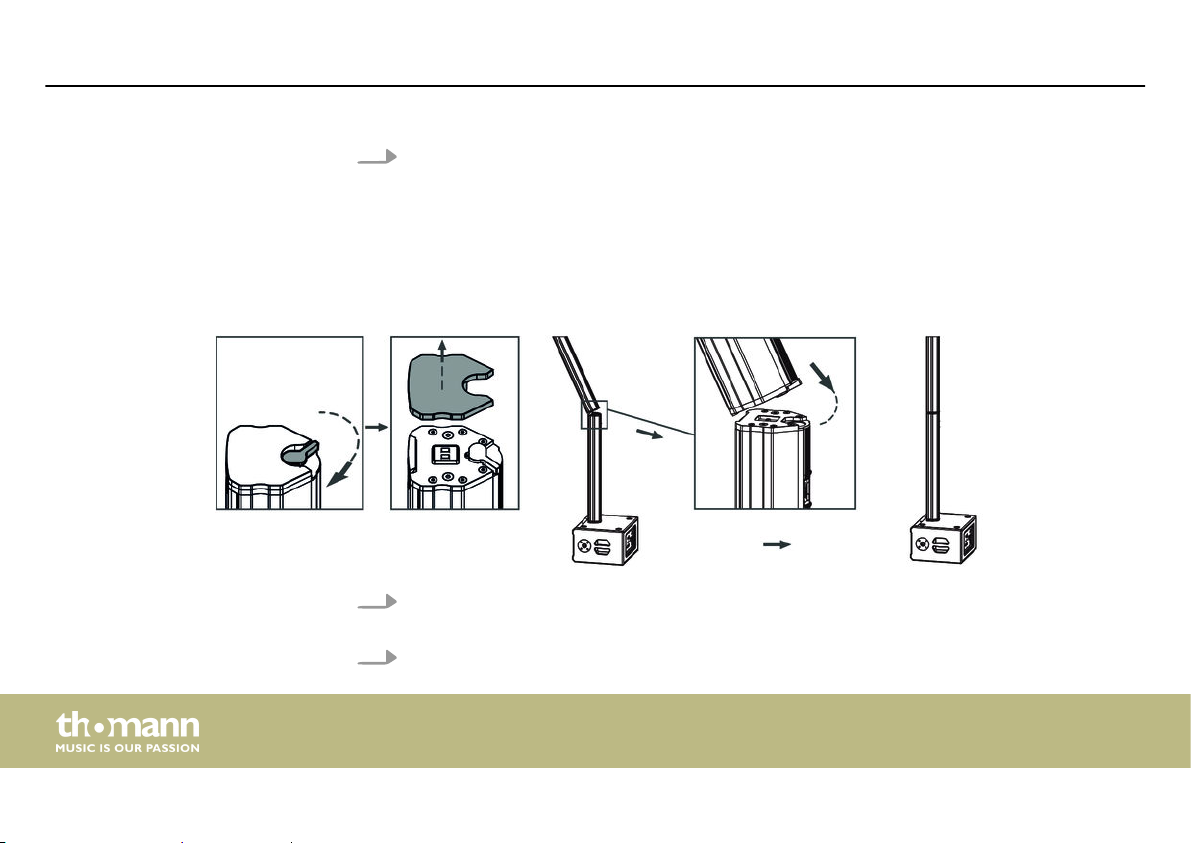

1. Activate the positioner by pressing the release button on the head of the column
speaker.

2. Release the protective cap on top of the column speaker by turning the lever.

3. Remove the protective cap on top of the column speaker.

4. Remove the protective cap from the side of the subwoofer.

TL 63

15

Installation

Connecting column loud‐
speakers to each other

5. Place the column speaker on the subwoofer. Make sure that the connector sockets are

positioned exactly on top of each other.

The positioner will lock in place. The column speaker is connected to the subwoofer.

ð

1. Activate the positioner by pressing the release button on the head of the column
speaker.

2. Release the protective cap on top of the column speaker by turning the lever.

16

passive column speaker

Connecting the subwoofer to
the column speaker via speaker
pole

Installation

3. Remove the protective cap on top of the column speaker.

4. Repeat steps 1 to 3 for the second column speaker.

5. Place the rst column speaker on the second column speaker. Make sure that the con‐

nector sockets are positioned exactly on top of each other.

The positioner will lock in place. The column speakers are connected to each other.

ð

TL 63

17

Installation

1. Activate the positioner by pressing the release button on the head of the column
speaker.

2. Release the protective cap on top of the column speaker by turning the lever.

3. Remove the protective cap on top of the column speaker.

4. Remove the protective cap from the side of the subwoofer.

5. Insert the speaker pole into the ange of the subwoofer.

6. Place the column speaker with the 25 mm speaker ange on the speaker pole.

7. Connect the subwoofer and column speaker with a speaker twist cable.

Subwoofer and column speaker are now connected to each other.

ð

18

passive column speaker

4.2 Tips on handling speakers

We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐
ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound
will be evenly spread with maximum range throughout the audience area.

Always use high grade cable to connect your equipment. Otherwise you won't reach max‐
imum sound quality.

For optimum results both impedance and power handling of the speakers must match the
requirements of the amplier. Always follow the technical specications of the speakers! The
overall impedance of the connected loudspeakers must not deceed the minimum output
impedance of the amp. The amps max. RMS output power should be 50 % above the power
handling capacity of the connected speakers.

If you notice distortion during operation, either the amp or the speaker is overloaded. This may
permanently damage the amp or the speaker. Always reduce the volume when you hear dis‐
tortion.

Installation

TL 63

19

Connections

5 Connections

20

passive column speaker

for speakers

Connections

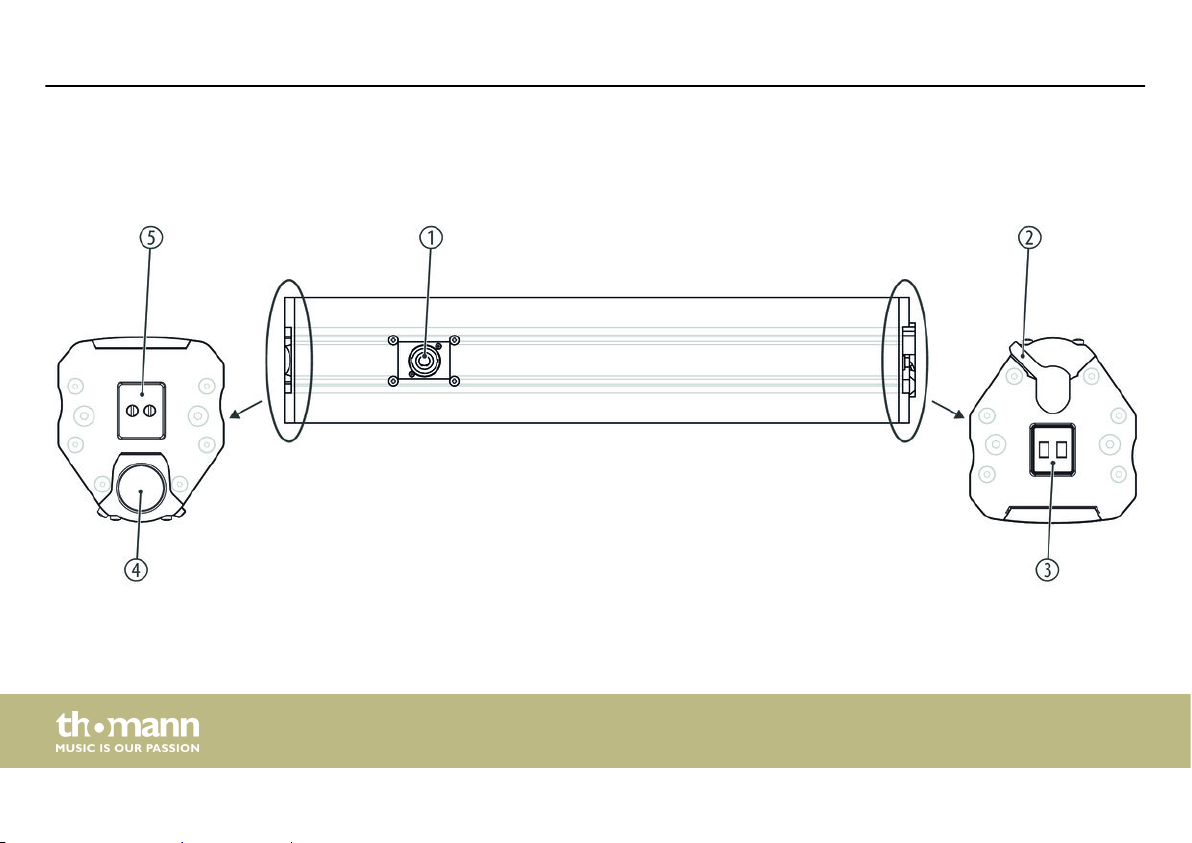

1 Lockable speaker twist socket

2 Lever for releasing the protective cap

3 Connector socket (male) for plugging into a subwoofer or another column speaker

4 25 mm speaker ange for mounting on a speaker pole

5 Connector socket (female) for inserting another column speaker

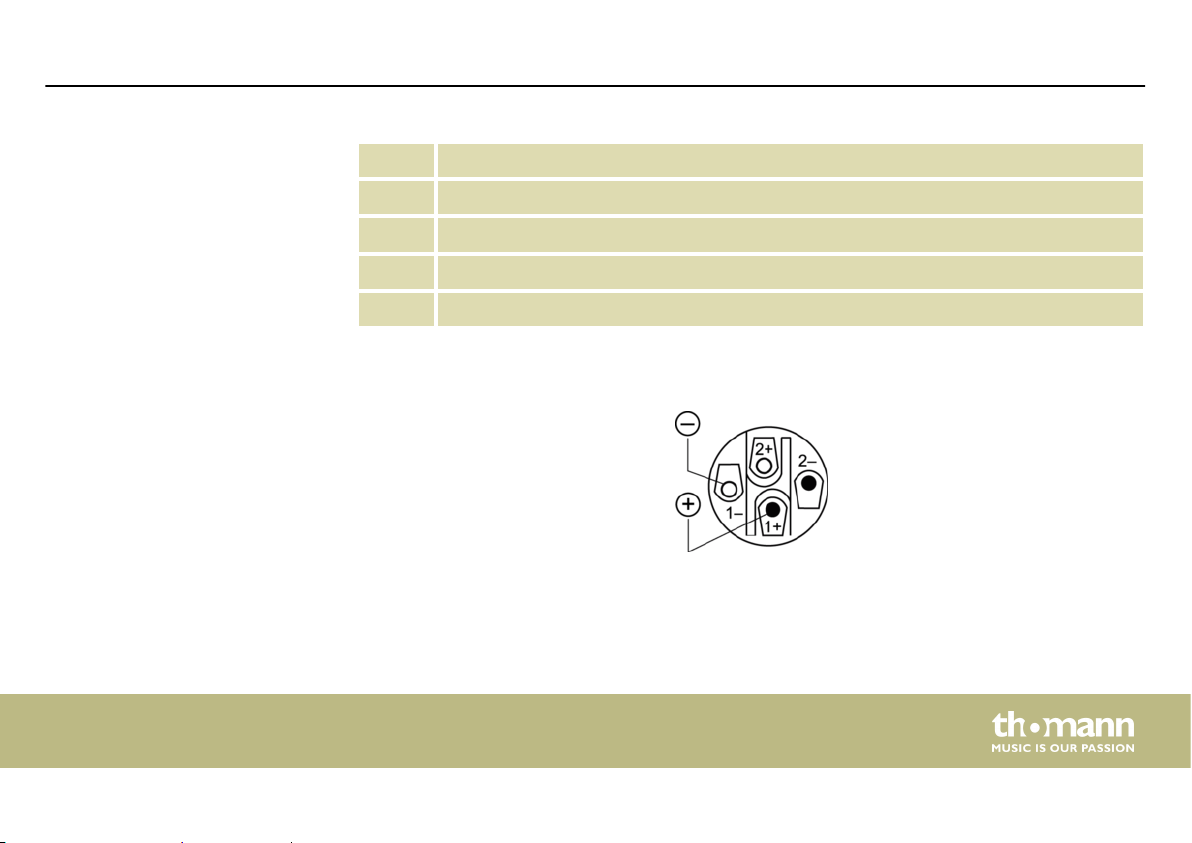

The adjoining gure shows the pin assignment of the lockable speaker twist connectors.Speaker Twist chassis connector

TL 63

21

Technical specications

6 Technical specications

Speaker 6 × 2.75" midrange driver / tweeter

Input connections Signal input 1 × speaker twist input socket

Frequency range 200 Hz … 20 kHz, –10 dB

Power handling 100 W (RMS Peak)

Nominal impedance 16 Ω

Dispersion angle (nominal) 90°

Crossover frequency 200 Hz, 24 dB

Sound pressure level (SPL), max. 114 dB

Mounting options Speaker ange 25 mm

Dimensions (W × H × D) 95 mm × 106 mm × 480 mm

Weight 2.65 kg

22

passive column speaker

Ambient conditions Temperature range 0 °C…40 °C

Relative humidity 50 %, non-condensing

Further information

Built-in subwoofer No

Built-in mixer No

Housing colour Black

Housing material Aluminium

Technical specications

TL 63

23

Protecting the environment

7 Protecting the environment

Disposal of the packaging mate‐
rial

For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.

Ensure that plastic bags, packaging, etc. are properly disposed of.

Do not just dispose of these materials with your normal household waste, but make sure that
they are collected for recycling. Please follow the notes and markings on the packaging.

Disposal of your old device

This product is subject to the European Waste Electrical and Electronic Equipment Directive
(WEEE) in its currently valid version. Do not dispose with your normal household waste.

Dispose of this device through an approved waste disposal rm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.

24

passive column speaker

Notes

TL 63

25

Notes

26

passive column speaker

Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de
