PAR64 MKII RGBW
LED PAR
user manual
Page 2
Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de
23.09.2014, ID: 274650
Page 3
Table of contents
1 General notes............................................................................................................................................... 5
2 Safety instructions..................................................................................................................................... 8
3 Features....................................................................................................................................................... 12
4 Installation.................................................................................................................................................. 13
5 Starting up.................................................................................................................................................. 16
6 Components and functions................................................................................................................ 19
7 Operating.................................................................................................................................................... 22
7.1 Starting up the device.................................................................................................................... 22
7.2 Main menu.......................................................................................................................................... 22
7.3 Menu overview................................................................................................................................. 29
7.4 Functions in 4-channel DMX mode........................................................................................... 30
7.5 Functions in 6-channel DMX mode........................................................................................... 30
7.6 Functions in 8-channel DMX mode........................................................................................... 32
8 Troubleshooting...................................................................................................................................... 34
Table of contents
PAR64 MKII RGBW
3
Page 4
9 Cleaning....................................................................................................................................................... 36
10 Technical specifications....................................................................................................................... 37
11 Protecting the environment.............................................................................................................. 38
Table of contents
LED PAR
4
Page 5
1 General notes
This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device, include the manual for the next owner.
Our products are subject to a process of continuous development. We therefore reserve the right to make changes without notice.
This section provides an overview of the symbols and signal words used in this user manual.Symbols and signal words
General notes
PAR64 MKII RGBW
5
Page 6
Signal word Meaning DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – suspended load.
General notes
LED PAR
6
Page 7
Warning signs Type of danger
Warning – danger zone.
General notes
PAR64 MKII RGBW
7
Page 8
2 Safety instructions
This device is intended to be used as an electronic illumination effect using LED technics. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual abilities and having corresponding knowledge and experience. Other persons may use this device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER! Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety
Safety instructions
LED PAR
8
Page 9
DANGER! Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never remove any covers.
There are no user-serviceable parts inside.
DANGER! Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a regis‐ tered electrician.
Safety instructions
PAR64 MKII RGBW
9
Page 10
WARNING! Eye damage caused by high light intensity
Never look directly into the light source.
WARNING! Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights.
NOTICE! Risk of fire
Do not cover the device nor any ventilation slots. Do not place the device near any direct heat source. Keep the device away from naked flames.
Safety instructions
LED PAR
10
Page 11
NOTICE! Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations.
NOTICE! Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire.
Safety instructions
PAR64 MKII RGBW
11
Page 12
3 Features
The LED PAR is particularly suitable for professional lighting applications, for example, at events, on rock stages, in theatres and musicals or TV productions. It is characterized by a low power consumption and long service life.
Special features of the device:
n 168 × 10 mm LEDs (42 × white, 42 × red, 42 × green, 42 × blue) n Control via DMX (3 different modes) and via buttons and display on the unit n 41 pre-programmed automatic shows n Sound control n Master / slave mode n Robust metal housing
Features
LED PAR
12
Page 13
4 Installation
Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
You can install the device on the wall, ceiling or floor. A mounting bracket and the necessary screws are included in the package.
WARNING! Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain.
Installation
PAR64 MKII RGBW
13
Page 14
NOTICE! Risk of overheating
Always ensure sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F).
NOTICE! Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
Installation
LED PAR
14
Page 15
NOTICE! Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers.
The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug.
Pin Configuration
1 Ground, shielding 2 Signal inverted (DMX–, ‘cold signal’) 3 Signal (DMX+, ‘hot signal’)
DMX connections
Installation
PAR64 MKII RGBW
15
Page 16
5 Starting up
Establish all connections as long as the unit is switched off. Use the shortest possible high­quality cables for all connections.
Starting up
LED PAR
16
Page 17
Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W).
Connections in DMX mode
Starting up
PAR64 MKII RGBW
17
Page 18
When you configure a group of devices in master/slave mode, the first unit will control the other units for an automatic, sound-activated, synchronized show. This function is ideal when you want to start a show immediately. Connect the DMX output of the master device to the DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on.
Connections in master/slave mode
Starting up
LED PAR
18
Page 19

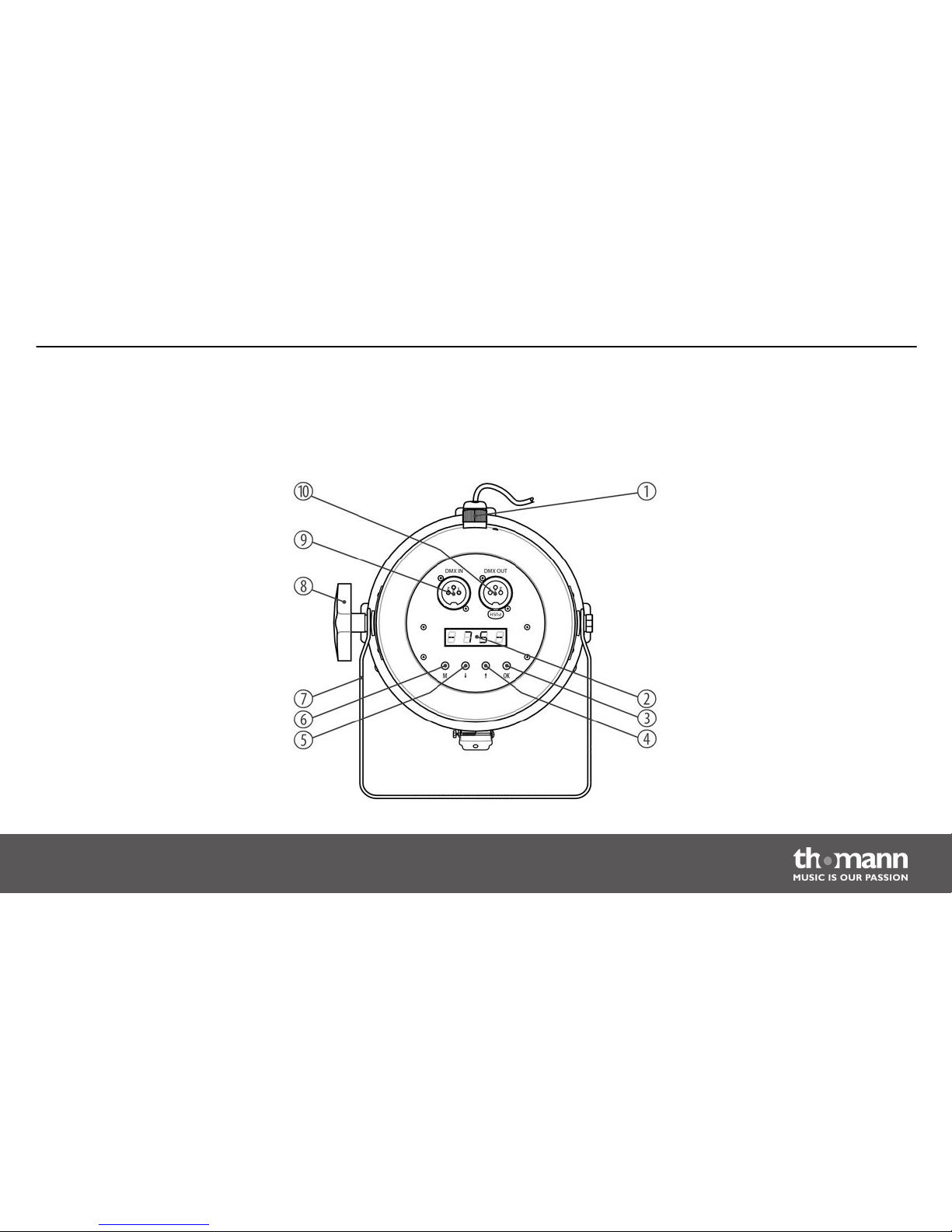

6 Components and functions
Rear panel
Components and functions
PAR64 MKII RGBW
19
Page 20
1 Mains power cable. 2 Display. 3 OK
To confirm a selected value.
4, 5
,
To increase or decrease the displayed value by one.
6 M
To activate the main menu or a submenu. 7 Bracket for hanging or setting up. 8 Locking screw for the bracket.
Components and functions
LED PAR
20
Page 21
9 DMX IN
DMX input.
10 DMX OUT
DMX output.
Components and functions
PAR64 MKII RGBW
21
Page 22
7 Operating
7.1 Starting up the device
Connect the unit to the power grid to start the operation. After a few seconds the display shows a running reset. The unit is then ready for use.
7.2 Main menu
Press [M] to call the main menu and select an operating mode. Use the arrow keys to change the respectively shown value. When the display shows the desired value, press [OK].
If you don't press any button for about a minute, the unit will return to the previous mode. The set values are retained even when the device is disconnected from the power supply.
Operating
LED PAR
22
Page 23
Press [M]. Press one of the arrow keys repeatedly until the display shows ‘SET’. Press [OK]. Press one of the arrow keys repeatedly until the display shows ‘MODE’. Press [OK]. Now use the arrow keys to select one of the following DMX operating modes:
n ‘4CH’ (four channels) n ‘6CH’ (six channels) n ‘8CH’ (eight channels)
This setting is only relevant if the device is controlled via DMX. When the display shows the desired value, press [OK] to confirm the selection and then [M] to return to the superordinate menu. To return to the superordinate menu without changes, press [M].
DMX mode
Operating
PAR64 MKII RGBW
23
Page 24
Press [M]. Press one of the arrow keys repeatedly until the display shows ‘DMX’. Press [OK]. Now you can set the number of the first DMX channel to be used by the device (DMX address). Use the arrow keys to select a value between 1 and 512 (the display shows ‘A001’‘A512’).
When the display shows the desired value, press [OK] to confirm the selection and then [M] to return to the superordinate menu. To return to the superordinate menu without changes, press [M].
Make sure that this number matches the configuration of your DMX controller. The following table shows the highest possible DMX address for the different DMX modes.
Mode Highest possible DMX address
4-channel 509 6-channel 507 8-channel 505
DMX address
Operating
LED PAR
24
Page 25
Press [M]. Press one of the arrow keys repeatedly until the display shows ‘LINE’. Press [OK]. Press one of the arrow keys repeatedly until the display shows ‘MA’. Press [OK]. Now you can select one of the 41 pre-programmed shows. Use the arrow keys to select a value between 1 and 42 (the display shows ‘P-01’‘P-42’).
The auto show can only be activated on the device that serves as ‘Master’. This setting is only relevant if the device is not controlled via DMX. The device can operate in
standalone mode or control connected devices of the same type, that have to be configured as ‘Slaves’. When the display shows the desired value, press [OK] to confirm the selection and then [M] to return to the superordinate menu. To return to the superordinate menu without changes, press [M].
Press [M]. Press one of the arrow keys repeatedly until the display shows ‘LINE’. Press [OK]. Press one of the arrow keys repeatedly until the display shows ‘SL’. Press [OK]. Now you can set the number of the device by which it is addressed as slave by the master. Use the arrow keys to select a value between 1 and 512 (the display shows ‘A001’‘A512’).
This setting is only relevant if the device is operated as slave by a master, but not controlled via DMX. When the display shows the desired value, press [OK] to confirm the selection and then [M] to return to the superordinate menu. To return to the superordinate menu without changes, press [M].
Operating mode ‘Show/Master’
Operating mode ‘Slave’
Operating
PAR64 MKII RGBW
25
Page 26
Press [M]. Press one of the arrow keys repeatedly until the display shows ‘SET’. Press [OK]. Press one of the arrow keys repeatedly until the display shows ‘SPEE’. Press [OK]. Now you can set the programme speed for the pre-programmed automatic shows. Use the arrow keys to select a value between 1 and 255 (the display shows ‘T001’‘T255’).
This setting is only relevant if the device is not controlled via DMX. When the display shows the desired value, press [OK] to confirm the selection and then [M] to return to the superordinate menu. To return to the superordinate menu without changes, press [M].
Press [M]. Press one of the arrow keys repeatedly until the display shows ‘SET’. Press [OK]. Press one of the arrow keys repeatedly until the display shows ‘MIC’. Press [OK]. Now you can adjust the sensitivity of the built-in microphone for the sound-control. Use the arrow keys to select
‘OFF’ (microphone off) or a value between 1 and 30 (the display shows ‘M-01’‘M-30’).
This setting is only relevant if the device is not controlled via DMX. When the display shows the desired value, press [OK] to confirm the selection and then [M] to return to the superordinate menu. To return to the superordinate menu without changes, press [M].
Programme speed
Microphone sensitivity
Operating
LED PAR
26
Page 27
Press [M]. Press one of the arrow keys repeatedly until the display shows ‘TEST’. Press [OK]. Press one of the arrow keys repeatedly until the display shows ‘RED’, ‘GREE’, ‘BLUE’, ‘WHIT’ or
‘STRO’. Press [OK]. Now you can adjust the brightness of the red, green, blue or white LEDs in a
range from 0 to 255, or select the flash rate in a range from 0 to 24. This operating mode can also be used to create constant or flashing light mixed from the four
LED colours without DMX controller. When the display shows the desired value, press [OK] to confirm the selection and then [M] to
return to the superordinate menu. To return to the superordinate menu without changes, press [M].
Press [M]. Press one of the arrow keys repeatedly until the display shows ‘FADE’. Press [OK]. Now you can set the fade speed of the pre-programmed automatic shows. Use the arrow keys to select a value between 1 and 7 (the display shows ‘F-01’‘F-07’).
This setting is only relevant if the device is not controlled via DMX. When the display shows the desired value, press [OK] to confirm the selection and return to the main menu. To return to the main menu without changes, press [M].
Manual test
Fade speed
Operating
PAR64 MKII RGBW
27
Page 28
Press [M]. Press one of the arrow keys repeatedly until the display shows ‘COLO’. Press [OK]. Now you can set a base colour for the pre-programmed automatic shows. Use the arrow keys to select a value between 1 and 4 (the display shows ‘C-01’‘C-04’).
This setting is only relevant if the device is not controlled via DMX. When the display shows the desired value, press [OK] to confirm the selection and return to the main menu. To return to the main menu without changes, press [M].
Colour selection
Operating
LED PAR
28
Page 29
7.3 Menu overview
Operating
PAR64 MKII RGBW
29
Page 30
7.4 Functions in 4-channel DMX mode
Channel Value Function
1 0…255 Intensity red (0 % to 100 %) 2 0…255 Intensity green (0 % to 100 %) 3 0…255 Intensity blue (0 % to 100 %) 4 0…255 Intensity white (0 % to 100 %)
7.5 Functions in 6-channel DMX mode
Channel Value Function
1 Operating mode selection
0…63 Constant colour, colouring is determined by channels 2 to 5
Operating
LED PAR
30
Page 31
Channel Value Function
64…127 Automatic colour change with 7 colours, channels 2 to 5 have no function 128…191 Automatic colour change with 12 colours, channels 2 to 5 have no function
192…255 Automatic colour change with 4 colours, channels 2 to 5 have no function 2 0…255 Intensity red (0 % to 100 %), if channel 1 = 0…63 3 0…255 Intensity green (0 % to 100 %), if channel 1 = 0…63 4 0…255 Intensity blue (0 % to 100 %), if channel 1 = 0…63 5 0…255 Intensity white (0 % to 100 %), if channel 1 = 0…63 6 Effects speed
0…10 No automatic colour change
11…100 Automatic colour change as set by channel 1, decreasing speed from fast to slow
101…150 No automatic colour change
151…255 Automatic colour change as set by channel 1, randomly changing speed
Operating
PAR64 MKII RGBW
31
Page 32
7.6 Functions in 8-channel DMX mode
Channel Value Function
1 0…255 Intensity red (0 % to 100 %), if channel 5 = 0…15 and channel 7 = 0…31 2 0…255 Intensity green (0 % to 100 %), if channel 5 = 0…15 and channel 7 = 0…31 3 0…255 Intensity blue (0 % to 100 %), if channel 5 = 0…15 and channel 7 = 0…31 4 0…255 Intensity white (0 % to 100 %), if channel 5 = 0…15 and channel 7 = 0…31 5 Fixed colour pattern
0…15 No fixed colour and movement pattern
16…255 One of 31 pre-programmed automatic shows (macros), channels 6 and 7 without function 6 Strobe effect
0…15 Full brightness, no strobe effect
16…255 Strobe effect, increasing speed if channel 5 = 0…15 7 Operating mode selection
Operating
LED PAR
32
Page 33
Channel Value Function
0…31 Constant colour, colouring is determined by channels 1 to 4
32…63 Fade-out effect, speed controlled by channel 6, channels 1 to 5 without function
64…95 Fade-in effect, speed controlled by channel 6, channels 1 to 5 without function
96…127 Fade-in-out effect, speed controlled by channel 6, channels 1 to 5 without function
128…159 Auto-mix effect, speed controlled by channel 6, channels 1 to 5 without function
160…191 Chase (4 colours), speed controlled by channel 6, channels 1 to 5 without function
192…223 Chase (12 colours), speed controlled by channel 6, channels 1 to 5 without function
224…255 Sound control 8 0…255 Dimmer (0 % to 100 %)
Operating
PAR64 MKII RGBW
33
Page 34
8 Troubleshooting
NOTICE! Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers.
In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting:
Troubleshooting
LED PAR
34
Page 35
Symptom Remedy
The unit does not work, no light.
Check the mains connection and the fuse.
No response to the DMX con‐ troller.
1. Check the DMX ports and cables for proper connection.
2. Check the address settings and the DMX polarity.
3. Try using another DMX controller.
4. Check to see if the DMX cables run near or alongside to high voltage cables that may cause damage or interfer‐ ence to DMX interface circuits.
If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de.
Troubleshooting
PAR64 MKII RGBW
35
Page 36
9 Cleaning
Clean the exterior of accessible optical lenses periodically to optimise light output. The fre‐ quency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.
n Clean with a soft cloth using normal glass cleaning products. n Always dry the parts carefully.
Optical lenses
Cleaning
LED PAR
36
Page 37
10 Technical specifications
LEDs 168 × 10 mm LEDs (42 × white, 42 × red, 42 × green, 42 × blue) Dispersion 45 ° Number of DMX channels 4, 6, 8 Operating voltage supply
AC 230 V , 50 Hz Power consumption 16 W Dimensions (W × D × H) 325 mm × 275 mm × 275 mm Weight 2.1 kg
Technical specifications
PAR64 MKII RGBW
37
Page 38
11 Protecting the environment
For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that
they are collected for recycling. Please follow the notes and markings on the packaging.
This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE). Do not dispose with your normal household waste.
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility.
Disposal of the packaging mate‐ rial
Disposal of your old device
Protecting the environment
LED PAR
38
Page 39
Page 40
Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de
Loading...
