PAR 36 PAR 56 PAR 64
LED PAR
user manual
Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: +49 (0) 9546 9223-0
E-mail: info@thomann.de
Internet: www.thomann.de
17.02.2016, ID: 193245, ... (V2)
Table of contents
Table of contents
1 General notes............................................................................................................................................... 5
1.1 Further information........................................................................................................................... 6
1.2 Notational conventions.................................................................................................................... 7
1.3 Symbols and signal words............................................................................................................... 7
2 Safety instructions.................................................................................................................................. 10
3 Features....................................................................................................................................................... 15
4 Installation.................................................................................................................................................. 16
5 Setup.............................................................................................................................................................. 20
6 Connections and controls................................................................................................................... 22
7 Operation.................................................................................................................................................... 24
7.1 Starting up the device.................................................................................................................... 24
7.2 ‘Auto change’ mode........................................................................................................................ 24
7.3 ‘Auto fade’ mode.............................................................................................................................. 25
7.4 Manual mode..................................................................................................................................... 26
7.5 DMX mode.......................................................................................................................................... 27
PAR 36 PAR 56 PAR 64
3
Table of contents

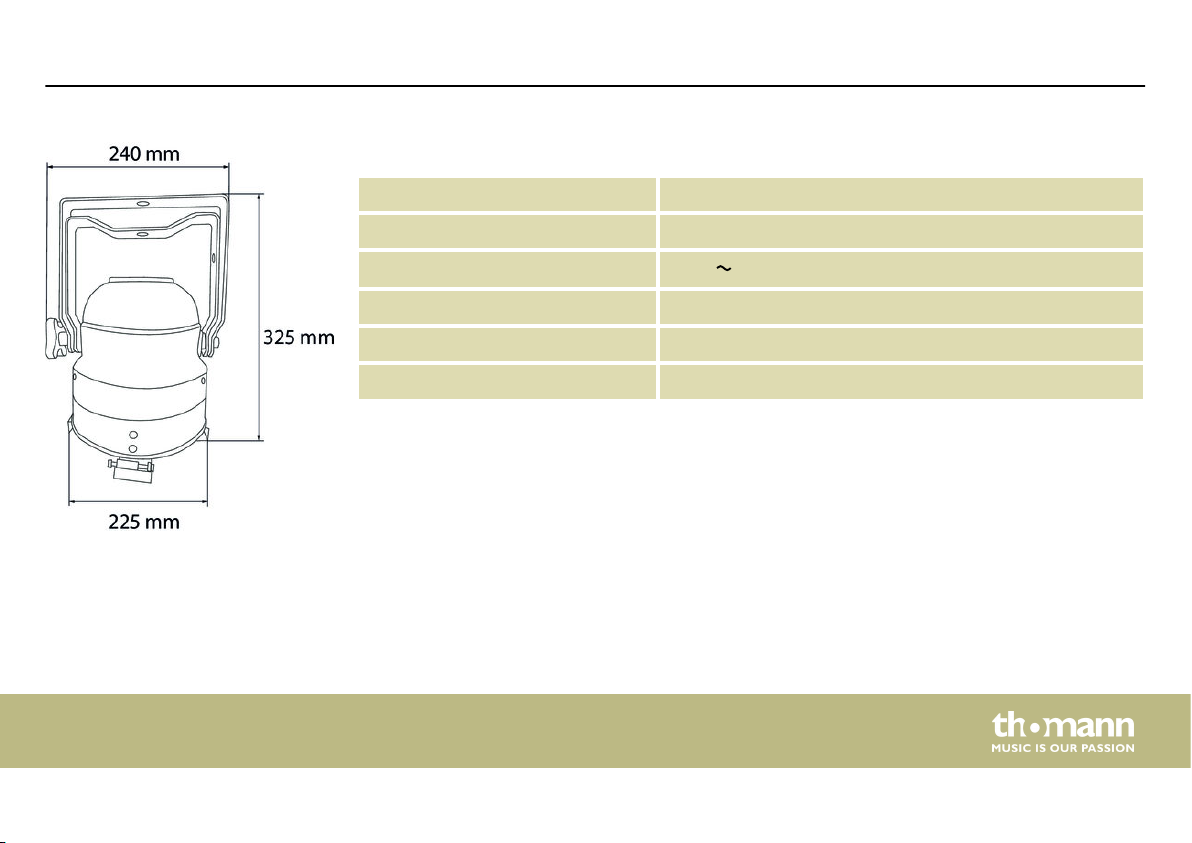

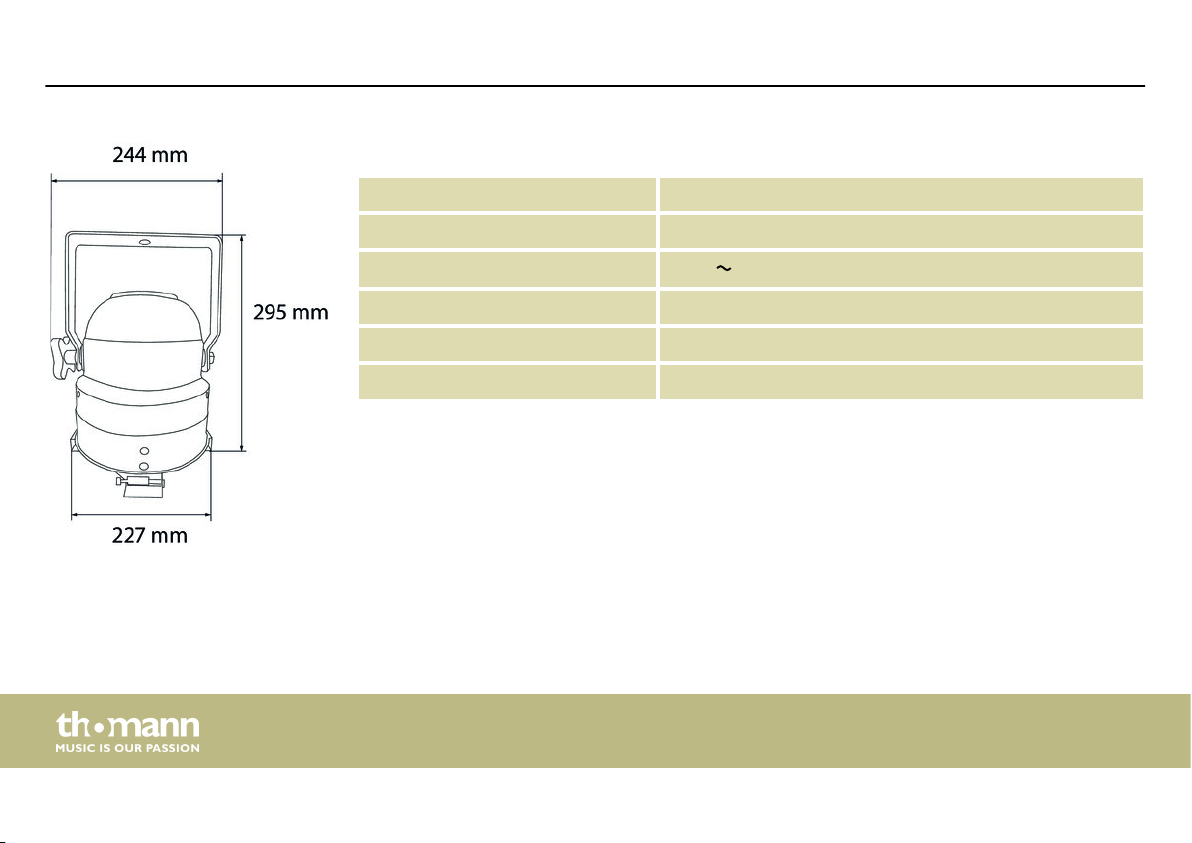

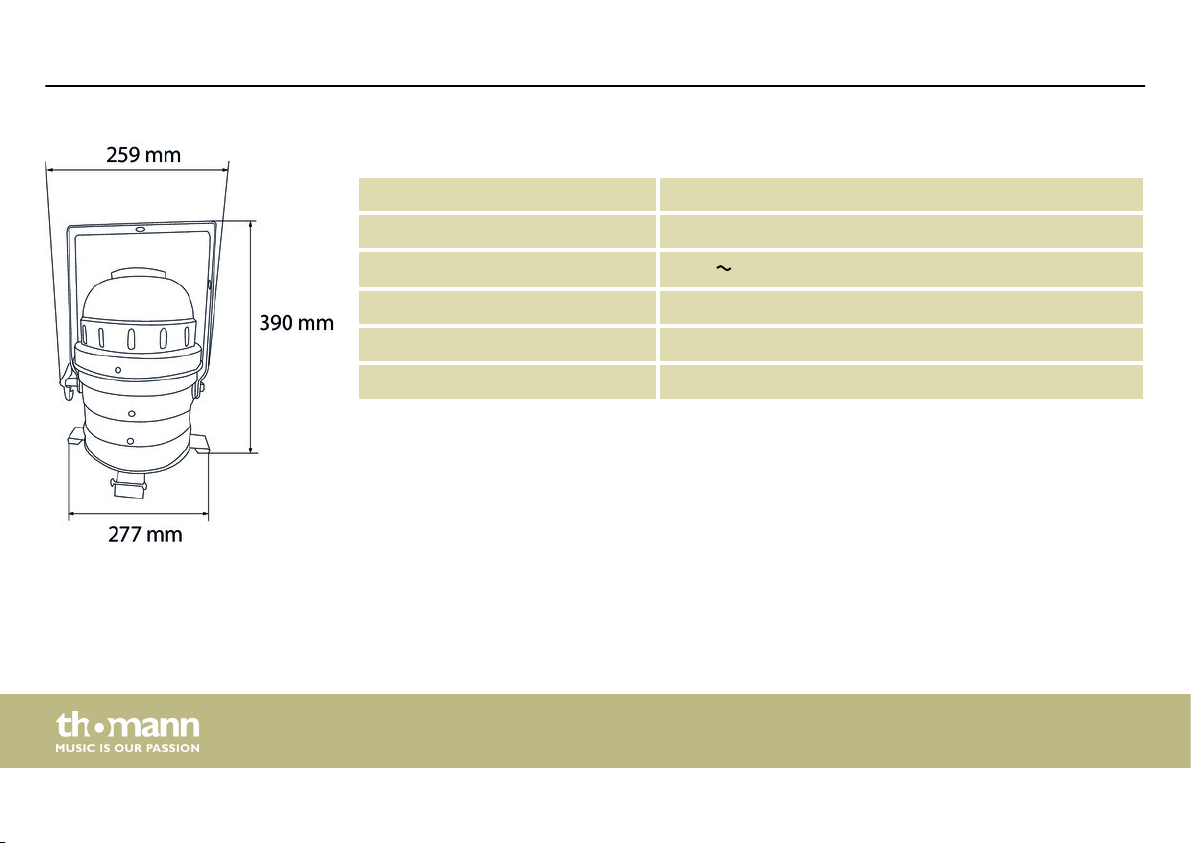

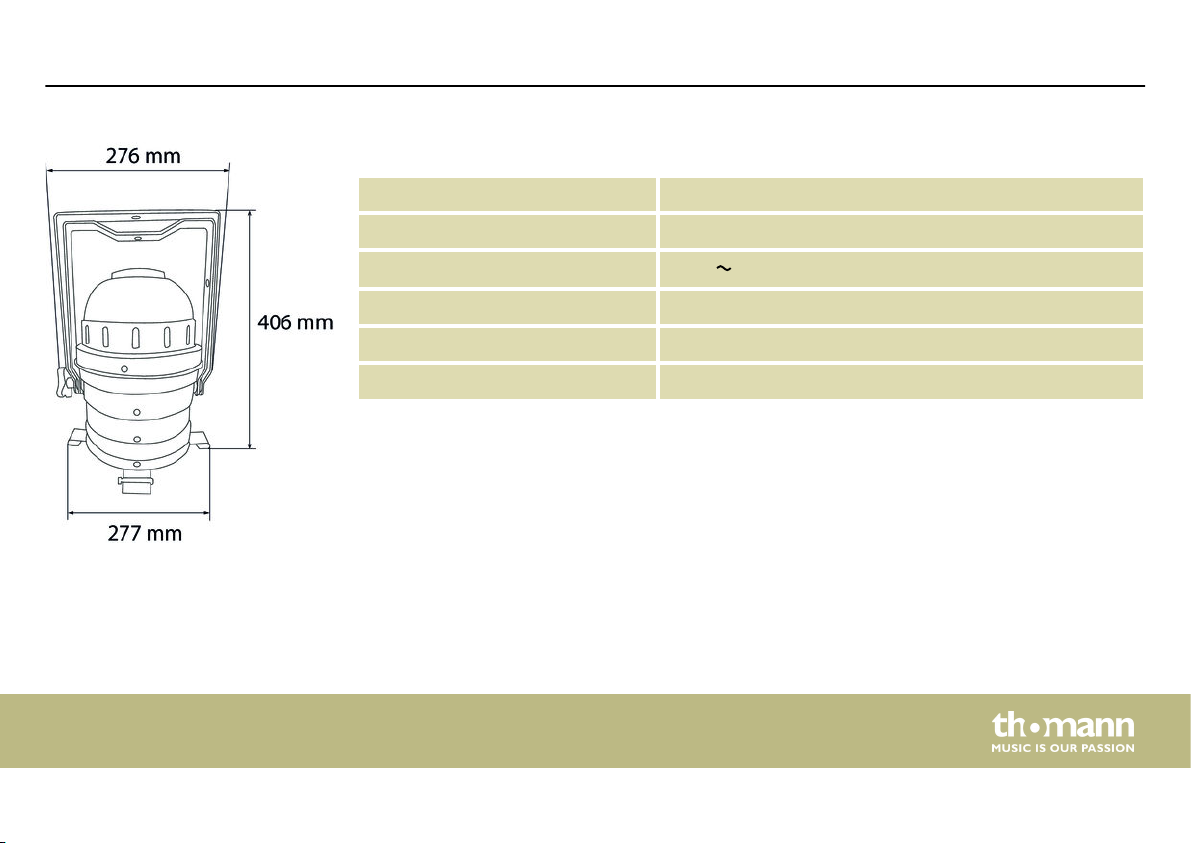

8 Technical specifications....................................................................................................................... 29

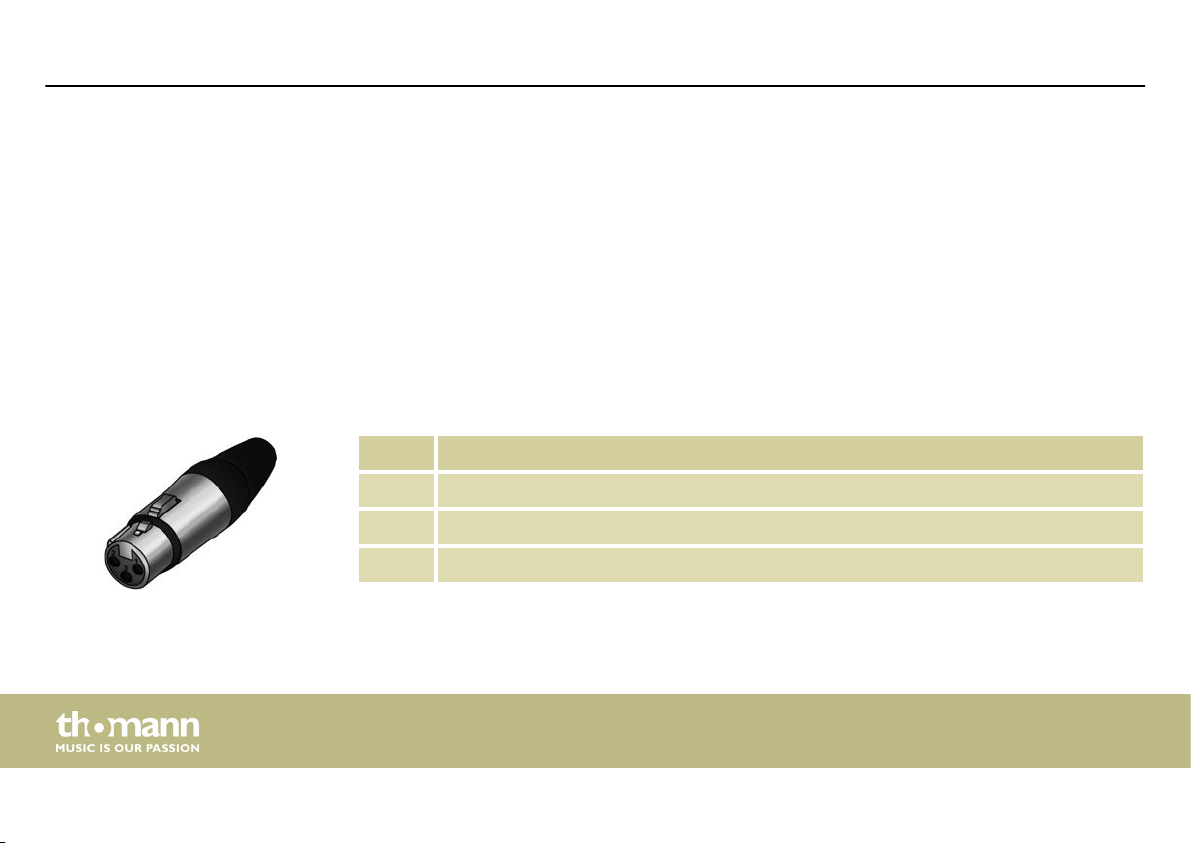

9 Plug and connection assignments.................................................................................................. 34
10 Troubleshooting...................................................................................................................................... 35
11 Cleaning....................................................................................................................................................... 37
12 Protecting the environment.............................................................................................................. 38
LED PAR
4
1 General notes
General notes
This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to
change.
PAR 36 PAR 56 PAR 64
5
General notes
1.1 Further information
On our website (www.thomann.de) you will find lots of further information and details on the
following points:
Download This manual is also available as PDF file for you to download.
Keyword search
Online guides
Personal consultation For personal consultation please contact our technical hotline.
Service
Use the search function in the electronic version to find the topics of
interest for you quickly.
Our online guides provide detailed information on technical basics
and terms.
If you have any problems with the device the customer service will
gladly assist you.
LED PAR
6
1.2 Notational conventions
This manual uses the following notational conventions:
General notes
Letterings
Displays
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’.
1.3 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.
PAR 36 PAR 56 PAR 64
7
General notes
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – suspended load.
LED PAR
8
Warning signs Type of danger
Warning – danger zone.
General notes
PAR 36 PAR 56 PAR 64
9
Safety instructions
2 Safety instructions
Intended use
10
This device is intended to be used as an electronic illumination effect using LED technics. The
device is designed for professional use and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
LED PAR
Safety
Safety instructions
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
PAR 36 PAR 56 PAR 64
11
Safety instructions
DANGER!
Electric shock caused by short-circuit
Do not modify the mains cable or the plug. Failure to do so could result in electric
shock/death or fire. If in doubt, seek advice from a registered electrician.
WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
WARNING!
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons
should avoid looking at strobe lights.
12
LED PAR
Safety instructions
NOTICE!
Risk of fire
Do not cover the device nor any ventilation slots. Do not place the device near
any direct heat source. Keep the device away from naked flames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
PAR 36 PAR 56 PAR 64
13
Safety instructions
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
14
LED PAR
3 Features
Features
The LED PAR is particularly suitable for professional lighting applications, e.g. at events, on
rock stages, in theatres and musicals or TV productions. It is characterized by a low power con‐
sumption and long life span.
Special features of this device:
n LEDs in three primary colours (RGB)
n Control via DMX or DIP switches on the unit
n Preprogrammed automatic shows
n Sound control
n Robust metal housing
PAR 36 PAR 56 PAR 64
15
Installation
4 Installation
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
16
LED PAR
Installation
NOTICE!
Risk of overheating
Always ensure sufficient ventilation.
The ambient temperature must always be below 40 °C (104 °F).
NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.
PAR 36 PAR 56 PAR 64
17
Installation
NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordi‐
nary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or ampli‐
fiers.
Mounting options
18
You can install the device standing or hanging upside down. When in use, the device must be
mounted at a solid surface or clamped to an approved truss. Use the openings of the bracket
provided for mounting.
Work from a stable platform whenever you install or move the device or when you perform
any kind of maintenance. Block access under the work area.
The safety cable must be attached to the bracket.
LED PAR
Please note that this device must not be connected to a dimmer.
Installation
PAR 36 PAR 56 PAR 64
19
Setup
5 Setup
Establish all connections as long as the unit is switched off. Use the shortest possible highquality cables for all connections.
20
LED PAR
Setup

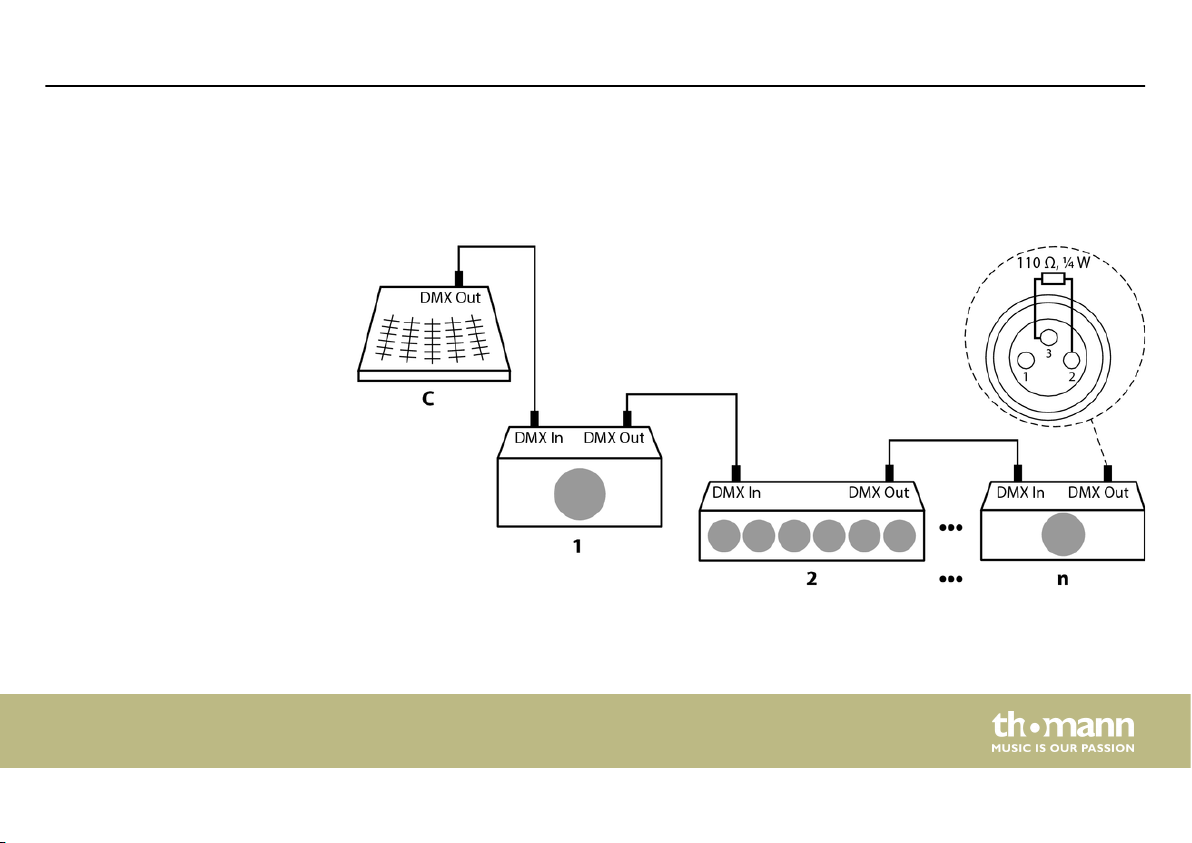

Connections in DMX mode
Connect the DMX input of the device to the DMX output of a DMX controller or another DMX
device. Connect the output of the first DMX device to the input of the second one, and so on
to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain
is terminated with a resistor (110 Ω, ¼ W).
PAR 36 PAR 56 PAR 64
21
Connections and controls
6 Connections and controls

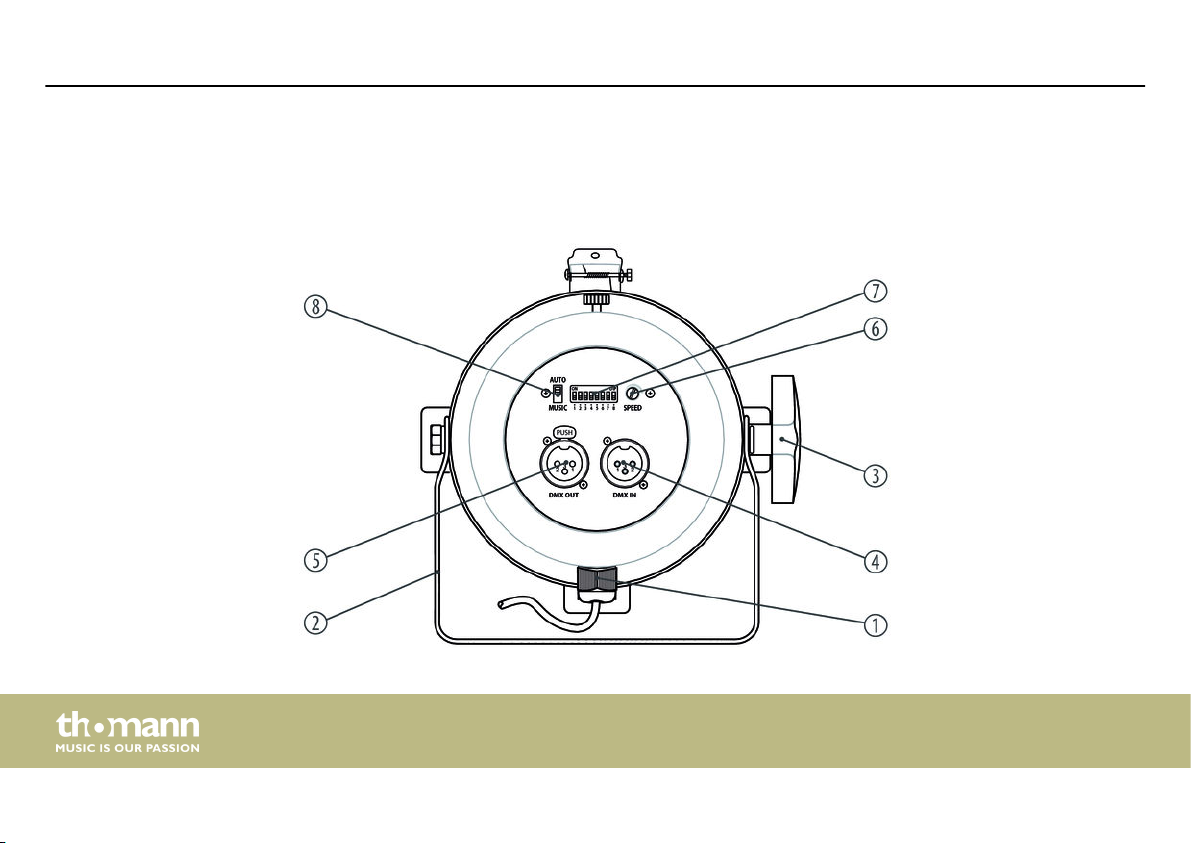

Rear panel
22
LED PAR
1 Power cord.
2 Bracket for floor placement or hanging.
3 Locking screws for the mounting bracket.
4 [DMX IN]
DMX input.
5 [DMX OUT]
DMX output.
6 [SPEED]
For manual speed setting.
7 DIP switches for setting different functions depending on the mode.
8 [AUTO/MUSIC]
Switch for selecting the operating mode (sound control or manual control).
Connections and controls
PAR 36 PAR 56 PAR 64
23
Operation
7 Operation

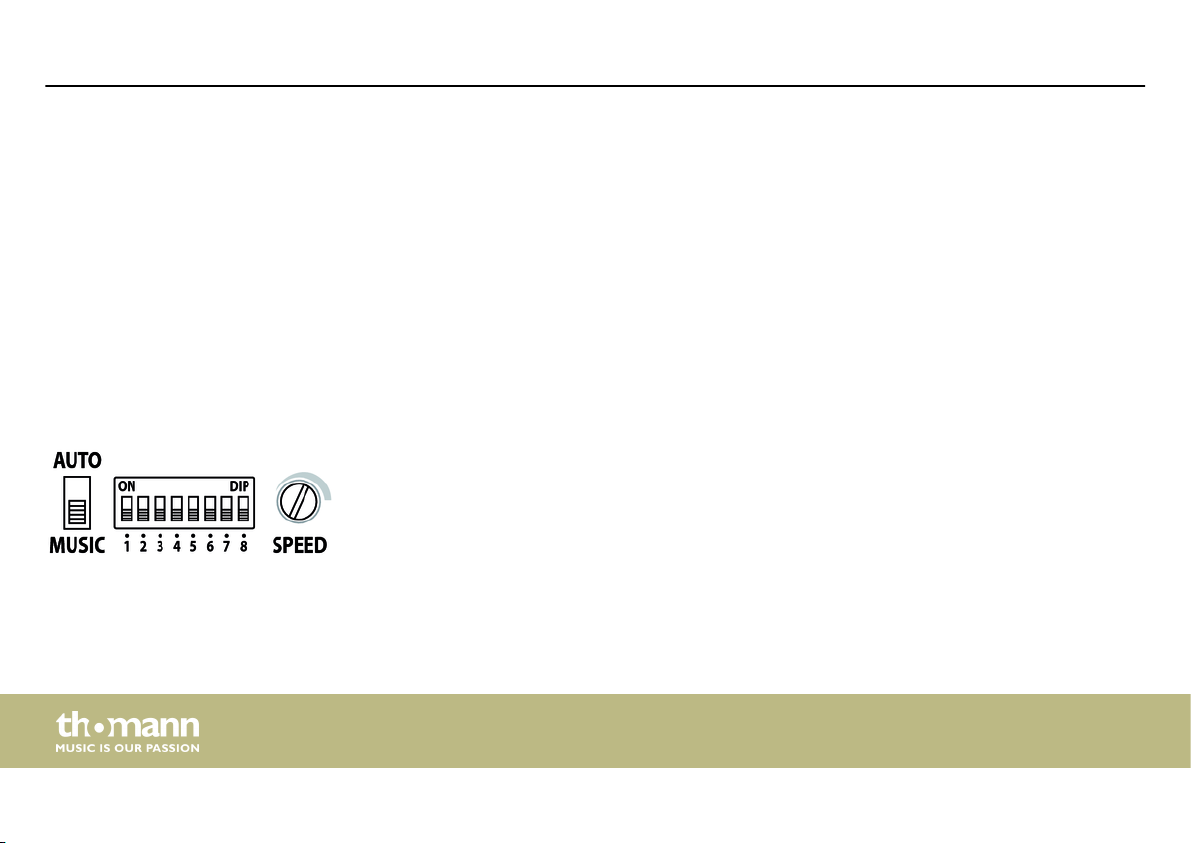

7.1 Starting up the device

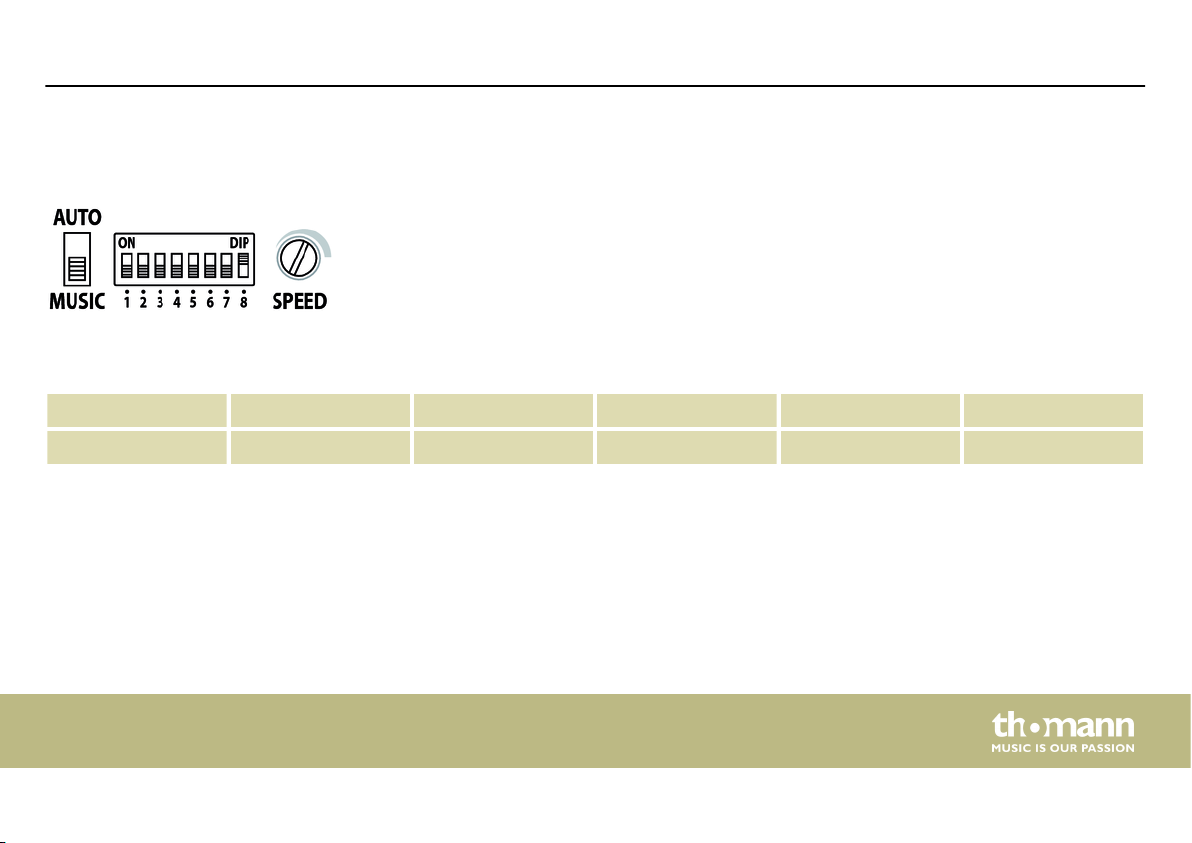

7.2 ‘Auto change’ mode
Connect the unit to the power grid to start the operation. After a few seconds the unit is ready
for use.
Set all DIP switches to ‘OFF’.
For sound-control, set the switch to ‘MUSIC’.
For controller operation, set the switch to ‘AUTO’.
24
LED PAR
7.3 ‘Auto fade’ mode
Set DIP switch no. 8 to ‘ON’.
Set the fade time by adjusting the DIP switches according to the table below to ‘ON’:
DIP 1 DIP 2 DIP 3 DIP 4 DIP 5 DIP 6
2,5 s 5 s 10 s 20 s 40 s 80 s
When all DIP switches 1 to 6 are set to ‘OFF’ the fade time is 10:30 min per pattern.
The time spans controlled by the DIP switches 1 to 6 can also be added up. If you e.g. set DIP
switches 1 and 2 to ‘ON’ the individual fade times add up like this: 2,5 s + 5 s = 7,5 s.
Operation
PAR 36 PAR 56 PAR 64
25
Operation

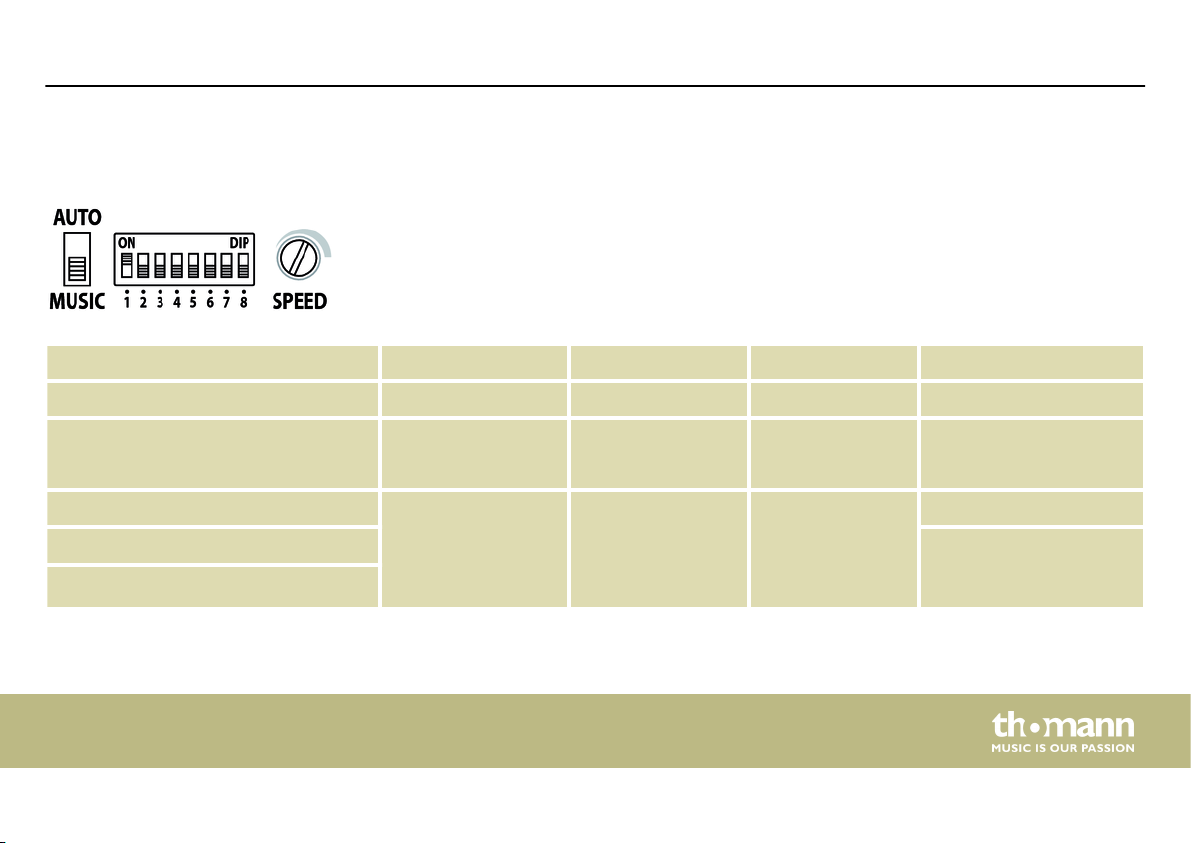

7.4 Manual mode
Set DIP switches 7 and 8 to ‘ON’.
RED DIP 1, 2 OFF/OFF ON/OFF OFF/ON ON/ON
GREEN DIP 3, 4
BLUE DIP 5, 6
BRIGHTNESS 0 25 % 50 % 100 %
26
LED PAR

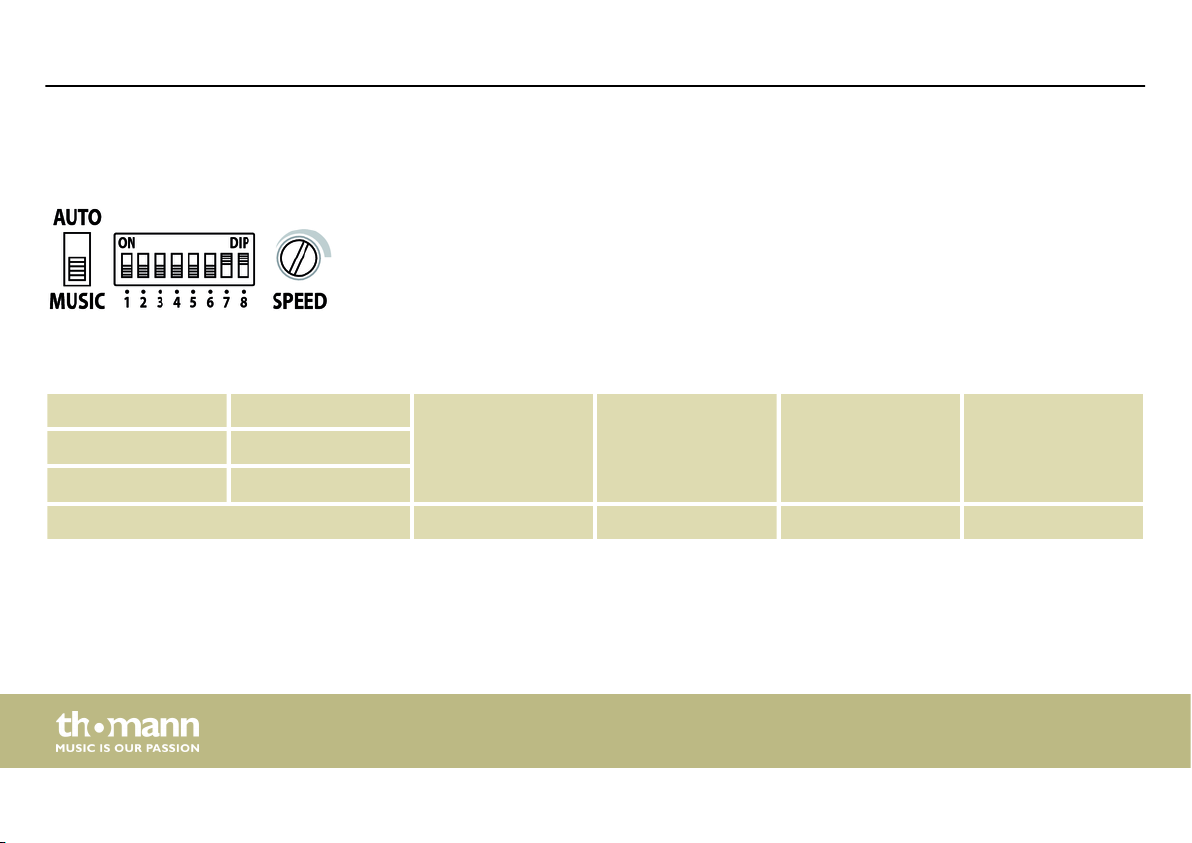

7.5 DMX mode
Set DIP switch 8 to ‘OFF’ and at least one of the other DIP switches to ‘ON’. The channel assign‐
ment is shown in the overview:
CH-1 CH-2 CH-3 CH-4 CH-5
MODE RED GREEN BLUE Speed
Operation
0 - 63 = RGB
Control
64 - 127 = 7 Colour fades ./. ./. ./. 11 - 100 = high to low
128 - 191 = 7 Colour changes 151 - 255 = Speed con‐
192 - 255 = 3 Colour changes
0 - 255 = DIM 0 - 255 = DIM 0 - 255 = DIM ./.
trol by the device, via
music or controller
PAR 36 PAR 56 PAR 64
27
Operation
You can set the DMX channel in a range of 1 to 123 via the DIP switches 1 to 7. DIP switch 1 is
the first channel. Configure the desired channel using the DIP switches, whose channel num‐
bers add up then:
DIP 1 2 3 4 5 6 7
Channel
number
28
1 2 4 8 16 32 64
LED PAR
8 Technical specifications
Item no. 193245/193246 Stairville LED PAR 36 Alu black/Alu polished
LEDs 61 × high power (21 × red, 19 × green, 21 × blue)
Number of DMX channels 5
Technical specifications
Operating supply voltage
Power consumption 7 W
Dimensions 165 mm × 325 mm × 135 mm
Weight 1.2 kg
230 V 50 Hz
PAR 36 PAR 56 PAR 64
29
Technical specifications
Item no. 193247/193248 Stairville LED PAR 56 Alu black/Alu polished
LEDs 151 × high power (51 × red, 49 × green, 51 × blue)
Number of DMX channels 5
30
Operating supply voltage
Power consumption 16 W
Dimensions 244 mm × 295 mm × 227 mm
Weight 1.4 kg
230 V 50 Hz
LED PAR
Technical specifications
Item no. 215928/215930 Stairville LED PAR 56 Floor black/polished
LEDs 151 × high power (51 × red, 49 × green, 51 × blue)
Number of DMX channels 5
Operating supply voltage
Power consumption 16 W
Dimensions 236 mm × 321 mm × 223 mm
Weight 1.4 kg
230 V 50 Hz
PAR 36 PAR 56 PAR 64
31
Technical specifications
Item no. 193249/193250 Stairville LED PAR 64 Alu black/Alu polished
LEDs 151 × high power (51 × red, 49 × green, 51 × blue)
Number of DMX channels 5
32
Operating supply voltage
Power consumption 16 W
Dimensions 259 mm × 390 mm × 277 mm
Weight 2.12 kg
230 V 50 Hz
LED PAR
Technical specifications
Item no. 215957/215958 Stairville LED PAR 64 Floor black/polished
LEDs 151 × high power (51 × red, 49 × green, 51 × blue)
Number of DMX channels 5
Operating supply voltage
Power consumption 16 W
Dimensions 276 mm × 406 mm × 277 mm
Weight 2.12 kg
230 V 50 Hz
PAR 36 PAR 56 PAR 64
33
Plug and connection assignments
9 Plug and connection assignments
Introduction
DMX connections
34
This chapter will help you select the right cables and plugs to connect your valuable equip‐
ment so that a perfect light experience is guaranteed.
Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug
fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a
short circuit or ‘just’ a not working light show!
The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please
refer to the drawing and table below for the pin assignment of a suitable XLR plug.
Pin Configuration
1 Ground, shielding
2 Signal inverted (DMX–, ‘cold signal’)
3 Signal (DMX+, ‘hot signal’)
LED PAR
10 Troubleshooting
In the following we list a few common problems that may occur during operation. We give you
some suggestions for easy troubleshooting:
Troubleshooting
NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordi‐
nary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or ampli‐
fiers.
PAR 36 PAR 56 PAR 64
35
Troubleshooting
Symptom Remedy
The unit does not work, no
light.
No response to the DMX con‐
troller.
If the procedures recommended above do not succeed, please contact our Service Center. You
can find the contact information at www.thomann.de.
Check the mains connection and the fuse.
1. Check the DMX ports and cables for proper connection.
2. Check the address settings and the DMX polarity.
3. Try using another DMX controller.
4. Check to see if the DMX cables run near or alongside to
high voltage cables that may cause damage or interfer‐
ence to DMX interface circuits.
LED PAR
36
11 Cleaning
Cleaning
Optical lenses
Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the
light output. The frequency of cleaning depends on the operating environment: wet, smoky or
particularly dirty surroundings can cause more accumulation of dirt on the optics of the
device.
n Clean with a soft cloth using our lamp and lens cleaner (item no. 280122).
n Always dry the parts carefully.
PAR 36 PAR 56 PAR 64
37
Protecting the environment
12 Protecting the environment
Disposal of the packaging mate‐
rial
For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that
they are collected for recycling. Please follow the notes and markings on the packaging.
Disposal of your old device
This product is subject to the European Waste Electrical and Electronic Equipment Directive
(WEEE). Do not dispose with your normal household waste.
Dispose of this device through an approved waste disposal firm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.
38
LED PAR
Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de
Loading...
