Page 1
MPS-400
e-drum set
assembly instructions
Page 2
Musikhaus Thomann e.K.
Treppendorf 30
96138 Burgebrach
Germany
Telephone: +49 (0) 9546 9223-0
E-mail: [email protected]
Internet: www.thomann.de
15.05.2012
Page 3
Table of contents
1 Safety instructions.......................................................................................................................................................................................................... 4
2 Contents of package....................................................................................................................................................................................................... 5
3 Assembly.............................................................................................................................................................................................................................. 6
4 Protecting the environment.................................................................................................................................................................................... 13
Table of contents
MPS-400
3
Page 4
1
Safety instructions
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children.
Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke!
Never let children unattended use electrical devices.
Safety instructions
e-drum set
4
Page 5
2
Contents of package
Before you assemble your kit, make sure the contents of package is complete according to the following illustrations.
Millenium MPS-400 e-drum stereo set
n Millenium e-drum module
n Pads:
1 × snare / stereo
3 × tom / mono
1 × bass drum
2 × cymbals / stereo
1 × hi-hat
n Hi-hat controller
n Drum pedal
n Rack with pad brackets
n Complete pad wiring
n Mains adapter
Millenium MPS-400 e-drum hi-hat MINE set
n Millenium e-drum module
n Pads:
1 × snare / stereo
3 × tom / mono
1 × bass drum
2 × cymbals / stereo
1 × hi-hat
n Hi-hat controller Millenium MINE V2.0
n Stage hi-hat Millenium DHS 1018
n Drum pedal
n Rack with pad brackets
n Complete pad wiring
n Mains adapter
Contents of package
MPS-400
5
Page 6
3

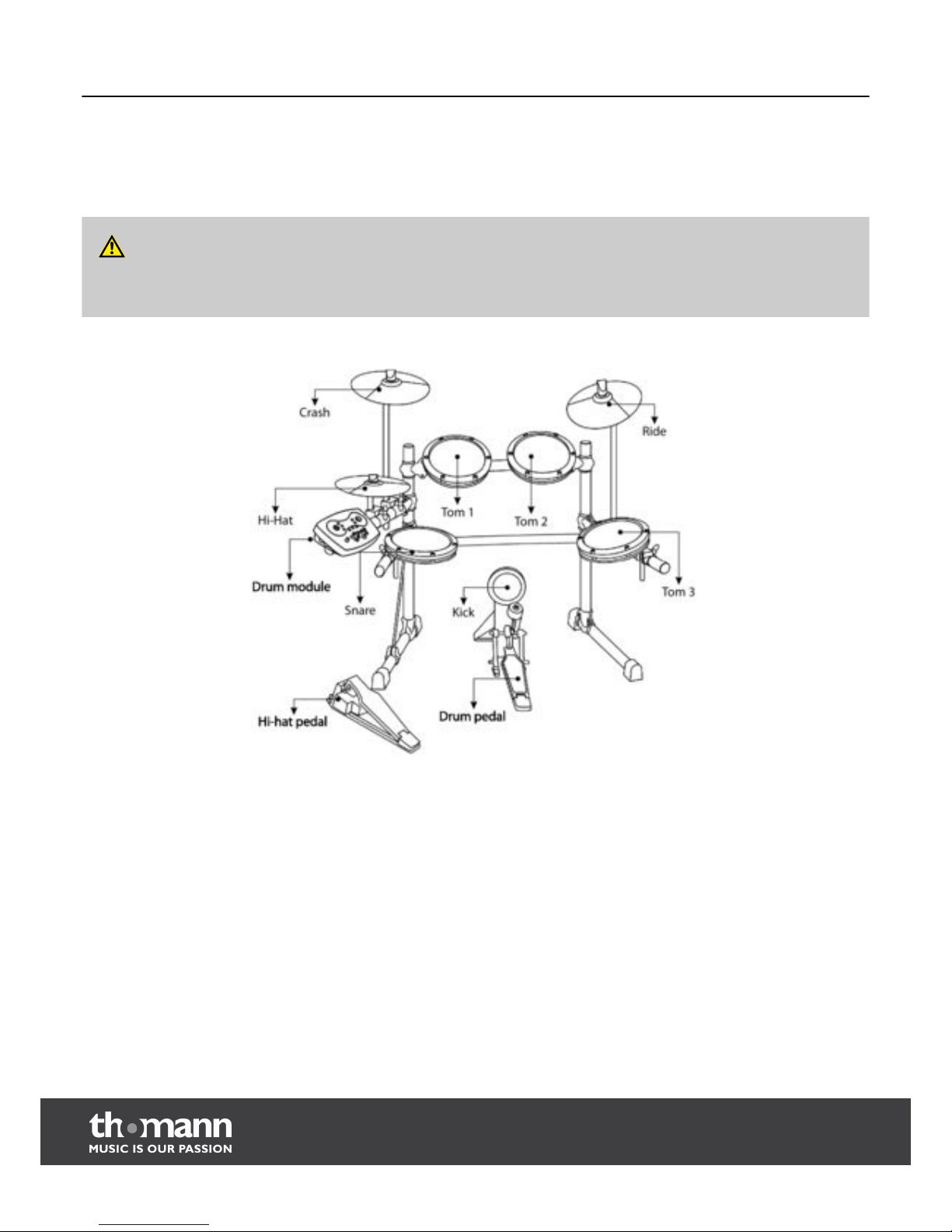

Assembly
Assembling the rack
CAUTION!
Danger of cuts on hands and fingers
When plugging the connections, take care for sharp edges on the metal pipes, screws etc.
Loosen the screws of each terminal before inserting the pipes. Mount the various elements in the specified sequence. The posi‐
tions of the pads, cymbals, etc. are shown in the illustration below.
Assembly
e-drum set
6
Page 7

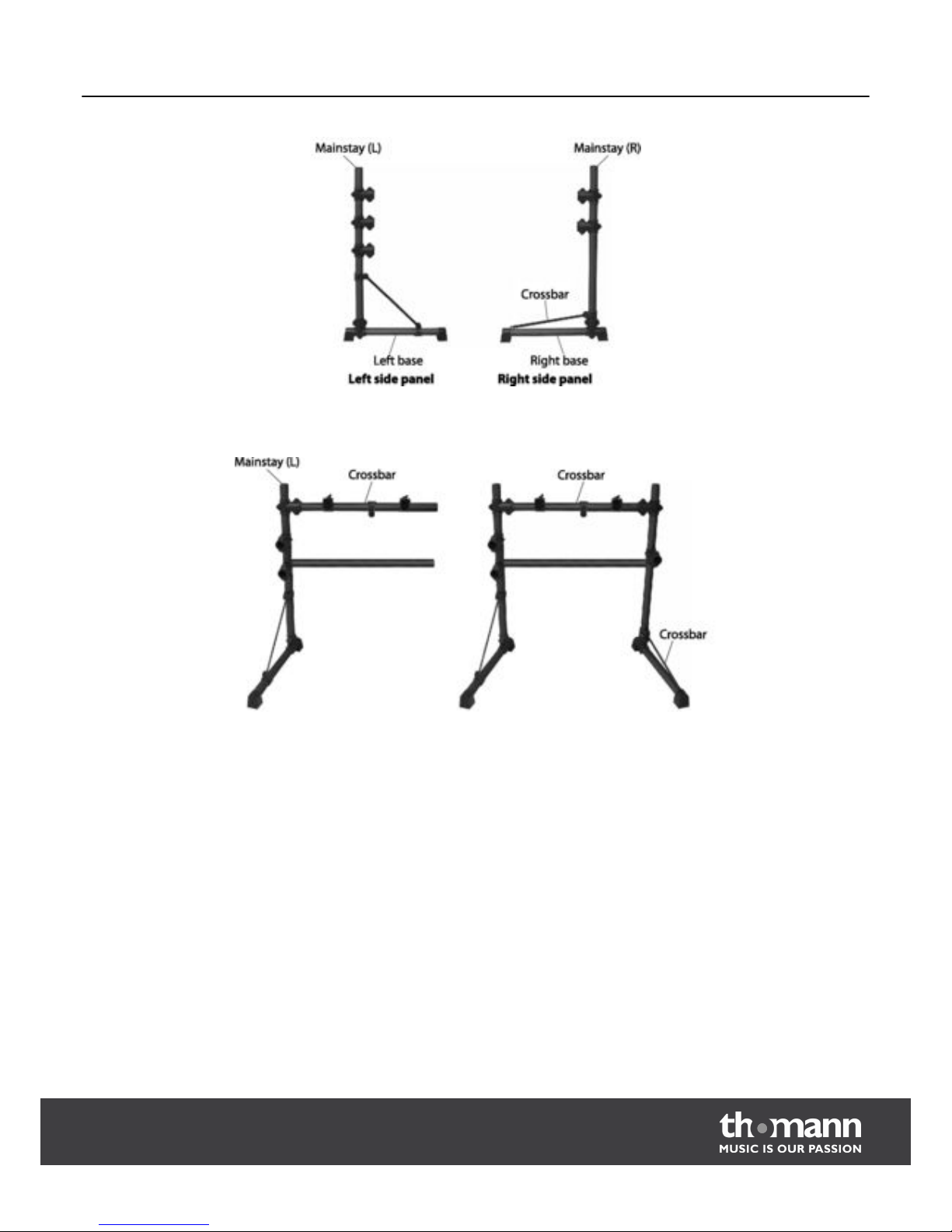

Connect the left side pipe (mainstay L) to the left base and tighten the allen screw with the supplied drum key. Stabilise the unit
with a crossbar (see figure). Then connect the right side pipe (mainstay R) to the right base and tighten the allen screw with the
supplied drum key. Stabilise the unit with a crossbar (see figure).
Connect the upper two clamps of the left and right mainstay using both crossbars of the rack and tighten the allen screws of the
clamps using the supplied drum key (see figure).
Assembly
MPS-400
7
Page 8

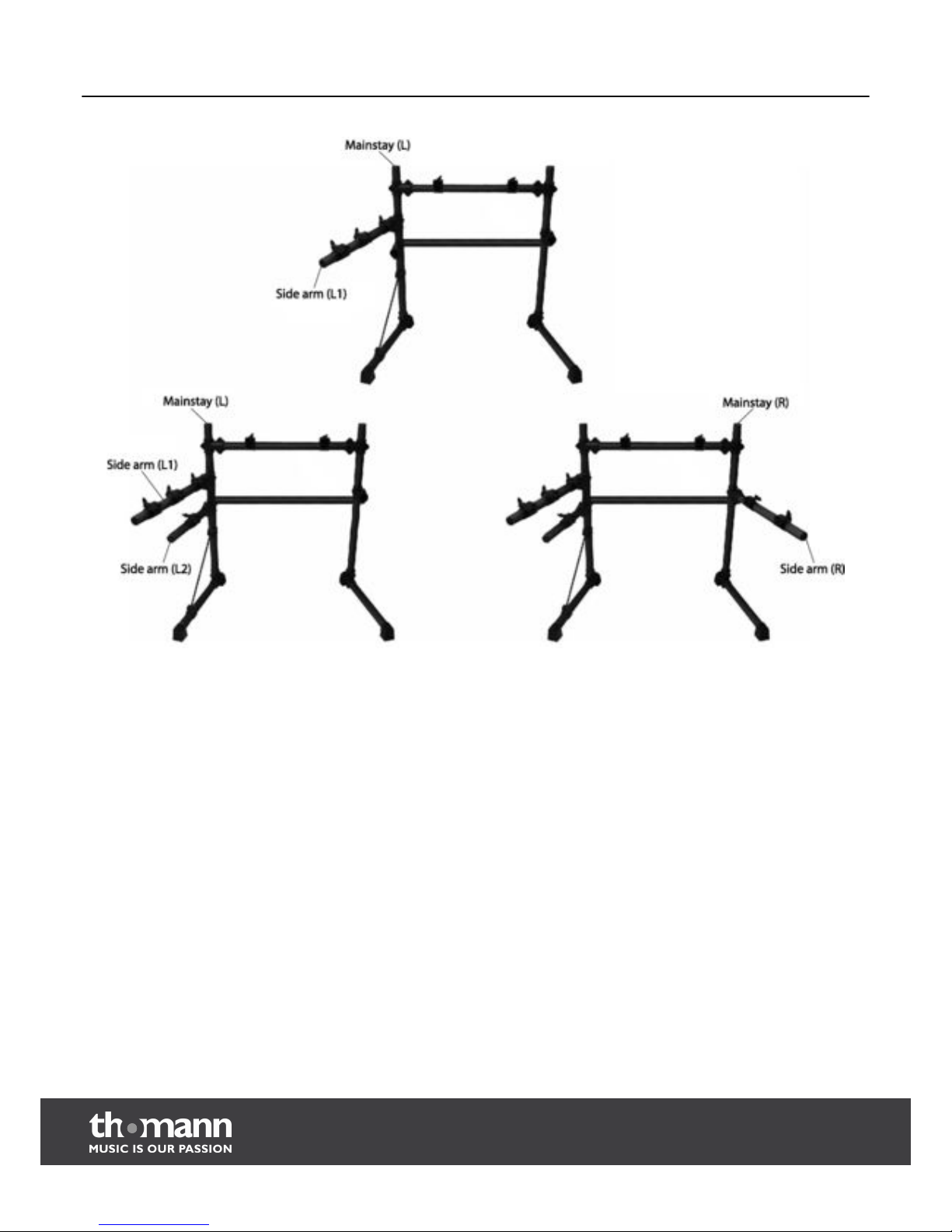

Connect the upper left side arm (L1) to the second clamp. Connect the lower left side arm (L2) to the third clamp of the left main‐
stay. Tighten the allen screw of the clamps firmly using the supplied drum key. Then connect the right side arm (R) to the second
clamp of the right mainstay and tighten the allen screw of the clamp firmly using the supplied drum key.
Assembly
e-drum set
8
Page 9

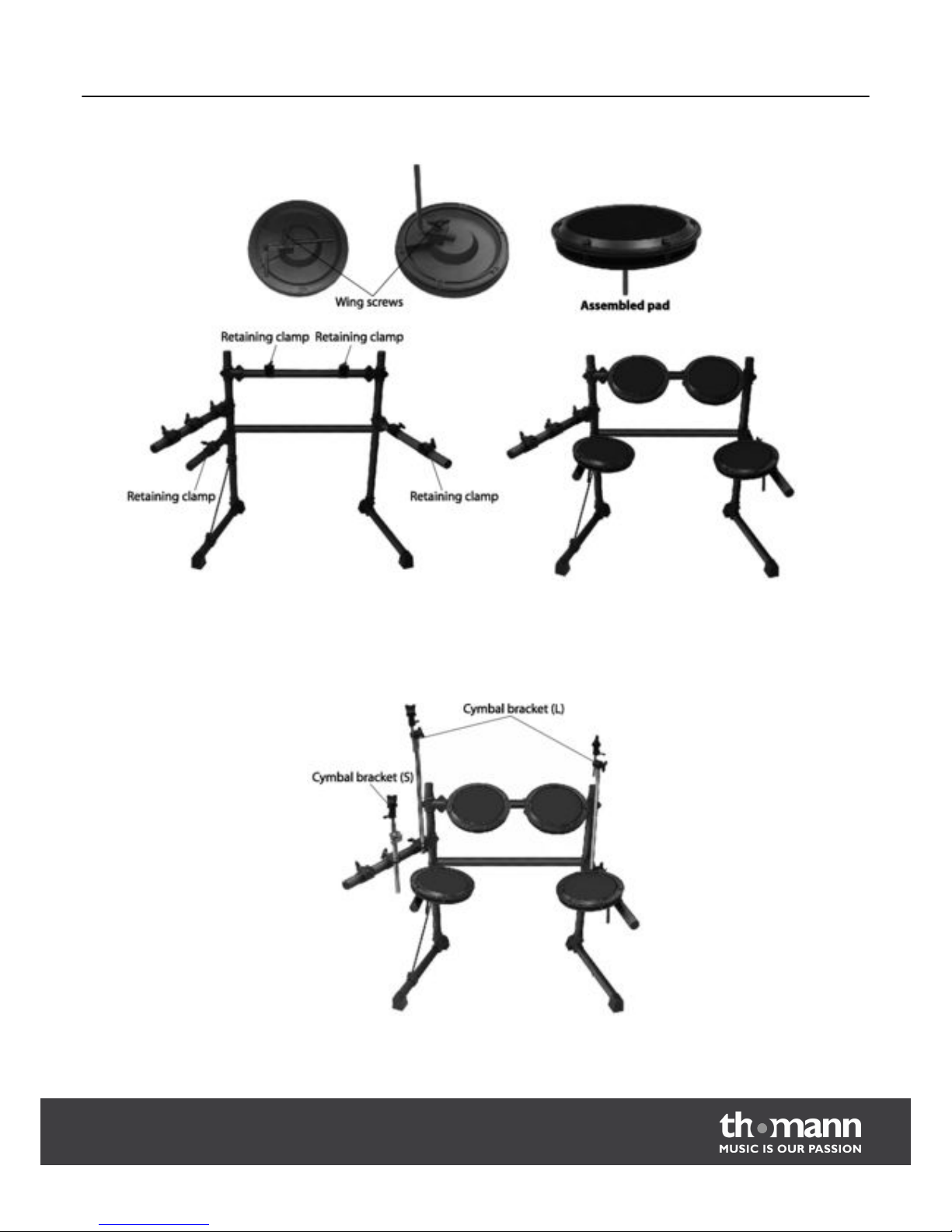

Mounting pads on the rack
Attach the supplied L-pieces to the pads. First, tighten the wing nuts on the pads by hand. Then slide the plastic ends of the Lpieces up to the stop into the designated terminals on the rack (see figure). Align the pads on the rack to meet your needs, then
tighten the wing nuts of the pad brackets and the bolts of the pad terminals on the rack firmly and evenly.
Mounting cymbals on the rack
Assembly
MPS-400
9
Page 10

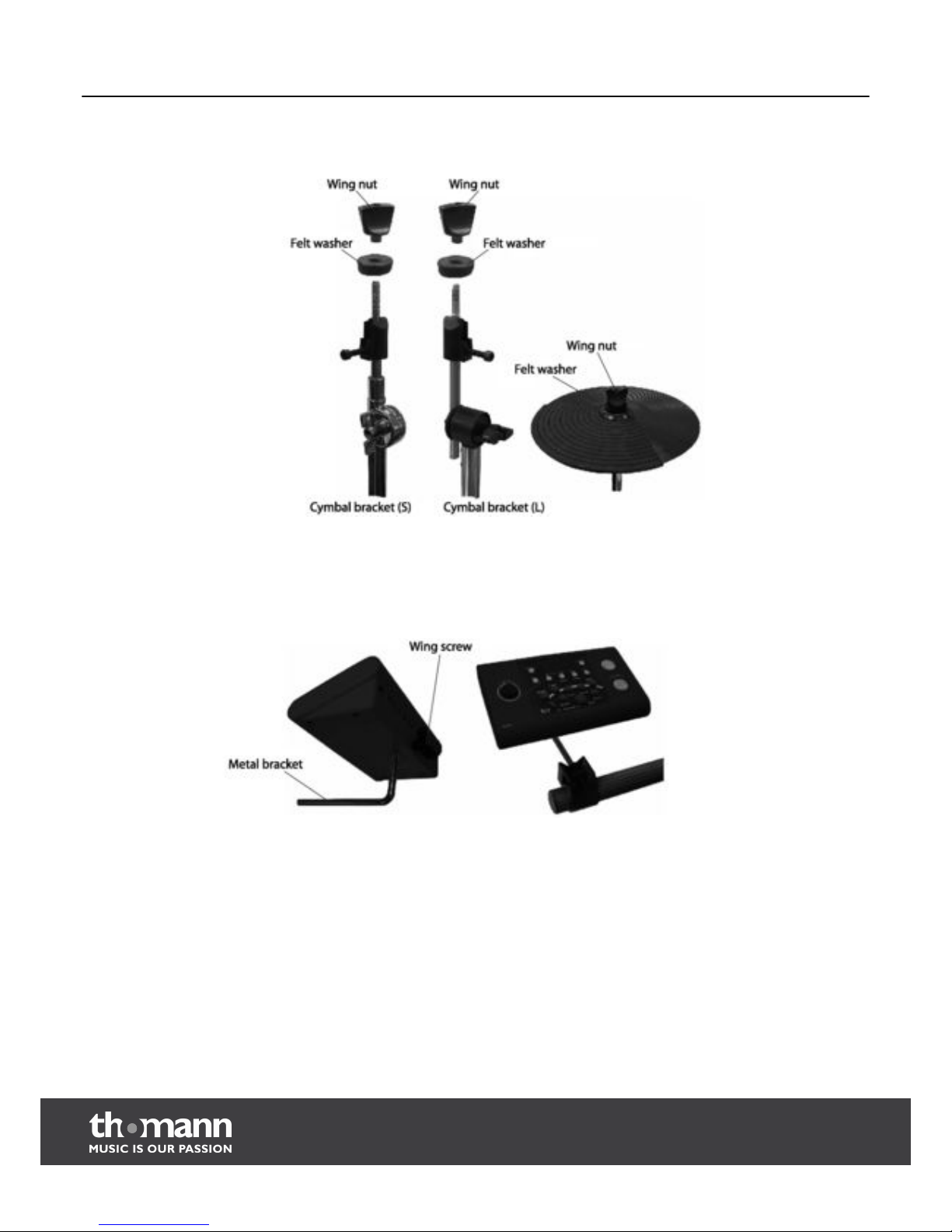

Put the cymbal holders into the designated terminals on the rack (see figure) and tighten the allen screws of the terminals with
the supplied drum key firmly.
Unscrew the wing nuts from the cymbal holders and take the felt washers off the holders. Place the cymbals as shown in the
figure on the holders. Then place the felt washers on the cymbals and tighten the cymbals with the associated wing nuts on the
holders.
Mounting the drum module on the rack
Attach the supplied L-piece to the drum module. Tighten the wing screw of the module hand-tight first. Then slide the plastic end
of the L-piece up to the stop into the designated terminal on the left side arm of the rack (see figure). Align the module on the
rack according to your needs and tighten the wing nut on the module as well as the screw of the pad clamp on the rack firmly
and evenly.
Assembly
e-drum set
10
Page 11

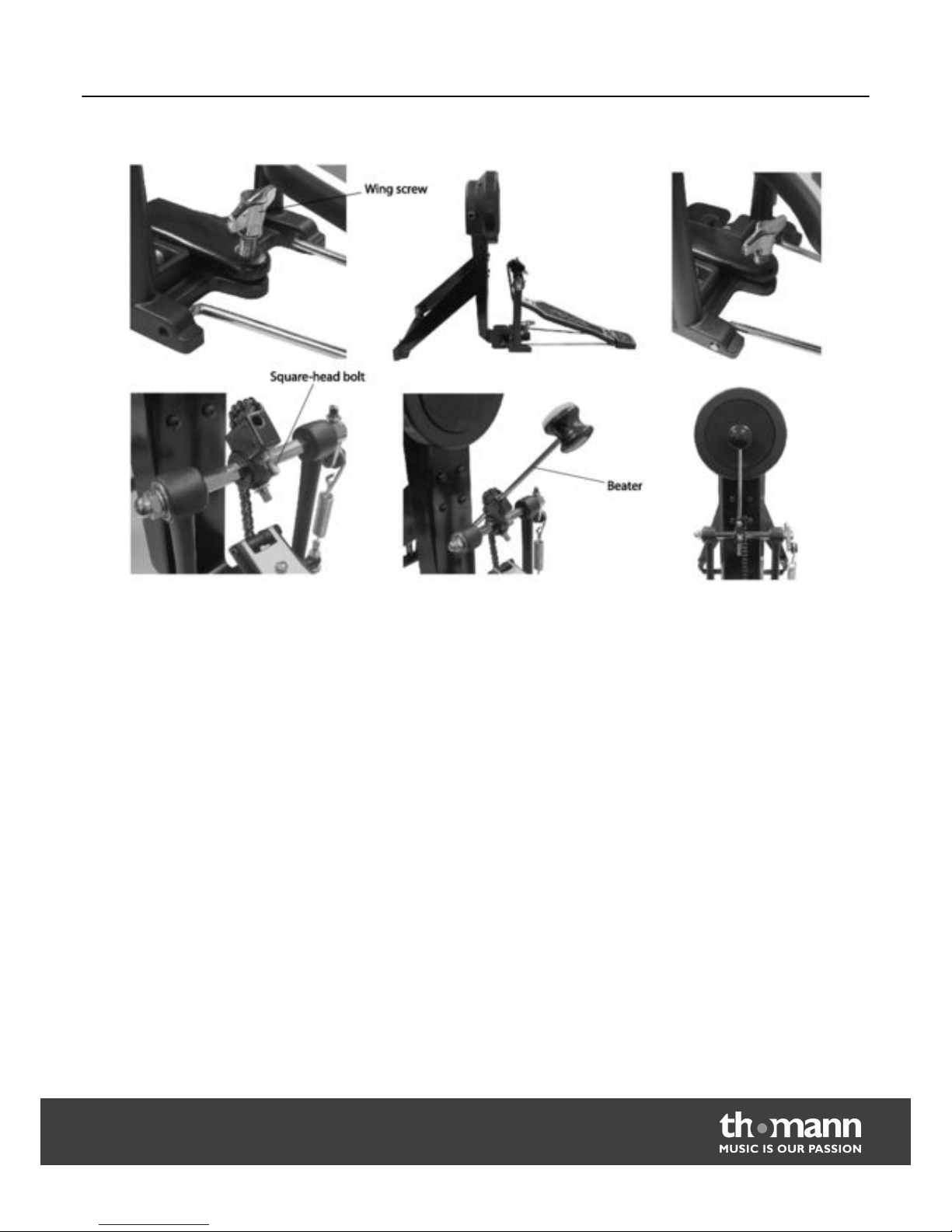

Kick drum pedal and pad
Snap the two metal rods into the holes provided on the frame of the kick drum pedal. Place the beater into the hole provided on
the rotary head of the pedal and tighten the clamp.
Attach the drum pedal with the two screws on the bass drum pad and attach the beater to the pedal (see figure).
Then mount the support device and place the bass drum pad centred under the rack. Position the pedal centred in front of the
pad.
Assembly
MPS-400
11
Page 12

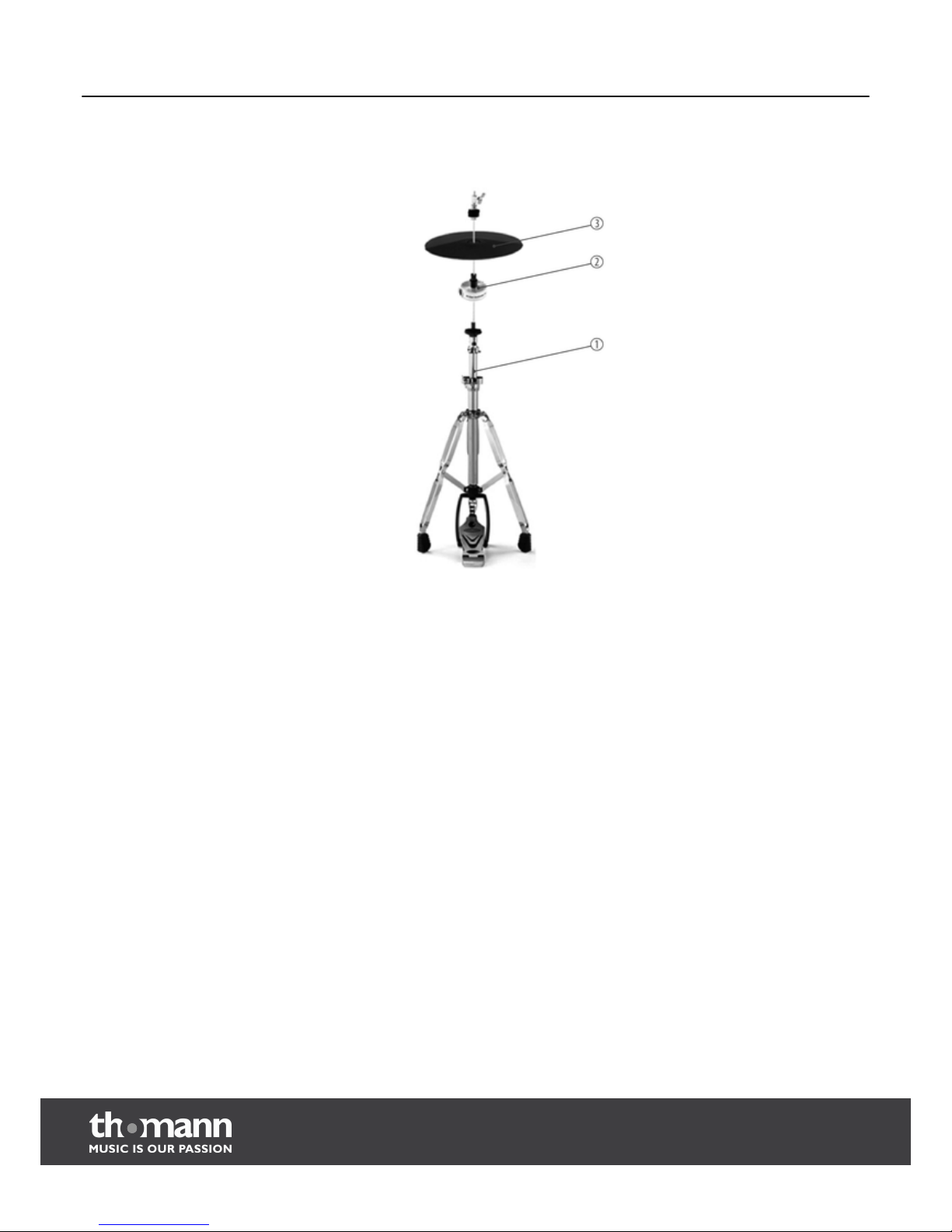

Hi-hat controller Millenium MINE V2.0 (Option)
The Millenium MPS-400 E-Drum Hi-Hat MINE set comes with a hi-hat machine and a hi-hat controller MINE V2.0.
Install the MINE V2.0 (2) — instead of the bottom cymbal — and the top cymbal (3) as shown between the felts on the included
hi-hat machine (1).
Setting up and wiring
Set up the rack, the pads and the cymbals according to your needs. As a final step, all triggers need to be wired to the drum
module. Note the labelling on the drum module and the colour markings of each cable.
Assembly
e-drum set
12
Page 13
4

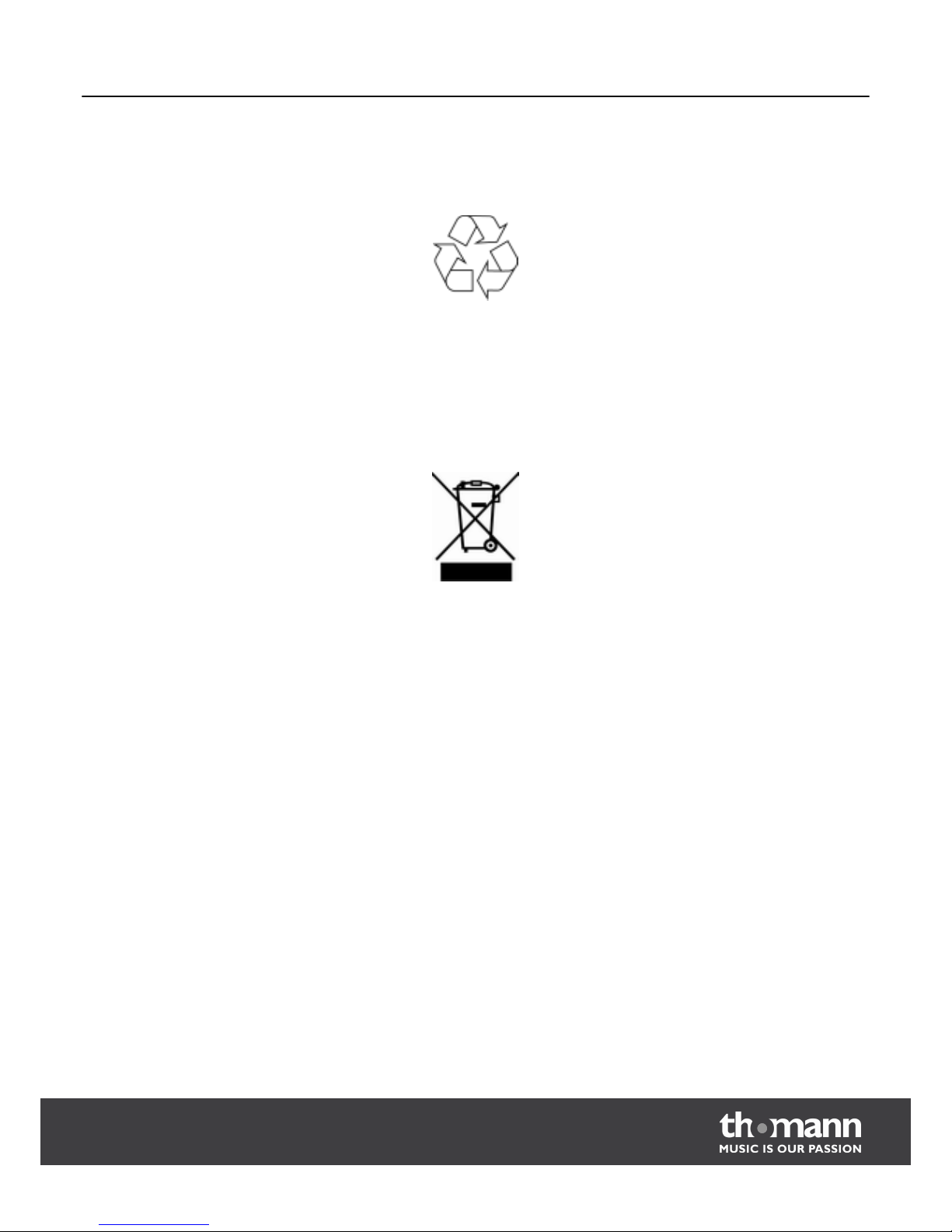

Protecting the environment
Disposal of the packaging material
For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal
recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
Please follow the notes and markings on the packaging.
Disposal of your old device
This device is subject to the European directive 2002/96/EC.
Do not dispose of the device with your normal household waste.
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device,
comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility.
Protecting the environment
MPS-400
13
Page 14
Notes
e-drum set
14
