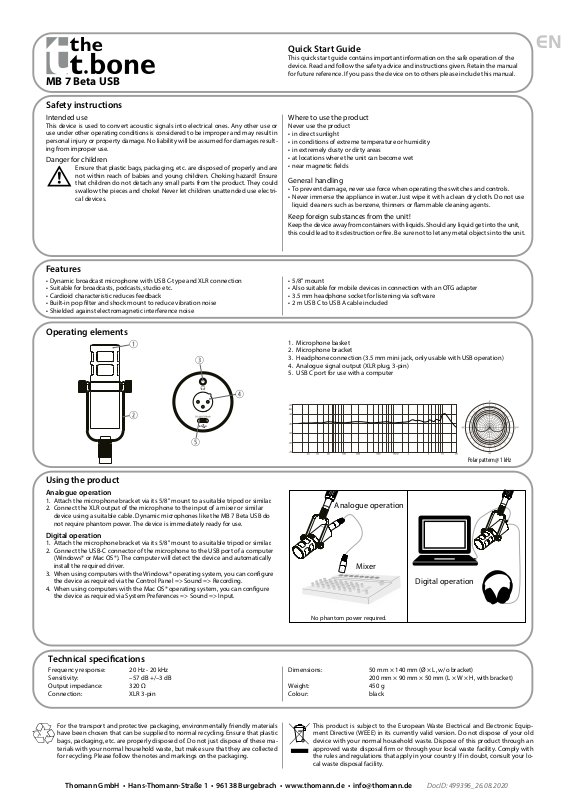

Thomann MB 7 Quick Start Guide

MB 7 Beta USB



Polar pattern @ 1 kHz

Safety instructions

Intended use

This device is used to convert acoustic signals into electrical ones. Any other use or
use under other operating conditions is considered to be improper and may result in
personal injury or property damage. No liability will be assumed for damages result­ing from improper use.

Danger for children

Ensure that plastic bags, packaging, etc. are disposed of properly and are
not within reach of babies and young children. Choking hazard! Ensure
that children do not detach any small parts from the product. They could
swallow the pieces and choke! Never let children unattended use electri­cal devices.

Features

• Dynamic broadcast microphone with USB C-type and XLR connection

• Suitable for broadcasts, podcasts, studio etc.

• Cardioid characteristic reduces feedback

• Built-in pop lter and shock mount to reduce vibration noise

• Shielded against electromagnetic interference noise

Quick Start Guide

This quick start guide contains important information on the safe operation of the
device. Read and follow the safety advice and instructions given. Retain the manual
for future reference. If you pass the device on to others please include this manual.

Where to use the product

Never use the product

• in direct sunlight

• in conditions of extreme temperature or humidity

• in extremely dusty or dirty areas

• at locations where the unit can become wet

• near magnetic elds

General handling

• To prevent damage, never use force when operating the switches and controls.

• Never immerse the appliance in water. Just wipe it with a clean dry cloth. Do not use
liquid cleaners such as benzene, thinners or ammable cleaning agents.

Keep foreign substances from the unit!

Keep the device away from containers with liquids. Should any liquid get into the unit,
this could lead to its destruction or re. Be sure not to let any metal objects into the unit.

• 5/8" mount

• Also suitable for mobile devices in connection with an OTG adapter

• 3.5 mm headphone socket for listening via software

• 2 m USB C to USB A cable included

EN

Operating elements









Using the product

Analogue operation

1. Attach the microphone bracket via its 5/8" mount to a suitable tripod or similar.

2. Connect the XLR output of the microphone to the input of a mixer or similar
device using a suitable cable. Dynamic microphones like the MB 7 Beta USB do
not require phantom power. The device is immediately ready for use.

Digital operation

1. Attach the microphone bracket via its 5/8" mount to a suitable tripod or similar.

2. Connect the USB-C connector of the microphone to the USB port of a computer
(Windows® or Mac OS®). The computer will detect the device and automatically
install the required driver.

3. When using computers with the Windows® operating system, you can congure
the device as required via the Control Panel => Sound => Recording.

4. When using computers with the Mac OS® operating system, you can congure
the device as required via System Preferences => Sound => Input.

1. Microphone basket

2. Microphone bracket

3. Headphone connection (3.5 mm mini jack, only usable with USB operation)

4. Analogue signal output (XLR plug, 3-pin)

5. USB C port for use with a computer

Analogue operation

Mixer

Digital operation

No phantom power required.

Technical specications

Frequency response: 20Hz - 20kHz
Sensitivity: –57dB +/–3dB
Output impedance: 320Ω
Connection: XLR 3-pin

For the transport and protective packaging, environmentally friendly materials
have been chosen that can be supplied to normal recycling. Ensure that plastic
bags, packaging, etc. are properly disposed of. Do not just dispose of these ma­terials with your normal household waste, but make sure that they are collected
for recycling. Please follow the notes and markings on the packaging.

Thomann GmbH • Hans-Thomann-Straße 1 • 96138 Burgebrach • www.thomann.de • [e-mail] DocID: 499396_26.08.2020

Dimensions: 50 mm×140 mm (Ø×L, w/o bracket)
200 mm×90 mm×50mm (L×W×H, with bracket)
Weight: 450g
Colour: black

This product is subject to the European Waste Electrical and Electronic Equip­ment Directive (WEEE) in its currently valid version. Do not dispose of your old
device with your normal household waste. Dispose of this product through an
approved waste disposal rm or through your local waste facility. Comply with
the rules and regulations that apply in your country. If in doubt, consult your lo­cal waste disposal facility.
