Page 1
GF-3000
Ground Fog Machine
user manual
Page 2
Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: +49 (0) 9546 9223-0
E-mail: [email protected]
Internet: www.thomann.de
19.08.2015, ID: 358342
Page 3
Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 7
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 15
4 Installation.................................................................................................................................................. 16
5 Connections and operating elements........................................................................................... 17
6 Operating.................................................................................................................................................... 19
7 Technical specifications....................................................................................................................... 22
8 Troubleshooting...................................................................................................................................... 23
9 Cleaning....................................................................................................................................................... 24
10 Protecting the environment.............................................................................................................. 27
Table of contents
GF-3000
3
Page 4
1 General information
This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to
change.
General information
Ground Fog Machine
4
Page 5
1.1 Further information
On our website (www.thomann.de) you will find lots of further information and details on the
following points:
Download This manual is also available as PDF file for you to download.
Keyword search
Use the search function in the electronic version to find the topics of
interest for you quickly.
Online guides
Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service
If you have any problems with the device the
customer service will gladly assist you.
General information
GF-3000
5
Page 6
1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
The individual steps of an instruction are numbered consecutively. The result of a step is
indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ð
Automatic operation is started.
3. Switch off the device.
Letterings
Instructions
General information
Ground Fog Machine
6
Page 7
1.3 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
General information
GF-3000
7
Page 8

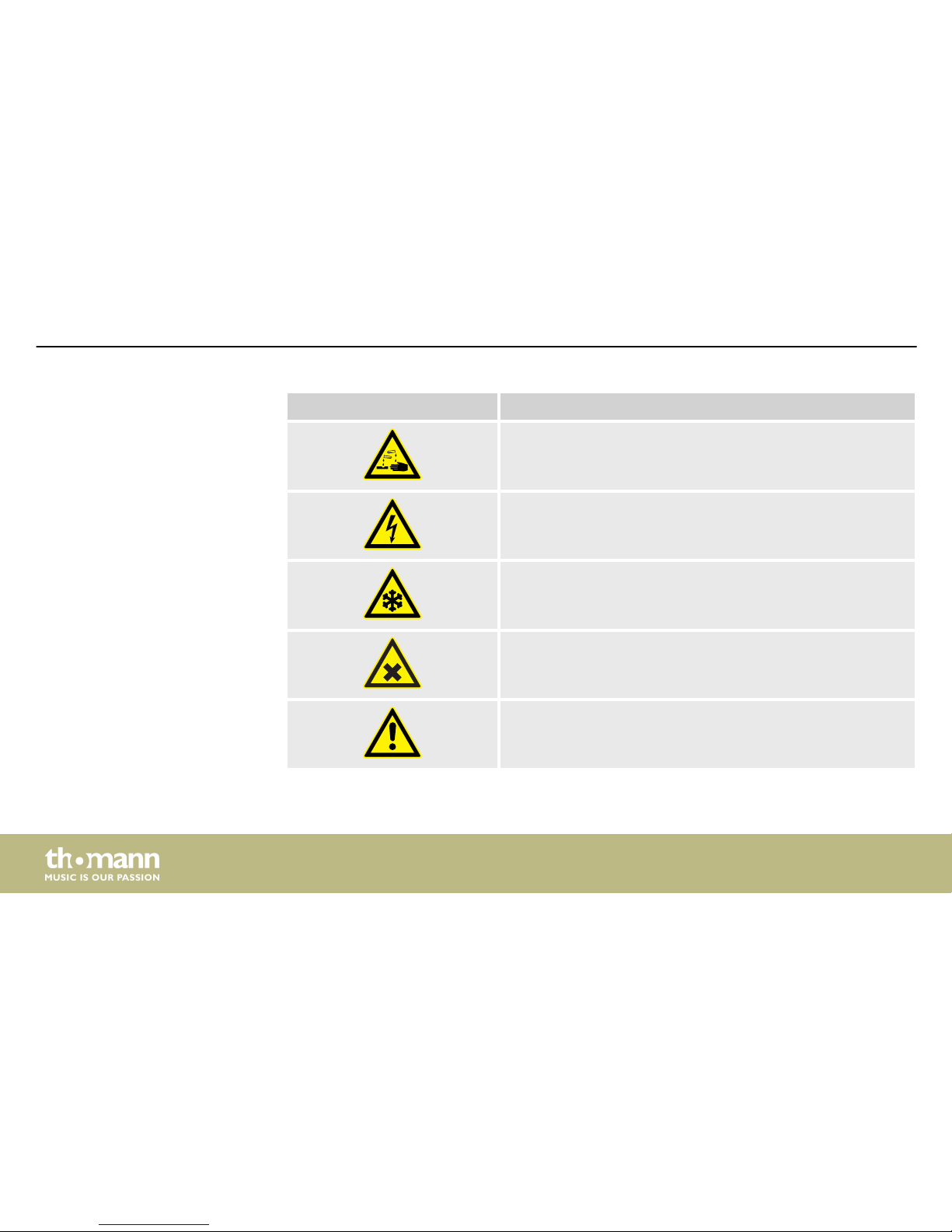

Warning signs Type of danger
Warning – corrosive substances.
Warning – high-voltage.
Warning – extreme cold.
Warning – harmful or irritating substances.
Warning – danger zone.
General information
Ground Fog Machine
8
Page 9
2 Safety instructions
This device is intended for generating artificial fog by evaporation of dry ice in hot water. The
device is designed for professional use and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Intended use
Safety instructions
GF-3000
9
Page 10
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Safety
Safety instructions
Ground Fog Machine
10
Page 11
DANGER!
Electric shock caused by short-circuit
Do not modify the mains cable or the plug. Failure to do so could result in electric
shock/death or fire. If in doubt, seek advice from a registered electrician.
WARNING!
Danger of frostbite when handling dry ice
Dry ice is frozen carbon dioxide (CO2) at a temperature of –87,5 °C . Direct contact
of dry ice with the skin causes severe frostbite.
Never touch dry ice with bare hands. When handling dry ice, wear suitable pro‐
tective gloves and ensure appropriate eye protection.
If you break up large blocks of dry ice, cover them first with a towel or a cloth bag.
Safety instructions
GF-3000
11
Page 12

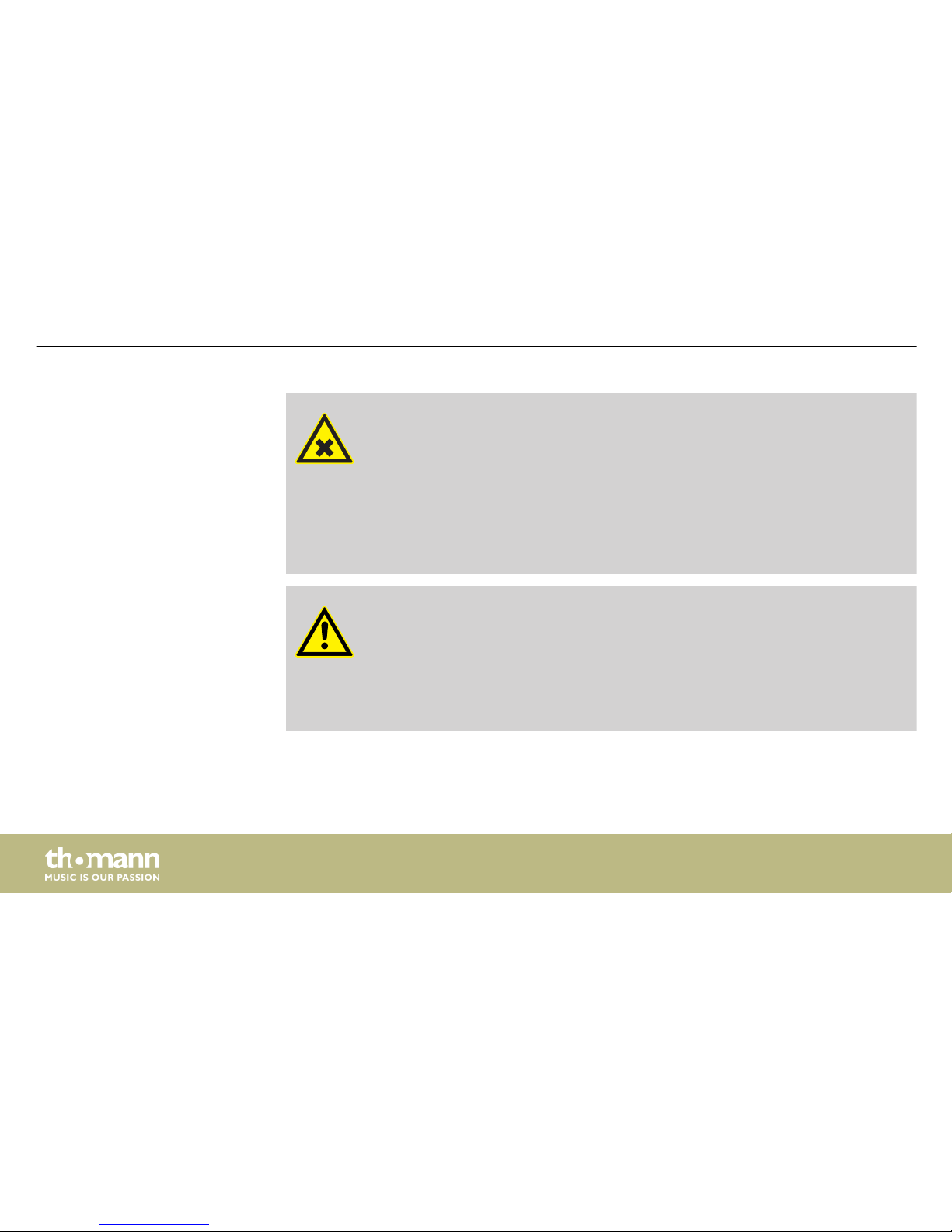

WARNING!
Danger of suffocation on storage of dry ice
Gaseous carbon dioxide in high concentrations causes suffocation. Even low con‐
centrations can lead to circulatory insufficiency, headache, unconsciousness,
nausea or vomiting.
Keep dry ice containers in a well ventilated area where children can not gain
access.
WARNING!
Danger of slipping from condensed water
Dripping condensation may cause the area around the device to be slippery.
Check regularly that all floors can be accessed without slipping and remove the
condensed water, if necessary.
Safety instructions
Ground Fog Machine
12
Page 13
NOTICE!
Risk of fire
Do not cover the device nor any ventilation slots. Do not place the device near
any direct heat source. Keep the device away from naked flames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Safety instructions
GF-3000
13
Page 14
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react
with the coating of your parquet, linoleum, laminate or PVC floor and after some
time cause permanent dark stains.
In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad
floor protectors or a carpet.
Safety instructions
Ground Fog Machine
14
Page 15
3 Features
This fog machine is suitable for use in clubs, bars, discotheques and on stages
Special features of the device:
n High efficiency heating element
n Large water tank
n Robust housing
Features
GF-3000
15
Page 16
4 Installation
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
Place the unit on a flat, non-flammable, solid surface in a well ventilated area.
Installation
Ground Fog Machine
16
Page 17

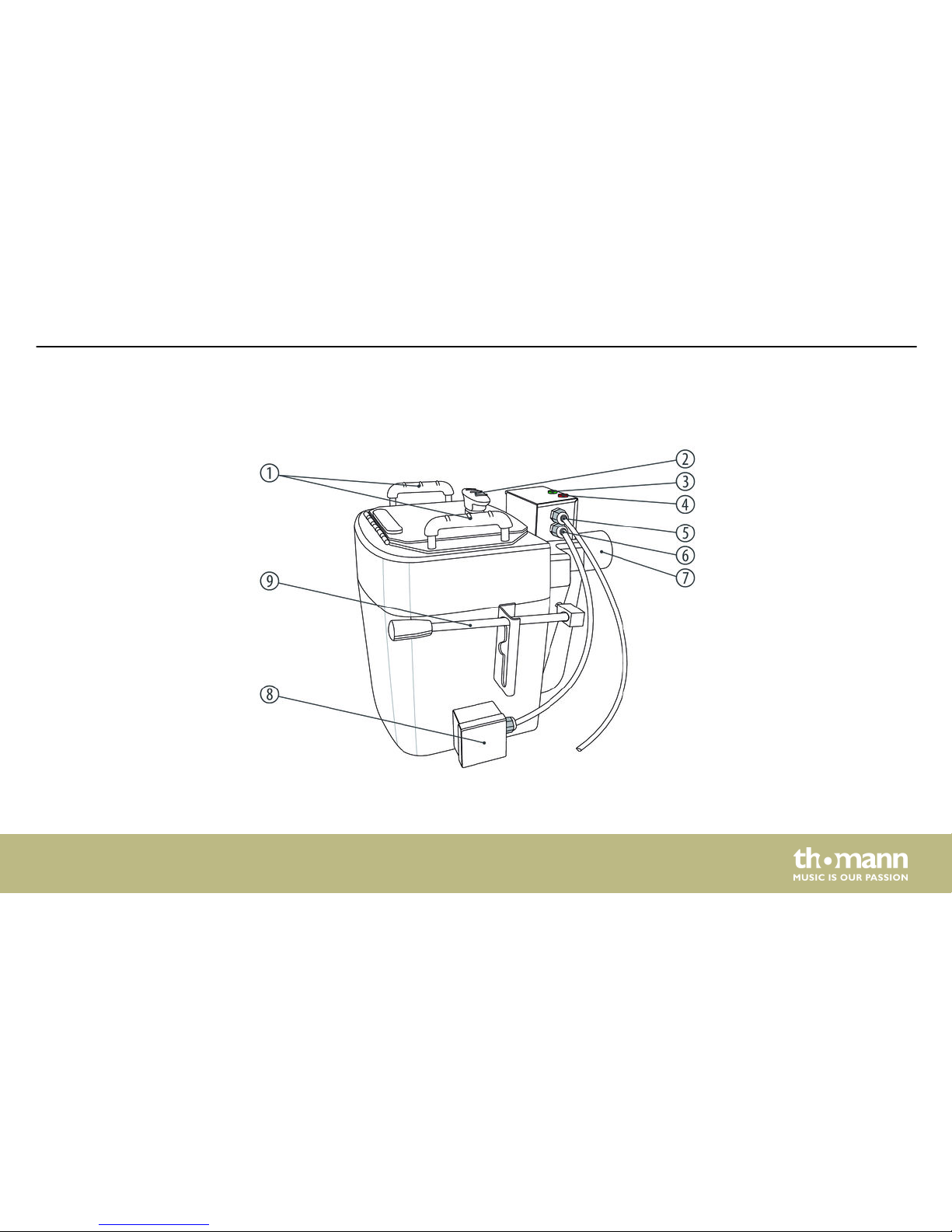

5 Connections and operating elements
Connections and operating elements
GF-3000
17
Page 18
1 Carrying handles.
2 Lid fastening.
3 [READY]
Green indicator light. Indicates that the filled in water has the required operating temperature.
4 [HEATING]
Red indicator light. Lights when the unit is heating up.
5 Mains cable for power supply.
6 Connecting cable to the heating element.
7 Fog nozzle.
8 Heating element.
9 Lever for raising and lowering the ice bin.
Connections and operating elements
Ground Fog Machine
18
Page 19
6 Operating
WARNING!
Danger of frostbite when handling dry ice
Dry ice is frozen carbon dioxide (CO2) at a temperature of –87,5 °C . Direct contact
of dry ice with the skin causes severe frostbite.
Never touch dry ice with bare hands. When handling dry ice, wear suitable pro‐
tective gloves and ensure appropriate eye protection.
If you break up large blocks of dry ice, cover them first with a towel or a cloth bag.
NOTICE!
Fire hazard
Do not operate the machine unattended.
1. Make sure the unit is disconnected from the mains.
Open the lid fastening (2) and open the lid.
Turn on the device
Operating
GF-3000
19
Page 20
2. Lift the ice bin with the lever (8) and lock the lever in the highest position (marked with
[0] ).
3. Fill the tank with 5 litres of cold water. The water level must be below the ice bin when
the lever (8) is in the highest position ([0]).
4. Connect the device to the power grid.
ð
The red indicator light (4) comes on to indicate that the unit is heating up. When the
red indicator light is not lit check the water level and top up water if necessary.
5. Carefully fill the ice bin with dry ice. It holds 2.2 kg.
If ice particles lie on the edge of the supply tank, wipe the edge clean with a cloth.
6. Fold down the lid and close the lid fastening.
7. Wait until the green indicator light (3) comes on. Now the water has reached the
required temperature for fog generation. When the water cools down too much during
operation, the heating is switched back on and the red indicator light (4) comes on.
Lower the ice bin slowly with the lever (8) down to the middle position ([1]) so that the
dry ice gets in contact with the hot water. As a result, the solid carbon dioxide evapo‐
rates immediately and releases clouds of steam emerging from the fog nozzle (7). When
the fog output decreases, you can lower the ice bin cautiously.
8. When water and dry ice are used up, you can refill the unit.
Operating
Ground Fog Machine
20
Page 21
When operating, always ensure that there is sufficient water in the supply tank to avoid noload running.
Disconnect the device from the mains. Transport the device only when it is completely cooled
down. To avoid leaking water during transport, you should transport the device only with
empty supply tank.
Operation
Turning the unit off
Operating
GF-3000
21
Page 22
7 Technical specifications
Heater power 2200 W
Water container capacity 8.2 l
Dry ice bin capacity 2.2 kg
Warm-up time approx. 15 min
Operating supply voltage
AC 230 V , 50 Hz
Power consumption 2530 W
Dimensions (W × H × D) 415 mm × 360 mm × 350 mm
Weight 7.55 kg
Technical specifications
Ground Fog Machine
22
Page 23
8 Troubleshooting
In the following we list a few common problems that may occur during operation. We give you
some suggestions for easy troubleshooting:
Symptom Remedy
Although the device is connected to the mains,
none of the indicator lights come on.
1. Check the mains connection and the main fuse.
2. Check the water level. Fill in so much water, that the water level sensor in the
supply tank is completely under water.
No fog output 1. When the red indicator light is lit, the unit is still heating up. Wait until the
green indicator light lights up.
2. Check the fluid level in the supply tank.
3. Check the fluid level in the dry ice bin.
If the procedures recommended above do not succeed, please contact our Service Center. You
can find the contact information at www.thomann.de.
Troubleshooting
GF-3000
23
Page 24
9 Cleaning
Clean the externally accessible device parts regularly. The frequency of cleaning depends on
the operating environment: wet, smoky or particularly dirty surroundings can cause more
accumulation of dirt on the device parts.
n Clean with a soft dry cloth.
n Stubborn stains may be removed with a slightly damp cloth.
n Never use cleaners containing alcohol or thinner.
Components
Cleaning
Ground Fog Machine
24
Page 25
WARNING!
Possible cauterization by descaling agent
Descaling agents contain caustic substances that can damage eyes and skin on
direct contact.
Wear protective gloves when using descaling agents. When using descaling
agents follow the instructions and safety precautions of the descaling agent.
If eyes or skin have come in contact with descaling agent wash it off immediately
with clear water. In case of contact with eyes, see a doctor. If swallowed, seek
medical advice immediately and show the packaging or label.
The appliance should be descaled regularly. This shortens the heating time and reduces the
energy consumption. The frequency depends on the hardness of the water used. For descaling
we recommend commercially available liquid descaler for household use.
1. Make sure the unit is disconnected from the mains.
Open the lid fastening (2) and open the lid.
2. Fill the tank with 5 litres of cold water.
3. Connect the device to the power grid.
Descaling
Cleaning
GF-3000
25
Page 26
ð
The red indicator light (4) comes on to indicate that the unit is heating up.
4. Fold down the lid and close the lid fastening.
5. Wait until the green indicator light (3) comes on. Now the water has reached the
required temperature.
6. Disconnect the device from the mains (pull the mains plug).
7. Open the lid fastening (2) and open the lid.
Fill one portion of the descaling agent (dosage according to manufacturer's instructions)
into the supply tank.
8. Fold down the lid and close the lid fastening.
9. Lower the ice bin with the lever (8) down to the lowest position ([2]).
10. Wait about 60 minutes.
11. Open the lid fastening (2) and open the lid.
Pour the mixture out of the supply tank.
12. Rinse the supply tank at least twice with clear water.
Cleaning
Ground Fog Machine
26
Page 27
10 Protecting the environment
For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that
they are collected for recycling. Please follow the notes and markings on the packaging.
This product is subject to the European Waste Electrical and Electronic Equipment Directive
(WEEE). Do not dispose with your normal household waste.
Dispose of this device through an approved waste disposal firm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.
Disposal of the packaging mate‐
rial
Disposal of your old device
Protecting the environment
GF-3000
27
Page 28
Notes
Ground Fog Machine
28
Page 29
Notes
GF-3000
29
Page 30
Notes
Ground Fog Machine
30
Page 31
Page 32
Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de
Loading...
