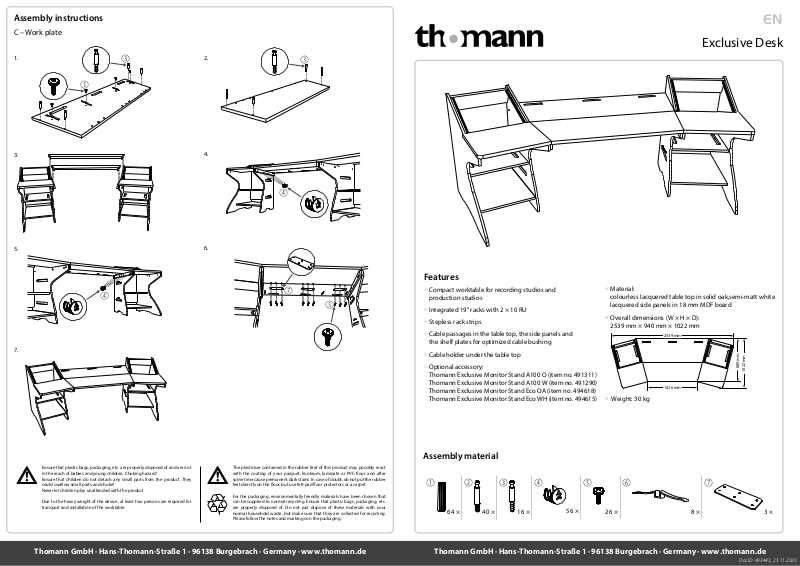

Assembly instructions

C – Work plate

1.

$

2.

&

3.

4.

5.

6.

%

7.

EN

Exclusive Desk

$

%





Features





(



Compact worktable for recording studios and

Material:





&

production studios

colourless lacquered table top in solid oak,semi-matt white



Integrated 19" racks with 2 × 10 RU

lacquered side panels in 18 mm MDF board







Overall dimensions (W × H × D):







Stepless rack strips







2539 mm × 940 mm × 1022 mm















Cable passages in the table top, the side panels and

2539 mm







the shelf plates for optimized cable bushing









Cable holder under the table top

<![if ! IE]>

<![endif]>889 mm

<![if ! IE]>

<![endif]>1022mm





Optional accessory:













Thomann Exclusive Monitor Stand A100 O (item no. 491311)









Thomann Exclusive Monitor Stand A100 W (item no. 491290)

1026 mm







Thomann Exclusive Monitor Stand Eco OA (item no. 494618)















Thomann Exclusive Monitor Stand Eco WH (item no. 494615)

Weight: 30 kg



Ensure that plastic bags, packaging, etc. are properly disposed of and are not in the reach of babies and young children. Choking hazard!

Ensure that children do not detach any small parts from the product. They could swallow small parts and choke!

Never let children play unattended with the product

Due to the heavy weight of the device, at least two persons are required for transport and installation of the worktable.

The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC oor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the oor, but use felt-pad oor protectors or a carpet.

For the packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. Please follow the notes and markings on the packaging.

Assembly material

Ö

#

$ %

&

'



(

64 ×

40 ×

16 ×

56 ×

26 ×

8 ×

3 ×

Thomann GmbH · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de

Thomann GmbH · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de

DocID: 493443_25.11.2020

Assembly instructions

A – Left side panel

1.

2.

3.

4.

#

5.

Ö

Ö

#

%









&

6.

7.

8.

9.

10.

'



#

%







Ö



%

%



%







11. 12. 13. 14. 15.



$

%

%



B – Right side panel

The assembly of the right side panel is analogous to ‘A - Left side panel’, but mirror-inverted.
