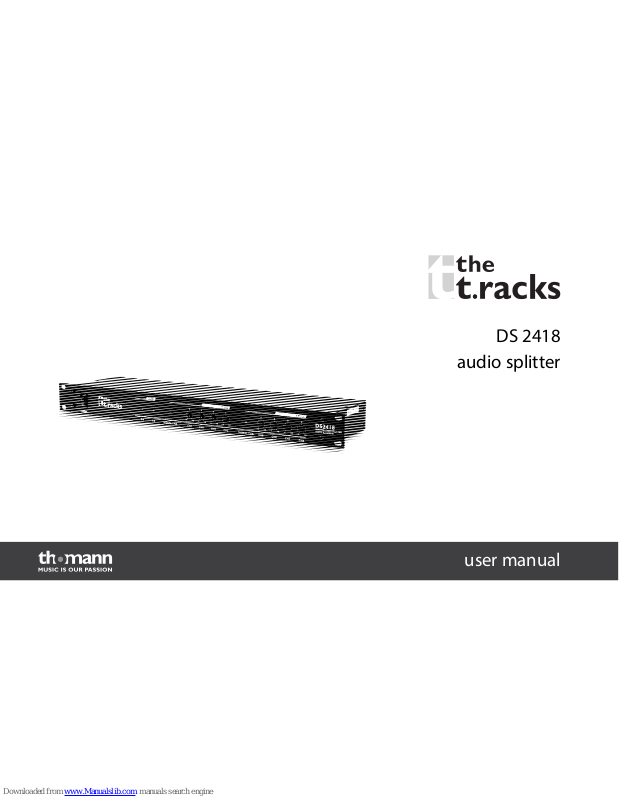

Page 1
DS 2418
audio splitter
user manual
Page 2
Musikhaus Thomann e. K.
Treppendorf 30
96138 Burgebrach
Germany
Telephone: +49 (0) 9546 9223-0
E-mail: info@thomann.de
Internet: www.thomann.de
22.06.2012
Page 3
Table of contents
1 General notes............................................................................................................................................... 4
2 Safety instructions..................................................................................................................................... 7
3 Features....................................................................................................................................................... 12
4 Installation and starting up................................................................................................................ 13
4.1 Pin assignment.................................................................................................................................. 13
5 Connections and operating elements........................................................................................... 15
6 Technical specifications....................................................................................................................... 21
7 Protecting the environment.............................................................................................................. 23
Table of contents
DS 2418
3
Page 4
1
General notes
This user manual contains important information on safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to other users, be sure
that they also receive this manual.
Our products are subject to a process of continuous development. We therefore reserve the
right to make changes without notice.
This section provides an overview of the symbols and signal words used in this user manual.Symbols and signal words
General notes
audio splitter
4
Page 5
Signal word Meaning
DANGER! This combination of symbol and signal word
indicates an immediate dangerous situation
that will result in death or serious injury if it is
not avoided.
CAUTION! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in minor injury if it is not avoided.
NOTICE! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in material and environmental
damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
General notes
DS 2418
5
Page 6
Warning signs Type of danger
Warning – danger zone.
General notes
audio splitter
6
Page 7
2
Safety instructions
This device is intended to be used to distribute incoming audio signals to several device
internal outputs. Use the device only as described in this user manual. Any other use or use
under other operating conditions is considered to be improper and may result in personal
injury or property damage. No liability will be assumed for damages resulting from improper
use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Intended use
Safety instructions
DS 2418
7
Page 8
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Safety
Safety instructions
audio splitter
8
Page 9
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a pro‐
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or fire. If in doubt, seek advice from a regis‐
tered electrician.
CAUTION!
Possible hearing damage
With loudspeakers or headphones connected, the device can produce volume
levels that may cause temporary or permanent hearing impairment.
Do not operate the device permanently at a high volume level. Decrease the
volume level immediately if you experience ringing in your ears or hearing
impairment.
Safety instructions
DS 2418
9
Page 10
NOTICE!
Risk of fire
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked flames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Safety instructions
audio splitter
10
Page 11
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
Safety instructions
DS 2418
11
Page 12
3
Features
n Two operation modes (2 in 4 & 1 in 8) switchable
n Eight separately controllable outputs
n Two link outputs
n XLR in and outputs
n Efficient circuit design for minimum distortion and lowest noise level
n 19" housing (1 RU), installation depth 12 cm
Features
audio splitter
12
Page 13
4
Installation and starting up
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the device against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Establish all connections as long as the unit is switched off. Use the shortest possible highquality cables for all connections.
The unit has been designed for rack mounting in a standard 19-inch rack; it occupies one rack
unit.
4.1
Pin assignment
You can use XLR connectors with either balanced or unbalanced wiring.
Rack mounting
Installation and starting up
DS 2418
13
Page 14

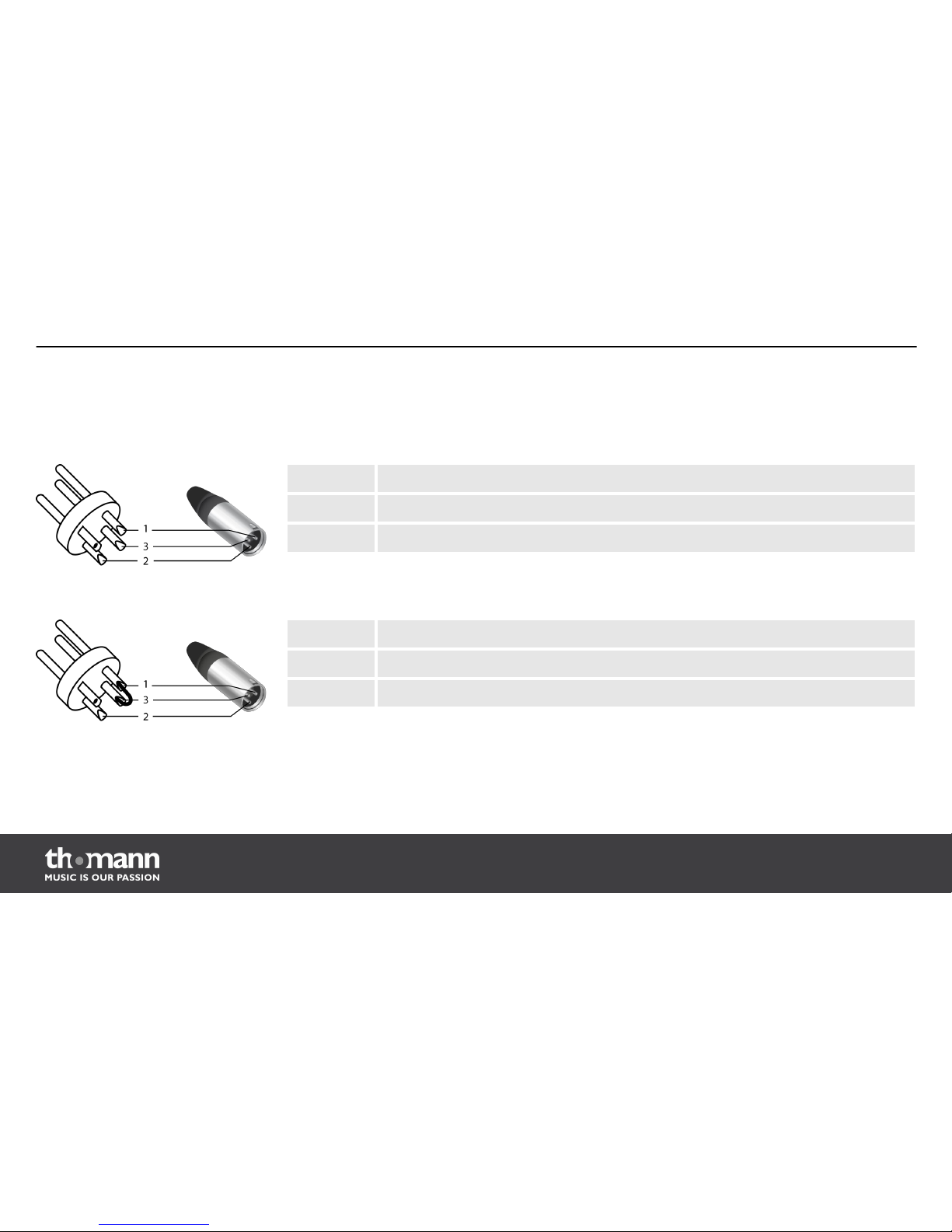

XLR mounting sockets are provided for signal inputs. XLR mounting plugs are provided for
signal outputs. Drawings and descriptions explain the pin assignment.
Balanced wiring:
1 Ground, shielding
2 Positive signal (+)
3 Negative signal (–)
Unbalanced wiring:
1 Ground, shielding
2 Signal
3 Bridged with Pin 1
XLR connection for signal in and
outputs
Installation and starting up
audio splitter
14
Page 15
5
Connections and operating elements
POWER
ö # &
MODE LEVEL LEVEL
2-4 1-8 SIGNAL CHA CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8SIGNAL CHA
0
-∞+
6
0
-∞+
6
0
-∞+
6
0
-∞+
6
0
-∞+
6
0
-∞+
6
0
-∞+
6
0
-∞+
6
DS2418
DISTRIBUTION SPLITTER
2 INTO 4/1 INTO 8
$ % ' (
Front panel
Connections and operating elements
DS 2418
15
Page 16
1 Mains switch to turn the unit on or off.
2 Indicator LED for operating mode 2–4
In this mode, the audio signals on INPUT CHA and INPUT CHB are distributed to the associated outputs CH1 to CH4
and CH5 to CH8 (stereo operation).
3 Indicator LED for operating mode 1–8
In this mode, the audio signal on INPUT CHA or INPUT CHB is distributed to all outputs (CH1 to CH8, mono operation).
4 Indicator LED SIGNAL CHA
This LED lights up when channel A receives an audio signal with a level above 40 mV.
5 CH1 – CH4
Level control for channels 1 to 4. Use these controls to adjust the output signal channel-related in a range of 0 to
+6 dB.
Connections and operating elements
audio splitter
16
Page 17
6 Indicator LED SIGNAL CHB
This LED lights up when channel B receives an audio signal with a level above 40 mV.
7 CH5 – CH8
Level control for channels 5 to 8. Use these controls to adjust the output signal channel-related in a range of 0 to
+6 dB.
Connections and operating elements
DS 2418
17
Page 18
CH8 CH7 CH6 CH5 CH4MODE CH3 CH2 CH1INPUTLINK
CHB
INPUTLINK
CHA
2-4
1-8
USE ONLY WITH A 250 V FUSE
* + . /, 0) -

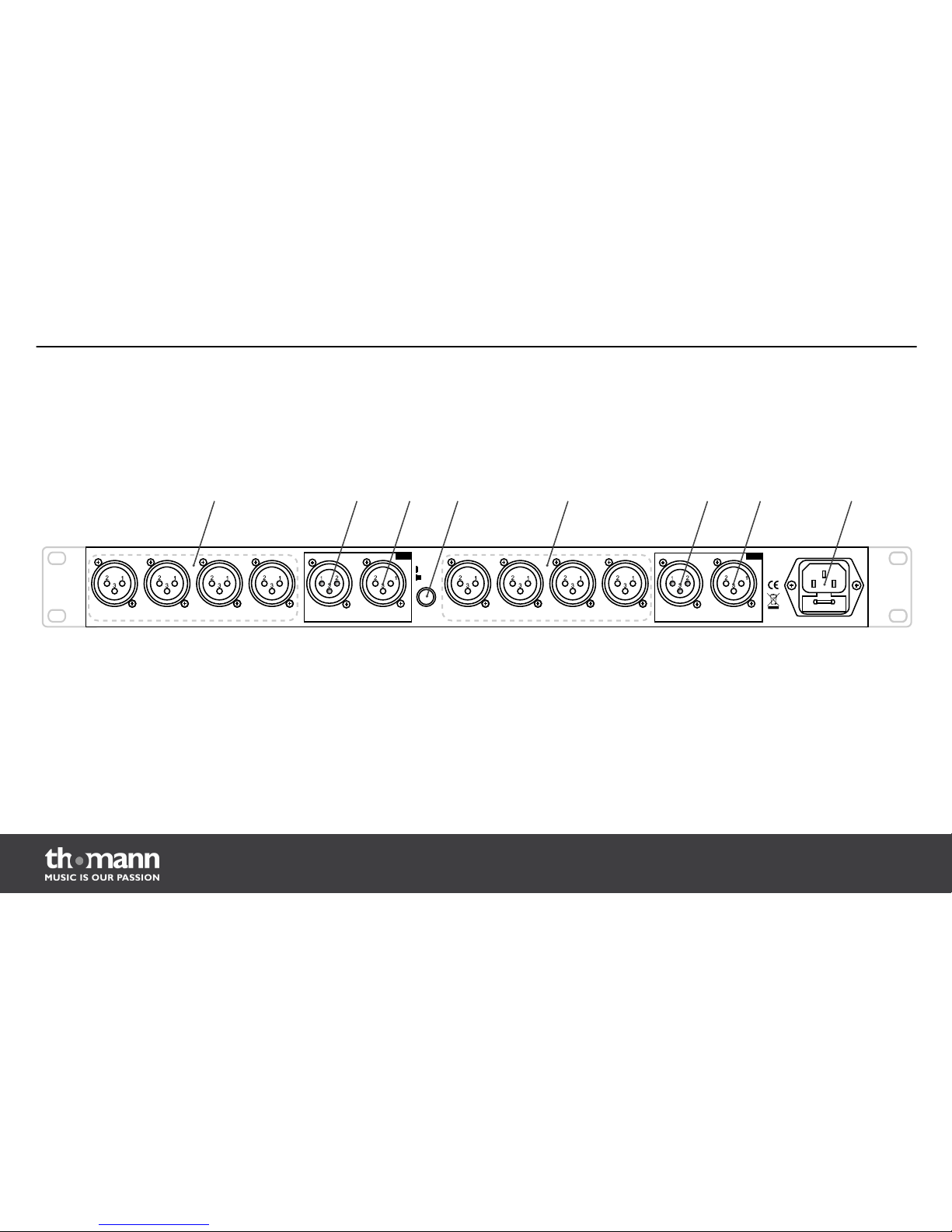

Rear panel
Connections and operating elements
audio splitter
18
Page 19
8 CH8 – CH5
Channel B signal outputs 8 to 5 (XLR mounting plugs).
9 LINK
Use this signal output (XLR mounting plug) to feed the channel B INPUT signal to another splitter or the like.
10 INPUT
Signal input channel B (XLR mounting socket).
11 MODE
Operating mode switch (pressed: 2 in 4, released: 1 in 8).
12 CH4 – CH1
Channel B signal outputs 4 to 1 (XLR mounting socket).
13 LINK
Use this signal output (XLR mounting plug) to feed the channel A INPUT signal to another splitter or the like.
Connections and operating elements
DS 2418
19
Page 20
14 INPUT
Signal input channel A (XLR mounting socket).
15 IEC chassis connector with fuse holder for operating voltage supply.
Connections and operating elements
audio splitter
20
Page 21
6
Technical specifications
Input impedance 10 kΩ (balanced)
Output impedance 47 Ω (balanced)
Maximum input gain per channel +6 dB
Maximum input level
> 20 dBU
Maximum output level
> 20 dBU
THD+N
< 0.008 %
Dynamic range
> 115 dB
Signal-to-noise ratio
> 100 dB, A-weighted
Frequency response
20 Hz … 20 kHz (±3 dB)
Distortion
< 0.03 %
Operating voltage supply
AC 230 V , 60 Hz
Power consumption
< 8 W
Technical specifications
DS 2418
21
Page 22
Dimensions 1 RU in a 19" rack, installation depth 12 cm
Weight 2.5 kg
Technical specifications
audio splitter
22
Page 23
7
Protecting the environment
For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that
they are collected for recycling. Please follow the notes and markings on the packaging.
This device is subject to the European directive 2002/96/EC.
Do not dispose of the device with your normal household waste.
Dispose of this device through an approved waste disposal firm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.
Disposal of the packaging mate‐
rial
Disposal of your old device
Protecting the environment
DS 2418
23
Page 24
Notes
audio splitter
24
Page 25
Notes
DS 2418
25
Page 26
Notes
audio splitter
26
