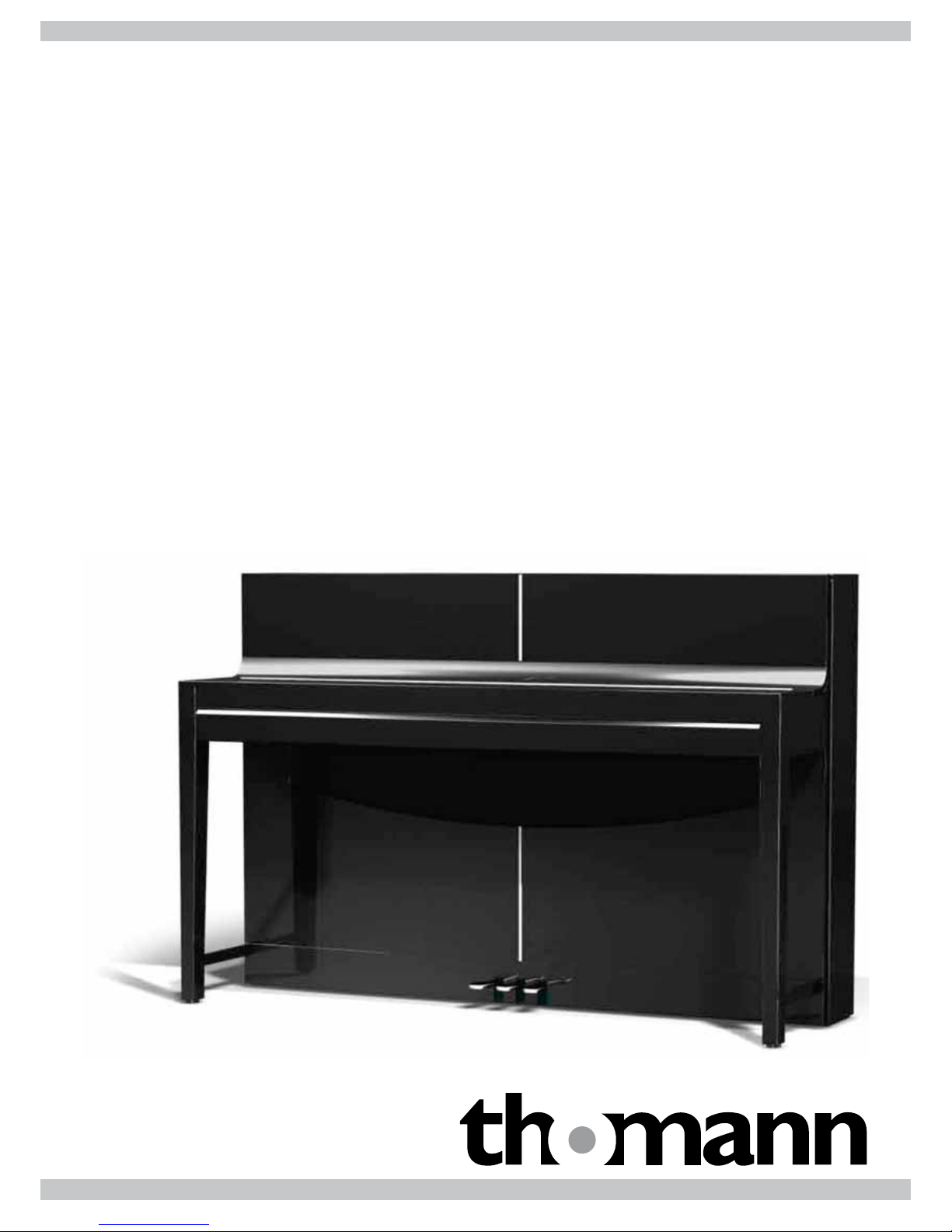

Page 1
Owner‘s Manual
Digital Piano
DP-S 307 UP E/P
Page 2
Thomann DP-S 307 UP
2
Contents
Safety notes ........................................................................................................................................3
Power supply .............................................................................................................................3
Operating conditions .................................................................................................................. 3
Handling .....................................................................................................................................4
Main features ......................................................................................................................................5
Control panel .......................................................................................................................................6
Left-hand side of the control panel ............................................................................................6
Right-hand side of the control panel .......................................................................................... 6
Functions ...................................................................................................................................7
Rear panel ..........................................................................................................................................9
The pedals ..........................................................................................................................................9
Wireless audio setup .........................................................................................................................10
Overview of the Bluetooth wireless audio module ................................................................... 10
Charging the wireless audio module ........................................................................................ 10
Pairing with your wireless device ............................................................................................. 10
Using music control functions ..................................................................................................10
Specications ........................................................................................................................... 10

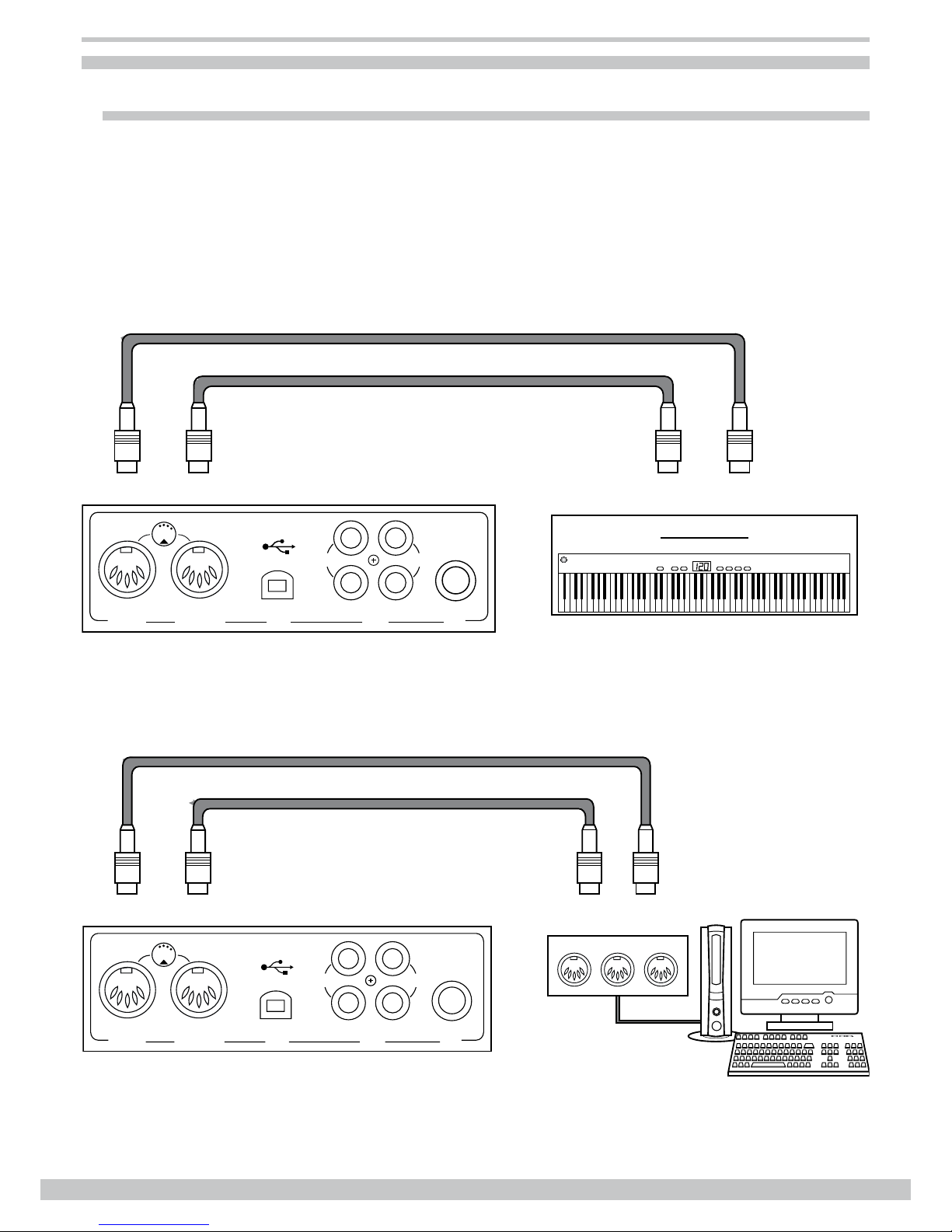

Connection to external devices ......................................................................................................... 11
The connection to external MlDl devices ................................................................................. 11

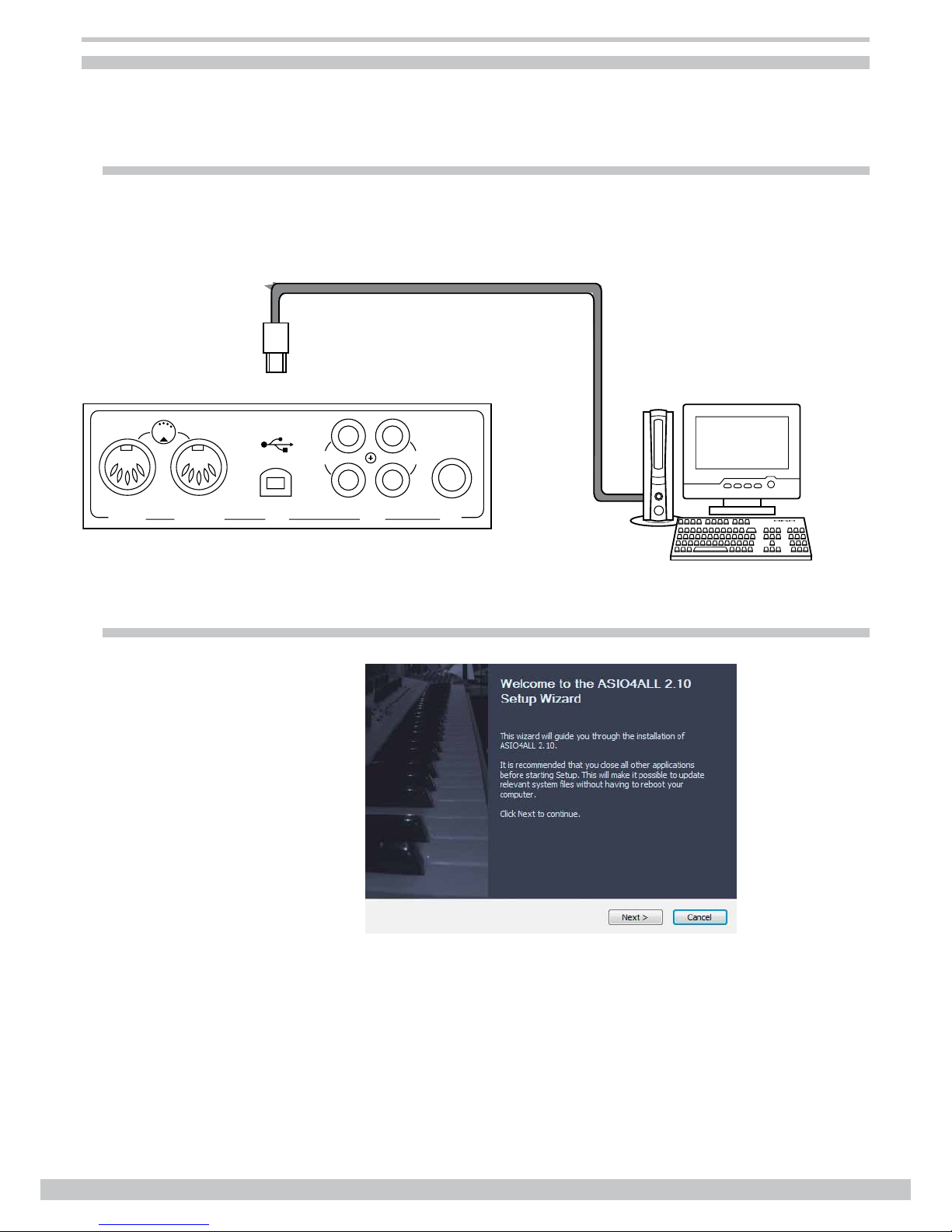

Connection to a computer .................................................................................................................12
Connections .............................................................................................................................12
Driver software installation .......................................................................................................12
How to adjust audio settings .................................................................................................... 13
Technical specications ...................................................................................................................14
Protecting the environment ...............................................................................................................15
Disposal of the packaging material .......................................................................................... 15
Disposal of your old device ...................................................................................................... 15
Page 3
www.thomann.de
3
Safety notes
Read all safety notes and all instructions. Failure to follow the notes and instructions may result in electric
shock, re or serious injury.
Save this manual for future reference.
DANGER
Electric shock caused by high voltages inside!
Within the unit there are areas where high voltages may be present. To reduce the risk of
electric shock do not remove any covers unless the AC mains power cord is removed. Cov-
ers should be removed by qualied service personnel only.
There are no user-serviceable parts inside.
DANGER
Electric shock caused by short circuit!
Always use proper ready-made insulated mains cabling (power cord) with a protective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric
shock/death or re. If in doubt, seek advice from a registered electrician.
Power supply
Notice
Malfunction or damage to equipment!
Ensure that the input voltage (AC outlet) matches the voltage rating of the product. Failure to do so could
result in damage to the product and possibly the user.
Unplug the unit before electrical storms occur and when unused for long periods of time.
Operating conditions
Always install and use the device in accordance with these instructions.
Notice
Malfunction or damage to equipment!
This device has been designed for indoor use only. Do not expose the device to any liquid or moisture. Do not
install the unit near any direct heat source. Keep the unit away from naked ames.
Do not block areas of ventilation. Failure to do so could result in re.
Page 4
Thomann DP-S 307 UP
4
Handling
Notice
Malfunction or damage to equipment!
To avoid breakage, do not apply excessive force to the switches or controls.
CAUTION
Pinching hazard
Be careful, the sliding key cover may pinch your ngers.
Do not insert a nger or hand into any gaps on the sliding key cover or instrument.
WARNING
Hearing damage
Using the instrument or headphones for a long period of time at a high or uncomfortable
volume level can can cause permanent hearing loss.
Use the piano and headphones at a moderate volume level.
Notice
Damage to equipment!
When the top cover is closed, you can put any objects on it.
To avoid falling objects, be careful where you place monitors, a laptop, speakers or other devices on the
piano.
Page 5
www.thomann.de
5
Main features
Better than acoustic pianos
The Thomann DP-S 307 UP has a brilliant sound quality that is unmatched by some acoustic pianos. It features pure and true sound with each tone that remains unchanged for the lifetime of the instument.
Rich acoustic sounds
Eight popular, high-quality sounds are built into the Thomann DP-S 307 UP. Some of the sounds include a
stereo grand piano and a jazz trio. You can utilize the layer function to simultaneously play two sounds.
Luxurious design
High-gloss ebony paint provides an exquisite feel to match your specic taste. It will always stand out, no
matter where you have it, because of its distinguished design.
No need for tuning
Tuning is a difcult and expensive process. Tuning is not required when you have this piano in your hands.
We can guarantee that the sound will remain unchanged, no matter how long you have this piano in your
possession. Through advanced technological advances, we have made this possible for your convenience.
Keyboard and effects
You can play the piano with graded hammered action keys and adapt various effects to the selected source.
Multi-purpose
The Thomann DP-S 307 UP features wireless device connection as well as a USB audio interface for sound
recording and VST (Virtual Studio Technology) plug-ins. This product also features clean true-sound speak-
ers which are untainted by any lters, providing only the purest of sounds. What you play is what you hear;
what you hear is what you get.
Perfect link with the computer
You can connect the Thomann DP-S 307 UP with a computer via an USB cable. In addition, you can operate lots of software with Thomann DP-S 307 UP, such as multimedia players, recording software, lesson
programs and so on.
Unlimited sound samples
The Thomann DP-S 307 UP can be connected to a computer with a USB cable. That means, you can use
any VSTs installed in your computer as the sound samples of the Thomann DP-S 307 UP.
Digital audio workstation
The Thomann DP-S 307 UP is equipped with a USB audio interface and is compatible with ASIO 2.0 and
CoreAudio drivers. It can be used as a professional digital audio workstation.
Page 6
Thomann DP-S 307 UP
6

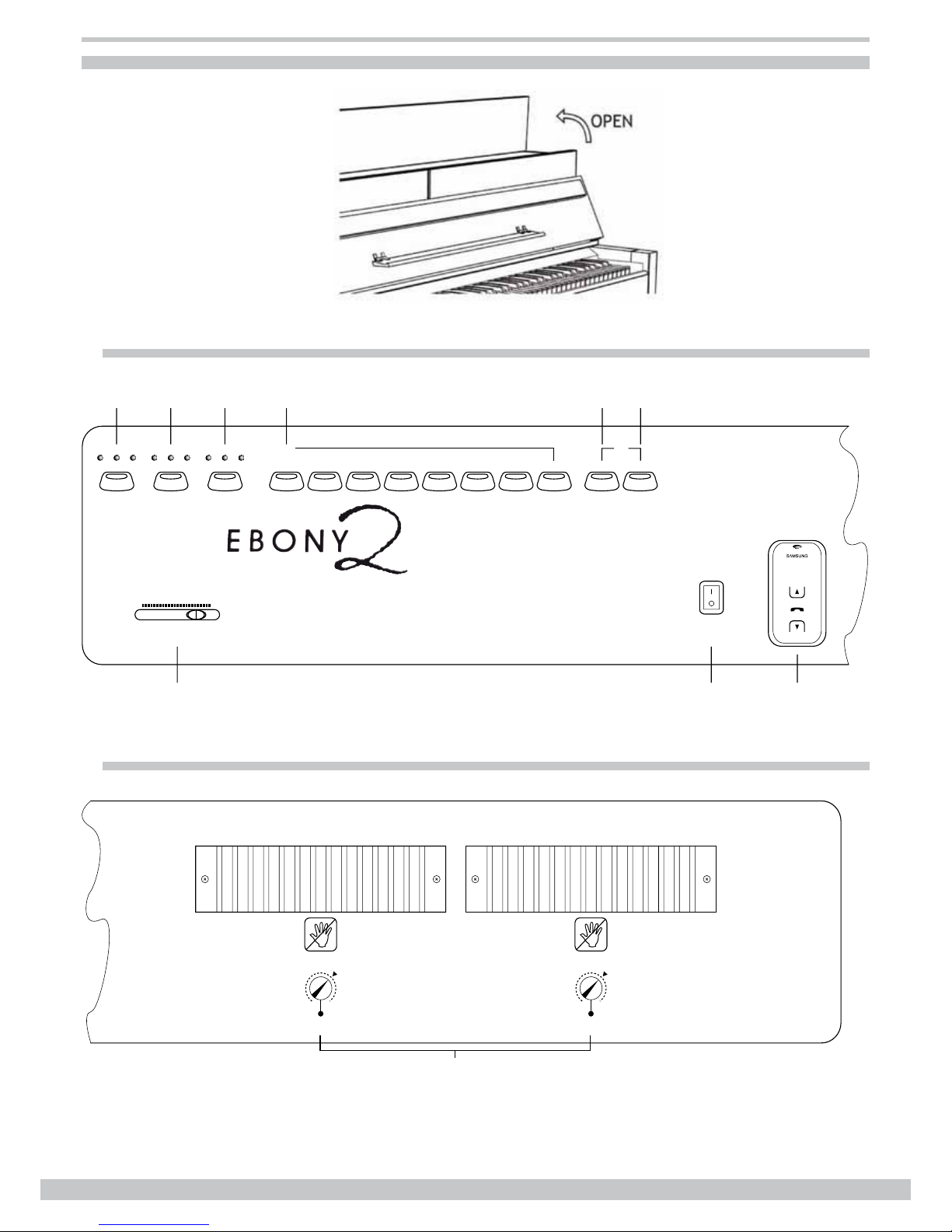

Control panel
Please open the top cover of the
Thomann DP-S 307 UP to
access the control panel.
It is located inside the cabinet.
For reasons of better visibility,
the left-hand and the righthand side of the control panel
are shown separately in the
following two gures.
Left-hand side of the control panel
Right-hand side of the control panel
#
$%
&'
(
FX SOURCE
MIC
LINE
SOUND
FX TYPE
REVERS
CHORUS
ECHO
FX DEPTH SOUNDS
LOW
MID
HIGH PIANO
MIN MAX
VOLUME
JAZZ TRIO E.P 1
E.P 2
ORGAN 1ORGAN 2
STRING
PAD
FUNCTION
INT. SOUND OFF
DEMO
POWER
WIRELESS
)ö *
MASTER VOLUME
LEFT
ACOUSTIC LEVEL
MASTER VOLUME
RIGHT
ACOUSTIC LEVEL
DO NOT TOUCH DO NOT TOUCH
+
Page 7
www.thomann.de
7
ö
MASTER VOLUME slider You can adjust the volume for the output, headphones and connectors.
#
FX SOURCE This option allows you to select the source to which the effects are sent.
Choices include MIC input, LINE input and SOUND input.
SOUND is preselected when you turn on the Thomann DP-S 307 UP.
$
FX TYPE This allows you to select between the different internal effects on the Thomann DP-S 307 UP.
Available effects include REVERB, CHORUS, and ECHO.
REVERB is preselected when you turn on the Thomann DP-S 307 UP.
%
FX DEPTH This allows you to control the amount of the effect that is mixed in with the Thomann DP-S 307 UP.
Choices include HIGH, MID, and LOW.
LOW is preselected when you turn on the Thomann DP-S 307 UP.
&
SOUNDS Press a button to select a sound (Single Mode).
Holding down a sound button while pressing another sound button allows you to mix two sounds
together.
The volume of the rst sound is 30% louder than the second sound (Layer Mode).
'
DEMO FUNCTION When the two DEMO buttons (FUNCTION + INT. SOUND OFF) are pressed simultaneously, the
SOUND buttons (Piano, Jazz Trio, E.P1, E.P2, Organ1, Organ2, String, Pad) start ashing. When
a ashing button is pressed, the appropriate sound demo is replayed. When a selected demo song
is over, the next song will be replayed automatically. To stop replaying the demo songs, press the
FUNCTION or INT. SOUND OFF button.
Pressing the FUNCTION button and holding it down while the appropriate key on the keyboard is
pressed, activates the corresponding function. For details see Functions.
(
DEMO INT. SOUND OFF This switches off the internal sound completely (even the headphone operation is switched off).
)
Power switch Once the power cord is connected on the rear panel, you can turn the power switch on.
*
Wireless audio module You can connect a wireless audio device to play your music with the Thomann DP-S 307 UP.
+
Sensitivity This allows setting the proper speaker output level of the Thomann DP-S 307 UP. Each sensitivity
knob controls the left and right speaker level individually.
Functions

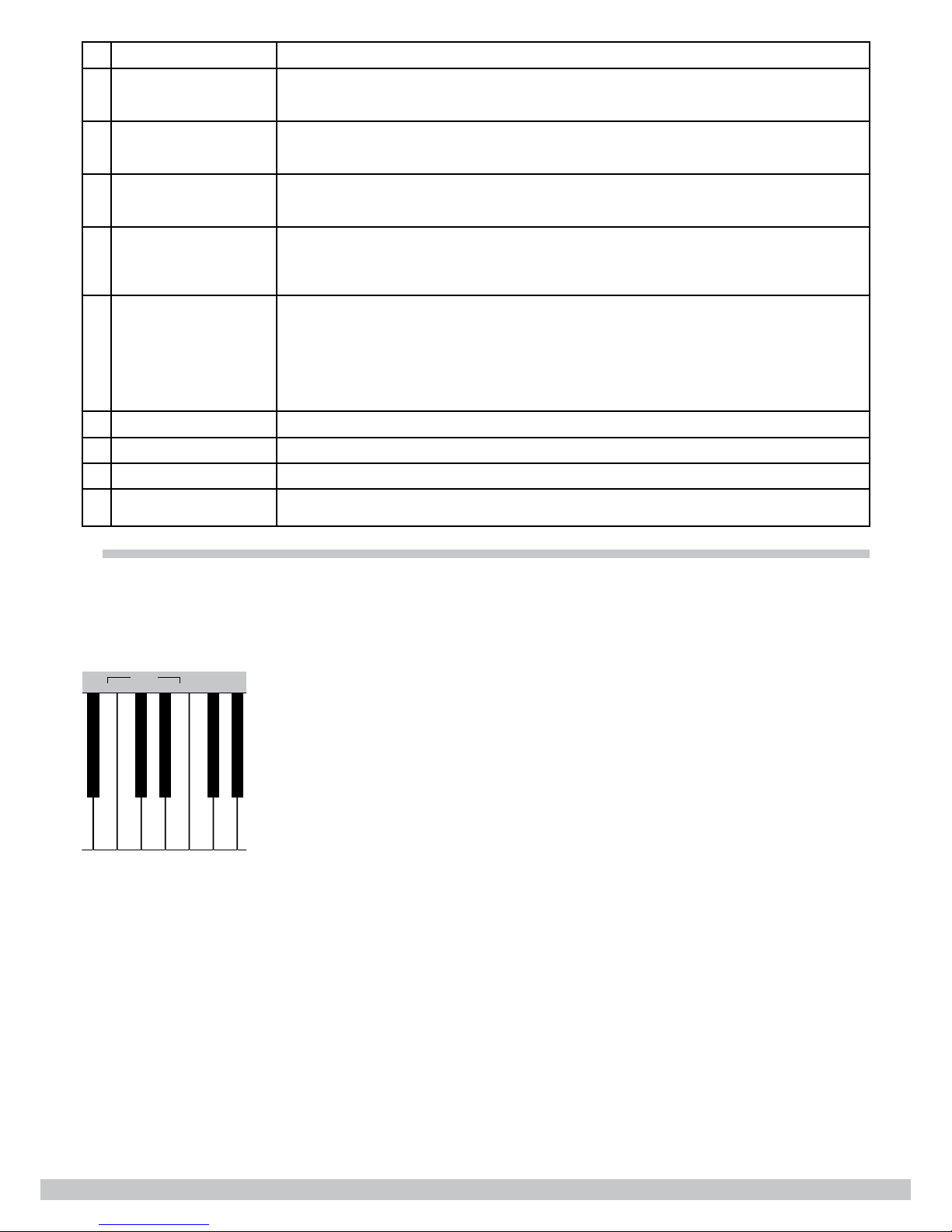

Touch sensitivity
This function allows to set the touch sensitivity. While holding down the FUNCTION button on the control
panel, select one of the touch sensitivity keys SOFT, MID, HEAVY, or FIX (SOFT: B1, MID: C2, HEAVY: D2,
FIX: E2) on the keyboard. The touch sensitivity default setting is MID.
B1 C2 D2 E2
TOUCH
SOFT MID HEAVY FIX
Page 8
Thomann DP-S 307 UP
8

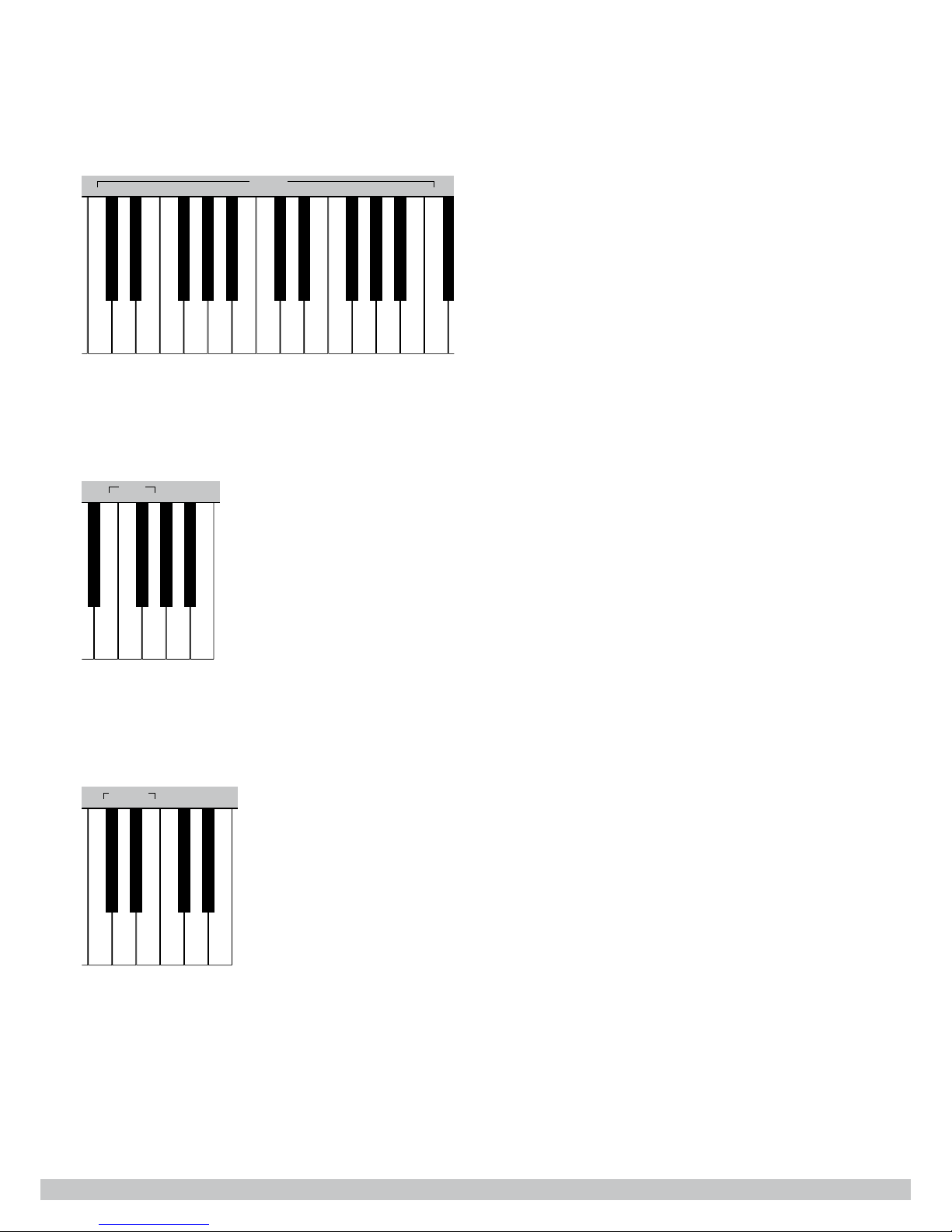

Transpose
This function allows to shift the pitch of the entire keyboard up or down in semitone intervals up to a maxi-
mum of twelve semitones. While holding down the FUNCTION button on the control panel, select one of the
transposition keys between C3 and C5 on the keyboard. If you want to go back to the original pitch, press the
FUNCTION button and the C4 key. For example, if you select G4, playing key C4 produces pitch G4. This way,
you can play a song as if it was in C major, but the DP-S307 UP will transpose it to the key of G.
Layer mode
When you play two instruments in layer mode, you can adjust the volume level of the second instrument with
this function. While holding down the FUNCTION button on the control panel, press the DOWN [-] or UP [+]
key on the keyboard until the volume is set to the level you desire. If you want to decrease the level of the
second instrument, press the FUNCTION button on the control panel and the E5 key on the keyboard.
Microphone level
You can control the microphone input level with this function. While holding down the FUNCTION button on the
control panel, press the corresponding key on the keyboard to adjust the volume.
C6 on the keyboard decreases the microphone input level, and E6 increases the microphone input level.
You need to use a high-impedance microphone with the DP-S307 UP.
C3 D3 E3 F3 G3 A3 B3 C4 D4 E4 F4 G4 A4 B4 C5
FUNCTION
-12 0 +12
E5 G5
LAYER
BALANCE
DOWN (-) UP (+)
C6 E6
MIC LEVEL
DOWN (-) UP (+)
Page 9
www.thomann.de
9

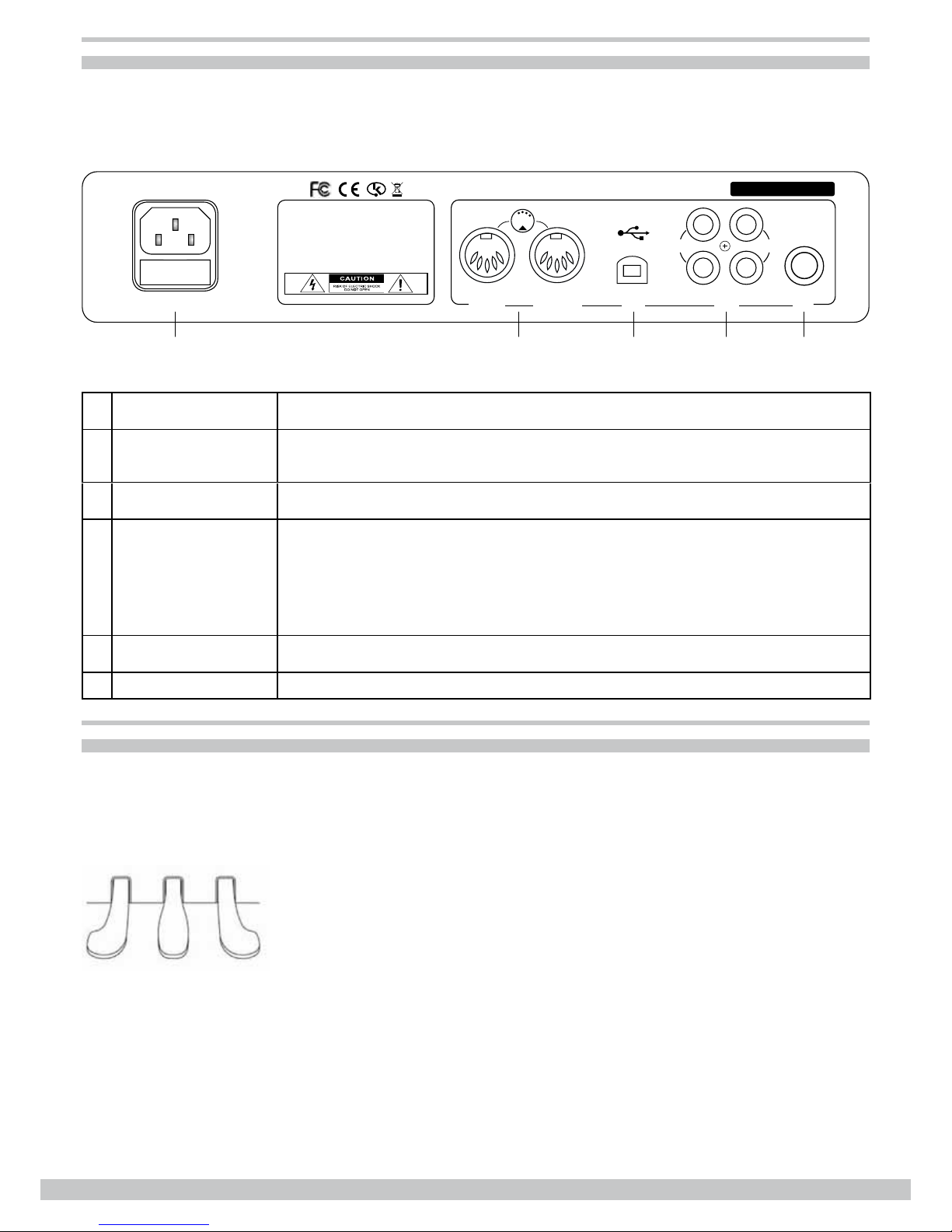

Rear panel
The rear panel of the Thomann DP-S 307 UP provides the connectors shown in the following gure.
ö
AC cord connector AC cord, supplying AC power
220 – 240 V, 50/60 Hz
#
MIDI IN/OUT connectors Connectors that are used to connect other MIDI devices such as a sequencer, keyboards, etc.
MIDI OUT: MIDI data output (to be connected to the MlDl IN connector of another MlDl device).
MIDI IN: Data input (to be connected to the MlDl OUT connector of another MlDl device).
$
USB connector You can connect the provided USB cable to the Thomann DP-S 307 UP for using it with the com-
puter.
%
LINE IN/OUT connectors These jacks can be connected to external audio devices with RCA cables.
LINE IN: You can connect an MP3 player, a CD player, a radio or any audio player to LINE IN.
Then you can listen to the external audio player’s playback through the Thomann
DP-S 307 UP’s speakers.

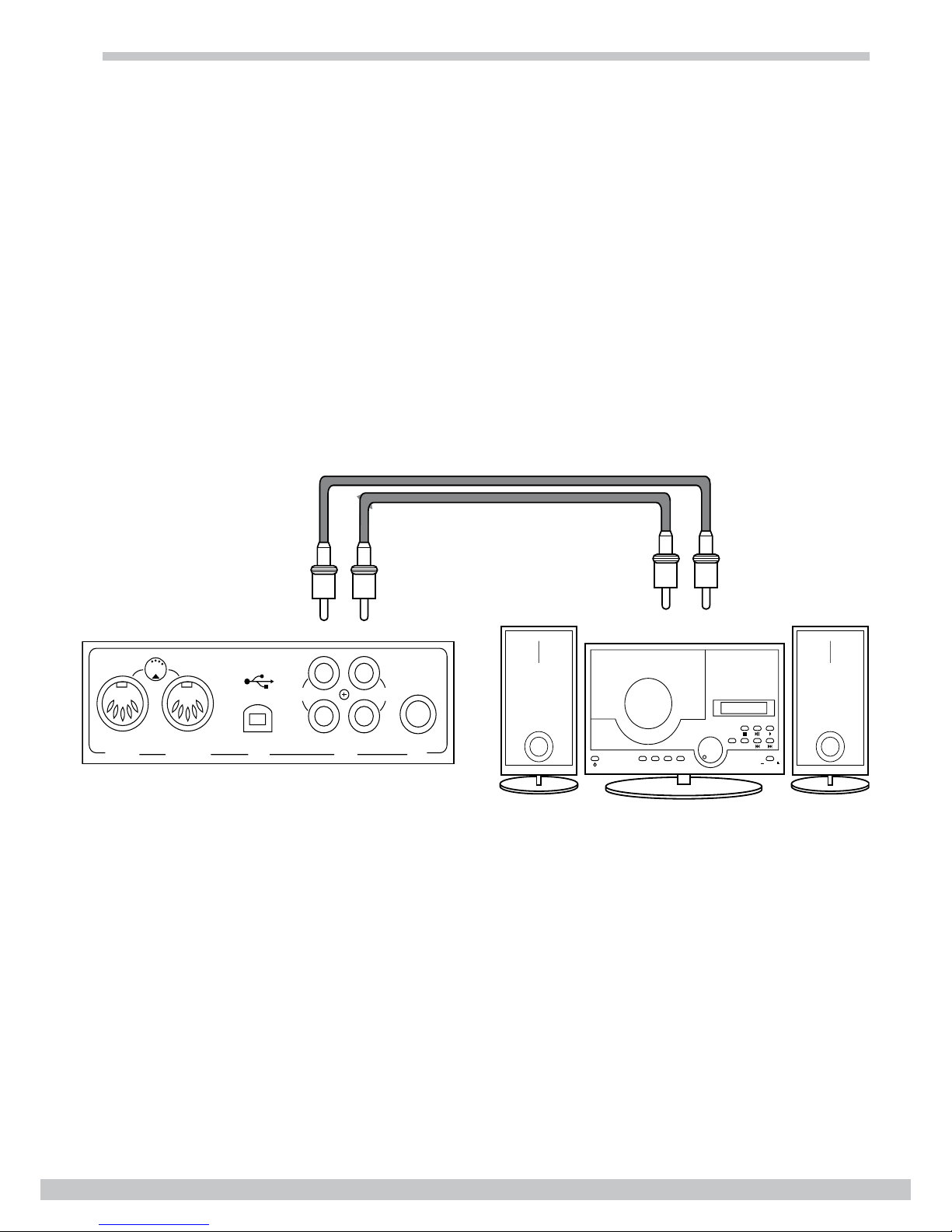

LINE OUT: If you would like listen to the sound from the Thomann DP-S 307 UP through other
audio devices such as a Hi- audio deck, powered speakers, etc., you can connect the
Thomann DP-S 307 UP’s LINE OUT to external audio devices with RCA cables.
&
MIC input You can connect a dynamic microphone to this input with a TRS cable. Then, you can listen and
record your voice through the Thomann DP-S 307 UP.
'
Headphone output The two headphone output connectors are located on the left side under the keyboard.
The pedals
The 3 pedals are the Soft, Sostenuto and Sustain pedals. They work in the same manner as if you were playing an acoustic piano.
Soft pedal
The notes played while this pedal is down will sound softer.
Sostenuto pedal
Pressing this pedal sustains only those notes which are depressed at the same
time that the pedal is depressed, while future notes played will be unaffected
Sustain pedal
Pressing this pedal causes notes to sustain even when you lift your ngers
from the keys.
~ AC 220V – 240V 50/60Hz
MADE IN INDONESIA SERIAL NO
CAUTION !
TO REDUCE THE RISK OF FIRE, REPLACE ONLY WITH SAME
TYPE FUSE.
ATTENTION !
UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE.
WARNING !
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
DO NOT REMOVE CHASSIS (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
AVIS ! RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
MIDI
MIDI IN MIDI OUT USB LINE MIC
OUT IN
ö#$%&
Page 10
Thomann DP-S 307 UP
10

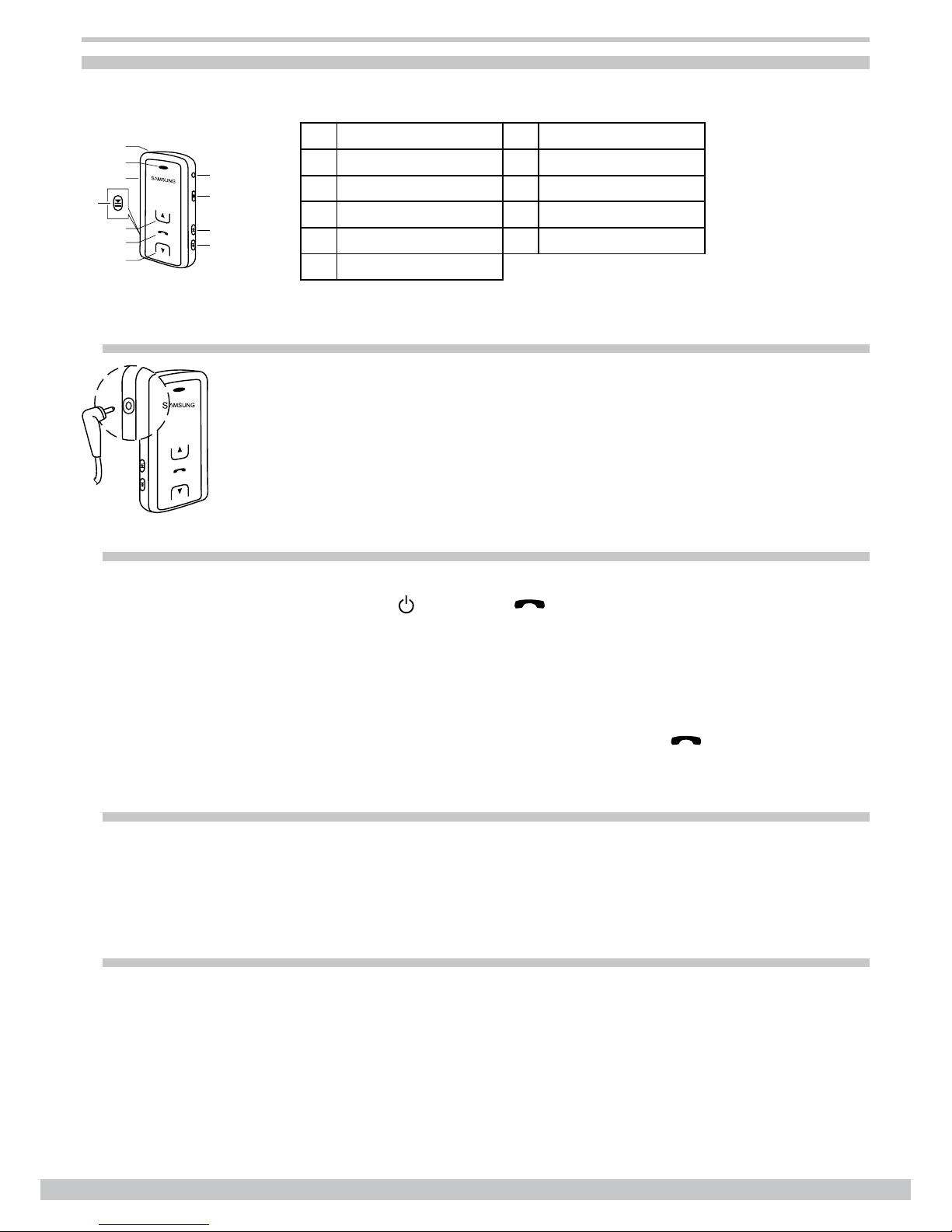

Wireless audio setup
Overview of the Bluetooth wireless audio module
ö
Earphone jack
(
Adaptor jack
#
Power switch
)
Play/Pause/Stop button
$
Fast-Forward button
*
Volume up button
%
Rewind button
+
Talk button
&
Microphone
,
Volume down button
'
Indicator light
Charging the wireless audio module
This wireless audio module has a rechargeable internal battery that is not removable.
Ensure that you fully charge the battery before using the wireless audio module for the
rst time.
Put the adapter into the adapter jack and into a power outlet. The indicator light turns on
red.
Pairing with your wireless device
• Enter pairing mode.
- Slide the power switch while pressing [
] and holding [ ] to turn the wireless audio module on. The
indicator light turns on blue and stays lit after ashing blue, red and purple twice.
- If you turn the wireless audio module on for the rst time, it proceeds to pairing mode immediately.
• Search for and connect with the other Bluetooth device according to your Bluetooth device user’s guide.
(Bluetooth PIN: 0000, 4 zeros)
Note
When the wireless audio module and the other Bluetooth device are paired, press [
] to reconnect via the
previously connected Headset Prole or Hands-Free Prole, or press [ ] to reconnect via the Advanced
Audio Distribution Prole.
Using music control functions
• Press [ ] to listen to music / pause and resume playback.
• Press and hold [ ] to stop playback.
• Press [] to skip backward or [] to skip forward.
• Press and hold [] to scan backward or [] to scan forward in a le.
• Press [] or [] to adjust the volume.
Specifications
• Supported proles: Hands-free headset, advanced audio distribution, audio/video remote control
• Operating range: Up to 10 meters (30 feet)
ö
$
%
#
&
(
)
'
+
,
*
Page 11
www.thomann.de
11
Connection to external devices
The connection to external MlDl devices
What is MIDI?
MIDI is the abbreviation of Musical Instrument Digital Interface. It is an international standard that was created
to connect and transfer data between electronic musical instruments, computers and other devices.
What can you do with MIDI?
You can use the Thomann DP-S 307 UP to control other instruments, and you can use other instruments to
control the Thomann DP-S 307 UP. Also, you can use a sequencer to create complex musical pieces. When
you use the Thomann DP-S 307 UP, the MIDI signal is transmitted to another instrument, or recorded by a
sequencer.
Connections
Connect the MIDI OUT connector of the transmitting (master) device to the MlDl IN connector of the receiving
(slave) device. To connect the Thomann DP-S 307 UP to a computer, you need a MlDl interface for the computer, sequencing or musical notation software, and two standard MlDl cables.
MIDI
MIDI IN MIDI OUT
MIDI IN MIDI OUT
USBLINEMIC
OUTIN
MIDI IN MIDI OUT
DP-S 307 UP
–
+
Power
1234
MODE
MIDI
MIDI IN MIDI OUT
MIDI IN MIDI OUT
USBLINEMIC
OUTIN
MIDI IN MIDI OUT
MIDI IN MIDI OUTMIDI THRU
DP-S 307 UP
Page 12
Thomann DP-S 307 UP
12
Connection to a computer
The Thomann DP-S 307 UP includes both an onboard MIDI interface as well as an audio interface. So you can
use the Thomann DP-S 307 UP by simply connecting it without a special interface. After connecting, you can
use the function of the audio and MIDI interface.
Connections
It is very easy to connect the Thomann DP-S 307 UP with your computer. Find the USB port on the rear of the
Thomann DP-S 307 UP. Connect the provided USB cable (plug type series B) to the Thomann DP-S 307 UP
and nd the USB port on the computer. Next, plug the Thomann DP-S 307 UP’s USB cable (plug type series
A) into the USB port of the computer.
Driver software installation
Please visit www.asio4all.com and
download the latest ASIO universal
driver. Once the driver download has
been completed, double-click the
driver install le. Then click “Next”
and follow the instructions on the
screen.
With this installation, the DP-S 307
UP becomes ASIO- and MIDI-compliant.
MIDI
MIDI IN MIDI OUT USB
USB
LINE MIC
OUT IN
DP-S 307 UP
Page 13
www.thomann.de
13
How to adjust audio settings
Windows
You can set up sound and audio default devices on the system control panel. Depending on your specic audio conguration and software installed on your computer, this may vary. For details please refer to the Win-
dows operating instructions.
After the set up, you can play the Thomann DP-S 307 UP while listening to any audio le via Windows Media
Player, for example. This allows you to easily practice along with your favourite songs on the Thomann DP-S
307 UP.
Mac OS
The installation is very simple. After connecting the Thomann DP-S 307 UP, your Macintosh computer will
automatically detect the Thomann DP-S 307 UP. After the Thomann DP-S 307 UP is detected, congure it according to your needs. “Audio MIDI setup” can be found in Applications\Utilities folder. The Thomann DP-S 307
UP is fully compatible with the Mac OSX’s Core Audio drivers.
Connection to external audio equipment
You can connect the Thomann DP-S 307 UP’s LINE outputs to external audio equipment such as power ampliers, powered studio monitors, recorders, or Hi-Fi audio systems. After connecting the Thomann DP-S 307 UP,
you can listen to your Thomann DP-S 307 UP via external audio equipment.
You can also record the sound from the Thomann DP-S 307 UP by using an external audio recorder. You can
connect an audio player to the Thomann DP-S 307 UP to listen to music through speakers of the Thomann
DP-S 307 UP. Additionally, you can record the Thomann DP-S 307 UP’s sounds from the computer‘s audio
player.
MIDI
MIDI IN MIDI OUT
LINE OUT / LINE IN
AUX IN /
AUX OUT
USBLINEMIC
OUTIN
DP-S 307 UP
OPEN/CLOSE
CD TUNER MODE PROG.
ON
OFF
DBBS
Page 14
Thomann DP-S 307 UP
14

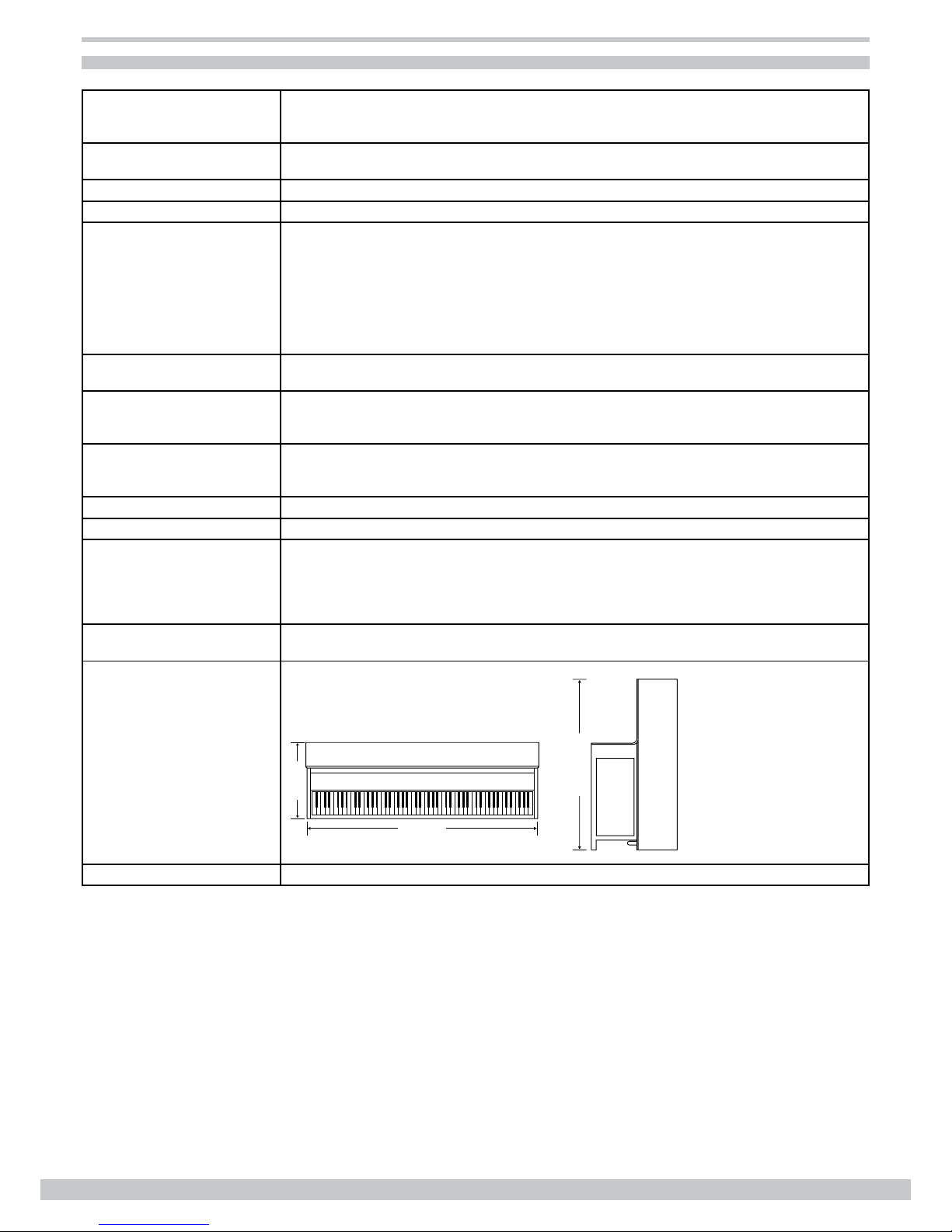

Technical specifications
Cabinet High-gloss ebony paint
Spruce sound board and ribs
Damping-system safety shutter
Keyboard 88 piano Fatar hammer action keys
Sensitive velocity response
Polyphony 64-note polyphony with effects
Tone-generating technology Stereo PCM sampling
Speakers Embedded Infrasonic Blow5 Studio Active Monitor technology
180 W (80 W HF and 100 W LF)
Full discrete power ampliers with servo-loop and perfect protections
2-way bass-reex bi-amplied 5 inch near eld
Flat frequency response (± 1.5 dB, 58 Hz to 20 kHz) and
wide pass-band frequency (50 Hz to 22 kHz)
¾-inch natural-silk dome high-frequency transducer
5¼-inch polymer-coated paper-ber cone low-frequency transducer
Sound programs 8 realistic instrument voices
(Piano, Jazz Trio, E.P1, E.P2, Organ1, Organ2, Strings, Pad)
Effects FX source: MIC, LINE, SOUND
FX type: REVERB, CHORUS, ECHO
FX depth: LOW, MID, HIGH
Functions Key transpose: ± 12 semitones
Touch control: 4 velocity curves (Soft, Mid, Heavy, Fix)
Layer: Yes, Local Mode
Pedals Sustain, soft, sostenuto
Controls Master volume
Inputs/outputs Wireless Audio interface
Headphones: 2 stereo standard ¼-inch phone jacks
MIDI: Standard IN/OUT jacks
LINE IN/OUT: stereo RCA jacks
USB port: Type B
Audio interface Built-in USB audio interface with ASIO driver for Windows® XP/VISTA/7 (32-bit and 64-bit) or later
and Mac OS X (10.3 or later)
Dimensions (W × H × D) 144 cm × 105.5 cm × 48 cm (56.7 in. × 41.5 in. × 18.9 in.)
48 cm
144cm
105.5cm
Weight 115 kg (254 lbs)
Page 15
www.thomann.de
15
Protecting the environment
Disposal of the packaging material
For the transport and protective packaging, environmentally friendly materials have
been chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed and are not in the
reach of babies and young children. Choking hazard! Do not just dispose these materials with your normal household waste, but make sure that they are fed to a recovery.
Please follow the notes and markings on the packaging.
Disposal of your old device
Electrical and electronic equipment often contain materials which can be unhealthy
and environmentally harmful, if not properly treated and disposed of. However, they
are essential for the proper operation of your device. At the end of its operating lifetime, do not dispose the device with your normal household waste.
This device is subject to the European directive 2002/96/EC.
Dispose this device through an approved waste disposal rm or through your local
waste facility. When discarding the unit, comply with the rules and regulations that ap-
ply in your country. If in doubt, consult your local waste disposal facility.
Page 16
Thomann DP-S 307 UP
16
© 2011 • Musikhaus Thomann e. K. • Treppendorf 30 • 96138 Burgebrach • Germany • www.thomann.de
Loading...
