Page 1
Blinder 4-Lite
blinder
user manual
Page 2
Musikhaus Thomann e.K.
Treppendorf 30
96138 Burgebrach
Germany
Telephone: +49 (0) 9546 9223-0
E-mail: [email protected]
Internet: www.thomann.de
18.12.2012
Page 3
Table of contents
1 General notes............................................................................................................................................... 4
2 Safety instructions..................................................................................................................................... 7
3 Features....................................................................................................................................................... 12
4 Installation.................................................................................................................................................. 13
5 Wiring............................................................................................................................................................ 15
6 Starting up.................................................................................................................................................. 17
7 Connections and operating elements........................................................................................... 18
8 Cleaning....................................................................................................................................................... 22
9 Technical specifications....................................................................................................................... 23
10 Protecting the environment.............................................................................................................. 24
Table of contents
Blinder 4-Lite
3
Page 4
1
General notes
This user manual contains important information on safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device, include the manual for
the next owner.
Our products are subject to a process of continuous development. We therefore reserve the
right to make changes without notice.
This section provides an overview of the symbols and signal words used in this user manual.Symbols and signal words
General notes
blinder
4
Page 5
Signal word Meaning
DANGER! This combination of symbol and signal word
indicates an immediate dangerous situation
that will result in death or serious injury if it is
not avoided.
WARNING! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in death or serious injury if it is not
avoided.
NOTICE! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in material and environmental
damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
General notes
Blinder 4-Lite
5
Page 6

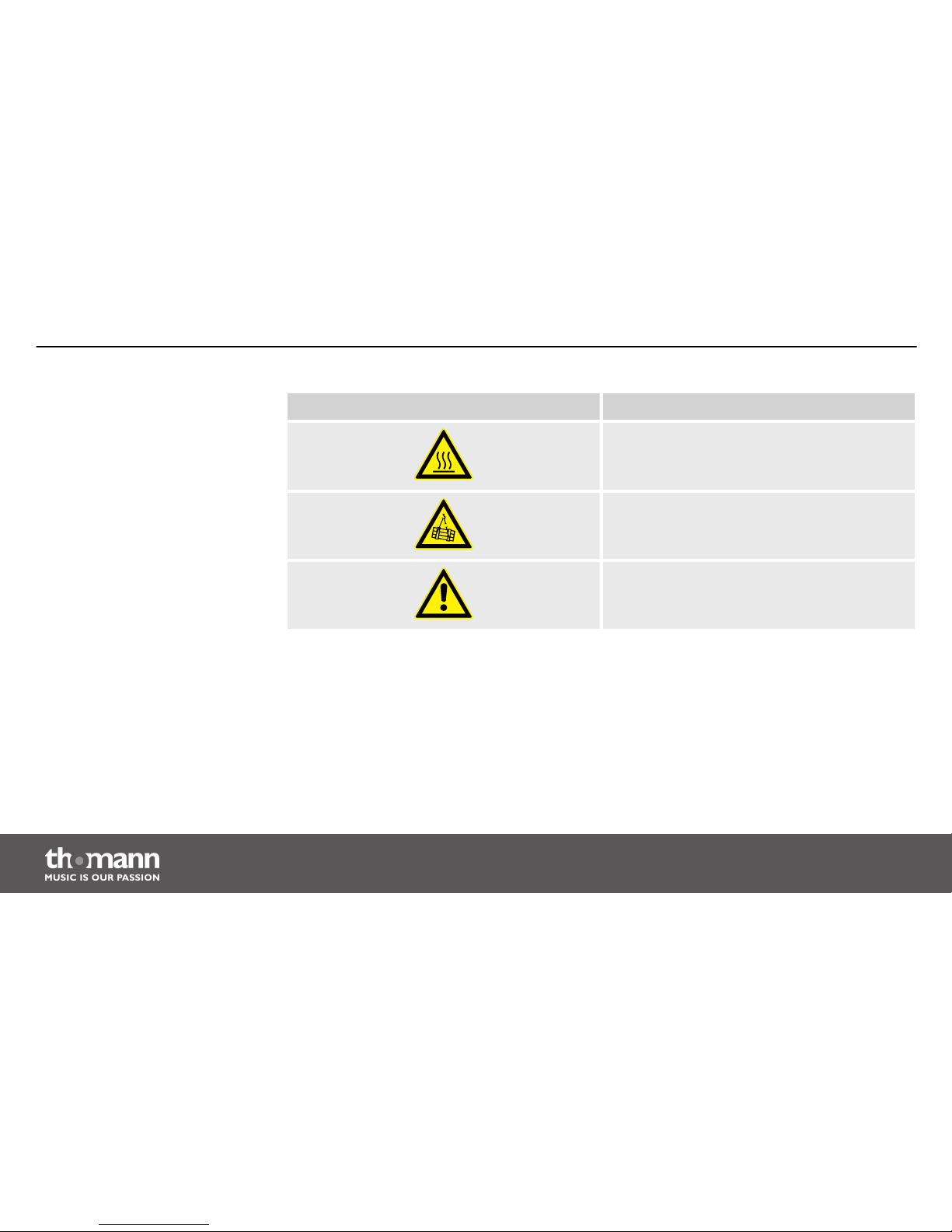

Warning signs Type of danger
Warning – hot surface.
Warning – suspended load.
Warning – danger zone.
General notes
blinder
6
Page 7
2
Safety instructions
This device is intended to be used as an illumination effect. Use the device only as described in
this user manual. Any other use or use under other operating conditions is considered to be
improper and may result in personal injury or property damage. No liability will be assumed for
damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Risk of electrical shock
The wiring and replacement of the lamps, and all maintenance and repair work
on the electrical installation of the device may only be carried out by qualified
electricians. Failure to do so may result in electric shock and risk of fire and death.
Before starting work on the electrical installation, the device must be unplugged
from the power grid.
Intended use
Safety
Safety instructions
Blinder 4-Lite
7
Page 8
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Safety instructions
blinder
8
Page 9
WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
WARNING!
Risk of burns
The surface of the device can become very hot during operation.
Do not touch the device with bare hands during operation, and after switching
off wait for at least 15 minutes.
Safety instructions
Blinder 4-Lite
9
Page 10
NOTICE!
Risk of overheating
The distance between the light output and the illuminated surface must be more
than 0.5 m (19.7 in).
Always ensure sufficient ventilation.
The ambient temperature must always be below 40 °C (104 °F).
NOTICE!
Risk of fire
Do not cover the device nor any ventilation slots. Do not place the device near
any direct heat source. Keep the device away from naked flames.
Safety instructions
blinder
10
Page 11
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
Safety instructions
Blinder 4-Lite
11
Page 12
3
Features
The blinder is particularly suitable for the illumination of areas and specific lighting effects in
the auditorium at events, rock concerts as well as in theatres and musicals.
Special features of this device:
n Two rotatable elements with shatter protection for 2 × 2 DWE illuminants
(illuminants not included)
n Double round-tube bracket for secure and solid mounting.
n Cable set included.
Features
blinder
12
Page 13
4
Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the device against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
Installation
Blinder 4-Lite
13
Page 14
NOTICE!
Risk of overheating
The distance between the light source and the illuminated area must be greater
than 0.5 m.
Make sure there is always sufficient ventilation.
The ambient temperature must always be below 40 °C
Never operate the unit for more than 15 minutes continuously and stick to appro‐
priate cool-down times.
Installation
blinder
14
Page 15
5
Wiring
DANGER!
Risk of electrical shock
The wiring and replacement of the lamps, and all maintenance and repair work
on the electrical installation of the device may only be carried out by qualified
electricians. Failure to do so may result in electric shock and risk of fire and death.
Before starting work on the electrical installation, the device must be unplugged
from the power grid.
n Remove the shatter protection grilles of the illuminant elements (4 × 2 knurled-head
screws with locking spring).
n Remove the cable compartment cover on the rear panel of the unit (six tapping screws).
n Run the cables provided through the two holes inside the housing.
n Wire the Illuminants according to the following diagram.
n Finally, assemble the cable cover on the rear panel of the unit and the shatter protection
grilles of the illuminant elements.
Wiring
Blinder 4-Lite
15
Page 16

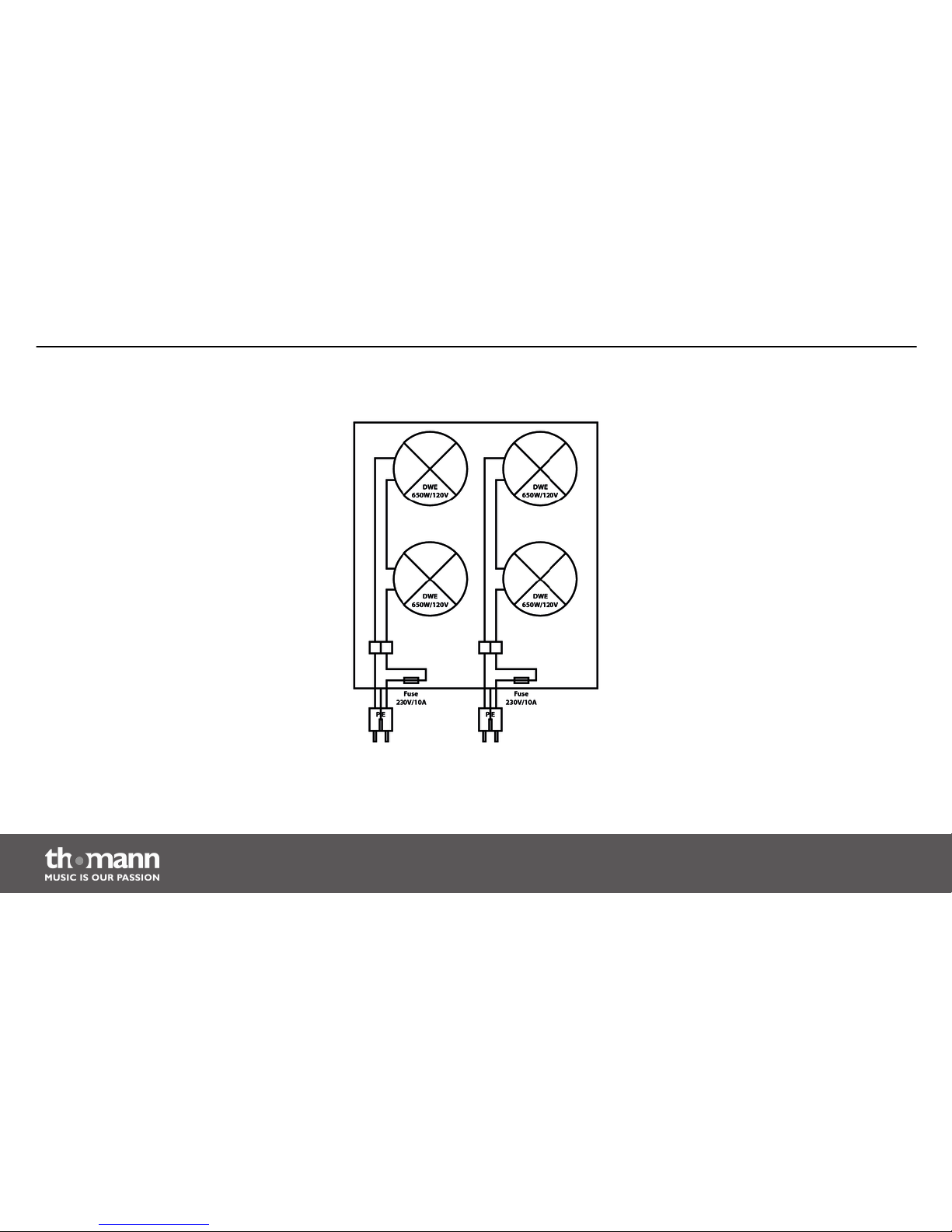

Schematic for four lamps
Wiring
blinder
16
Page 17
6
Starting up
Make sure that the unit is properly installed and wired. Fix the lamp holders in the desired
position using the hand screws. Connect the power cable to a grounded outlet to start up the
unit.
NOTICE!
Risk of overheating
Never operate the unit for more than 15 minutes continuously and stick to appro‐
priate cool-down times.
Starting up
Blinder 4-Lite
17
Page 18
7
Connections and operating elements

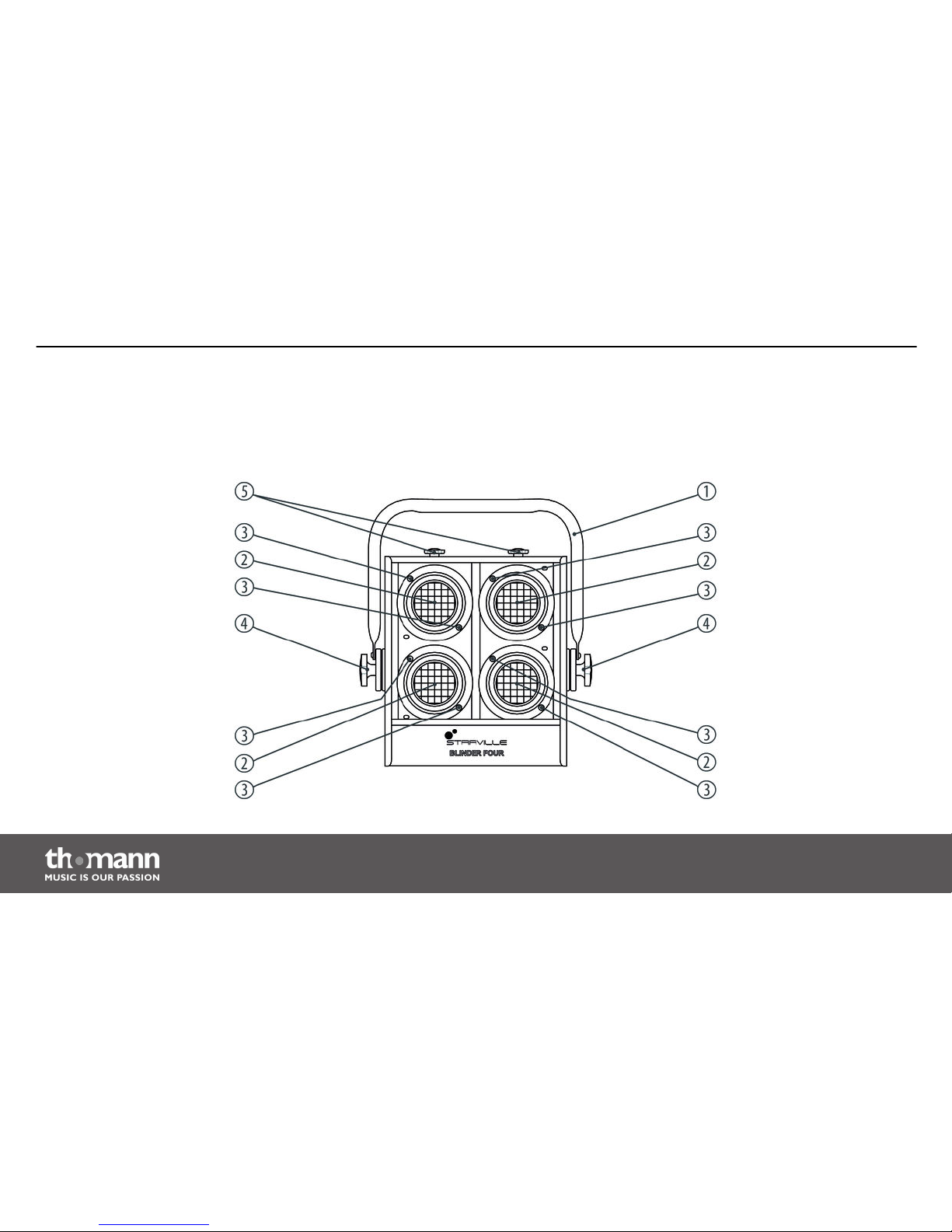

Front panel
Connections and operating elements
blinder
18
Page 19
1 Round-tube bracket.
2 Shatter protection.
3 Knurled-head screws for fixing the shatter protection.
4 Handscrews for fixing the round-tube bracket.
5 Handscrews for positioning of the rotatable elements.
Connections and operating elements
Blinder 4-Lite
19
Page 20

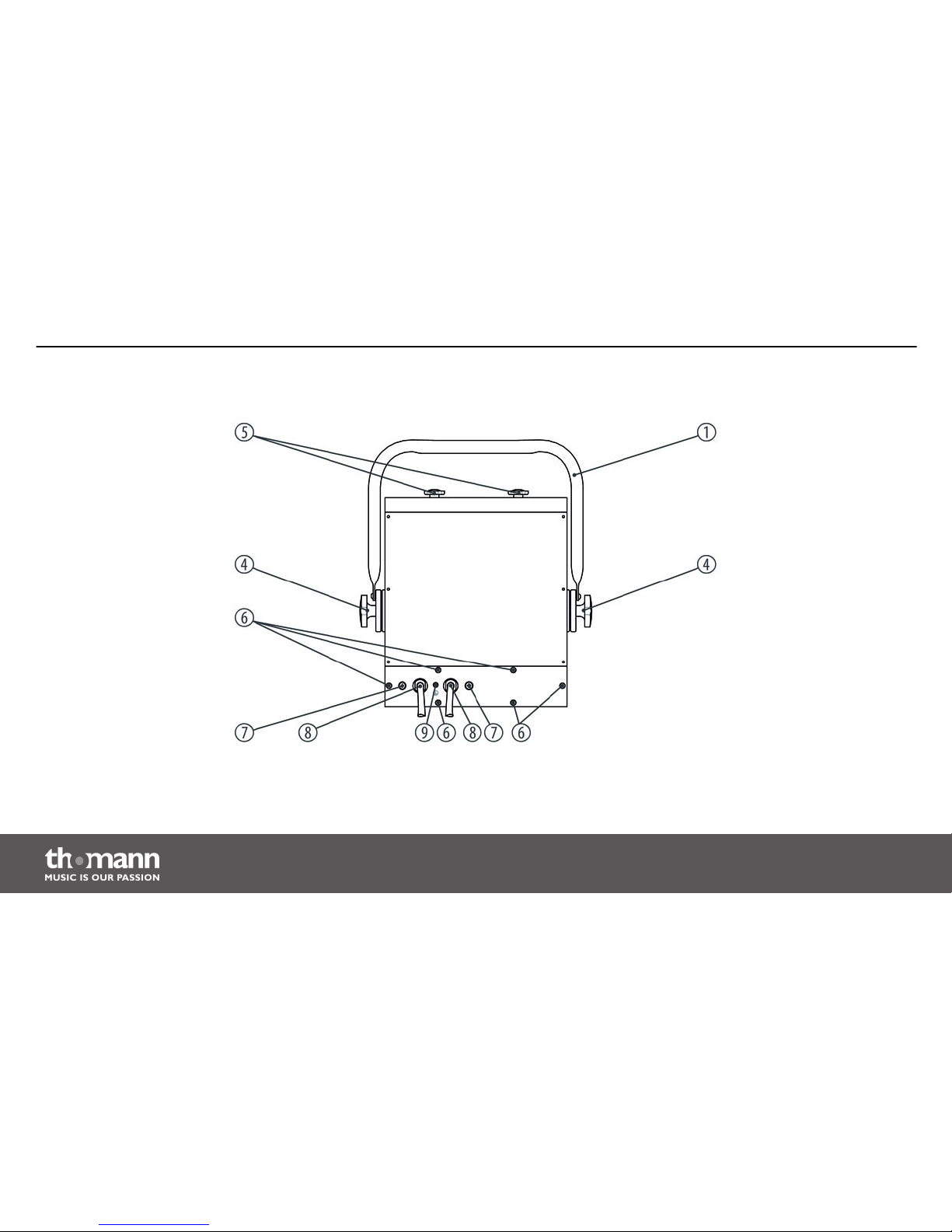

Rear panel
Connections and operating elements
blinder
20
Page 21
1 Round-tube bracket.
4 Handscrews for fixing the round-tube bracket.
5 Handscrews for positioning of the rotatable elements.
6 Retaining screws of the cable compartment cover.
7 Fuse holder.
8 Power supply cable.
9 Ground connection.
Connections and operating elements
Blinder 4-Lite
21
Page 22
8
Cleaning
Clean the unit only with a soft, dry cloth. More stubborn stains can be cleaned with a slightly
damp cloth. Never use cleaners such as alcohol or thinner.
Cleaning
blinder
22
Page 23
9
Technical specifications
Illuminant 4 × PAR 36 DWE, 120 V/650 W maximum, screw connector
Operating supply voltage
AC 230 V , 50 Hz
Fuse 2 × 250 V, 10 A
Dimensions (W × D × H) 455 mm × 115 mm × 533 mm
Weight 5.2 kg, without illuminant
Technical specifications
Blinder 4-Lite
23
Page 24
10
Protecting the environment
For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that
they are collected for recycling. Please follow the notes and markings on the packaging.
This device is subject to the European directive 2002/96/EC.
Do not dispose of the device with your normal household waste.
Dispose of this device through an approved waste disposal firm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.
Disposal of the packaging mate‐
rial
Disposal of your old device
Protecting the environment
blinder
24
Page 25
Notes
Blinder 4-Lite
25
