BAT.PAR 6 RGBWA
BAT.PAR 6 RGBUV
User manual
LED spotlight
Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: +49 (0) 9546 9223-0
E-mail: info@thomann.de
Internet: www.thomann.de
17.03.2021, ID: 385435, 385475 (V3)
Table of contents
Table of contents
1 General information................................................................................................................................. 6
1.1 Further information........................................................................................................................... 7
1.2 Notational conventions.................................................................................................................... 8
1.3 Symbols and signal words............................................................................................................... 8
2 Safety instructions.................................................................................................................................. 11
3 Features....................................................................................................................................................... 16
4 Installation.................................................................................................................................................. 17
4.1 Dealing with lithium batteries..................................................................................................... 20
5 Starting up.................................................................................................................................................. 22
6 Connections and operating elements........................................................................................... 24
7 Operating.................................................................................................................................................... 30
7.1 Starting the device........................................................................................................................... 30
7.2 Operating on the unit..................................................................................................................... 30
7.3 IR remote control............................................................................................................................. 34
7.4 Menu overview................................................................................................................................. 35
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
3
Table of contents
7.5 Functions in 1-channel DMX mode........................................................................................... 37
7.6 Functions in 4-channel DMX mode........................................................................................... 37
7.7 Functions in 5-channel DMX mode........................................................................................... 38
7.8 Functions in 6-channel DMX mode........................................................................................... 40
7.9 Functions in 7-channel DMX mode........................................................................................... 41
7.10 Functions in 8-channel DMX mode........................................................................................ 44
8 Technical specications....................................................................................................................... 47
9 Plug and connection assignments.................................................................................................. 50
10 Troubleshooting...................................................................................................................................... 51
11 Cleaning....................................................................................................................................................... 53
12 Protecting the environment.............................................................................................................. 54
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
4
LED spotlight
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
5
General information
1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
6
LED spotlight
1.1 Further information
General information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search
Online guides
Personal consultation For personal consultation please contact our technical hotline.
Service
Use the search function in the electronic version to nd the topics of
interest for you quickly.
Our online guides provide detailed information on technical basics
and terms.
If you have any problems with the device the customer service will
gladly assist you.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
7
General information
1.2 Notational conventions
This manual uses the following notational conventions:
Letterings
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
8
LED spotlight
General information
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – dangerous optical radiation.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
9
General information
Warning signs Type of danger
Warning – suspended load.
Warning – danger zone.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
10
LED spotlight
2 Safety instructions
Safety instructions
Intended use
This device is intended for use as an electronic lighting eect by means of LED technology. The
device is designed for professional use only and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Extend the operating life of the device by regular breaks and by avoiding frequent
switching on and o. The device is not suitable for continuous operation.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
11
Safety instructions
Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device if covers, protectors or optical components are missing or damaged.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a protective contact plug. Do not modify the mains cable
or the plug. Failure to do so could result in electric shock/death or re. If in doubt, seek advice from a registered electrician.
WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
12
LED spotlight
Safety instructions
WARNING!
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights.
WARNING!
Incorrect handling of lithium batteries can result in injury
In the event of a short circuit, overheating or mechanical damage, lithium batteries can cause severe injuries. Follow the advice on
the correct handling of lithium batteries in the present section.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked ames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
13
Safety instructions
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC
outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the
user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric
shock or re.
NOTICE!
Risk of re due to incorrect polarity
Incorrectly inserted batteries may destroy the device or the batteries. Ensure that proper polarity is observed when inserting bat‐
teries.
NOTICE!
Possible damage by leaking batteries
Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a
longer period.
NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate
or PVC oor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the oor, but
use felt-pad oor protectors or a carpet.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
14
LED spotlight
Safety instructions
NOTICE!
Possible damage to lithium-ion batteries through incorrect storage
By deep discharge, lithium-ion batteries can be permanently damaged or lose some of their capacity. Before long breaks, charge the
batteries to around 50 % of their capacity and then switch o the device. Store the device at room temperature or cooler in an envi‐
ronment as dry as possible. If the batteries are stored for a longer period, recharge them to 50 % every three months. Fully charge
the batteries only shortly before use at room temperature.
NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
15
Features
3 Features
Special features of the device:
n Model BAT.PAR 6 RGBWA: six RGBWA LEDs (red, green, blue, white, amber, 8 W each)
n Model BAT.PAR 6 RGBUV: six RGBUV LEDs (red, green, blue, UV, 8 W each)
n Stand-alone, master-slave or DMX mode operation
n Control via DMX, four dierent modes, with the supplied infrared remote control or the
buttons and display on the unit
n Stand-alone operation with static colours
n Sound control
n Battery or mains powered
n Power adapter and infrared remote control included
n Suitable for use in clubs, bars, theatres, exhibitions, etc. or for mobile use
For technological reasons, the light output of LEDs decreases over their lifetime. This eect
increases with higher operating temperature. You can extend the service life of the illuminants
by providing adequate ventilation and operating the LEDs with the lowest possible brightness.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
16
LED spotlight
4 Installation
Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
17
Installation
NOTICE!
Risk of overheating
The distance between light output and the illuminated surface must be more
than 1.5 m (19.7in).
Provide sucient ventilation.
The ambient temperature must always be below 40 °C (104 °F).
NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
18
LED spotlight
Installation
NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordi‐
nary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or ampli‐
ers.
Mounting options
You can install the unit in hanging or standing position. When in use, the device must always
be attached to a solid surface or an approved truss. Use the openings provided on the twopiece bracket for attaching.
Always work from a stable platform whenever installing, moving or servicing the unit. In doing
so, the area underneath the unit must be cordoned o.
The safety cable must be attached to the bracket.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
19
Installation
4.1 Dealing with lithium batteries
When handled correctly and appropriately lithium batteries pose no risk.
Store lithium batteries in a cool, dry place, ideally in the original packaging.
Please note that this device must not be connected to a dimmer.
WARNING!
Incorrect handling of lithium batteries can result in injury
In the event of a short circuit, overheating or mechanical damage, lithium bat‐
teries can cause severe injuries.
Follow the advice on the correct handling of lithium batteries in the present sec‐
tion.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
20
LED spotlight
Installation
Store lithium batteries away from heat sources (e.g. radiators or sunlight). Lithium batteries are
hermetically sealed. Never attempt to open a lithium battery.
If the battery housing is damaged small amounts of the electrolyte may leak out. If this should
happen, seal the lithium battery in airtight packaging and wipe up the traces of electrolyte
using absorbent paper towels. You must wear protective rubber gloves when doing so. Clean
your hands and the aected surface thoroughly with cold water.
Never attempt to recharge non-rechargeable lithium batteries. When charging lithium bat‐
teries you must use a suitable charging device intended for the purpose.
Before disposing of the device remove the lithium batteries. Protect used lithium batteries
against potential short circuits, e.g. by covering the poles with adhesive tape.
Only use powder extinguishers or other suitable extinguishing agents to extinguish a burning
lithium battery.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
21
Starting up
5 Starting up
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
22
LED spotlight
Starting up

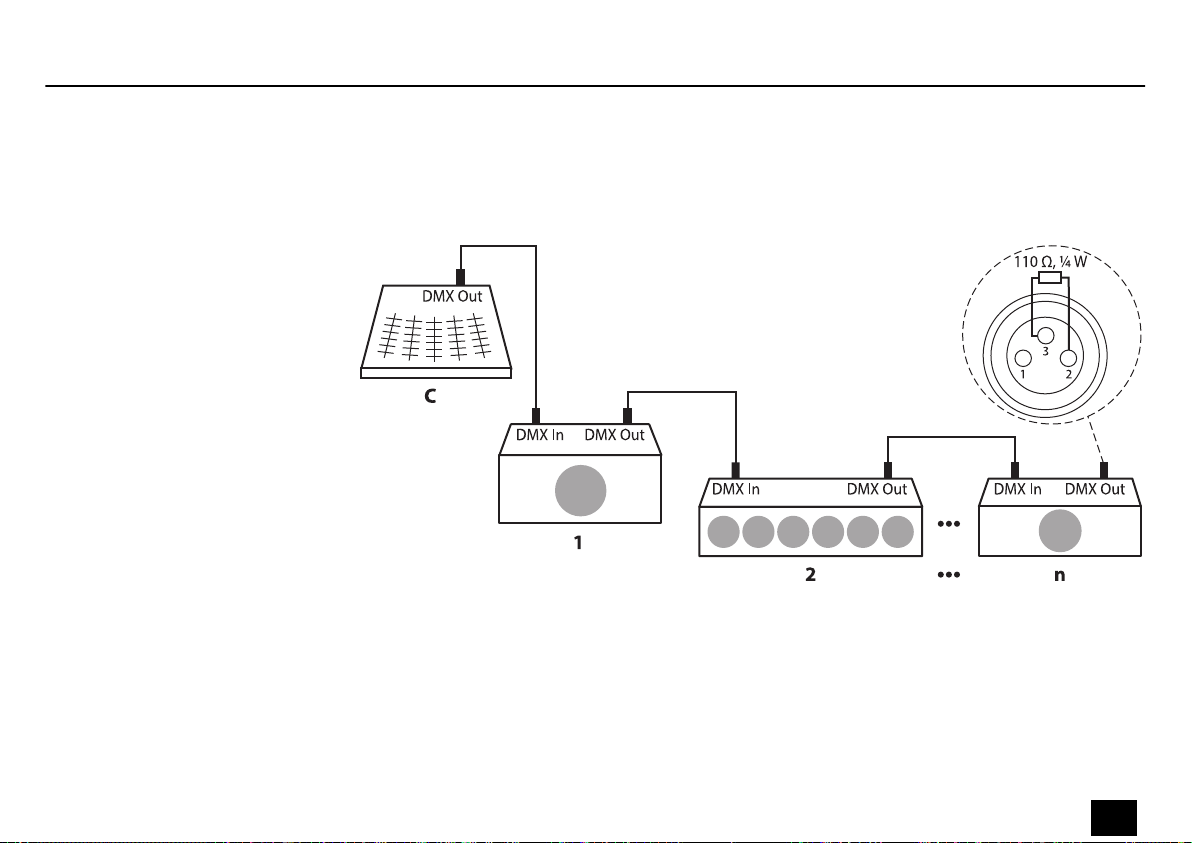

Connections in DMX mode
Connect the DMX input of the device to the DMX output of a DMX controller or another DMX
device. Connect the output of the rst DMX device to the input of the second one, and so on
to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain
is terminated with a resistor (110 Ω, ¼ W).
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
23
Connections and operating elements
6 Connections and operating elements
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
24
LED spotlight
Connections and operating elements
1 Display and function buttons:
[MENU]
Activates the main menu and toggles between menu items. Closes an opened submenu.
[UP], [DOWN]
Toggles between the menu items of a menu level, increases or decreases the displayed value by one.
[ENTER]
Selects an option of the respective operating mode, conrms the set value.
2 Locking screws for the mounting bracket.
3 Bracket for oor placement or hanging.
4 [POWER]
Connection socket for the 15 V power supply unit.
5 Battery compartment
6 [SWITCH]
Main switch. Turns the device on and o.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
25
Connections and operating elements
7 [BATTERY INDICATOR]
Remaining battery capacity display. When all the LEDs are on, the battery is fully charged. If only the red LED is on,
the unit must be connected to the mains again to charge as soon as possible.
8 [DMX IN]
DMX input.
9 [DMX OUT]
DMX output.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
26
LED spotlight

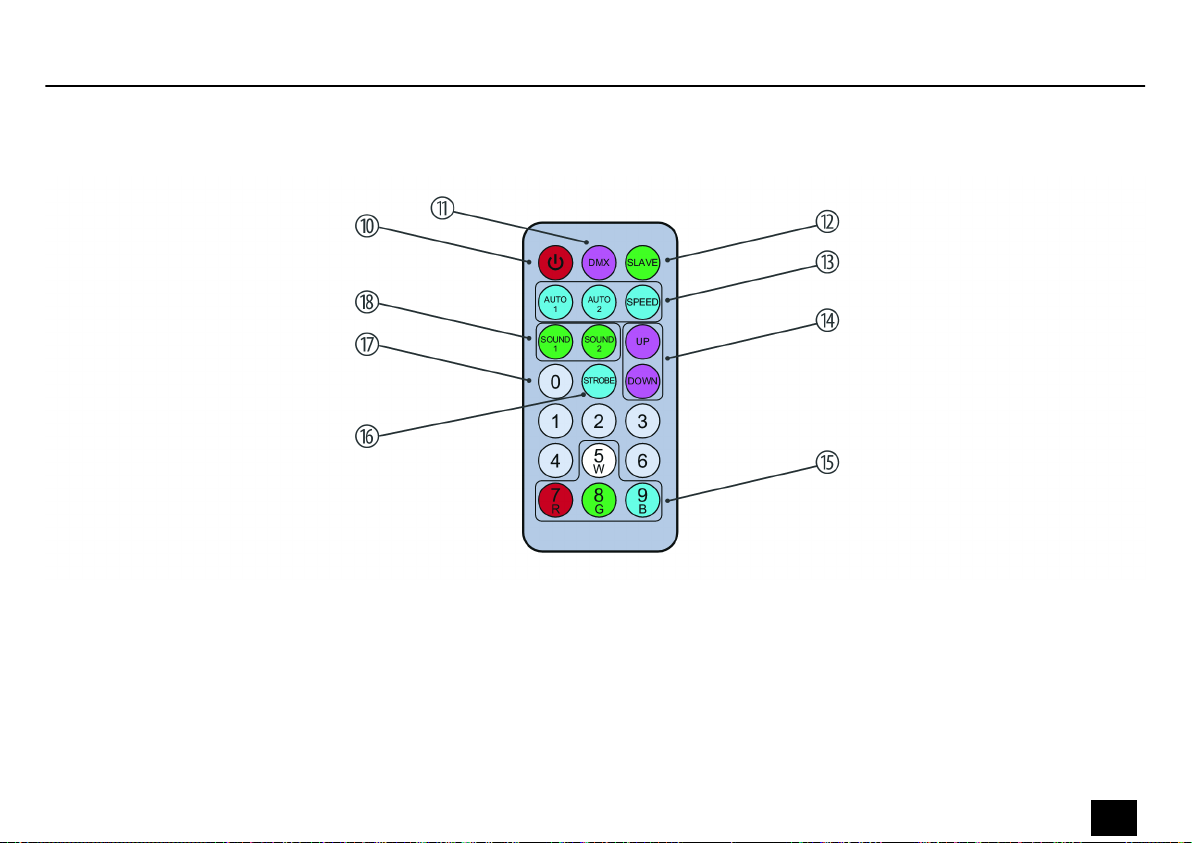

Remote control
Connections and operating elements
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
27
Connections and operating elements
10 Button to turn the device on and o.
11 [DMX]
Button to switch between DMX and stand-alone mode.
12 [SLAVE]
Button to switch between Master and Slave mode.
13 [AUTO 1], [AUTO 2], [SPEED]
Buttons to activate automatic mode 1 or 2 and to adjust the program's speed.
14 [UP], [DOWN]
Buttons to switch between individual programs and to increase/decrease numeric values.
15 Buttons for colour selection.
Use
n [W] for white light.
n [R], [G], or [B] for primary colours red, green and blue.
16 [STROBE]
Button to turn the strobe eect on/o.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
28
LED spotlight
17 Numerical buttons 0 … 9 for direct number entry.
18 [SOUND 1], [SOUND 2]
Buttons to activate automatic mode 1 or 2 of the sound control.
Connections and operating elements
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
29
Operating
7 Operating
7.1 Starting the device
7.2 Operating on the unit
Turn on the power using the main switch. The display shows the current operation mode.
Wait for approx. 15 seconds after conrming the last modication of the setting until the dis‐
play turns o. Now the settings are saved.
DMX address
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
30
LED spotlight
Press [MENU], [UP] or [DOWN] repeatedly until the display shows ‘Addr’ . Conrm with [ENTER].
Now you can set the number of the rst DMX channel to be used by the device (DMX address).
Use [UP] and [DOWN] to select a value between 1 and 512 (display shows ‘A001’ … ‘A512’).
Conrm with [ENTER].
Make sure that this number matches the conguration of your DMX controller.
Operating
Sound control
Dimmer settings
Constant colour
Press [MENU], [UP] or [DOWN] repeatedly until the display shows ‘Soun’ . Conrm with [ENTER].
Use [UP] and [DOWN] to select the desired mode ‘Sou1’ or ‘Sou2’. Conrm with [ENTER].
Now you can adjust the sensitivity of the built-in microphone for sound control. Use [Up] and
[Down] to select a value between 0 (low sensitivity) and 9 (high sensitivity), display shows
‘Se0’ … ‘Se9’.
Press [MENU], [UP] or [DOWN] repeatedly until the display shows ‘Stat’ . Conrm with [ENTER].
Use [UP] and [DOWN] to select the xed colour for which the dimmer setting should be
adjusted:
n BAT.PAR 6 RGBWA (item no. 385435): Red, green, blue, white, amber
n BAT.PAR 6 RGBUV (item no. 385457): Red, green, blue, UV, speed strobe eect
Adjust the setting as desired in a range from 0 … 255 (0 % to 100 %) and conrm with [ENTER]
to switch to the next colour in the menu.
Press [MENU], [UP] or [DOWN] repeatedly until the display shows ‘Colo’ . Conrm with [ENTER].
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
31
Operating
Use [UP] and [DOWN] to select a constant colour in a range from ‘Col1’ … ‘Col51’. Conrm
with [ENTER].
Operating mode Auto
Device info
Operating mode Slave
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
32
LED spotlight
Press [MENU], [UP] or [DOWN] repeatedly until the display shows ‘Auto’ . Conrm with [ENTER].
Use [UP] and [DOWN] to select the desired mode ‘Aut1’ , ‘Aut2’ or ‘Aut3’. Conrm with [ENTER].
Now you can adjust the progress speed of the programme between ‘SP 1’ and ‘SP 9’.
Press [MENU], [UP] or [DOWN] repeatedly until the display shows ‘Info’ . Conrm with [ENTER].
The display shows the version number of the currently installed software.
Use [UP] and [DOWN] to select the option ‘tenP’ . Conrm with [ENTER]. The display shows the
current device temperature.
or
Use [UP] and [DOWN] to select the option ‘uer’ . Conrm with [ENTER]. The display shows the
version number of the currently installed software.
Press [MENU], [UP] or [DOWN] repeatedly until the display shows ‘SLav’ . Conrm with [ENTER].
The display shows ‘Sla’ , the unit is now in Slave mode.
Operating
DMX mode, BAT.PAR 6 RGBWA
(item no. 385435)
DMX mode, BAT.PAR 6 RGBUV
(item no. 385457)
Press [MENU], [UP] or [DOWN] repeatedly until the display shows ‘Chnd’ . Conrm with [ENTER].
Now use [UP] or [DOWN] to select one of the following DMX operating modes:
n ‘1Ch’ (one channel)
n ‘5Ch’
n ‘7Ch’ (seven channels)
n ‘8Ch’
Conrm the selection with [ENTER].
Press [MENU], [UP] or [DOWN] repeatedly until the display shows ‘Chnd’ . Conrm with [ENTER].
Now use [UP] or [DOWN] to select one of the following DMX operating modes:
n ‘1Ch’ (one channel)
n ‘4Ch’
n ‘6Ch’ (six channels)
n ‘7Ch’
Conrm the selection with [ENTER].
(ve channels)
(eight channels)
(four channels)
(seven channels)
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
33
Operating
7.3 IR remote control
Press [MENU], [UP] or [DOWN] repeatedly until the display shows ‘reno’ . Conrm with [ENTER].
Use [UP] and [DOWN] to select the option ‘on’ to operate the unit via the IR remote control.
Conrm with [ENTER].
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
34
LED spotlight
7.4 Menu overview
BAT.PAR 6 RGBWA (item no.
385435)
Operating
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
35
Operating
BAT.PAR 6 RGBUV (item no.
385457)
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
36
LED spotlight
7.5 Functions in 1-channel DMX mode
Channel Value Function
1 0…255 Selecting colour macros 1 … 51
7.6 Functions in 4-channel DMX mode
BAT.PAR 6 RGBUV (item no.
385457)
Channel Value Function
1 0…255 Intensity red (0 % to 100 %)
2 0…255 Intensity green (0 % to 100 %)
Operating
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
37
Operating
Channel Value Function
3 0…255 Intensity blue (0 % to 100 %)
4 0…255 Intensity UV light (0 % to 100 %)
7.7 Functions in 5-channel DMX mode
BAT.PAR 6 RGBWA (item no.
385435)
Channel Value Function
1 0…255 Intensity red (0 % to 100 %)
2 0…255 Intensity green (0 % to 100 %)
3 0…255 Intensity blue (0 % to 100 %)
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
38
LED spotlight
Channel Value Function
4 0…255 Intensity white (0 % to 100 %)
5 0…255 Intensity amber (0 % to 100 %)
Operating
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
39
Operating
7.8 Functions in 6-channel DMX mode
BAT.PAR 6 RGBUV (item no.
385457)
Channel Value Function
1 0…255 Master dimmer (0 % to 100 %)
2 0…255 Intensity red (0 % to 100 %)
3 0…255 Intensity green (0 % to 100 %)
4 0…255 Intensity blue (0 % to 100 %)
5 0…255 Intensity UV light (0 % to 100 %)
6 0…255 Stroboscope eect (0 % to 100 %)
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
40
LED spotlight
7.9 Functions in 7-channel DMX mode
BAT.PAR 6 RGBWA (item no.
385435)
Channel Value Function
1 0…255 Master dimmer (0 % to 100 %)
2 0…255 Intensity red (0 % to 100 %)
3 0…255 Intensity green (0 % to 100 %)
4 0…255 Intensity blue (0 % to 100 %)
5 0…255 Intensity white (0 % to 100 %)
6 0…255 Intensity amber (0 % to 100 %)
7 0…255 Stroboscope eect (0 % to 100 %)
Operating
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
41
Operating
BAT.PAR 6 RGBUV (item no.
385457)
Channel Value Function
1 0…255 Master dimmer (0 % to 100 %)
2 0…255 Intensity red (0 % to 100 %)
3 0…255 Intensity green (0 % to 100 %)
4 0…255 Intensity blue (0 % to 100 %)
5 0…255 Intensity UV light (0 % to 100 %)
6 0…15 No function
16…31 Programme 1
32…47 Programme 2
48…63 Programme 3
64…79 Programme 4
80…95 Programme 5
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
42
LED spotlight
Channel Value Function
96…111 Programme 6
112…127 Programme 7
128…143 Programme 8
144…159 Programme 9
160…175 Programme 10
176…191 Programme 11
192…207 Programme 12
208…223 Programme 13
224…239 Sound mode 1
240…255 Sound mode 2
7 0…255 Stroboscope eect (0 % to 100 %), if channel 6 = 0…15
Operating
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
43
Operating
Channel Value Function
Programme speed, if channel 6 = 16…223
Microphone sensitivity, if channel 6 = 224…255
7.10 Functions in 8-channel DMX mode
BAT.PAR 6 RGBWA (item no.
385435)
Channel Value Function
1 0…255 Master dimmer (0 % to 100 %)
2 0…255 Intensity red (0 % to 100 %)
3 0…255 Intensity green (0 % to 100 %)
4 0…255 Intensity blue (0 % to 100 %)
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
44
LED spotlight
Channel Value Function
5 0…255 Intensity white (0 % to 100 %)
6 0…255 Intensity amber (0 % to 100 %)
7 0…15 No function
16…31 Programme 1
32…47 Programme 2
48…63 Programme 3
64…79 Programme 4
80…95 Programme 5
96…111 Programme 6
112…127 Programme 7
128…143 Programme 8
144…159 Programme 9
Operating
160…175 Programme 10
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
45
Operating
Channel Value Function
176…191 Programme 11
192…207 Programme 12
208…223 Programme 13
224…239 Sound mode 1
240…255 Sound mode 2
8 0…255 Stroboscope eect (0 % to 100 %), if channel 6 = 0…15
Programme speed, if channel 6 = 16…223
Microphone sensitivity, if channel 6 = 224…255
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
46
LED spotlight
8 Technical specications
Technical specications
BAT.PAR 6 RGBWA
(Item no. 385435)
Light source 6 × RGBWA, each 8 W 6 × RGBUV, each 8 W
Optical properties Beam angle 25 °
Control DMX, infrared remote control, buttons and dis‐
play
Number of DMX channels 1, 5, 7 or 8 1, 4, 6 or 7
Input connections Power supply Plug-in power supply
DMX control XLR chassis socket, 3-pin
Output connec‐
tions
Power consumption 48 W
Power supply
DMX control XLR chassis socket, 3-pin
Power adapter, 100 - 240 V 50/60 Hz
BAT.PAR 6 RGBUV
(Item no. 385475)
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
47
Technical specications
BAT.PAR 6 RGBWA
(Item no. 385435)
Operating voltage
Battery / recharge‐
able battery
Degree of protection IP20
Mounting options Hanging, standing
Dimensions (W × H × D) 250 mm × 254 mm × 130 mm
Weight 2 kg
Ambient condi‐
tions
Battery type Interchangeable lithium-ion battery pack
Voltage 10.8 V
Capacity 1500 mAh
Operating time max. 5 h
Temperature range 0 °C…40 °C
Relative humidity 20 %…80 % (non-condensing)
15 V / 5 A, centre positive
(item no. 385488)
BAT.PAR 6 RGBUV
(Item no. 385475)
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
48
LED spotlight
Further information
Construction Flat PAR
LED type x-in-1
Base housing Yes
Fanless No
Remote control included
Wireless DMX No
Housing colour Black
Technical specications
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
49
Plug and connection assignments
9 Plug and connection assignments
Introduction
DMX connections
This chapter will help you select the right cables and plugs to connect your valuable equip‐
ment so that a perfect light experience is guaranteed.
Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug
ts into a socket, the result of an incorrect connection may be a destroyed DMX controller, a
short circuit or ‘just’ a not working light show!
The unit oers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please
refer to the drawing and table below for the pin assignment of a suitable XLR plug.
Pin Conguration
1 Ground, shielding
2 Signal inverted (DMX–, ‘cold signal’)
3 Signal (DMX+, ‘hot signal’)
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
50
LED spotlight
10 Troubleshooting
In the following we list a few common problems that may occur during operation. We give you
some suggestions for easy troubleshooting:
Troubleshooting
NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordi‐
nary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or ampli‐
ers.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
51
Troubleshooting
Symptom Remedy
Device not working, no light Check the mains connection and the main fuse.
Not responding to DMX controller 1. Check the DMX connectors and cables to see if they
are properly linked.
2. Check the address settings and the DMX polarity.
3. Try using another DMX controller.
4. Check whether the DMX cables run near or parallel to
high-voltage cables that may cause damage or interfer‐
ence to the DMX interface circuit.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
52
LED spotlight
The built-in battery can no longer
be recharged
If the procedures recommended above do not succeed, please contact our Service Center. You
can nd the contact information at www.thomann.de.
Do not attempt to replace the built-in battery yourself.
Please contact our service centre.
11 Cleaning
Cleaning
Optical lenses
Fan grids
Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the
light output. The frequency of cleaning depends on the operating environment: wet, smoky or
particularly dirty surroundings can cause more accumulation of dirt on the optics of the
device.
n Clean with a soft cloth using our lamp and lens cleaner (item no. 280122).
n Always dry the parts carefully.
The fan grids of the device must be cleaned of any contamination, such as dust, etc. on a reg‐
ular basis. Before cleaning, switch o the device and disconnect mains-operated devices from
the mains. Only use pH-neutral, solvent-free and non-abrasive cleaning agents. Clean the unit
with a slightly damp lint-free cloth.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
53
Protecting the environment
12 Protecting the environment
Disposal of the packaging mate‐
rial
For the packaging, environmentally friendly materials have been chosen that can be supplied
to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that
they are collected for recycling. Please follow the notes and markings on the packaging.
Disposal of batteries
Batteries do contain some hazardous chemicals so they should not be thrown away with the
normal household waste. They should be returned to the manufacturer for disposal or recycled
elsewhere in accordance with your local regulations.
Dispose lithium batteries only in discharged condition. Remove lithium batteries from the
device before disposal. Protect used lithium batteries against potential short circuits, e.g. by
covering the poles with adhesive tape. Dispose the built-in lithium batteries together with the
device. Please check for an appropriate reception facility.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
54
LED spotlight
Disposal of your old device
Protecting the environment
This product is subject to the European Waste Electrical and Electronic Equipment Directive
(WEEE) in its currently valid version. Do not dispose with your normal household waste.
Dispose of this device through an approved waste disposal rm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
55
Notes
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
56
LED spotlight
Notes
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
LED spotlight
57
Notes
BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV
58
LED spotlight
Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de
Loading...
