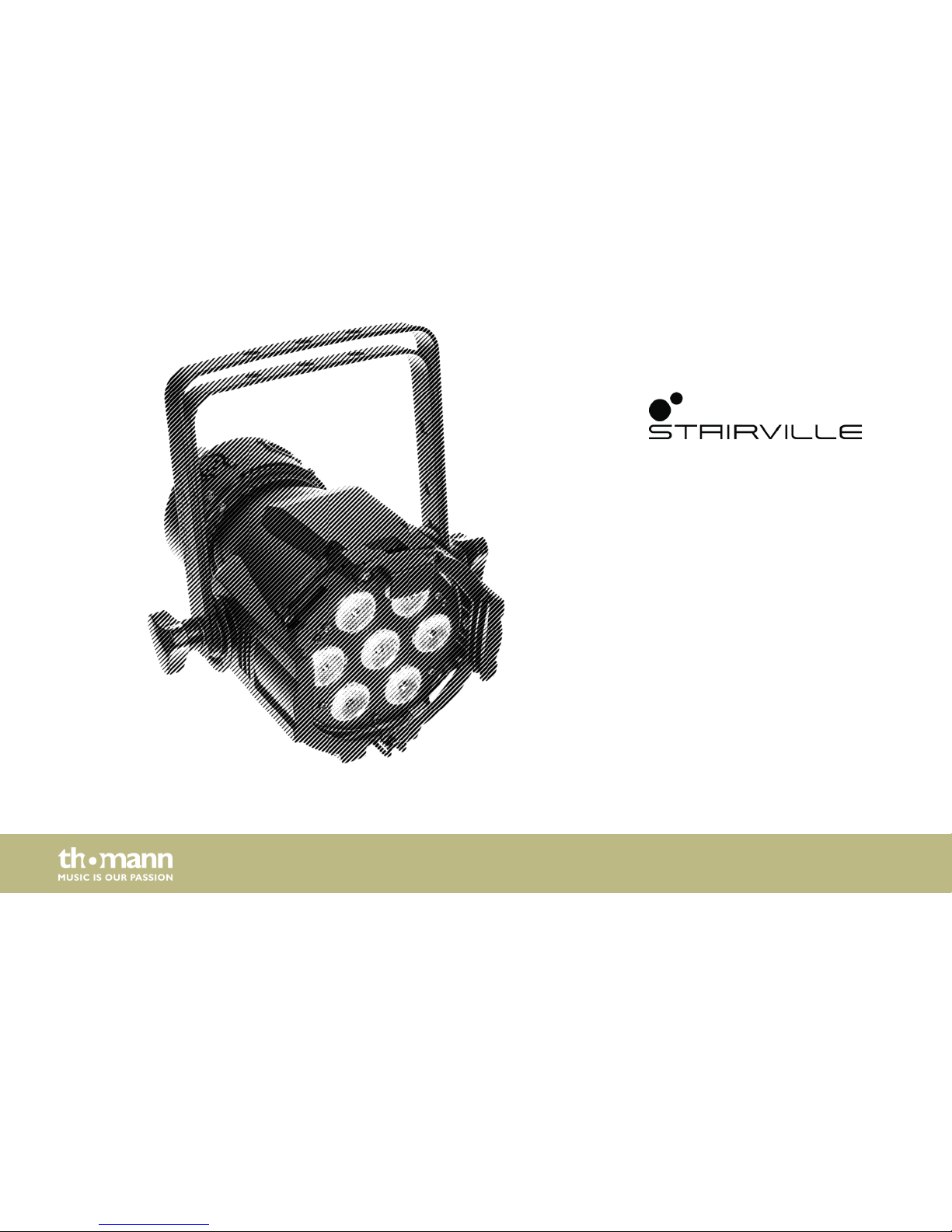

thomann 406531, 406532 User Manual

Mini Stage Par

4×7W RGBW RGB WW

LED PAR

user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [e-mail]
Internet: www.thomann.de

16.10.2017, ID: 406531_406532

Table of contents

1 General notes............................................................................................................................................... 5

1.1 Further information........................................................................................................................... 6

1.2 Notational conventions.................................................................................................................... 7

1.3 Symbols and signal words............................................................................................................... 7

2 Safety instructions.................................................................................................................................. 10

3 Features....................................................................................................................................................... 15

4 Installation.................................................................................................................................................. 16

5 Starting up.................................................................................................................................................. 20

6 Connections and controls................................................................................................................... 23

7 Operating.................................................................................................................................................... 25

7.1 Starting the device........................................................................................................................... 25

7.2 Main menu.......................................................................................................................................... 25

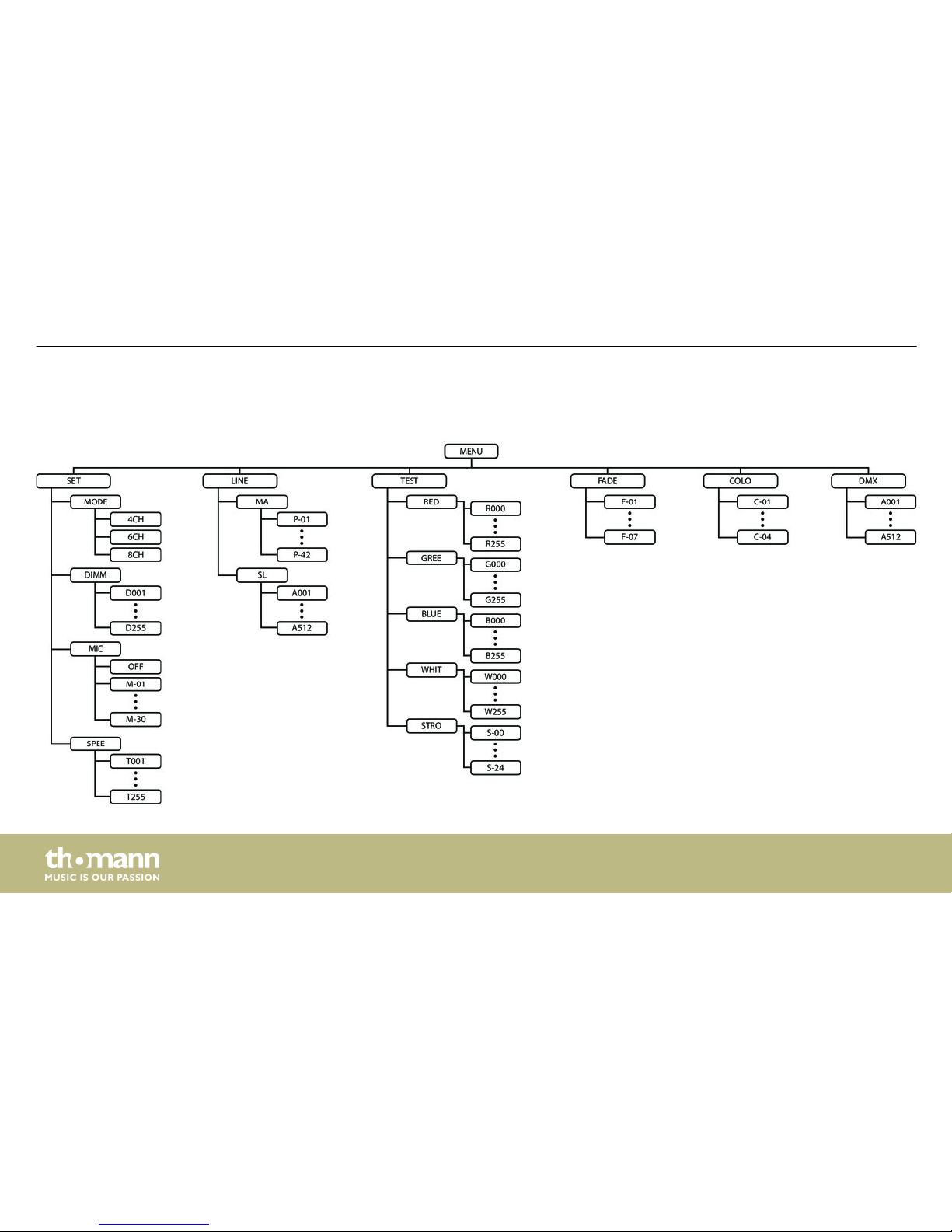

7.3 Menu overview................................................................................................................................. 32

7.4 Functions in 4-channel DMX mode........................................................................................... 33

7.5 Functions in 6-channel DMX mode........................................................................................... 33

Table of contents

Mini Stage Par 4×7W RGBW RGB WW

3

7.6 Functions in 8-channel DMX mode........................................................................................... 35

8 Technical specifications....................................................................................................................... 37

9 Plug and connection assignments.................................................................................................. 38

10 Troubleshooting...................................................................................................................................... 39

11 Cleaning....................................................................................................................................................... 41

12 Protecting the environment.............................................................................................................. 42

Table of contents

LED PAR

4

1 General notes

This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.

Our products are subject to a process of continuous development. Thus, they are subject to
change.

General notes

Mini Stage Par 4×7W RGBW RGB WW

5

1.1 Further information

On our website (www.thomann.de) you will find lots of further information and details on the
following points:

Download This manual is also available as PDF file for you to download.

Keyword search

Use the search function in the electronic version to find the topics of
interest for you quickly.

Online guides

Our online guides provide detailed information on technical basics
and terms.

Personal consultation For personal consultation please contact our technical hotline.

Service

If you have any problems with the device the customer service will
gladly assist you.

General notes

LED PAR

6

1.2 Notational conventions

This manual uses the following notational conventions:

The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.

Texts and values displayed on the device are marked by quotation marks and italics.

Examples: ‘24ch’ , ‘OFF’.

1.3 Symbols and signal words

In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.

Letterings

Displays

General notes

Mini Stage Par 4×7W RGBW RGB WW

7

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an

immediate dangerous situation that will result in death or
serious injury if it is not avoided.

WARNING! This combination of symbol and signal word indicates a pos-

sible dangerous situation that can result in death or serious
injury if it is not avoided.

NOTICE! This combination of symbol and signal word indicates a pos-

sible dangerous situation that can result in material and
environmental damage if it is not avoided.

Warning signs Type of danger

Warning – high-voltage.

Warning – suspended load.

General notes

LED PAR

8

Warning signs Type of danger

Warning – danger zone.

General notes

Mini Stage Par 4×7W RGBW RGB WW

9

2 Safety instructions

This device is intended to be used as an electronic illumination effect using LED technics. The
device is designed for professional use and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con­ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.

This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.

Intended use

Safety instructions

LED PAR

10

DANGER!
Danger for children

Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!

Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!

Never let children unattended use electrical devices.

DANGER!
Electric shock caused by high voltages inside

Within the device there are areas where high voltages may be present. Never
remove any covers.

There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or

damaged.

Safety

Safety instructions

Mini Stage Par 4×7W RGBW RGB WW

11

DANGER!
Electric shock caused by short-circuit

Do not modify the mains cable or the plug. Failure to do so could result in electric
shock/death or fire. If in doubt, seek advice from a registered electrician.

WARNING!
Eye damage caused by high light intensity

Never look directly into the light source.

WARNING!
Risk of epileptic shock

Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons
should avoid looking at strobe lights.

Safety instructions

LED PAR

12

NOTICE!
Risk of fire

Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked flames.

NOTICE!
Operating conditions

This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.

Safety instructions

Mini Stage Par 4×7W RGBW RGB WW

13

NOTICE!
Power supply

Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.

Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.

Safety instructions

LED PAR

14

3 Features

The LED PAR is suitable for almost all applications, for example in clubs, bars, small stages and
theatres. It is characterized by compact dimensions and enormous performance.

Special features of the device:

n

7 × 8 W LEDs: red, green, blue, white (RGBW) warm white (RGB WW)

n

Control via DMX (three different modes) and via buttons and display on the unit

n

42 preprogrammed automatic shows

n

Sound control

n

Master / Slave mode

n

Robust aluminium die-cast housing

Features

Mini Stage Par 4×7W RGBW RGB WW

15

4 Installation

Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.

WARNING!
Risk of injury caused by falling objects

Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.

Installation

LED PAR

16

NOTICE!
Risk of overheating

Always ensure sufficient ventilation.
The ambient temperature must always be below 40 °C (104 °F).

NOTICE!
Use of stands

When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.

Installation

Mini Stage Par 4×7W RGBW RGB WW

17

NOTICE!
Possible data transmission errors

For error-free operation make use of dedicated DMX cables and do not use ordi­nary microphone cables.

Never connect the DMX input or output to audio devices such as mixers or ampli­fiers.

You can install the device in either the hanging or standing position. During use, the device
must always be attached to a solid surface or to an approved support. Use the openings pro­vided on the bracket for attaching.

Always work from a stable platform whenever installing, moving or servicing the unit. In doing
so, the area underneath the device must be cordoned off.

The safety-rope must be attached to the bracket.

Options

Installation

LED PAR

18

Please note that this device must not be connected to a dimmer.

Installation

Mini Stage Par 4×7W RGBW RGB WW

19

5 Starting up

Create all connections while the device is off. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.

Starting up

LED PAR

20

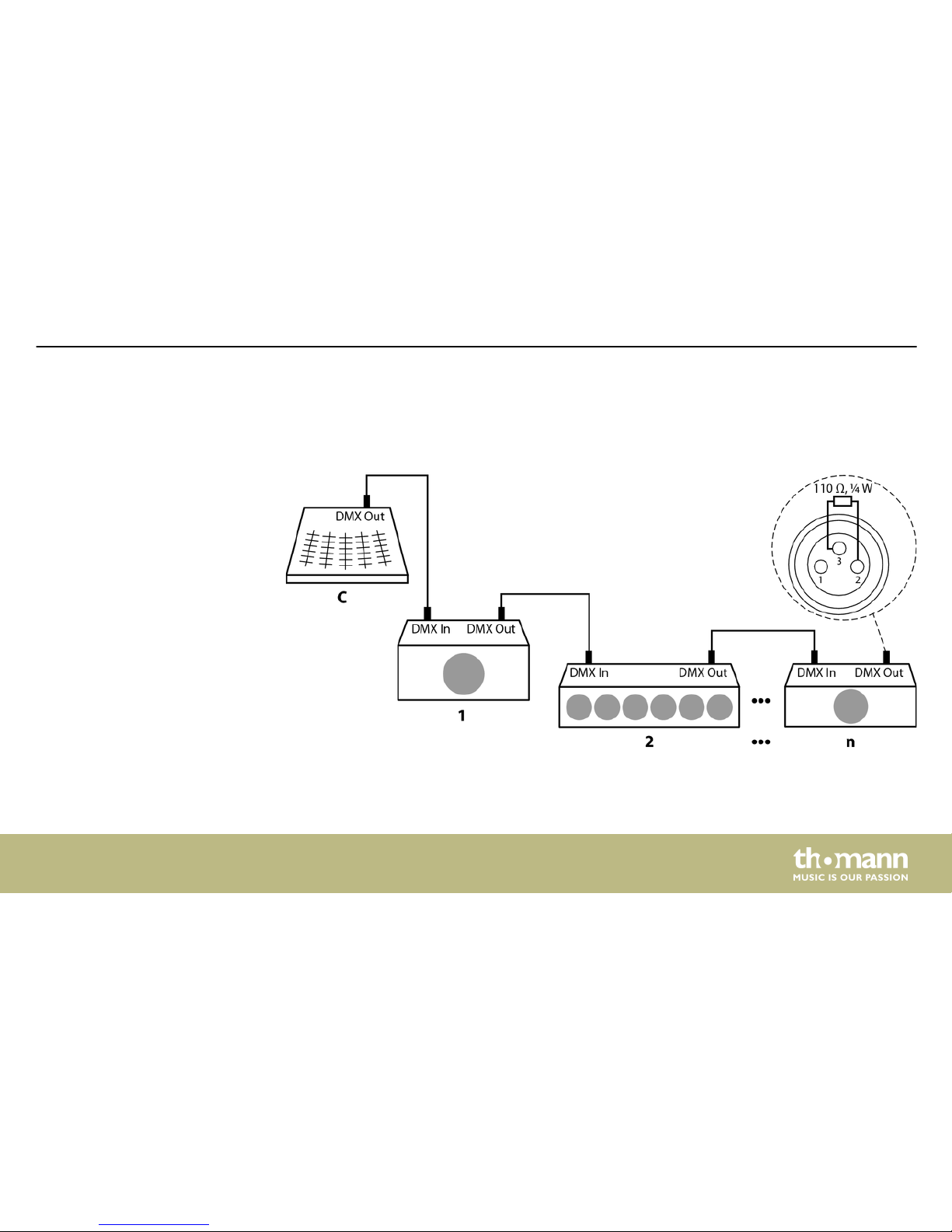

Connect the DMX input of the device to the DMX output of a DMX controller or another DMX
device. Connect the output of the first DMX device to the input of the second one, and so on
to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain
is terminated with a resistor (110 Ω, ¼ W).

Connections in DMX mode

Starting up

Mini Stage Par 4×7W RGBW RGB WW

21

When you configure a group of devices in master/slave mode, the first unit will control the
other units for an automatic, sound-activated, synchronized show. This function is ideal when
you want to start a show immediately. Connect the DMX output of the master device to the
DMX input of the first slave device. Then connect the DMX output of the first slave device to
the DMX input of the second slave device and so on.

Connections in master/slave
mode

Starting up

LED PAR

22

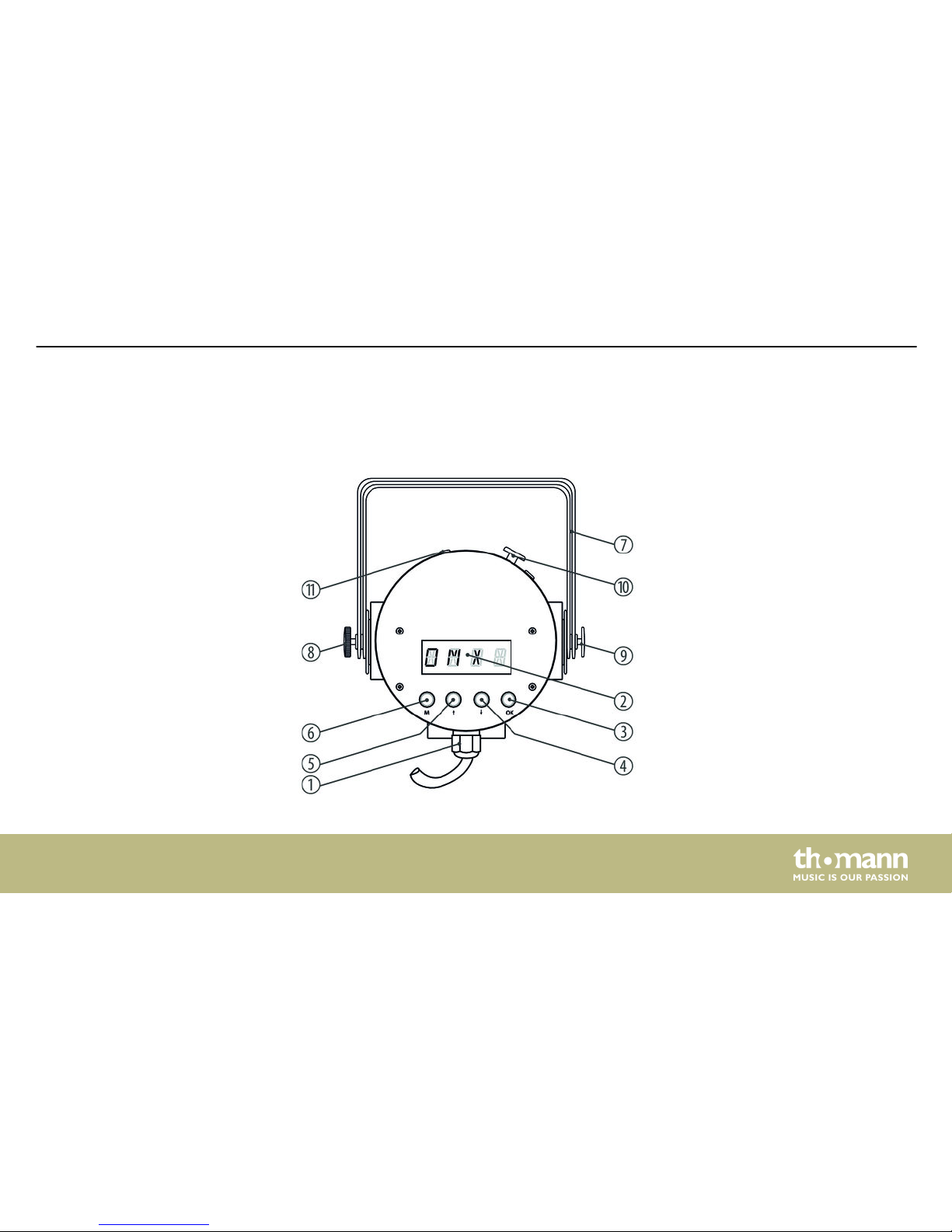

6 Connections and controls

Front panel

Connections and controls

Mini Stage Par 4×7W RGBW RGB WW

23

1 Power cord.
2 Display.
3 [OK] button

Confirms a selected value.

4, 5

Buttons ,
Increases / decreases the displayed value by one.

6 [M] button

Calls up the main menu or a submenu.

7 Bracket for floor placement or hanging.

8, 9 Locking screws for the mounting bracket.

10 [DMX OUT]

DMX output.

11 [DMX IN]

DMX input.

Connections and controls

LED PAR

24

7 Operating

7.1 Starting the device

Connect the device to the power supply to start operation. After a few seconds, the display
indicates that a reset is in progress. The device is then ready for use.

7.2 Main menu

Press [M] to activate the main menu and select an operating mode. Use the arrow buttons to
change the respectively displayed value. When the display shows the desired value, press [OK].

If you don't press any button for about 1 minute, the unit returns to the previously selected
mode. The set values are retained even when the device is disconnected from the mains
power supply.

Operating

Mini Stage Par 4×7W RGBW RGB WW

25

Press [M]. Press one of the arrow buttons repeatedly until the display shows ‘SET’ . Press [OK].
Press one of the arrow buttons repeatedly until the display shows ‘MODE’ . Press [OK]. Now use
the arrow buttons to select one of the following DMX modes:

n ‘4CH’ (four channels)
n

‘6CH’ (six channels)

n

‘8CH’ (eight channels)

This setting is only relevant when the device is controlled via DMX. When the display shows
the desired value press [OK] to confirm the selection and then [M] to return to the parent
menu. To return to the parent menu without making changes, press [M].

DMX mode

Operating

LED PAR

26

Press [M]. Press one of the arrow buttons repeatedly until the display shows ‘DMX’ . Press [OK].
Now you can set the number of the first DMX channel to be used by the device (DMX address).
Use the arrow buttons to select a value between 1 and 512 (display shows‘A001’ …‘A512’).

When the display shows the desired value press [OK] to confirm the selection and then [M] to
return to the parent menu. To return to the parent menu without making changes, press [M].

Make sure that this number matches the configuration of your DMX controller. The following
table shows the highest possible DMX address for the various DMX modes.

Mode Highest possible DMX address

4-channel 509
6-channel 507
8-channel 505

DMX address

Operating

Mini Stage Par 4×7W RGBW RGB WW

27

Press [M]. Press one of the arrow buttons repeatedly until the display shows ‘LINE’ . Press [OK].
Press one of the arrow buttons repeatedly until the display shows ‘MA’ . Press [OK]. Now you
can select one of the preprogrammed automatic shows. Use the arrow buttons to select a
value between 1 and 42 (display shows ‘P-01’ …‘P-42’).

The automatic show can only be activated on the device, that serves as master.
This setting is only relevant if the device is not controlled via DMX. The device can operate in

stand-alone mode or control connected devices of the same type, that must be configured as
slaves. When the display shows the desired value press [OK] to confirm the selection and then

[M] to return to the parent menu. To return to the parent menu without making changes, press
[M].

Press [M]. Press one of the arrow buttons repeatedly until the display shows ‘LINE’ . Press [OK].
Press one of the arrow buttons repeatedly until the display shows ‘SL’ . Press [OK]. Now you can
set the number for the device via which it is addressed by the master as a slave. Use the arrow
buttons to select a value between 1 and 512 (display shows‘A001’ …‘A512’).

This setting is only relevant if the device is operating as Slave controlled by a Master, but not
via DMX. When the display shows the desired value press [OK] to confirm the selection and
then [M] to return to the parent menu. To return to the parent menu without making changes,
press [M].

Operating mode ‘Show/Master’

Operating mode ‘Slave’

Operating

LED PAR

28

Press [M]. Press one of the arrow buttons repeatedly until the display shows ‘SET’ . Press [OK].
Press one of the arrow buttons repeatedly until the display shows ‘SPEE’ . Press [OK]. Now you
can adjust the programme speed for the preprogrammed automatic shows. Use the arrow but­tons to select a value between 1 and 255 (display shows ‘T001’ …‘T255’). To use this setting,
you have to set the microphone sensitivity to ‘OFF’ .

This setting is only relevant if the device is not controlled via DMX. When the display shows the
desired value press [OK] to confirm the selection and then [M] to return to the parent menu. To
return to the parent menu without making changes, press [M].

Press [M]. Press one of the arrow buttons repeatedly until the display shows ‘SET’ . Press [OK].
Press one of the arrow buttons repeatedly until the display shows ‘DIMM’ . Press [OK]. Now you
can set the overall brightness. Use the arrow buttons to select a value between 1 and 255 (dis­play shows ‘D001’ …‘D255’).

This setting is only relevant if the device is not controlled via DMX. When the display shows the
desired value press [OK] to confirm the selection and then [M] to return to the parent menu. To
return to the parent menu without making changes, press [M].

Programme speed

Brightness

Operating

Mini Stage Par 4×7W RGBW RGB WW

29

Press [M]. Press one of the arrow buttons repeatedly until the display shows ‘SET’ . Press [OK].
Press one of the arrow buttons repeatedly until the display shows ‘MIC’ . Press [OK]. Now you
can adjust the sensitivity of the built-in microphone for sound control. Use the arrow buttons
to select either ‘OFF’ (microphone off) or a value between 1 and 30 (display shows ‘M-01’…

‘M-30’ or ‘OFF’).

This setting is only relevant if the device is not controlled via DMX. When the display shows the
desired value press [OK] to confirm the selection and then [M] to return to the parent menu. To
return to the parent menu without making changes, press [M].

Press [M]. Press one of the arrow buttons repeatedly until the display shows ‘TEST’ . Press [OK].
Press one of the arrow buttons repeatedly until the display shows ‘RED’ , ‘GREE’, ‘BLUE’, ‘WHIT’
or ‘STRO’ . Press [OK]. Now you can adjust the brightness of the red, green, blue or white
(RGBW) resp. warm white (RGB WW) LEDs in a range from 0 to 255, or select the strobe rate
from a range of 0 to 24.

This mode is also suitable for generating constant or flashing light of a colour mixed from the
four LED colours without DMX control.

When the display shows the desired value press [OK] to confirm the selection and then [M] to
return to the parent menu. To return to the parent menu without making changes, press [M].

Microphone sensitivity

Manual test

Operating

LED PAR

30

Press [M]. Press one of the arrow buttons repeatedly until the display shows ‘FADE’ . Press [OK].
Now you can choose a fade programme. Use the arrow buttons to select a value between 1
and 7 (display shows ‘F-01’ …‘F-07’).

This setting is only relevant if the device is not controlled via DMX. When the display shows the
desired value, press [OK] to confirm the selection and return to the main menu. To return to
the main menu without making changes, press [M].

Press [M]. Press one of the arrow buttons repeatedly until the display shows ‘COLO’ . Press [OK].
Now you can set a basic colour for the preprogrammed automatic shows. Use the arrow but­tons to select a value between 1 and 4 (display shows ‘C-01’ …‘C-04’).

This setting is only relevant if the device is not controlled via DMX. When the display shows the
desired value, press [OK] to confirm the selection and return to the main menu. To return to
the main menu without making changes, press [M].

Fade programmes

Colour selection

Operating

Mini Stage Par 4×7W RGBW RGB WW

31

7.3 Menu overview

Operating

LED PAR

32

7.4 Functions in 4-channel DMX mode

Channel Value Function

1 0…255 Intensity red (0 % to 100 %)
2 0…255 Intensity green (0 % to 100 %)
3 0…255 Intensity blue (0 % to 100 %)
4 0…255 RGBW: Intensity white (0 % to 100 %)

RGB WW: Intensity warm white (0 % to 100 %)

7.5 Functions in 6-channel DMX mode

Channel Value Function

1 Operating mode selection

0…63 Constant colour, the hue is set by channels 2 to 5

Operating

Mini Stage Par 4×7W RGBW RGB WW

33

Channel Value Function

64…127 Automatic colour change with 7 colours, channels 2 to 5 without function
128…191 Automatic colour change with 12 colours, channels 2 to 5 without function

192…255 Automatic colour change with 4 colours, channels 2 to 5 without function
2 0…255 Intensity red (0 % to 100 %), if channel 1 = 0…63
3 0…255 Intensity green (0 % to 100 %), if channel 1 = 0…63
4 0…255 Intensity blue (0 % to 100 %), if channel 1 = 0…63
5 0…255 RGBW: Intensity white (0 % to 100 %), if channel 1 = 0…63

RGB WW: Intensity warm white (0 % to 100 %), if channel 1 = 0…63

6 Effects speed

0…10 No automatic colour change

11…100 Automatic colour change as set by channel 1, decreasing speed from fast to slow

101…150 No automatic colour change

151…255 Automatic colour change as set by channel 1, speed changing randomly

Operating

LED PAR

34

7.6 Functions in 8-channel DMX mode

Channel Value Function

1 0…255 Intensity Red (0 % to 100 %), if channel 5 = 0…15 and channel 7 = 0…31
2 0…255 Intensity Green (0 % to 100 %), if channel 5 = 0…15 and channel 7 = 0…31
3 0…255 Intensity Blue (0 % to 100 %), if channel 5 = 0…15 and channel 7 = 0…31
4 0…255 RGBW: Intensity white (0 % to 100 %), if channel 1 = 0…63

RGB WW: Intensity warm white (0 % to 100 %), if channel 1 = 0…63

5 Fixed colour pattern

0…15 No fixed colour and movement pattern

16…255 One of 42 preprogrammed automatic shows (macros), channels 6 and 7 without function
6 Strobe effect

0…15 Full brightness, no strobe effect

16…255 Strobe effect, increasing speed, if channel 5 = 0…15, colour selection via channels 1 to 4

Operating

Mini Stage Par 4×7W RGBW RGB WW

35

Channel Value Function

7 Operating mode selection

0…31 Constant colour, the hue is set by channels 1 to 4

32…63 Fade-out effect, speed controlled by channel 6, channels 1 to 5 without function

64…95 Fade-in effect, speed controlled by channel 6, channels 1 to 5 without function

96…127 Fade-in-out effect, speed controlled by channel 6, channels 1 to 5 without function

128…159 Auto-mix effect, speed controlled by channel 6, channels 1 to 5 without function

160…191 Chase (4 colours), speed controlled by channel 6, channels 1 to 5 without function

192…223 Chase (12 colours), speed controlled by channel 6, channels 1 to 5 without function

224…255 Sound control
8 0…255 Dimmer (0 % to 100 %)

Operating

LED PAR

36

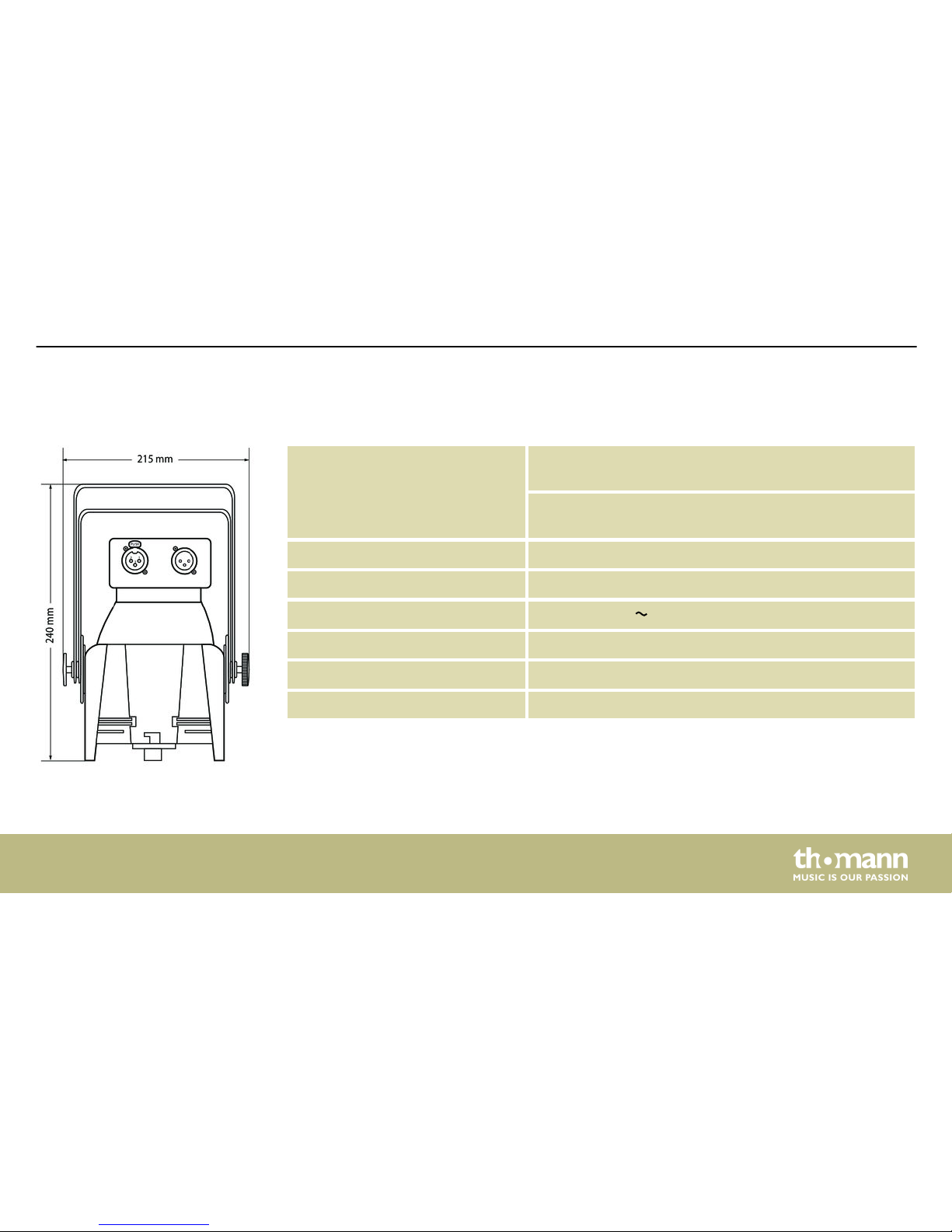

8 Technical specifications

Illuminant Mini Stage Par 7x4W RGBW (item # 406531): 4 × quad

colour LEDs, 7 W (red, green, blue, white)
Mini Stage Par 7x4W RGB WW (item # 406532): 4 × quad

colour LEDs, 7 W (red, green, blue, warm white)
Beam angle 30 °
Number of DMX channels 4, 6 or 8 channels, depending on operating mode
Operating supply voltage

AC 100 – 240 V 50/60 Hz
Power consumption 30 W
Dimensions (W × H × D) 215 mm × 240 mm × 140 mm
Weight 1.9 kg

Technical specifications

Mini Stage Par 4×7W RGBW RGB WW

37

9 Plug and connection assignments

This chapter will help you select the right cables and plugs to connect your valuable equip­ment so that a perfect light experience is guaranteed.

Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug
fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a
short circuit or ‘just’ a not working light show!

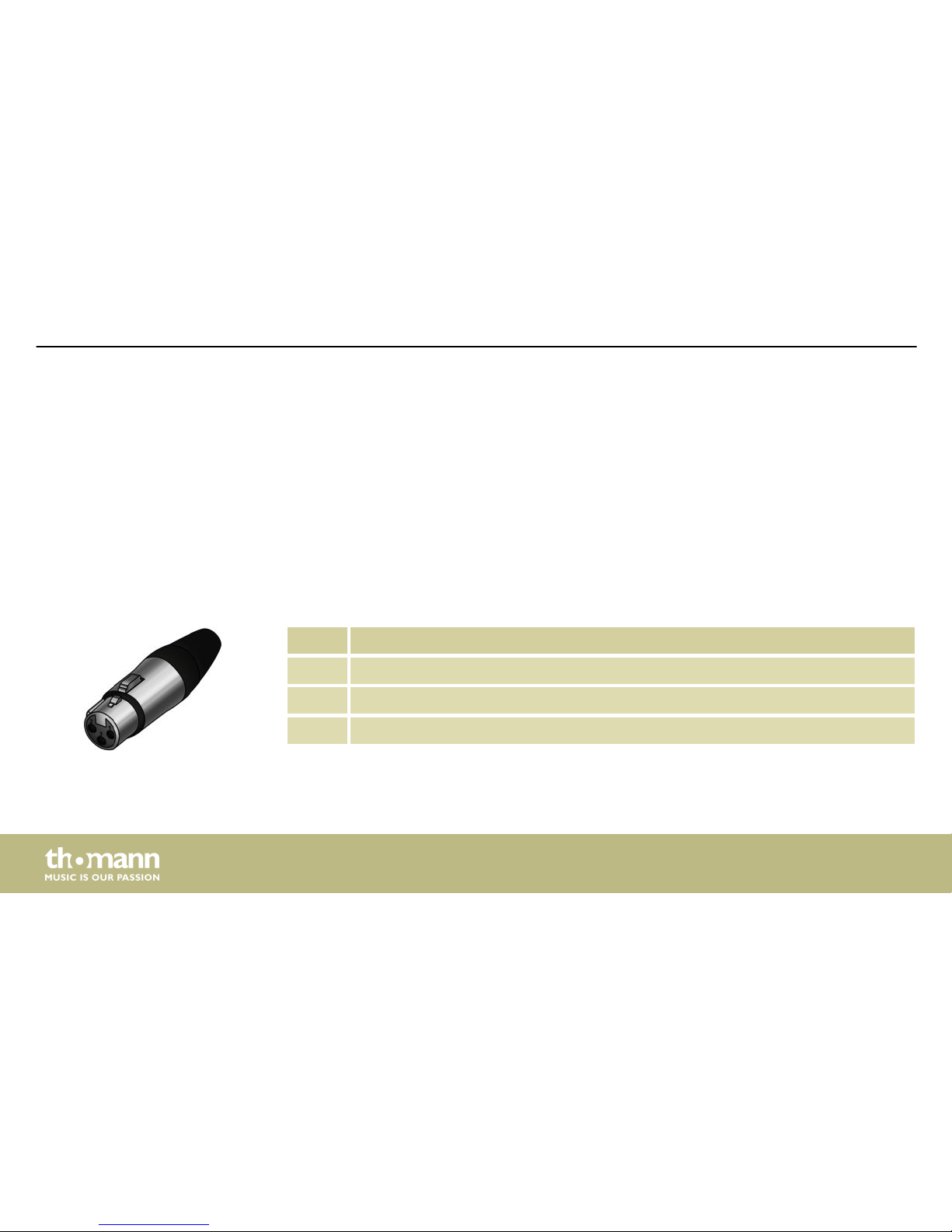

The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please
refer to the drawing and table below for the pin assignment of a suitable XLR plug.

Pin Configuration

1 Ground, shielding
2 Signal inverted (DMX–, ‘cold signal’)
3 Signal (DMX+, ‘hot signal’)

Introduction

DMX connections

Plug and connection assignments

LED PAR

38

10 Troubleshooting

NOTICE!
Possible data transmission errors

For error-free operation make use of dedicated DMX cables and do not use ordi­nary microphone cables.

Never connect the DMX input or output to audio devices such as mixers or ampli­fiers.

In the following we list a few common problems that may occur during operation. We give you
some suggestions for easy troubleshooting:

Troubleshooting

Mini Stage Par 4×7W RGBW RGB WW

39

Symptom Remedy

The unit does not work, no
light.

Check the mains connection and the fuse.

No response to the DMX con­troller.

1. Check the DMX ports and cables for proper connection.

2. Check the address settings and the DMX polarity.

3. Try using another DMX controller.

4. Check to see if the DMX cables run near or alongside to
high voltage cables that may cause damage or interfer­ence to DMX interface circuits.

If the procedures recommended above do not succeed, please contact our Service Center. You
can find the contact information at www.thomann.de.

Troubleshooting

LED PAR

40

11 Cleaning

Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the
light output. The frequency of cleaning depends on the operating environment: wet, smoky or
particularly dirty surroundings can cause more accumulation of dirt on the optics of the
device.

n Clean with a soft cloth using our lamp and lens cleaner (item no. 280122).
n

Always dry the parts carefully.

The fan grids of the device must be cleaned on a regular basis to remove dust and dirt. Before
cleaning, switch off the device and disconnect AC-powered devices from the mains. Use a lint­free damp cloth for cleaning. Never use solvents or alcohol for cleaning.

Optical lenses

Fan grids

Cleaning

Mini Stage Par 4×7W RGBW RGB WW

41

12 Protecting the environment

For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.

Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that

they are collected for recycling. Please follow the notes and markings on the packaging.

This product is subject to the European Waste Electrical and Electronic Equipment Directive
(WEEE). Do not dispose with your normal household waste.

Dispose of this device through an approved waste disposal firm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.

Disposal of the packaging mate­rial

Disposal of your old device

Protecting the environment

LED PAR

42

Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de
