thomann 387902 User Manual

Outdoor Stage PAR

12 × 4W Quad IR RGBW,

12 × 3W Quad IR UV

LED PAR

user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [e-mail]
Internet: www.thomann.de

10.03.2017, ID: 387911, 387902

Table of contents

1 General notes............................................................................................................................................... 5

1.1 Further information........................................................................................................................... 6

1.2 Notational conventions.................................................................................................................... 7

1.3 Symbols and signal words............................................................................................................... 8

2 Safety instructions.................................................................................................................................. 11

3 Features....................................................................................................................................................... 16

4 Installation.................................................................................................................................................. 17

5 Starting up.................................................................................................................................................. 21

6 Connections and controls................................................................................................................... 24

7 Operating.................................................................................................................................................... 30

7.1 Operating mode ‘Auto Run Mode’............................................................................................. 31

7.2 Operating mode ‘Manual’ (only 12×4W Quad IR RGBW)................................................... 32

7.3 Operating mode ‘Static Colour’ (12×4W Quad IR RGBW).................................................. 35

7.4 Operating mode ‘Static Colour’ (12×3W Quad IR UV)........................................................ 36

7.5 Operating mode ‘DMX’ (12×4W Quad IR RGBW).................................................................. 36

Table of contents

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

3

7.6 Operating mode ‘DMX’ (12×3W Quad IR UV)........................................................................ 42

7.7 Operating mode ‘Slave’................................................................................................................. 45

7.8 Remote control (optional, 12×4W Quad IR RGBW).............................................................. 45

7.9 Remote control (optional, 12×3W Quad IR UV).................................................................... 48

8 Technical specifications....................................................................................................................... 50

9 Plug and connection assignments.................................................................................................. 52

10 Troubleshooting...................................................................................................................................... 53

11 Cleaning....................................................................................................................................................... 55

12 Protecting the environment.............................................................................................................. 56

Table of contents

LED PAR

4

1 General notes

This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.

Our products are subject to a process of continuous development. Thus, they are subject to
change.

General notes

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

5

1.1 Further information

On our website (www.thomann.de) you will find lots of further information and details on the
following points:

Download This manual is also available as PDF file for you to download.

Keyword search

Use the search function in the electronic version to find the topics of
interest for you quickly.

Online guides

Our online guides provide detailed information on technical basics
and terms.

Personal consultation For personal consultation please contact our technical hotline.

Service

If you have any problems with the device the customer service will
gladly assist you.

General notes

LED PAR

6

1.2 Notational conventions

This manual uses the following notational conventions:

The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.

Texts and values displayed on the device are marked by quotation marks and italics.

Examples: ‘24ch’ , ‘OFF’.

Letterings

Displays

General notes

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

7

The individual steps of an instruction are numbered consecutively. The result of a step is
indented and highlighted by an arrow.

Example:

1. Switch on the device.

2. Press [Auto].

ð

Automatic operation is started.

3. Switch off the device.

1.3 Symbols and signal words

In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.

Instructions

General notes

LED PAR

8

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an

immediate dangerous situation that will result in death or
serious injury if it is not avoided.

WARNING! This combination of symbol and signal word indicates a pos‐

sible dangerous situation that can result in death or serious
injury if it is not avoided.

NOTICE! This combination of symbol and signal word indicates a pos‐

sible dangerous situation that can result in material and
environmental damage if it is not avoided.

Warning signs Type of danger

Warning – high-voltage.

Warning – hot surface.

General notes

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

9

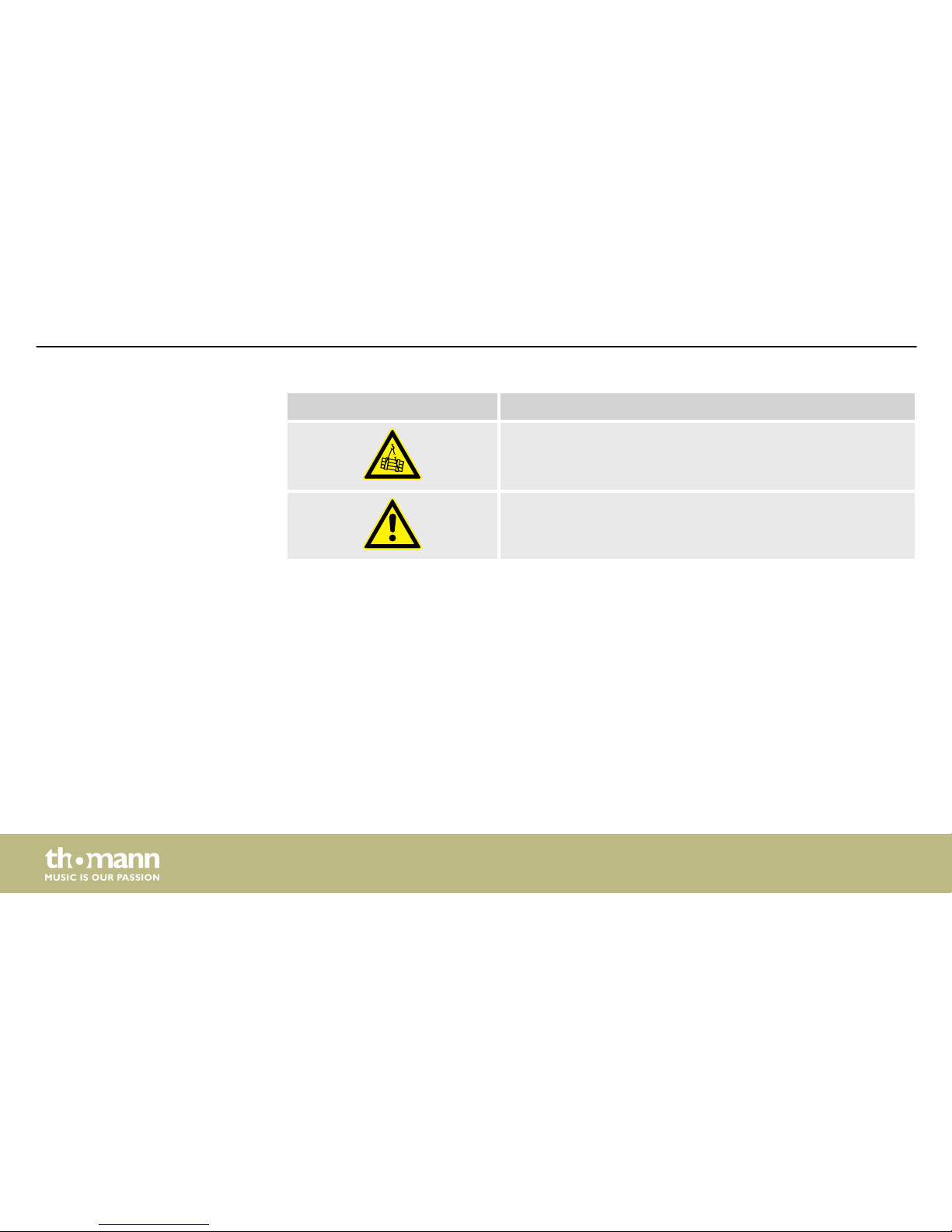

Warning signs Type of danger

Warning – suspended load.

Warning – danger zone.

General notes

LED PAR

10

2 Safety instructions

This device is intended to be used as an electronic illumination effect using LED technics. The
device is designed for professional use and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.

This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.

Intended use

Safety instructions

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

11

DANGER!
Danger for children

Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!

Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!

Never let children unattended use electrical devices.

DANGER!
Electric shock caused by short-circuit

Do not modify the mains cable or the plug. Failure to do so could result in electric
shock/death or fire. If in doubt, seek advice from a registered electrician.

Safety

Safety instructions

LED PAR

12

DANGER!
Electric shock caused by high voltages inside

Within the device there are areas where high voltages may be present. Never
remove any covers.

There are no user-serviceable parts inside.

WARNING!
Eye damage caused by high light intensity

Never look directly into the light source.

WARNING!
Risk of epileptic shock

Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons
should avoid looking at strobe lights.

Safety instructions

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

13

WARNING!
Risk of burns

The surface of the device can become very hot during operation.
Do not touch the device with bare hands during operation, and after switching

off wait for at least 15 minutes.

NOTICE!
Risk of fire

Do not cover the device nor any ventilation slots. Do not place the device near
any direct heat source. Keep the device away from naked flames.

Safety instructions

LED PAR

14

NOTICE!
Power supply

Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.

Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.

Safety instructions

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

15

3 Features

Due to its sturdy and weather-proof housing made of die-cast aluminium, the
Outdoor Stage PAR is especially suitable for outdoor use. The very bright UV or quad-colour
LEDs make it particularly suitable for professional lighting tasks.

n LED configuration

– Outdoor Stage PAR 12×4W Quad IR RGBW with 12 Quad-Color LEDs
– Outdoor Stage PAR 12×3W Quad IR UV with 12 UV LEDs

n Control via DMX (3 different modes), buttons and display on the unit or via IR remote con‐

trol (optional, not included)

n preprogrammed automatic shows
n Master / Slave operation
n rugged die-cast aluminium housing
n IP65 (suitable for outdoor use)
n Connectors for power supply and DMX control via splashproof screw-mountable plugs

and couplings

n sturdy double bracket for secure attachment to trusses or firm footing on the ground

Features

LED PAR

16

4 Installation

Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.

WARNING!
Risk of injury caused by falling objects

Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.

Installation

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

17

NOTICE!
Risk of overheating

Always ensure sufficient ventilation.
The ambient temperature must not exceed the limits stated in the chapter Tech‐

nical Specifications of the User Manual.

NOTICE!
Use of stands

When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.

Installation

LED PAR

18

NOTICE!
Possible data transmission errors

For error-free operation make use of dedicated DMX cables and do not use ordi‐
nary microphone cables.

Never connect the DMX input or output to audio devices such as mixers or ampli‐
fiers.

You can install the device standing or hanging upside down. When in use, the device must be
mounted at a solid surface or clamped to an approved truss. Use the openings of the two­piece bracket provided for mounting.

Work from a stable platform whenever you install or move the device or when you perform
any kind of maintenance. Block access under the work area.

The safety cable must be attached to the bracket.

Mounting options

Installation

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

19

Please note that this device must not be connected to a dimmer.

Installation

LED PAR

20

5 Starting up

Create all connections while the device is off. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.

Starting up

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

21

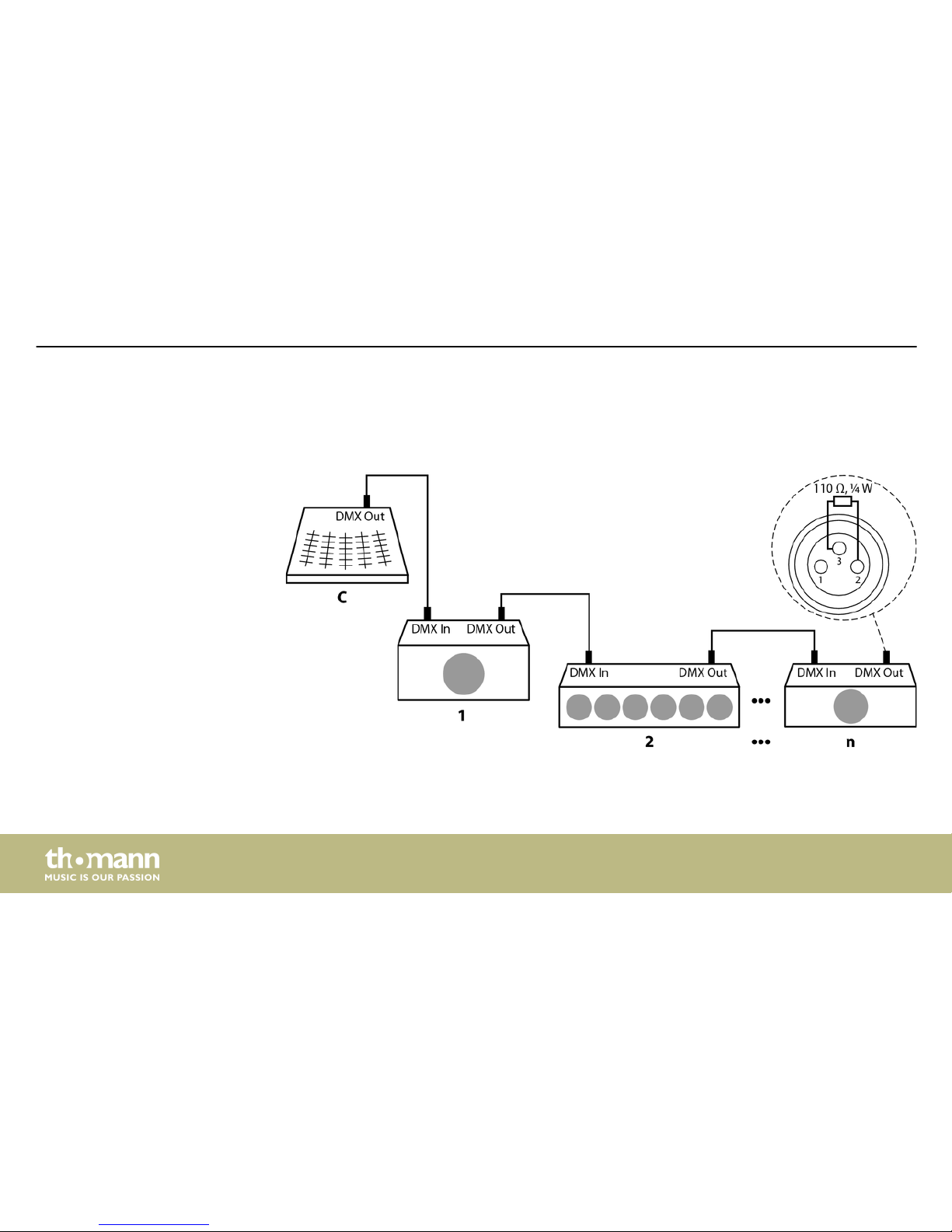

Connect the DMX input of the device to the DMX output of a DMX controller or another DMX
device. Connect the output of the first DMX device to the input of the second one, and so on
to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain
is terminated with a resistor (110 Ω, ¼ W).

Connections in DMX mode

Starting up

LED PAR

22

When you configure a group of devices in master/slave mode, the first unit will control the
other units for an automatic, sound-activated, synchronized show. This function is ideal when
you want to start a show immediately. Connect the DMX output of the master device to the
DMX input of the first slave device. Then connect the DMX output of the first slave device to
the DMX input of the second slave device and so on.

Connections in master/slave
mode

Starting up

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

23

6 Connections and controls

Connections and controls

LED PAR

24

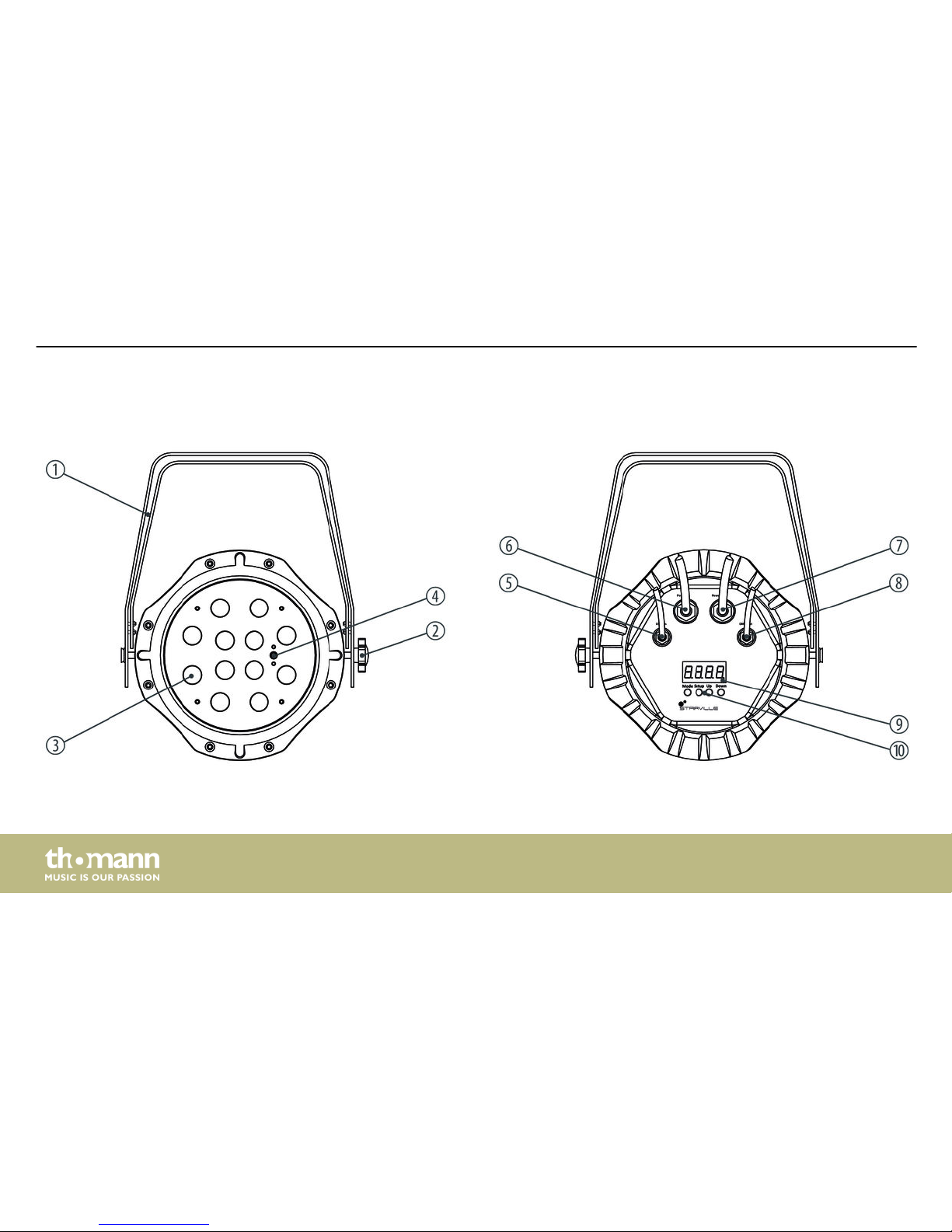

1 Two-piece bracket for hanging or installation and for securing the safety-rope.
2 Locking screws.
3 LEDs.
4 Infrared sensor for optionally available remote control.
5 [DMX IN]

DMX input cable.

6 [Power In]

Mains cable for the power supply of the device.

7 [Power Out]

Power cord for the voltage supply of a connected device.

8 [DMX OUT]

DMX output cable.

Connections and controls

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

25

9 Display.

10 Control buttons

[Mode]: Activates the main menu and toggles between menu items.
[Setup]: Selects an option of the respective operating mode.
[Up]: Increases the displayed value by one.
[Down]: Decreases the displayed value by one.

Connections and controls

LED PAR

26

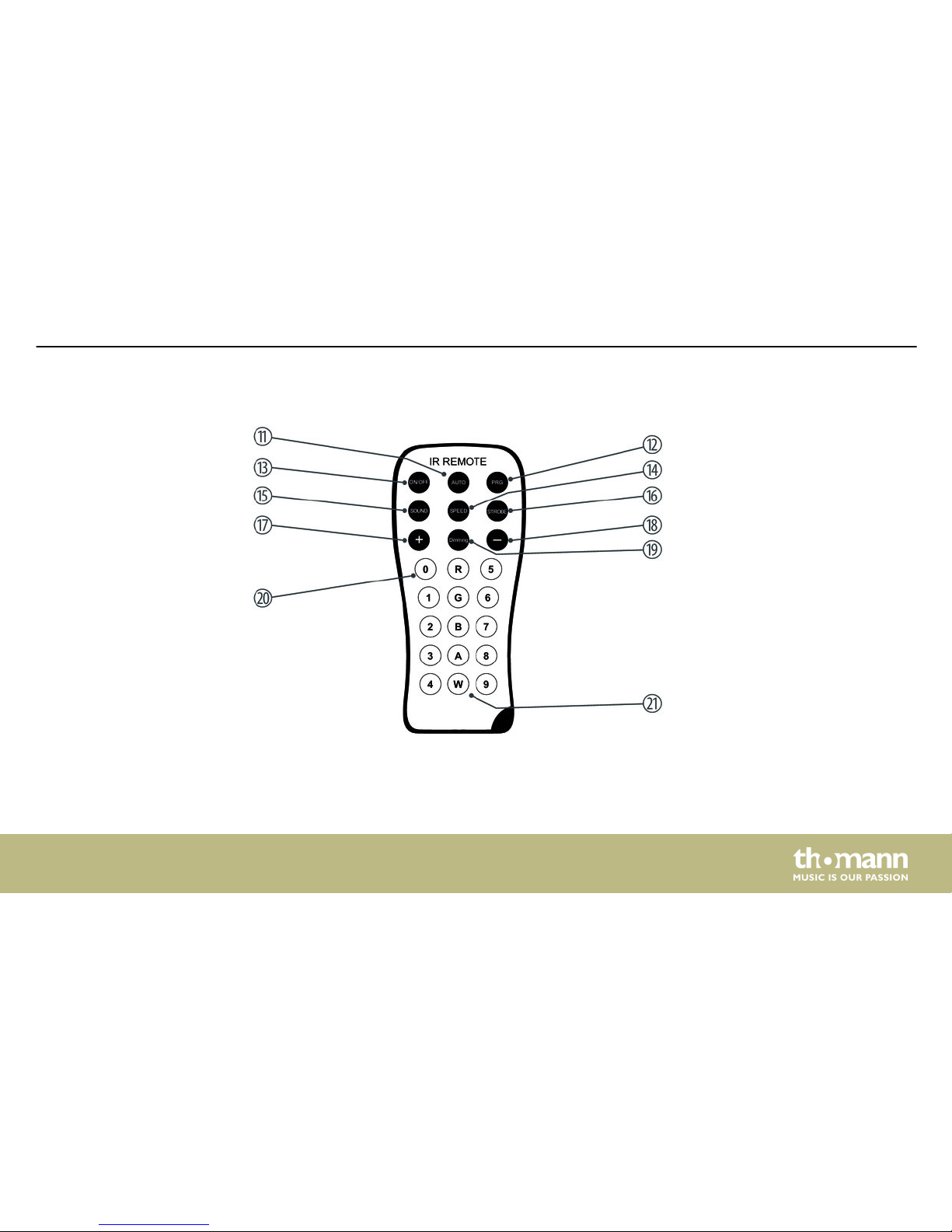

Remote control (optional)

Connections and controls

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

27

11 [AUTO]

Activates the ‘Automatic‘ mode.

12 [PRG]

Activates the operating mode ‘Preprogrammed automatic show’. Select the desired programme with the buttons [+]
and [–].

13 [ON/OFF]

Activates / deactivates the device.

14 [SPEED]

Activates the setting mode for the programme speed. Adjust the speed using the buttons [+] and [–] .

15 [SOUND]

No function.

16 [STROBE]

Turns the strobe effect on / off.

17 [+]

Increases the set value.

Connections and controls

LED PAR

28

18 [–]

Decreases the set value.

19 [Dimming]

Enables the dimmer function.

20 [0 … 9]

Numeric buttons for direct selection of a fixed colour.

21 [R], [G], [B], [A], [W]

Buttons to select a colour tone for the dimmer mode.

Connections and controls

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

29

7 Operating

Connect the device to the power supply to start operation. After a few seconds, the display
indicates that a reset is in progress. The device is then ready for use.

Press [Mode] to activate the main menu and select an operating mode. Use [Setup] to select
further options. Use [Up] and [Down] to change the respectively indicated value. The unit
instantly applies the displayed value, you don't need to push a button for confirmation.

If you don't press any button for about 20 seconds, the current setting will be automatically
applied and the display turns off. The set values are retained as long as the device is connected
to the mains power supply.

Operating

LED PAR

30

7.1 Operating mode ‘Auto Run Mode’

In automatic mode, all programmed shows are played sequentially in an endless loop.
A preprogrammed automatic show can only be activated when the unit is operating in stand-

alone mode or as master in a master / slave combination. This setting is only relevant if the
device is not controlled via DMX.

1. Press [Mode], use [Up] and [Down] to select the menu option ‘Auto’ and confirm with

[Setup].

2. Adjust the programme speed with [Up] and [Down] in a range from ‘SP.01’ … ‘SP.FL’

(slow … fast) and confirm with [Setup].

3. Adjust the frequency of the strobe effect with [Up] and [Down] in a range from ‘F5.00’

… ‘F5.99’ (slow … fast) and confirm with [Setup].

Operating

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

31

7.2 Operating mode ‘Manual’ (only 12×4W Quad IR RGBW)

This operating mode can only be activated when the unit is operating in stand alone mode or
as master in a master / slave combination. This setting is only relevant if the device is not con‐
trolled via DMX.

1. Press [Mode], use [Up] and [Down] to select the menu option ‘Pro’ and confirm with

[Setup].

2. Use [Up] and [Down] to select the desired programme (01 … 07) and confirm with

[Setup].

Operating

LED PAR

32

When you have selected programme 01, you can use [Setup] to access the settings. Now use
[Up] and [Down] to select one of 15 static colour settings for all LEDs, see the following chart.

Colour Display

Cyan ‘00’
Purple ‘01’
Pink ‘02’
Orange ‘03’
Cold white ‘04’
Bright red ‘05’
Bright green ‘06’
Bright blue ‘07’
Yellow ‘08’
Warm white ‘09’

Settings for program 01

Operating

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

33

Colour Display

Red ‘10’
Green ‘11’
Blue ‘12’
Amber ‘13’
All ‘14’
Blackout ‘15’

When you have selected one of programmes 02 … 07 you can adjust the following settings:

1. After selecting the programme, press again [Setup] and adjust the programme speed

with [Up] and [Down] in a range from ‘SP.01’ … ‘SP.FL’ (slow … fast) and confirm with
[Setup].

2. Press again [Setup] and adjust the frequency of the strobe effect with [Up] and [Down] in

a range from ‘F5.00’ … ‘F5.99’ (slow … fast) and confirm with [Setup].

Settings for programmes
02 … 07

Operating

LED PAR

34

7.3 Operating mode ‘Static Colour’ (12×4W Quad IR RGBW)

This setting is only relevant if the device is working in Stand Alone mode and is not controlled
via DMX. In this mode you have the option to select a solid colour for continuous operation
and to set the flash frequency for all LEDs.

1. Press [Mode], use [Up] and [Down] to select the menu option ‘Colr’ and confirm with

[Setup].

2. Use [Up] and [Down] to set the intensity for the red colour in a range from ‘r.000’ … ‘r.

255’ (bright … dark) and confirm with [Setup].

3. Use [Up] and [Down] to set the intensity for the green colour in a range from ‘g.

000’ … ‘g.255’ (bright … dark) and confirm with [Setup].

4. Use [Up] and [Down] to set the intensity for the blue colour in a range from ‘b.000’ … ‘b.

255’ (bright … dark) and confirm with [Setup].

5. Use [Up] and [Down] to set the intensity for the white colour in a range from ‘u.

000’ … ‘u.255’ (bright … dark) and confirm with [Setup].

6. Use [Up] and [Down] to set the frequency of the strobe effect in a range from

‘F5.00’ … ‘F5.99’ (off, slow … fast) and confirm with [Setup].

Operating

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

35

7.4 Operating mode ‘Static Colour’ (12×3W Quad IR UV)

This setting is only relevant if the device is working in Stand Alone mode and is not controlled
via DMX. In this mode you have the option to select a solid colour for continuous operation
and to set the flash frequency for all LEDs.

1. Press [Mode], use [Up] and [Down] to select the menu option ‘Colr’ and confirm with

[Setup].

2. Use [Up] and [Down] to set the brightness of the LEDs in a range from ‘I.000’ … ‘I.255’

(bright … dark) and confirm with [Setup].

3. Use [Up] and [Down] to set the frequency of the strobe effect in a range from

‘F5.00’ … ‘F5.99’ (off, slow … fast) and confirm with [Setup].

7.5 Operating mode ‘DMX’ (12×4W Quad IR RGBW)

This setting is only relevant if the device is controlled via a DMX controller.

Operating

LED PAR

36

1. Press [Mode], use [Up] and [Down] to select the menu option ‘DMX’ and confirm with

[Setup].

2. Use [Up] and [Down] to assign a DMX address in the range from ‘d.001’ … ‘d.512’ to the

device and confirm with [Setup].

3. Use [Up] and [Down] to select the desired DMX mode:

Mode Display Highest possible DMX address

4-channel ‘4-ch’ 509
6-channel ‘6-ch’ 507
8-channel ‘8-ch’ 505

4. Confirm twice with [Setup].

Operating

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

37

7.5.1 Functions in 4-channel DMX mode

Channel Value Function

1

0…255

Intensity red (0 % to 100 %)

2

0…255

Intensity green (0 % to 100 %)

3

0…255

Intensity blue (0 % to 100 %)

4

0…255

Intensity white (0 % to 100 %)

7.5.2 Functions in 6-channel DMX mode

Channel Value Function

1

0…255

Dimmer (0 % to 100 %)

2

0…255

Intensity red (0 % to 100 %)

3

0…255

Intensity green (0 % to 100 %)

Operating

LED PAR

38

Channel Value Function

4

0…255

Intensity blue (0 % to 100 %)

5

0…255

Intensity white (0 % to 100 %)

6

0…255

Stroboscope effect (0 % to 100 %)

7.5.3 Functions in 8-channel DMX mode

Channel Value Function

1

0 … 255

Dimmer (0 % to 100 %)

2

0 … 255 Intensity red (0 % to 100 %), if channel 6 = 0 … 35

3

0 … 255 Intensity green (0 % to 100 %), if channel 6 = 0 … 35

4

0 … 255 Intensity blue (0 % to 100 %), if channel 6 = 0 … 35

5

0 … 255 Intensity white (0 % to 100 %), if channel 6 = 0 … 35

Operating

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

39

Channel Value Function

6 Programme selection

0 … 35

No function

36 … 71

Programme 01

72 … 107

Programme 02

108 … 143

Programme 03

144 … 179

Programme 04

180 … 215

Programme 05

216 … 251

Programme 06

252 … 255

Programme 07

7

Colour selection, if channel 6 = 36 … 71
Speed, if channel 6 = 72 … 255

0 … 16

Blackout

17 … 33

Cyan

Operating

LED PAR

40

Channel Value Function

34 … 50

Purple

51 … 67

Pink

68 … 84

Orange

85 … 101

Cold white

102 … 118

Light red

119 … 135

Light green

136 … 152

Light blue

153 … 169

Yellow

170 … 186

Warm white

187 … 203

Red

204 … 220

Green

221 … 237

Blue

238 … 254

Amber

Operating

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

41

Channel Value Function

255 All
0 … 255

Programme progress speed

8

19 … 255

Strobe effect

7.6 Operating mode ‘DMX’ (12×3W Quad IR UV)

This setting is only relevant if the device is controlled via a DMX controller.

1. Press [Mode], use [Up] and [Down] to select the menu option ‘DMX’ and confirm with

[Setup].

2. Use [Up] and [Down] to assign a DMX address in the range from ‘d.001’ … ‘d.512’ to the

device and confirm with [Setup].

Operating

LED PAR

42

3. Use [Up] and [Down] to select the desired DMX mode:

Mode Display Highest possible DMX address

1-channel ‘1-ch’ 512
2-channel ‘2-ch’ 511
5-channel ‘5-ch’ 508

4. Confirm twice with [Setup].

7.6.1 Functions in 1-channel DMX mode

Channel Value Function

1

0…255

Intensity UV light (0 % to 100 %)

Operating

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

43

7.6.2 Functions in 2-channel DMX mode

Channel Value Function

1

0…255

Intensity UV light (0 % to 100 %)

2

0…255

Stroboscope effect (0 % to 100 %)

7.6.3 Functions in 5-channel DMX mode

Channel Value Function

1

0 … 255

Dimmer (0 % to 100 %)

2

0 … 255

Intensity UV light (0 % to 100 %)

3

10 … 255

Fade in / out

4

0 … 255

Programme speed (0 % to 100 %)

5

19 … 255

Stroboscope effect (0 % to 100 %)

Operating

LED PAR

44

7.7 Operating mode ‘Slave’

This setting is only relevant if the device is working as Slave in a Master / Slave configuration
and is not controlled via DMX. To activate the operating mode, repeatedly press [Mode] until
the display shows ‘SLAv’ .

7.8 Remote control (optional, 12×4W Quad IR RGBW)

The device can only be remote controlled if it's neither working in a Master / Slave configura‐
tion nor DMX-controlled.

Use [ON/OFF] to turn the device on or off.

Press [AUTO]. The playback of programmes ‘Pr02’ to ‘Pr14’ starts automatically.

Switching on / off

Operating mode ‘Automatic’

Operating

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

45

Press [PRO]. Use [+] and [–] to select a value between ‘Pr01’ and ‘Pr07’.
In the ‘Preprogrammed automatic show’ mode, you can activate the strobe effect. To do so,

press [STROBE] and then use [+] and [–] to select a value between ‘FS00’ (slow) and ‘FS99’
(fast). Press [STROBE] again to disable the Strobe effect.

Press [Dimming] to adjust the brightness of the primary colours. Press [R] (red), [G] (green) [W]
(white) or [B] (blue) and then use [+] and [–] to select a value between 0 and 255.

Operating mode ‘Preprog‐
rammed automatic show’

Dimming

Operating

LED PAR

46

You can use the coloured buttons to directly select a colour for programmes ‘Pr01’ and ‘Pr09’.
The following assignment applies:

Button Colour Button Colour Button Colour

0 Cyan 5 Bright red R Red
1 Purple 6 Bright green G Green
2 Magenta 7 Bright blue B Blue
3 Orange 8 Yellow A Amber
4 Cold white 9 Warm white W White

To reset the device to factory default settings, press [OFF] and the successively [9], [8] and [7].

Colour selection

Resetting to factory defaults

Operating

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

47

7.9 Remote control (optional, 12×3W Quad IR UV)

The device can only be remote controlled if it's neither working in a Master / Slave configura‐
tion nor DMX-controlled.

Use [ON/OFF] to turn the device on or off.

Press [AUTO]. The playback of the programmes starts automatically.
Press [SPEED] and use [+] and [–] to set the programme speed in a range from ‘SP01’ (slow) to

‘SPFL’ (fast).

Press [STROBE] and use [+] and [–] to set the flash frequency in a range from ‘FS00’ (slow) to

‘FS99’ (fast). Press [STROBE] again to disable the Strobe effect.

Press [Dimming] and set the brightness of the LED with [+] and [–] in a range from ‘I.000’ to ‘I.
255’ .

Switching on / off

Operating mode ‘Automatic’

Dimming

Operating

LED PAR

48

To reset the device to factory default settings, press [OFF] and the successively [9], [8] and [7].Resetting to factory defaults

Operating

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

49

8 Technical specifications

Outdoor Stage Par 12×4W Quad IR

RGBW

Outdoor Stage Par 12×3W Quad IR UV

Item no. 387902 387911
LED configuration: 12 × Quad IR RGBW LED, 4 W 12 × Quad IR UV LED, 3 W
Number of DMX channels: 4, 6, 8 1, 2, 5
Beam angle

25 °
DMX input, DMX output XLR 3-pin
Power consumption 61 W 47 W
Operating supply voltage

100 – 240 V 50/60 Hz
Protection class IP65
Permitted ambient temperature

-20 … 40 °C

Technical specifications

LED PAR

50

Outdoor Stage Par 12×4W Quad IR

RGBW

Outdoor Stage Par 12×3W Quad IR UV

Dimensions (W × H × D) 184 mm × 184 mm × 170 mm
Weight 3.5 kg

Technical specifications

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

51

9 Plug and connection assignments

This chapter will help you select the right cables and plugs to connect your valuable equip‐
ment so that a perfect light experience is guaranteed.

Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug
fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a
short circuit or ‘just’ a not working light show!

The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please
refer to the drawing and table below for the pin assignment of a suitable XLR plug.

Pin Configuration

1 Ground, shielding
2 Signal inverted (DMX–, ‘cold signal’)
3 Signal (DMX+, ‘hot signal’)

Introduction

DMX connections

Plug and connection assignments

LED PAR

52

10 Troubleshooting

NOTICE!
Possible data transmission errors

For error-free operation make use of dedicated DMX cables and do not use ordi‐
nary microphone cables.

Never connect the DMX input or output to audio devices such as mixers or ampli‐
fiers.

In the following we list a few common problems that may occur during operation. We give you
some suggestions for easy troubleshooting:

Troubleshooting

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

53

Symptom Remedy

The unit does not work, no
light.

Check the mains connection and the fuse.

No response to the DMX con‐
troller.

1. Check the DMX ports and cables for proper connection.

2. Check the address settings and the DMX polarity.

3. Try using another DMX controller.

4. Check to see if the DMX cables run near or alongside to
high voltage cables that may cause damage or interfer‐
ence to DMX interface circuits.

If the procedures recommended above do not succeed, please contact our Service Center. You
can find the contact information at www.thomann.de.

Troubleshooting

LED PAR

54

11 Cleaning

Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the
light output. The frequency of cleaning depends on the operating environment: wet, smoky or
particularly dirty surroundings can cause more accumulation of dirt on the optics of the
device.

n Clean with a soft cloth using our lamp and lens cleaner (item no. 280122).
n Always dry the parts carefully.

Optical lenses

Cleaning

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

55

12 Protecting the environment

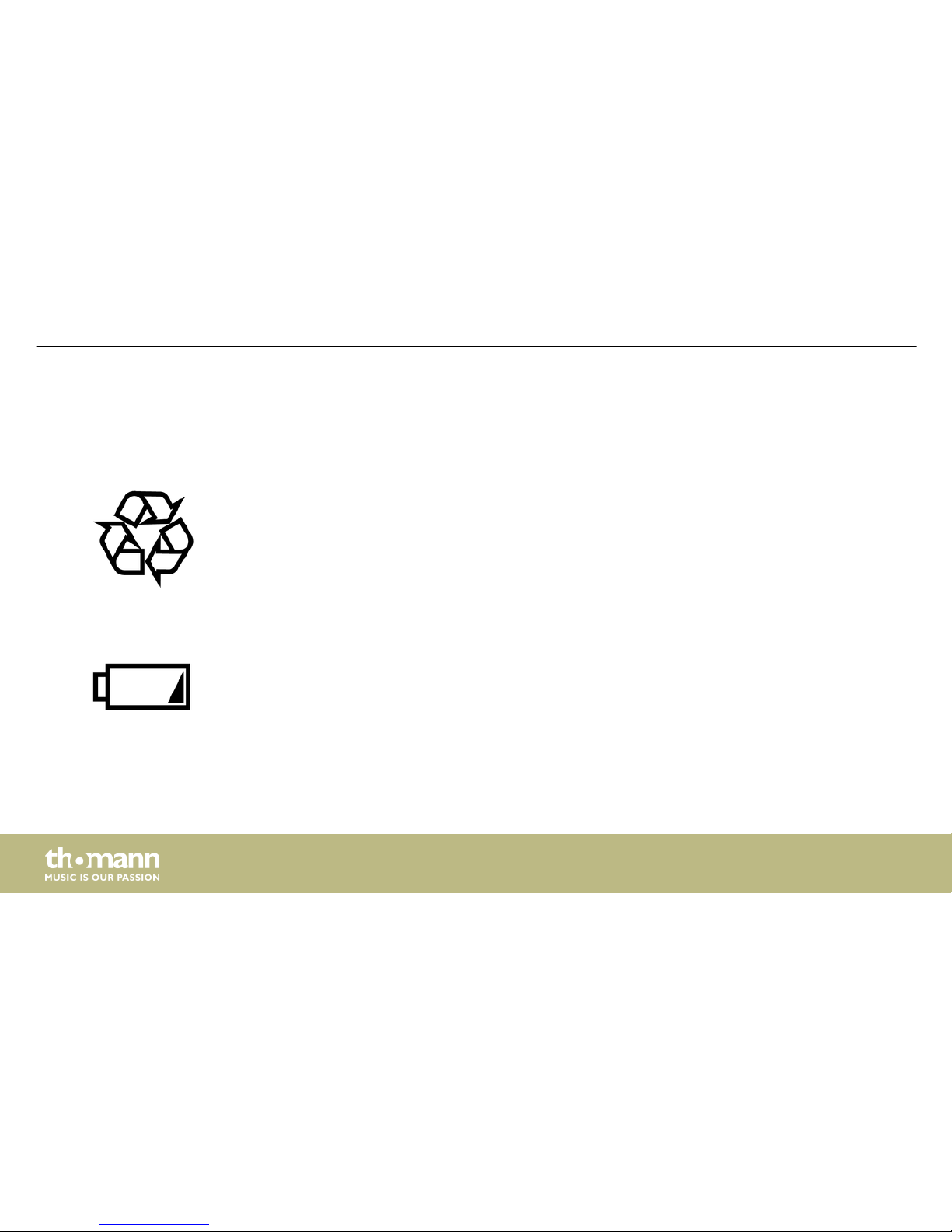

For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.

Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose these materials with your normal household waste, but make sure that

they are fed to a recovery. Please follow the notes and markings on the packaging.

Batteries must not be disposed of as domestic waste or thrown into fire. Dispose of the bat‐
teries according to national or local regulations regarding hazardous waste. To protect the
environment, dispose of empty batteries at your retail store or at appropriate collection sites.

Disposal of the packaging mate‐
rial

Disposal of batteries

Protecting the environment

LED PAR

56

This product is subject to the European Waste Electrical and Electronic Equipment Directive
(WEEE). Do not dispose with your normal household waste.

Dispose this device through an approved waste disposal firm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.

Disposal of your old device

Protecting the environment

Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV

57

Notes

LED PAR

58

Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de
