THM Clavicula M3 Instruction Book

Clavicula M³

Road MTB

THM Clavicula M³_3_en, 2013-02

Instruction book

Don't forget that your THM component is a lightweight carbon design. Be aware of this when carrying out assemly and maintenance work and when handling the component. Proceed with utmost care!

Instruction book

Clavicula M³

Contents

INTRODUCTION

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

SAFETY

Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Fundamental safety precautions . . . . . . . . . . . . . 6

Assembly & maintenance . . . . . . . . . . . . . . . . . . 6

On the road . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Transport & storage . . . . . . . . . . . . . . . . . . . . . . 7

SPECIFICATIONS

Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . 8

Bottom bracket . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Tightening torques . . . . . . . . . . . . . . . . . . . . . . . 11

Application area . . . . . . . . . . . . . . . . . . . . . . . . . 11

ASSEMBLY

Installing the Clavicula . . . . . . . . . . . . . . . . . . . . 12

Preparing the frame . . . . . . . . . . . . . . . . . . . . . . 12

Spacers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Installing the bottom bracket . . . . . . . . . . . . . . . 14

BSA/ITA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

BB30/PressFit 30 / BBright™ PressFit . . . . . . . . . 15

Press-fit/EVO386 . . . . . . . . . . . . . . . . . . . . . . . 16

BBright™ Direct Fit . . . . . . . . . . . . . . . . . . . . . 16

Installing the spider . . . . . . . . . . . . . . . . . . . . . . 16

Assembling the chainwheels . . . . . . . . . . . . . . . 18

Installing the cranks . . . . . . . . . . . . . . . . . . . . . . 18

Adjusting the bottom bracket . . . . . . . . . . . . . . . 20

Assembling the pedals . . . . . . . . . . . . . . . . . . . . 21

Finishing touches . . . . . . . . . . . . . . . . . . . . . . . . 21

MAINTENANCE

Important maintenance information . . . . . . . . . . 22

Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Before each trip . . . . . . . . . . . . . . . . . . . . . . . . . 24

Checking the bottom bracket clearance . . . . . . . 24

Regular maintenance . . . . . . . . . . . . . . . . . . . . . 25

Dismantling the bottom bracket . . . . . . . . . . . . . 26

LEGAL

Liability for defects . . . . . . . . . . . . . . . . . . . . . . . 28

Fair deal promise . . . . . . . . . . . . . . . . . . . . . . . . 28

Crash Replacement . . . . . . . . . . . . . . . . . . . . . . . 28

Clavicula M³

Introduction

Preface

WARNING

CAUTION

NOTICE

This manual is an integral part of your THM component and it provides you with information regarding the safe operation of your THM-Clavicula crank system. Read this manual carefully prior to assembling your THM component. Always read and observe all of the assembly and maintenance instructions in this manual, as well as those provided in the manuals of other manufacturers whose products are used on your bicycle (e.g. frame, chainwheels, pedals, etc.).

Non-observance of the information contained in this manual could result in an accident and death or serious injury.

You will encounter the following symbols and references in this manual:

 The index finger instructs you to perform a particu-

lar action.

 The arrow indicates the consequence of your

action.

This safety message indicates a hazardous situation which, if not avoided, could result in death or serious injury.

This safety message indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

This message warns of a risk of material damage.

This refers to additional information or tips.

Retain this manual for other users of your THM components. Make sure that all users read, understand and observe this manual. If you ever sell or give away your THM components, this manual should be transferred

to the new owner.

We hope you get a lot of joy from your THM components!

Your THM-Carbones Team

Clavicula M³

Safety

WARNING

Intended use

Any use other than that intended can cause accidents resulting in death or serious injury.

THM-Clavicula crank systems have been exclusively designed

- for installation on standard racing cycles, time trial and mountain bikes.

- for the permitted area of application – see Application area, page 11.

Fundamental safety precautions

The following warnings for the THM-Clavicula component apply to all Clavicula models (Clavicula Road, Clavicula MTB etc.), unless otherwise specified.

For the time being we limit the service life of your THM-Clavicula crank system to 100,000 km or 10 years. It is imperative you contact us before continuing to use your THM-Clavicula crank system after one of these limits has expired!

Always remember that riding a bicycle involves potential danger for the rider and other road users, as well as for the bicycle and its components. Even if protective equipment and safety devices are used, accidents resulting in death or serious injury can still occur.

You should also rely on your common sense and avoid any unreasonable behaviour!

Assembly & maintenance

Risk of accident caused by assembly and maintenance work which has not been conducted in a professional manner.

-Do not overestimate your technical ability. All assembly and maintenance work should be performed by a specialist workshop for bicycles. This is the only way to ensure that work is conducted in a professional manner.

-Always observe all of the specified tightening torques for the screw connections.

-Only use suitable, undamaged, high-quality tools.

-Only ever use original THM components which are available from your specialist dealer or directly from THM.

-Never make any modifications to your THM components.

-Check your crank system (incl. cranks, bottom bracket, chainwheels) to make sure it is undamaged and functioning properly before every ride. Send us your THM-Clavicula component before further use if damage is visible (cracks, fractures, deformations, etc.) or if you are in any doubt about its functionality.

-Check your THM components before each journey to ensure the surfaces are completely undamaged. Send us your THM components for inspection before further use if damage is visible (deep scratches in the paintwork which extend into the carbon structure, large abrasions, etc.), if you are in any doubt about their functionality or if the Clavicula lettering is abraded at one or more points (wear indicator).

-Always ensure your bicycle is maintained in a flawless condition. Care and maintenance will prolong the service life of your bicycle and its components and also improve your personal safety.

Clavicula M³

Safety

On the road

WARNING

Danger of accidents due to improper behaviour or improper equipment during riding.

-Always ride with foresight, attention and a readiness to brake.

-Adjust your speed to the prevailing conditions (traffic, weather, visibility, etc.).

-Do not use your THM components at ambient temperatures below -10 °C (14 °F).

-Do not exceed the maximum overall weight for which your THM components have been approved – see Size, page 10.

-Do not perform jumps with your bicycle as this generates an enormous amount of force.

-Always comply with the traffic regulations that are in force in the country where you are using your bicycle.

-When riding your bicycle you should always wear a high quality cycling helmet (e.g. ANSI certified) that is in excellent condition. Your clothing should be close-fitting but not restrictive.

-Only ride your bicycle if you are in good physical condition and your bicycle and all of its components are in perfect working order.

-If you are involved in a heavy fall you should not continue riding your bicycle. If such a case occurs, send us your THM components for inspection, even if no external damage is visible! In your own interest you should treat all components on your bicycle which are produced by other manufacturers in the same way.

When riding your mountain bike, also comply with the directives of the International Mountain Bike Association (IMBA):

-Only use permitted routes.

-Avoid leaving tracks.

-Always keep your bicycle under control.

-Ride in a manner that is suitable for the terrain.

-Do not startle any animals.

-Always ride in an anticipatory manner.

-Be prepared for any eventuality.

For more information please visit www.imba.com .

Transport & storage

Risk of accident caused by damaged bicycle components.

-Always transport your bicycle in an appropriate and careful manner.

-Do not store your THM components at an ambient temperature below -15°C (5°F) or above 55°C (131°F).

Risk of accident.

-Do not allow children to play with your bicycle.

Clavicula M³

Specifications

121 10

14 15

Scope of delivery

(1) Adjusting screw (2) Crank, left (3) Spacer ring, 1× 2.5mm (Road) (4) Spacer ring, 1× 9.7mm (MTB) (9) Lockring for spider (MTB) (10)Hollow screw for spider (Road),

(11)Spider* (optional) (12)Axle crank

* without chainwheels and chainwheel bolts

Not included in delivery:

(5) Bottom bracket (optional)

(6) Bearing cup, left (marked by groove) (7) Spacer, 2.5mm (8) Bearing cup, right (13)THM adjusting tool (14)THM bottom bracket tool (optional) (15)THM lockring tool (MTB)

These items must be ordered separately if necessary.

5× M8×0.75 × 10mm

Instruction book

–seeBottom bracket, page 9

Clavicula M³

Specifications

c h

Bottom bracket

(a) Road (BSA/ITA): Bearing cup left/right

(b) MTB (BSA): Bearing cup left/right,

3× spacer ring (2.5mm)

(d) BB30 MTB: Bearing cup left/right,

2× spacer ring (2.5mm)

(e) PressFit 30 Road: Bearing cup left/right

(f) PressFit 30 MTB: Bearing cup left/right

(g) BBright™ PressFit Road:Bearing cup left/right

(h) BBright™ PressFit MTB:Bearing cup left/right,

1× spacer ring, right (4.0 mm)

(i) Press-fit Road: Bearing cup left/right

(k) Press-fit MTB: Bearing cup left/right,

2× spacers (2.0mm)

(l) BBright™ Direct Fit Road: 2× bearings,

1× spacer ring, right (9.0 mm)

(m) EVO386 Road (FSA

1× spacer ring, right (1.0 mm)

): Bearing cup left/right,

Clavicula M³

Specifications

Size

Road MTB

Compact 3–104/64 2–104/64 2–120/80 XX1–76

Ø bolt circle

(A)

Teeth, min. 39 34 32/21 37/25 26

(B)

Crank length 170.0/ 172.5 / 175.0

(C)

Ø axle 30

BSA (ITA)** 68.0 (70.0) ±0.5 68.0/73.0 ±0.5

BB30 68.0±0.5 (Ø 42.0) 68.0/73.0±0.5 (Ø 42.0)

PressFit 30 (SRAM

BBright™ PressFit 79.0

(D)

Press-fit (Shimano

BBright™ Direct Fit 79.0

EVO386 (FSA

(E)

Chain line (ITA) 43.5 (44.5) 50.0 49.5 47.0

Total weight, max.*** kg(lb) 110 (243) 120 (265)

* Technical specifications, dimensions and weights are to be understood with the corresponding tolerances

and can differ slightly from your THM components.

** BSA (1.37"×24 tpi) / ITA (36×24 tpi) *** Total weight = rider + bicycle + luggage

)

(1)(2)(3)(4)(5)(6)

130 110 104/64 120/80 76

±0.5 (Ø 46.0) 73.0±0.5 (Ø 46.0)

68.0

±0.5 (Ø 46.0) 84.0±0.5 (Ø 46.0)

±0.5 (Ø 41.0) 89.5/92.0 ±0.5 (Ø 41.0)

86.5

±0.2 (Ø 42.0) –

±0.5 (Ø 46.0) –

86.5

Clavicula M³

Specifications

Tightening torques

WARNING

Risk of accident caused by a malfunctioning crank system due to loose screw connections.

-Check the required tightening torque of all screw connections after the first 100 km - retighten the connections if necessary. Repeat this check every 2500km!

N·m(lbf·in) max. Bearing cups 40 (354) greased Adjusting screw 6 (53) dry Crank clamping bolt 8 (71)

with thread lockHollow screw for spider 6 (53) Lockring spider 30 (266) Chainwheel bolts, aluminium 6 (53)

greasedChainwheel bolts, steel 12 (106)

Pedal threads 20 (177)

Application area

Risk of accident caused by a malfunctioning crank system due to overload.

-Only ever use your Clavicula component within its permitted area of application.

Clavicula M³ Road X1– X2 Clavicula M³ MTB X1– X3

X1 Racing cycle and light cross-country terrain X2 Touring, road X3 medium/heavy terrain X4 Free ride, heavy terrain X5 Downhill, extreme terrain

Clavicula M³

Assembly

WARNING

Installing the Clavicula

If not properly performed, assembly and maintenance work can cause accidents resulting in serious or fatal injury.

Preparing the frame

It is imperative you read and observe the safety and assembly information provided by the manufacturer of your frame.

 Secure your bicycle in an appropriate assembly

stand.

 If necessary remove the crankset and the old bottom

bracket.

 If necessary, use cleaning solvent or other similar

agents to clean the bottom bracket housing of your frame.

 Make sure that the edges of the bottom bracket

housing are plane, parallel, milled to the correct dimensions and free of burrs – see Size, page 10. If necessary, rework the bottom bracket housing using an appropriate milling tool (Cyclus, ParkTool or other similar tool).

 Make sure that the threads of the bottom bracket

housing are clean, free from paint residues and adequately tapped into the housing. If necessary, rework the threads with an appropriate cutting tool (Cyclus, ParkTool or other similar tool).

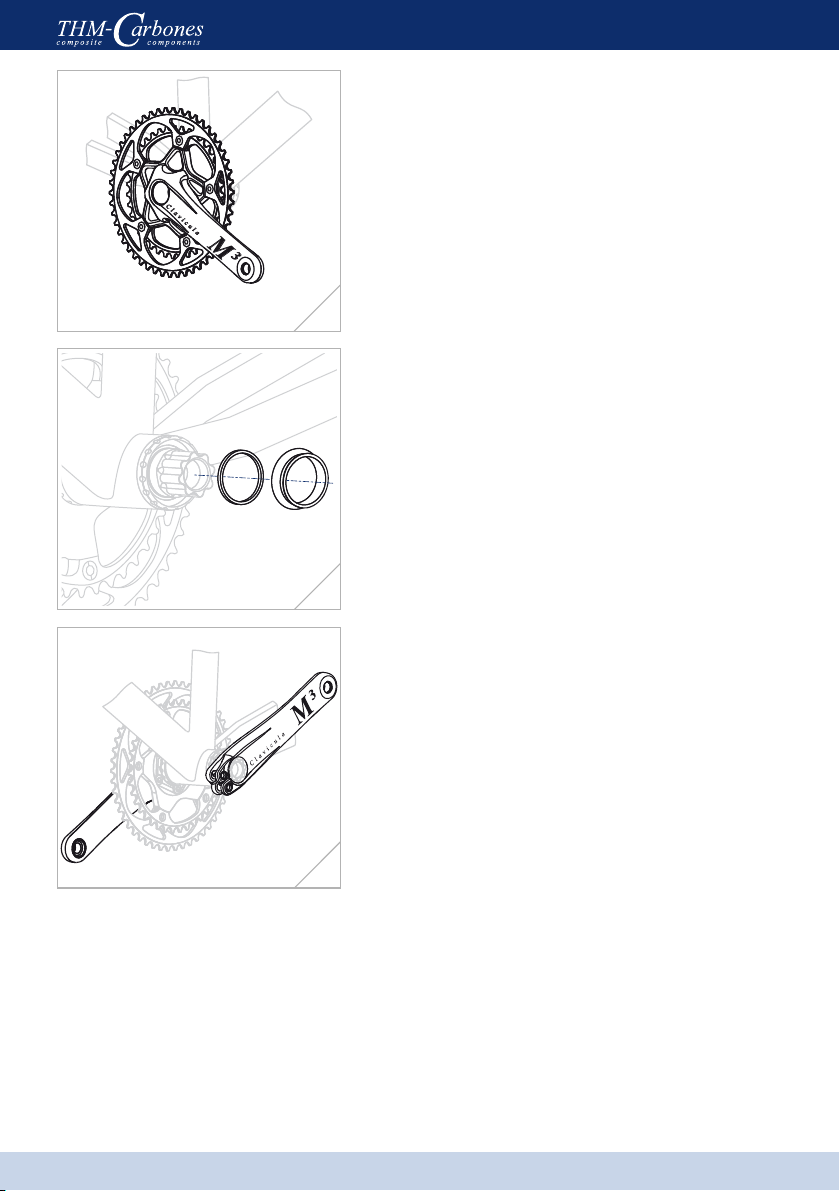

(fig. 1)

Clavicula M³

Assembly

Spacers

E-TYPE, Chainguide, …

Spacers

0 0

Front derail-

leur type

Clip-on/

braze-on

E-TYPE 1× 2.5mm + E-TYPE

Clamp

E-TYPE 0 + E-TYPE

Clip-on/

braze-on

Clamp 00

Clip-on/

braze-on

Anticlockwise Clockwise

1× 2.5mm

Bottom bracket housing

68.0mm (70.0mm)

73.0 mm

79.0 mm

84.0 mm

86.5 mm

89.5 mm Press-fit MTB sym. Clamp 1× 2.0mm 1× 2.0mm

92.0 mm Press-fit MTB asym. Clamp 1× 2.0 mm 0

Bottom bracket

Road BSA (ITA); BB30 Road; PressFit 30 Road

MTB BSA

BB30 MTB Clamp 1× 2.5mm

BB30 MTB; PressFit 30 MTB

MTB BSA

BBright™ PressFit Road

BBright™ Direct Fit Road

BBright™ PressFit MTB

Press-fit Road;Evo386 Road

2× 2.5mm

1× 2.5mm

Fig.

(A)

(B) (C) (D)

(A)

(E) (F)

(G)

–

(G)

(H)

(I)

(K)

Clavicula M³

Assembly

L R

20 kg

(44 lb)

40 N·m (354 lbf·in)

Installing the bottom bracket

Do not use the Clavicula Road in combination with an E-TYPE front derailleur! The THM socket wrench(1)(fig. 3), which can be used as a torque wrench, can be ob-

tained from us or from your specialised dealer.

 Measure the width of the bottom bracket housing of

your bicycle frame.

 Identify the type of front derailleur used on your

bicycle.

 Use the table to determine the correct number of

spacers for both sides of the bottom bracket –

see Spacers, page 13.

 Make sure that the securing bolt of the derailleur

cable guide does not protrude into the bottom bracket housing by more than 1mm.

 Apply grease to the threads and contact surfaces of

the bearing cups.

BSA/ITA

 Fit the correct number of spacers to the right-hand

bearing cup (R).

 Screw the right-hand bearing cup (R) – initially by

hand – into the right-hand side of the bottom bracket housing using an anti-clockwise (BSA) or clockwise (ITA) motion.

 Fit the correct number of spacers to the left-hand

bearing cup (L) (marked by groove).

 Screw the left-hand bearing cup (L) – initially by

hand – into the left-hand side of the bottom bracket housing using a clockwise motion (BSA & ITA).

(fig. 2)

 Tighten both bearing cups using a tightening torque

of 40N·m (354lbf·in).

 This torque corresponds to a manual force of

approx. 20kg (44lb) at the end of the THM bottom bracket tool.

(fig. 3)

Clavicula M³

Assembly

BB30/PressFit 30/BBright™ PressFit

3 2

5 4

20 kg

(44 lb)

40 N·m (354 lbf·in)

When dealing with BB30, PressFit 30 and BBright™ PressFit bottom brackets, the bearing cup with internal thread (2) or (4) is always located to the right, while the bearing cup with external thread (3) or (5) is always located to the left. –seeBottom bracket, page 9.

 Fit the correct number of spacers to the bearing

cup (2).

 Insert the bearing cup (2) or (4) by hand as far as

possible into the right-hand side of the bottom bracket housing.

 Fit the correct number of spacers to the bearing

cup (3).

 Screw the bearing cup (3) or (5) by hand as far as

possible into the right-hand bearing cup using a clockwise rotation.

 Make sure that both bearing cups are located cen-

trally in front of the bottom bracket housing.

(fig. 4, 5)

 Tighten the bearing cup (3) or(4) using a tightening

torque of 40N·m (354lbf·in).

 This torque corresponds to a manual force of

approx. 20kg (44lb) at the end of the THM bottom bracket tool.

(fig. 6)

Clavicula M³

Assembly

WARNING

789

Press-fit/EVO386

 Fit the correct number of spacers to the bearing

cups – see Spacers, page 13.

 Press both bearing cups simultaneously into the

bottom bracket housing as far as possible by using a suitable pressing tool (e.g. Park Tool

(fig. 7)

BBright™ Direct Fit

 Press both bearings simultaneously into the bottom

bracket housing as far as the housing stop by using a suitable pressing tool (e.g. Park Tool

(fig. 8)

Installing the spider

Road

The spider is positioned correctly when the two small contoured sections on the outer side are located next to the arm of the axle crank.

(fig. 9)

Risk of accident caused by a malfunctioning spider due to the use of hollow screws that are too long or too short.

-Only ever use original THM hollow screws when attaching the spider.

 Make sure that the hollow screw threads are provid-

ed with fresh, medium-strength thread lock.

 Always tighten the hollow screws in a crosswise

manner using a tightening torque of 6N·m (53lbf·in).

(fig. 10)

Clavicula M³

Assembly

MTB

WARNING

XX1

12 13 14

The spider is positioned correctly when the mounts for the chainwheel bolts are located symmetrically to the arm of the axle crank. When using the XX1 spider both of the mounts of the chainwheel bolts must point in the direction of the pedal eye.

Risk of accident caused by a malfunctioning spider due to an unsuitable lockring.

-Only ever use the original THM lockring when attaching the spider.

 Make sure the thread of the lockring is provided

with fresh, medium-strength thread lock.

 Use the THM lockring tool to tighten the lockring

with a tightening torque of 30N·m (266lbf·in).

SRM PowerMeter

(fig. 11)

(fig. 12)

If you have an SRM PowerMeter that you would like to use, please contact SRM directly to inquire whether it is compatible with your Clavicula M³. Always observe the installation instructions provided by SRM. Tighten the mounting screws (Road) or lockring (MTB) of the SRM PowerMeter by using the specified tightening torque; when doing this make sure you do not exceed a tightening torque of max.

6N·m (53lbf·in) (screws, Road (fig. 13)) or max. 30N·m (266lbf·in) (lockring, MTB (fig. 14)) under any

circumstances.

Clavicula M³

Assembly

NOTICE

Assembling the chainwheels

Danger of damage to the chainwheel mount or axle crank.

-The number of chainwheel teeth must never be below the minimum number required – see Size, page 10.

-Always mount 2 chainwheels on the outer chainwheel mount for the corresponding spi-

ders (Road, Road Compact, MTB 3-104/64) (fig. 15).

-Always observe the tightening torques specified by the manufacturer of the chain ring

bolts; however, do not exceed a max. tightening torque of 12N·m (106lbf·in) under any circumstances.

Installing the cranks

 Insert the corresponding spacer ring onto the axle -

only when using the following bottom brackets: BBright™ Direct Fit Road: 9.0mm. BBright™ PressFit MTB: 4.0mm. EVO386 Road: 1.0mm.

 Lightly grease the bearing seat (1) of the axle.

(fig. 16)

Clavicula M³

Assembly

 Insert the axle crank through the bottom bracket up

Road MTB

to its stop.

 Thoroughly degrease the axle and crank multi-tooth

(fig. 17)

segment.

 Insert the spacer ring onto the axle.

Road: 2.5mm MTB: 9.7mm

(fig. 18)

 Fit the left-hand crank to the multi-tooth segment of

the axle.

 Make sure the left and right-hand crank are seated

correctly!

 Press the cranks together by hand up to the limit

stop.

 Both cranks abut against the inner rings of the

bearings.

 Check the clearance between the cranks and the

(fig. 19)

chainstays of the frame.

 Minimum crank to chainstay clearance: 3mm

Clavicula M³

Assembly

NOTICE

Adjusting the bottom bracket

Accelerated bearing wear if the bottom bracket is set too rigidly due to excessive pre-tensioning of the adjusting screw.

-Only adjust the bottom bracket if the clamping screw(1) has been loosened! As a rule, the required tightening torque of the adjusting screw(2) for a correctly adjusted bottom bracket is approximately 0.3–1N·m (3 –9lbf·in).

 Screw the adjusting screw into the axis – when

doing this use the THM adjusting tool, the end of the THM bottom bracket tool or, if necessary, a suitable coin (such as a 1 Euro piece).

 Tighten the adjusting screw carefully and slowly

until the bottom bracket does not exhibit any play, but can still be turned easily by hand.

 Adjustment of the bottom bracket is now complete.

(fig. 20)

 Remove the clamping screw(1).  Apply a medium-strength thread lock (Loctite or

other similar substance) to the thread of the clamping screw.

 Replace the clamping screw.  Tighten the clamping screw using a tightening

torque of 8N·m (71lbf·in).

 Tighten the adjusting screw(2) using a tightening

torque of 6N·m (53lbf·in) to prevent it from becom- ing lost during travel.

(fig. 21)

 Installation of your Clavicula component is now

complete.

(fig. 22)

Clavicula M³

Assembly

Assembling the pedals

NOTICE

WARNING

Danger of damage to the carbon structure around the pedal threads.

-It is essential you do not confuse the RH and LH pedal!

-Do not exceed the maximum tightening torque for the pedals prescribed by THM – max. 20N·m (177 lbf·in)!

Right-hand pedal: Right-hand thread Left-hand pedal: Left-hand thread

 Apply grease to the threads of the pedals.  Assemble your pedals.

Finishing touches

Risk of accident caused by a malfunctioning crank system due to loose screw connections.

-Check the required tightening torque of all screw connections after the first 100 km – re-tighten the connections if necessary. Repeat this check every 2500 km!

Risk of accident caused by a malfunctioning crank due to wear.

-Do not continue to use your Clavicula component if the Clavicula lettering is abraded at one or more points (wear indicator).

Please note that if you use overshoes, or if there is an extremely small clearance between the brake shoe and crank, it will cause the crank surface to wear. This level of wear is increased significantly if the bike is used frequently in wet and dirty conditions! You can counteract this wear by sticking an appropriate protective film (Lizard Skins or other similar film) over the areas that are susceptible to wear. Check these areas for wear at regular intervals!

 Check the position and adjustment of the front

derailleur as well as the chain line. Readjust the front derailleur if required.

Clavicula M³

Maintenance

WARNING

NOTICE

Important maintenance information

If not properly performed, assembly and maintenance work could cause accidents resulting in death or serious injury.

-Do not overestimate your technical ability. All assembly and maintenance work should be performed by a specialist workshop for bicycles. This is the only way to ensure the work is conducted in a professional manner.

Improperly performed assembly and maintenance work could also result in a loss of your warranty rights (liability for defects)!

Risk of accident caused by damaged components.

-Never attempt to disassemble your THM-Clavicula component - only THM employees are authorised to do this.

-Always read and observe all of the assembly and maintenance instructions in this manual, as well as those provided in the manuals of other manufacturers whose products are used on your bicycle (e.g. frame, chainwheels, pedals, etc.).

-Always observe the minimum and maximum values specified – see Specifications, from page 8.

-Only use suitable, undamaged, high-quality tools.

-When conducting assembly steps that require a specific tightening torque, always use an appropriate torque wrench that is designed for the tightening torque specified.

Never use a high-pressure cleaner or steam cleaner to clean your bicycle, as the seals of your bicycle components are not able to withstand the pressure. If such cleaners are used, it would result in corrosion and material damage.

Never use caustic solvents (such as paint thinners, acetone, nitro compounds, etc.) as they can attack the surface of your THM components. Only use commercially available paint care products and water to clean your THM components. Spirit or petrol should be used carefully

- when using such products avoid excessive wiping and prolonged exposure times.

Clavicula M³

Maintenance

Always ensure your bicycle is maintained in a flawless condition. Care and maintenance will prolong the service life of your bicycle and its components and improve your personal safety!

If you suspect that your bicycle is defective or is not functioning properly, stop using it and contact a specialist bicycle workshop immediately!

Disposal

If THM components are defective or no longer in use, you can dispose of them with your non-recyclable waste or domestic refuse, or ask a local waste disposal company for other disposal methods (e.g. recycling).

Clavicula M³

Maintenance

WARNING

NOTICE

Before each trip

Risk of accident due to material damage or assembly error.

-Check your THM components before each journey to ensure the bonded joints are completely undamaged. Send us your THM components for inspection before further use if damage is visible (cracks, fractures, clicking sounds, wobbling, etc.) or if you are in any doubt about their functionality.

-Do not exceed the maximum overall weight for which your THM components have been approved – see Size, page 10.

Checking the bottom bracket clearance

Risk of damage to the bearings.

-Never try to remove the bearing seals from the bottom bracket.

-Your THM bottom bracket is elaborately sealed and provided with permanent lubrication. There is no need to re-lubricate the bearings!

 Grasp both cranks of your bicycle.  Try to move the cranks to the left and right.

 If you feel bearing play, it means that the bottom

bracket is loose and needs to be adjusted immediately – see Adjusting the bottom bracket, page 20.

 Now shift the chain onto the smallest chainwheel.  Remove the chain from the chain ring and place it

onto the bottom bracket housing.

 The bottom bracket can now be rotated freely.

 Use two fingers to grasp one of the cranks directly

by the bottom bracket axle and rotate the axle in its bearing.

 If the bottom bracket axle rotates with perceptible

resistance, it means that the bottom bracket is too tight and must be adjusted immediately –

see Adjusting the bottom bracket, page 20.

Clavicula M³

Maintenance

Regular maintenance

WARNING

NOTICE

The maintenance intervals required for your bicycle depend on how often and in which weather conditions it is used. The following maintenance measures should be conducted more frequently if the bicycle is used in extreme conditions (rain, dirt, long distances, etc.). When conducting regular maintenance procedures make sure your bicycle is always clean and well protected by lubricants and cleaning agents. Ask your specialist dealer about appropriate lubricants and cleaning agents as well as information relating to their correct application.

Risk of accident caused by a malfunctioning crank system due to loose screw connections.

-Check the required tightening torque of all screw connections after the first 100 km - retighten the connections if necessary. Repeat this check every 2500km!

Risk of accident caused by a malfunctioning crank due to wear.

-Do not continue to use your Clavicula component if the Clavicula lettering is abraded at one or more points (wear indicator).

Risk of accident caused by malfunctioning brakes.

-After conducting any cleaning, maintenance or repair work make sure that the braking rims of your wheels are free from lubricants (such as grease, oil, silicon, Teflon, wax or other similar agents).

Never use a high-pressure cleaner or steam cleaner to clean your bicycle, as the seals of your bicycle components are unable to withstand the pressure. This will result in corrosion and material damage.

If you are using a hose, handle it with care - never aim the hose directly at the bearing components (fig. 1).

 Clean your THM-components at regular intervals by

using water and a non-abrasive, environmentallyfriendly cleaning agent.

 When cleaning your THM components always

check for signs of damage (dents, cracks, scratches, large abrasions, worn areas, etc.).

 Periodically preserve the surface of your THM com-

ponents using a high quality protecting wax or other similar agent.

Clavicula M³

Maintenance

2 1

4 3

8 mm

Dismantling the bottom bracket

BB30/PressFit 30

When dealing with BB30, PressFit 30 and BBright™ PressFit bottom brackets the bearing cup with internal thread (1) or (3) is always located to the right, while the bearing cup with external thread (2) or (4) is always located to the left.

(fig. 2, 3)

 Loosen the bearing cup(2) or (3) using an anti-

clockwise rotation until there is a gap of approx. 8

mm between the bearing cup and bottom bracket housing.

(fig. 4, 5)

Clavicula M³

Maintenance

 Use a rubber mallet to carefully tap the bearing

2 1

6347

cup(2) or (3) until the bearing cup(1) or (4) is freed from the bottom bracket housing.

 Now twist the bearing cups apart by hand and re-

move these from the bottom bracket housing.

Press-fit/ EVO386/BBright™ Direct Fit

(fig. 6, 7)

Remove the Press-fit / EVO386 / BBright™ Direct Fit bottom bracket by using a suitable extraction tool (e.g. Shimano

TL-BB13).

Clavicula M³

Legal

Please contact us before returning a defective THM product! If products are returned without our previous agreement, the shipping costs incurred will be charged to your account and, furthermore, we also reserve the right to refuse acceptance of the product.

When returning a defective THM product to us please ensure adequate postage costs are provided. Any shipment which is not prepaid will be rejected and returned to the sender!

Liability for defects

We provide a warranty for all THM products which covers material and processing defects.

We will replace defective products at no cost to the user within this period. The liability period starts at the time the relevant THM product was purchased. Liability does not extend to any kind of damage caused by normal wear and tear, accidents, unauthorised modifications, negligence or improper handling and use. Liability shall expire if repair work or any other work on the THM product has been

conducted by unauthorised persons. The same shall also apply to any direct or indirect damage resulting from an action

described in the preceding sentence.

Fair deal promise

Minor damage to your even after expiration of the legal liability period, provided that the work required does not exceed 0.5 hrs.

The decision regarding whether or not a repair is to be carried out free of charge rests solely with us. If the damage has been self-inflicted, there is no entitlement to free repair work!

In the event of self-inflicted damage please send us the product concerned for inspection. After we have assessed the overhead for the required repair, we will either perform the repair free of charge, or we will send you a cost estimated. It is then up to you to decide whether or not to go ahead with the repair work.

THM products

will be repaired by our workshop free of charge

Crash Replacement

In the event of irreparable damage (e.g. caused by accident) we will provide a 40% discount from the respective list price if you purchase a new THM product as a replacement.

The relevant claim must be forwarded directly to THM Faserverbund-Technologie GmbH. The irreparable product shall then remain our property.

The company product designs as technical developments continue. We therefore reserve the right to make alterations which must not correspond to the text and illustration contained in this manual, and without incurring obligation to alter any products previously delivered.

Technical specifications, dimensions and weights are to be understood with the corresponding allowances.

Reproduction or translation of this publication, in whole or in part, is not permitted without the written consent of the company

All rights under the provisions of the copyright act are reserved.

THM Faserverbund-Technologie GmbH

THM Faserverbund-Technologie Gmb

is constantly striving to improve

THM Faserverbund-Technologie GmbH Am Sportplatz 3 D

- 24791 Alt Duvenstedt

 +49 4338 99 94-123

 +49 4338 99 94-122

info@thm-carbones.com www.thm-carbones.com

THM Clavicula M3 Instruction Book

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Preface

Safety

Intended use

Fundamental safety precautions

Assembly & maintenance

On the road

Transport & storage

Specifications

Scope of delivery

Bottom bracket

Size

Tightening torques

Application area

Assembly

Installing the Clavicula

Preparing the frame

Spacers

Installing the bottom bracket

BSA/ITA

BB30/PressFit 30/BBright™ PressFit

Press-fit/EVO386

BBright™ Direct Fit

Installing the spider

Assembling the chainwheels

Installing the cranks

Adjusting the bottom bracket

Assembling the pedals

Finishing touches

Maintenance

Important maintenance information

Disposal

Before each trip

Checking the bottom bracket clearance

Regular maintenance

Dismantling the bottom bracket

Legal

Liability for defects

Fair deal promise

Crash Replacement
